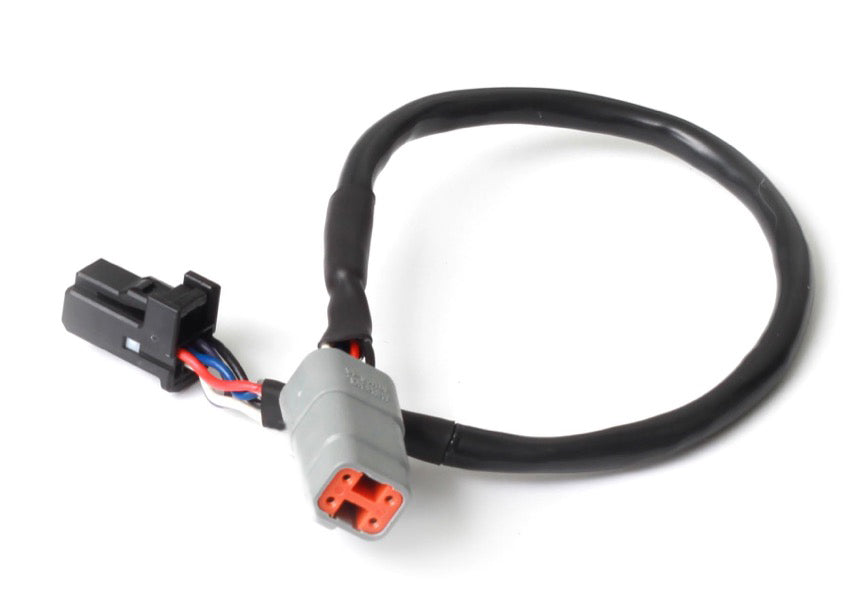

Haltech Elite CAN Cable DTM-4 - 8 pin Blk Tyco 3000mm (120") Length: 3000mm (120")

Overview

Professional-grade CAN bus cable connecting your Haltech Elite ECU to secondary controllers and displays across extended chassis layouts. This 3-metre DTM-4 to 8-pin Tyco cable delivers rock-solid CAN communication for race cars, drag builds, and complex street machines where standard harness lengths fall short.

Technical Specifications

• Part Number: HT-130038
• Length: 3000mm (120")
• Connector A: DTM-4 Pin Male
• Connector B: 8-Pin Black Tyco
• Cable Type: Twisted pair CAN bus specification
• Operating Temperature: -40°C to +125°C

Why You Need This

CAN bus networks are the backbone of modern engine management, linking your Elite ECU to wideband controllers, dash displays, PDMs, and auxiliary modules. Standard harness lengths often fall short in proper builds — mid-engine swaps, rear-mounted ECU installations, or race cars with dashboard-mounted displays all demand extended CAN routing. Bodged extensions using household wire create signal degradation, data dropouts, and intermittent faults that'll drive you mad during tuning sessions.

This purpose-built 3-metre cable eliminates routing compromises. We see it constantly on LS swaps in Datsuns where the ECU mounts in the boot, RB-powered drift cars with rear ECU mounting, and drag builds where displays need reaching to the rollcage area. The DTM-4 connector interfaces directly with Elite ECUs, whilst the 8-pin Tyco end connects to Haltech's WB1/WB2 wideband controllers, IC-7 displays, and other CAN-enabled accessories. Proper twisted-pair construction maintains signal integrity across the full 3-metre run, crucial for reliable data transmission during high-RPM pulls and race conditions.

ECU & System Compatibility

Compatible with the complete Haltech Elite range including Elite 550, 750, 1000, 1500, 2000, and 2500 ECUs. Interfaces seamlessly with WB1/WB2 wideband controllers, IC-7 displays, and other Haltech CAN-enabled devices. Contact our technical team to confirm compatibility with your specific system architecture and routing requirements.

What's in the Box

• Haltech Elite CAN Cable DTM-4 to 8-pin Black Tyco (3000mm length)
• Protective connector boots
• Haltech technical documentation

Complete Your Build

Most customers extending CAN networks also require additional wideband controllers, dash displays, or PDM units to justify the extended routing. Our technical team can specify the complete CAN architecture for your build, ensuring proper termination and signal integrity across complex multi-device networks. With comprehensive Haltech stock at our UK facility and expert pre-sales guidance from tuners who've wired countless Elite installations, we'll get your CAN network specification right first time.
