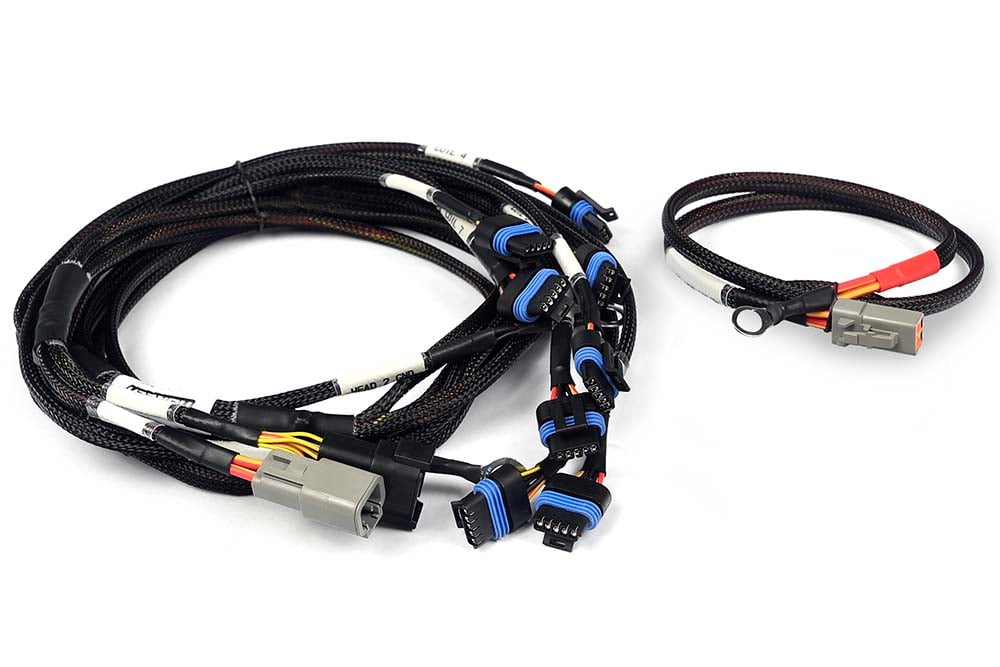

Nexus V8 IGN-1A Ford Harness

Overview

The Nexus V8 IGN-1A Ford Harness delivers plug-and-play connectivity between your Haltech Nexus ECU and Ford V8 IGN-1A inductive coils, eliminating the guesswork from coil-on-plug ignition upgrades. Purpose-built for high-output Ford applications, this harness ensures reliable spark delivery whether you're running a naturally aspirated Coyote build or forced induction Windsor swap.

Technical Specifications

• Part Number: HT-186061
• Application: Ford V8 engines with IGN-1A coils
• Coil Type: High Output IGN-1A Inductive
• Configuration: 8-cylinder coil-on-plug
• Wire Gauge: OEM specification with upgraded insulation
• Connector Type: Ford OEM coil plugs

Why You Need This

Ford V8 ignition conversions demand proper coil control, especially when moving from factory PCM to standalone management. The IGN-1A coils are proven performers on everything from Coyote crate swaps to built Windsor strokers, but they need the right interface to your Nexus ECU. Generic harnesses often use incorrect wire gauges or poor-quality connectors that create voltage drop under load — exactly what you don't want when pushing serious power or running aggressive timing maps.

We've seen too many Ford builds suffer from misfires and inconsistent ignition timing due to inadequate wiring. This factory-spec harness eliminates those issues with proper conductor sizing and OEM-quality connectors that maintain signal integrity. Whether you're building a daily-driven Mustang with a Nexus R5 or a dedicated track weapon running methanol injection, reliable ignition timing is non-negotiable. The IGN-1A coils can handle the energy demands of high-compression or boosted applications, but only when properly connected.

ECU & System Compatibility

Designed specifically for Haltech Nexus R3 and R5 ECUs managing Ford V8 applications. The harness integrates seamlessly with Nexus ignition outputs, allowing full control over timing maps, knock detection integration, and advanced features like cylinder-specific timing trim. Contact our technical team to confirm compatibility with your specific Nexus model and Ford engine combination.

What's in the Box

• Nexus V8 IGN-1A Ford Harness (complete 8-cylinder loom)
• OEM-specification coil connectors
• ECU-side connector assembly
• Installation documentation

Complete Your Build

Most customers running Ford V8 Nexus conversions also require our Haltech IGN-1A coil packs and appropriate trigger wheel setups for their specific Ford engine. Our technical team stocks the complete Nexus range and can recommend the ideal ECU configuration for your Ford application. With UK stock and expert pre-sales advice, we'll ensure your ignition system is properly matched to your power goals and fuel requirements before you start the build.
