Haltech

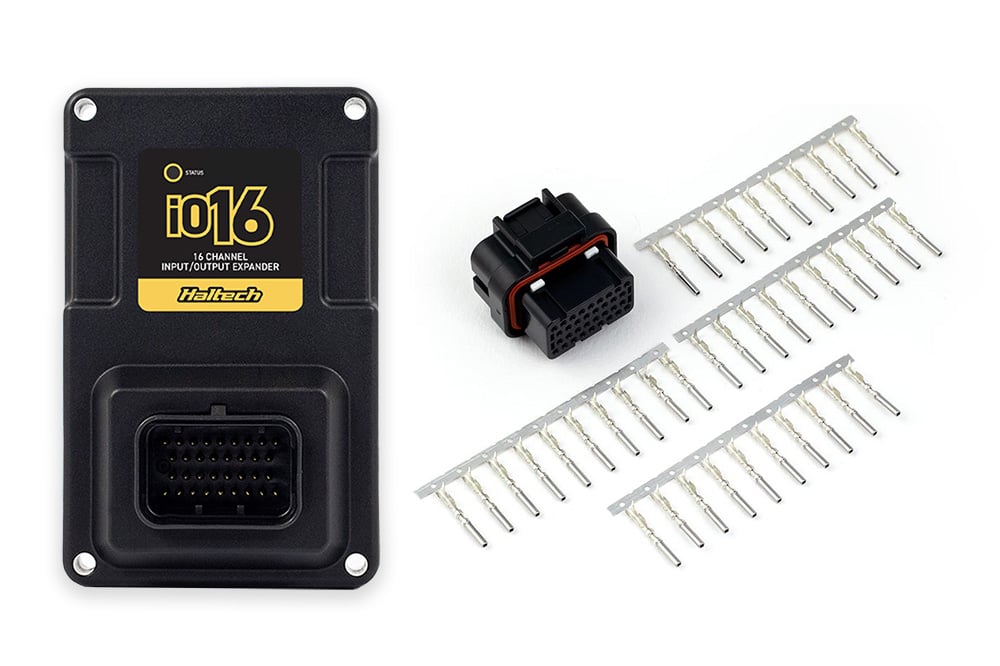

Nexus IO16 + Plug and Pin Set

£414.00 GBP inc VAT
Shipping calculated at checkout.
SKU: HT-196100
Delivery ETA: Jan 04 – Jan 08
Backorder. We will confirm dispatch timings after checkout.
Build check

Is this right for your build?

Unsure if this is the right choice for your car or project? The Billy's team can check fitment, supporting parts and make recommendations before you purchase.

This message will include the product details and SKU you are currently viewing so we can talk about the exact parts in front of you.

Email my build details

We regularly support complex conversions and high value engine and driveline packages. If anything in your plan looks like it wont fit or incomplete, we will highlight it and suggest alternatives.

View details
1 / 1
Press & drag to view

Product Details

🔧

Vehicle Compatibility

Fits Nexus IO16 + Plug and Pin Set.

Please refer to manufacturer specifications for complete compatibility information.

⭐

Key Features

Overview

The Nexus IO16 is a Haltech CAN device that expands the functionality of a Haltech Nexus or Elite ECU by adding 16 user-configurable input and output channels, accessible through the Haltech CAN system.
Plug and Pin set compatible with Haltech Nexus products that use the Key 2 / 34 position connector.

Features

INPUTS
6 x Analogue Voltage Inputs (AVI)
  • 0-5V readable range
  • Selectable 1k pull-up resistor to 5V
4 x Synchronised Pulsed Inputs (SPI)
  • Reluctor/Digital
  • 0-5V readable range
  • Selectable 1k pull-up resistor to 5V
OUTPUTS
6 x Half Bridge Outputs (HBO)
  • 8A current (sink/source)
  • Capable of 0-100% duty cycle
  • 2.2khz switching speed
  • NOT suitable for DBW throttle application
WARNING - When using HBOs, ensure the Nexus IO16 is powered using the constant power pins and power ground pins.
OTHERS
  • 3 x 5V output (sensor power)
  • 4 x Sensor ground
Note: Any 5V and sensor ground pins can be paired when wiring sensors.
🎬

Product Videos

No videos available for this product.

📋

Product Specifications

📦

Package Contents

Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
