APRPart ms100106✓ Fits 17 vehiclesMade in CN
Product Details
⚙️
Vehicle Fitment & Compatibility
17 applicationsCompatible Engines
2.0L L41.8L L42.5L L5
View all 17 vehicle applications
Years
Make / Model
Submodel
Engine
2006–2013
Audi A3
2.0L L4
2009–2013
Audi A3 Quattro
2.0L L4
2015–2018
Audi Q3
2.0L L4
2015–2018
Audi Q3 Quattro
2.0L L4
2008–2009
Audi TT
2.0L L4
2009–2015
Audi TT Quattro
2.0L L4
2009–2015
Audi TTS Quattro
2.0L L4
2012–2019
Volkswagen Beetle
2.0L L4
2014–2017
Volkswagen Beetle
1.8L L4
2009–2017
Volkswagen CC
2.0L L4
2007–2016
Volkswagen Eos
2.0L L4
2006–2014
Volkswagen GTI
2.0L L4
2010–2014
Volkswagen Golf
2.0L L4
2010–2014
Volkswagen Golf
2.5L L5
2012–2013
Volkswagen Golf R
2.0L L4
2006–2018
Volkswagen Jetta
2.0L L4
2006–2010
Volkswagen Passat
2.0L L4
No applications match your search.
⭐
Key Features
Fits Audi A3 06-13, A3 Quattro 09-13, Q3 15-18, Q3 Quattro 15-18, TT 08-09, TT Quattro 09-15, TTS Quattro 09-15; VW Beetle 12-19, CC 09-17, Eos 07-16, Golf 10-14, Golf R 12-13, GTI 06-14, Jetta 06-18, Passat 06-10

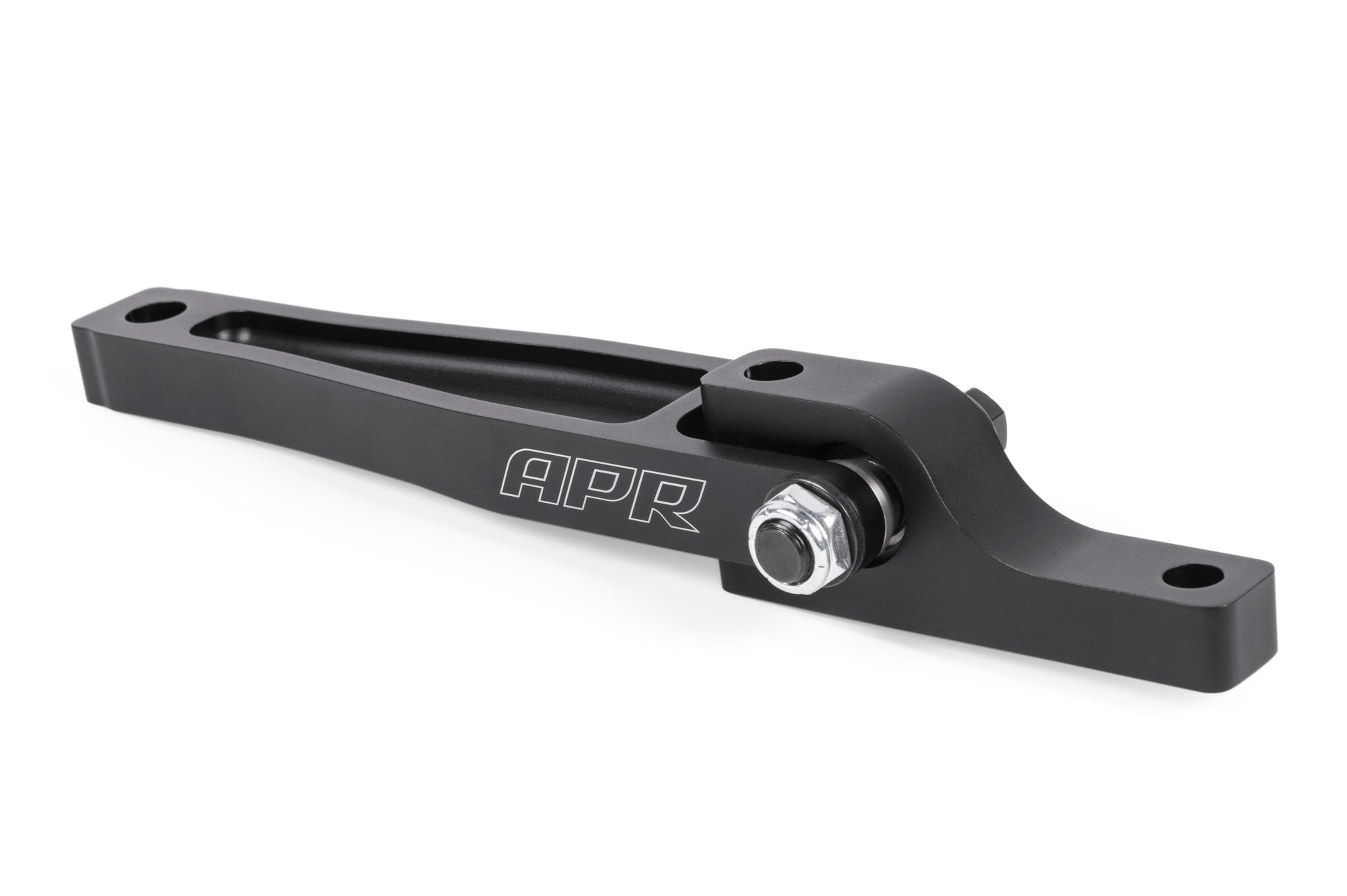

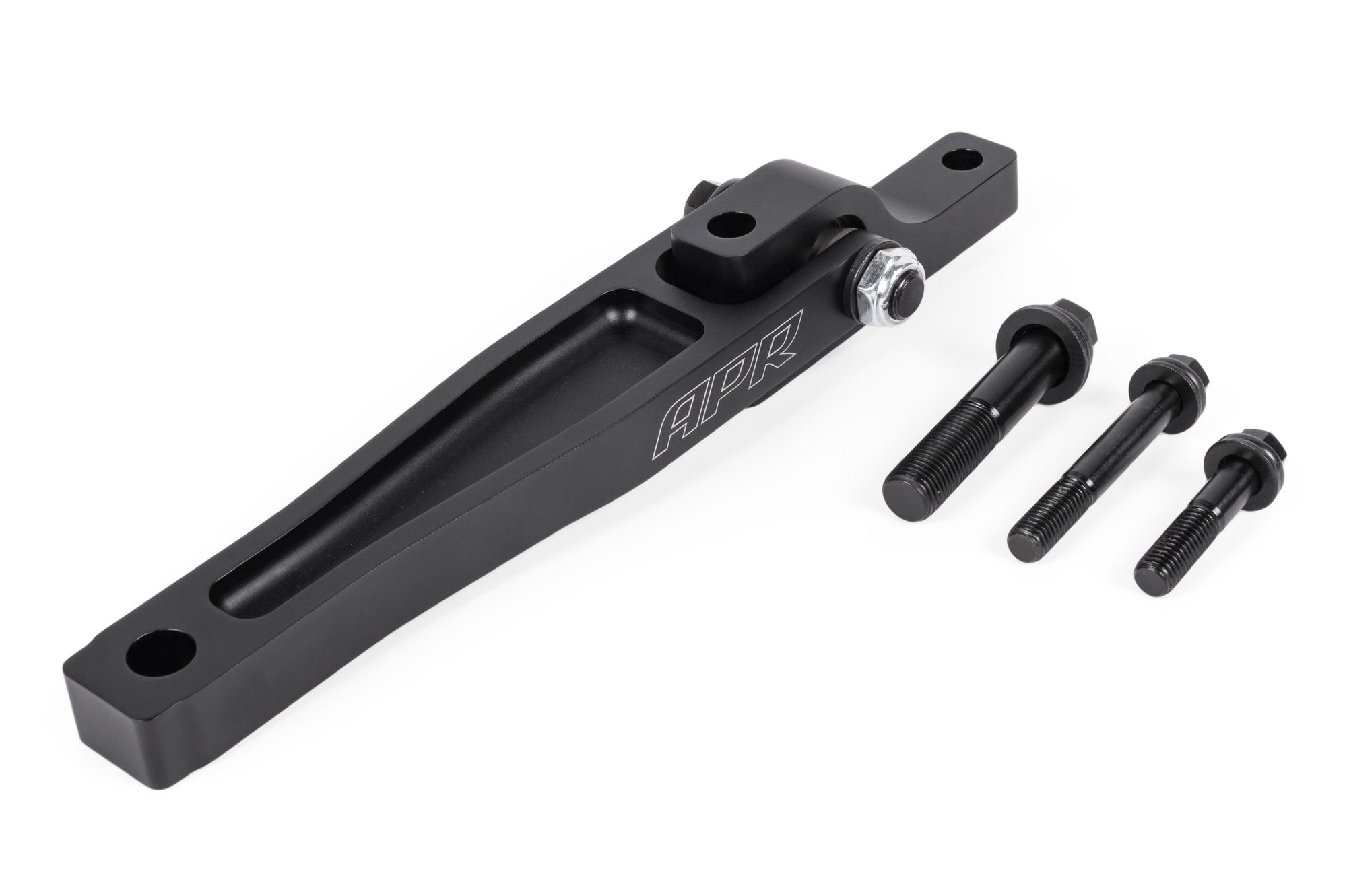

The APR Pendulum mount replaces the factory mount with a new, thick, billet-aluminum two-piece design, featuring a PTFE-lined spherical bearing and ARP® bolts. The system stiffens the driveline to improve shift quality and power transition, while addressing the common and costly factory failure point at the transmission mounting location. It is easy to install, addresses all concerns with the factory setup and includes all necessary hardware to bolt on and enjoy!
Fits Audi A3 06-13, A3 Quattro 09-13, Q3 15-18, Q3 Quattro 15-18, TT 08-09, TT Quattro 09-15, TTS Quattro 09-15; VW Beetle 12-19, CC 09-17, Eos 07-16, Golf 10-14, Golf R 12-13, GTI 06-14, Jetta 06-18, Passat 06-10
- Reduces transmission movement
- By removing the factory rubber bushing, the APR system reduces slop in the driveline to improve shifts, and transmission of power to the ground.
- Expect a sportier feel during acceleration, deceleration and gear changes without an excessive increase in NVH when paired with the factory sub-frame mount.
- Reduces transmission failure
- The factory rear mounting point was upgraded to the new MQB / MK7 platform style mount as the older design was prone to failure under heavy use.
- Because of the new design's mounting orientation, the system is far less likely to tear out or break the rear bolts, which typically results in costly repairs or full transmission case replacement.
- Spherical bearing
- Spherical bearings offer far less unwanted movement over rubber and polyurethane inserts.
- As such, the APR mount uses a spherical bearing, made possible by upgrading the rear mounting hardware.
- The bearing is fully-serviceable, features a heat-treated race and precision-ground ball, with a self-sealing and self-lubricating PTFE lining.
- Billet aluminum construction
- The front and rear pieces replace the factory cast aluminum and stamped steel pieces with precisely machined, billet-aluminum pieces that are both lightweight and strong.
- Each piece is anodized black to provide corrosion resistance and the APR logo is laser etched on each side.

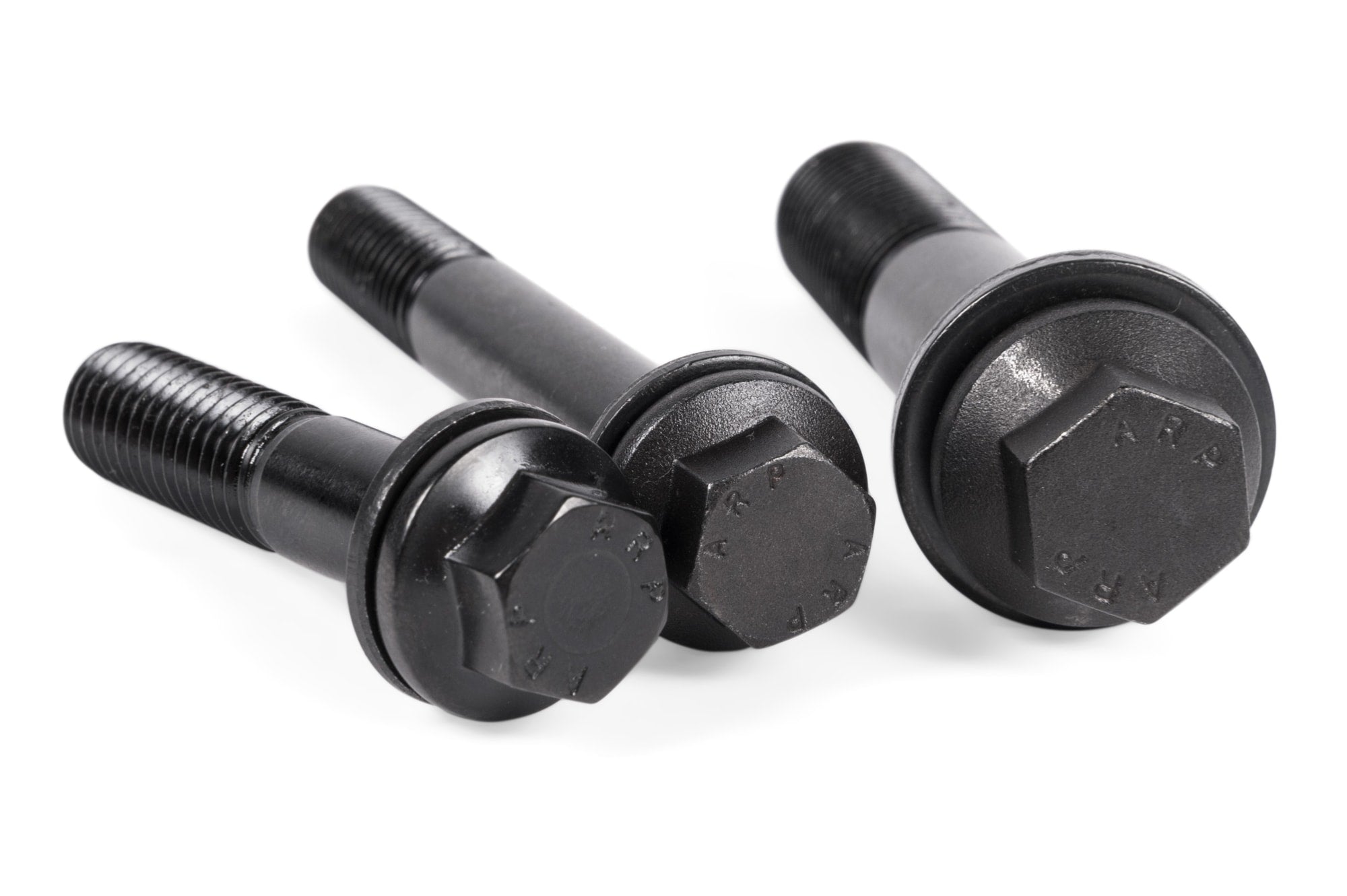

- Replacement Bolts
- The factory bolts are one-time-use, and must be replaced when installing a new mount.
- The APR system includes non-one-time-use bolts for their strength, quality and longevity over the factory bolts.
- Easy to install
- The system is easy to install, doesn't require dropping the sub-frame and is compatible with the factory and factory-like modified sub-frame mounts.
- Full install directions are included with each system
📖
About this product
Fits Audi A3 06-13, A3 Quattro 09-13, Q3 15-18, Q3 Quattro 15-18, TT 08-09, TT Quattro 09-15, TTS Quattro 09-15; VW Beetle 12-19, CC 09-17, Eos 07-16, Golf 10-14, Golf R 12-13, GTI 06-14, Jetta 06-18, Passat 06-10
📋
Product Specifications
Brand
APR
Bushing
Spherical Bearing
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Suspension
Color
Black
Construction
Billet
Emission Code
6
Material
6061 Aluminum
Part Type
Suspension Subframe Mount
Product Type
Suspension Systems (Mounts)
Prop 65 Yes/No
Yes
Sub Category
Suspension
Transmission Application
PQ35 6 Speed & DQ250
Warning
California Proposition 65
🛡️
Warranty & Compliance
Warranty
1 months · Warranted to be free from defects in the materials and workmanship prior to installation
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
6
HS Code
8708401110
📐
Dimensions & Shipping
Product Dimensions
12.0 × 12.0 × 4.0 in
Shipping Dimensions
12.0 × 12.0 × 4.0 in
Weight
1814 g (1.81 kg)
