APRPart ms100195✓ Fits 3 vehiclesMade in DE
Product Details
⚙️
Vehicle Fitment & Compatibility
3 applicationsCompatible Engines
2.5L L5
View all 3 vehicle applications
Years
Make / Model
Submodel
Engine
2017–2020
Audi RS3
2.5L L5
2022–2026
Audi RS3
2.5L L5
2018–2022
Audi TT RS Quattro
2.5L L5
No applications match your search.
⭐
Key Features
On the 2.5 TFSI EA855 EVO the injector is plug-and-play with software. On the EA888 Gen 3, the injector is plug-and-play, with software, on models that include factory MPI injection. On models without factory MPI injection, more components are required. I

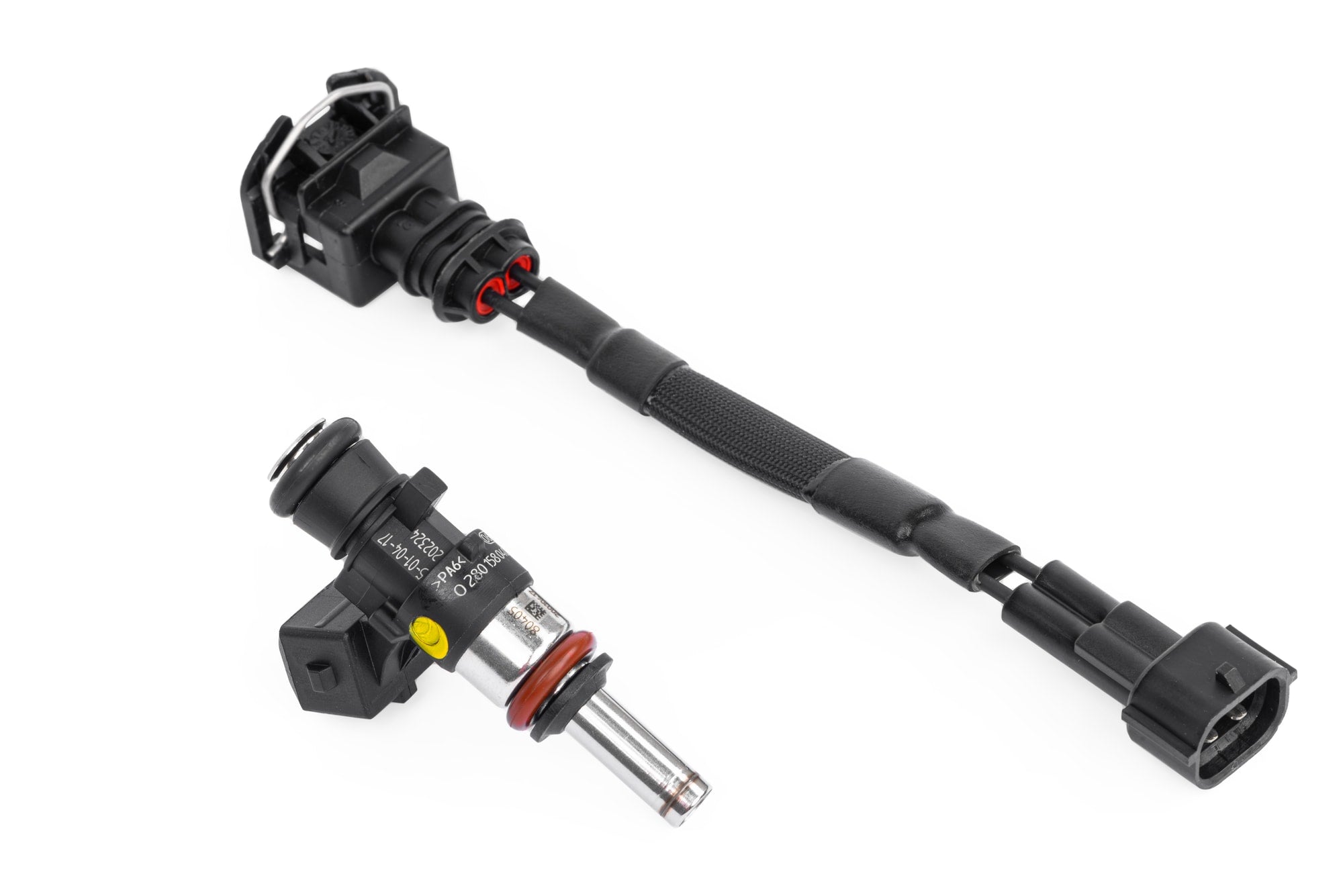

High horsepower configurations often require more fuel, especially on applications where ethanol is used. The APR 980cc MPI Injector Upgrade Kit includes an upgraded high-flow multiport injection (MPI) injector and harness necessary to satisfy high horsepower builds. The kit uses a compact and extended tip Bosch EV 14 injector that supports Ethanol and Methanol and flows 980cc/min at 3 bar. A high quality 2 wire harness with braided wire sheathing converts the Bosch Jetronic connector to the necessary factory style connector making this upgrade plug-and-play with an associated ECU upgrade.
Fits Audi RS3 17-24, TT RS Quattro 18-22

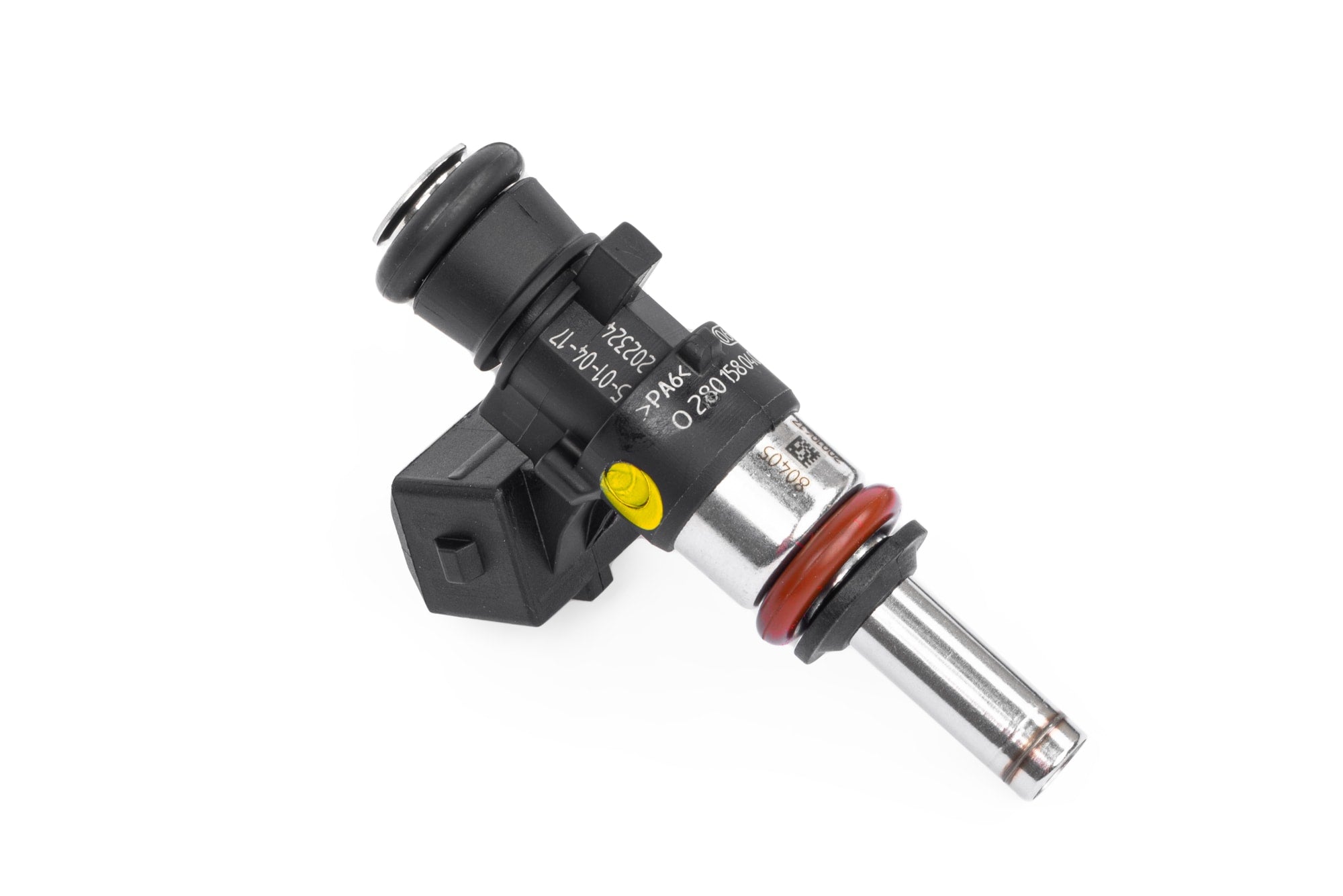

- Bosch EV 14 CKxT MPI injector (0280 158 040)

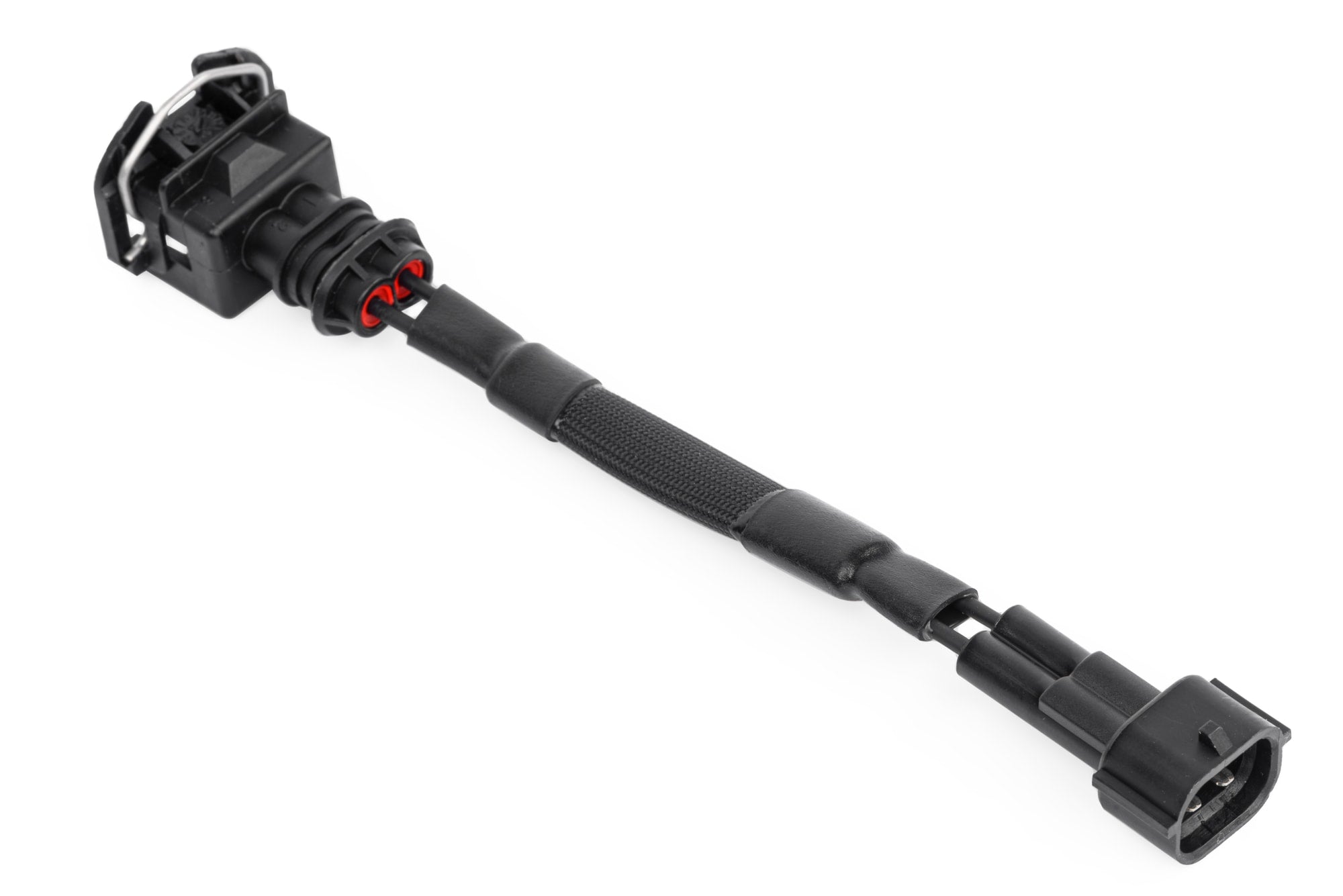

- APR Bosch Jetronic to OEM 2 pin harness
- 980cc/min, 670g/min, or 89lb/hr @ 3 bar (n-heptane)
- Supports up to 8 bar of use in motorsport configurations
- E85 and M100 compatible
- 30° single cone spray angle with 0° bent angle and 0° gamma angle
- 33.6mm compact body

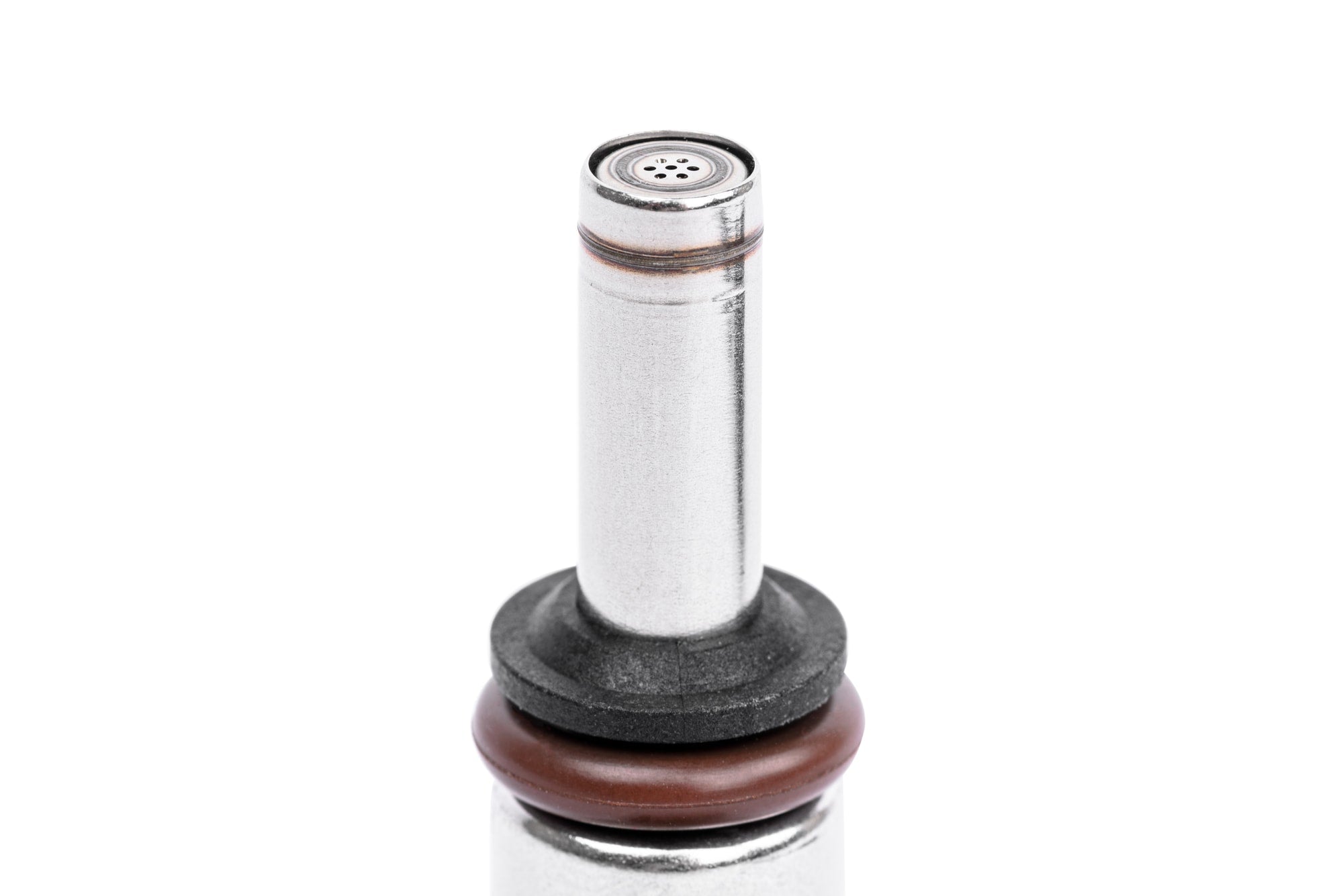

- 24mm extended tip nozzle
- Top-feed injector
- 12 ohm coil resistance
- 150 mm long harness with braided wire sheathing
- ECU software required for use
- Plug-and-play on 2.5 EA855 EVO & 2.0T EA888 Gen 3, where supported
📖
About this product
Fits Audi RS3 17-24, TT RS Quattro 18-22
📋
Product Specifications
Brand
APR
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Air and Fuel Delivery
Connector
Bosch Jetronic to OEM
Direct Fit
Yes
Emission Code
7
Max Pressure
8
MPI Injector CC
980cc/min @ 3 bar
MPI Injector Count
1
Part Type
Fuel Injector Kit
Product Type
Fuelings Systems (Kit)
Prop 65 Yes/No
Yes
Sub Category
Service Kits
Warning
California Proposition 65
🛡️
Warranty & Compliance
Warranty
1 months · Warranted to be free from defects in the materials and workmanship prior to installation
Country of Origin
DE
⚠ Prop 65 Warning
Yes
1
Emissions Code
7
HS Code
8409919990
📐
Dimensions & Shipping
Product Dimensions
9.0 × 7.0 × 5.0 in
Shipping Dimensions
9.0 × 7.0 × 5.0 in
Weight
454 g (0.45 kg)
