RESONATOR, 3" IN/OUT OFFSET, 311X240X110 - APR Premium Helmholtz Resonator - 76mm (3")

Regular price £367.00 GBP inc VAT
Shipping calculated at checkout.
SKU: muh0021

Stock Levels:

Checking stock levels…
🇬🇧 UK warehouse
🇺🇸 US warehouse
Estimated Delivery


View details
APRPart muh0021Made in CN

Product Details

Key Features

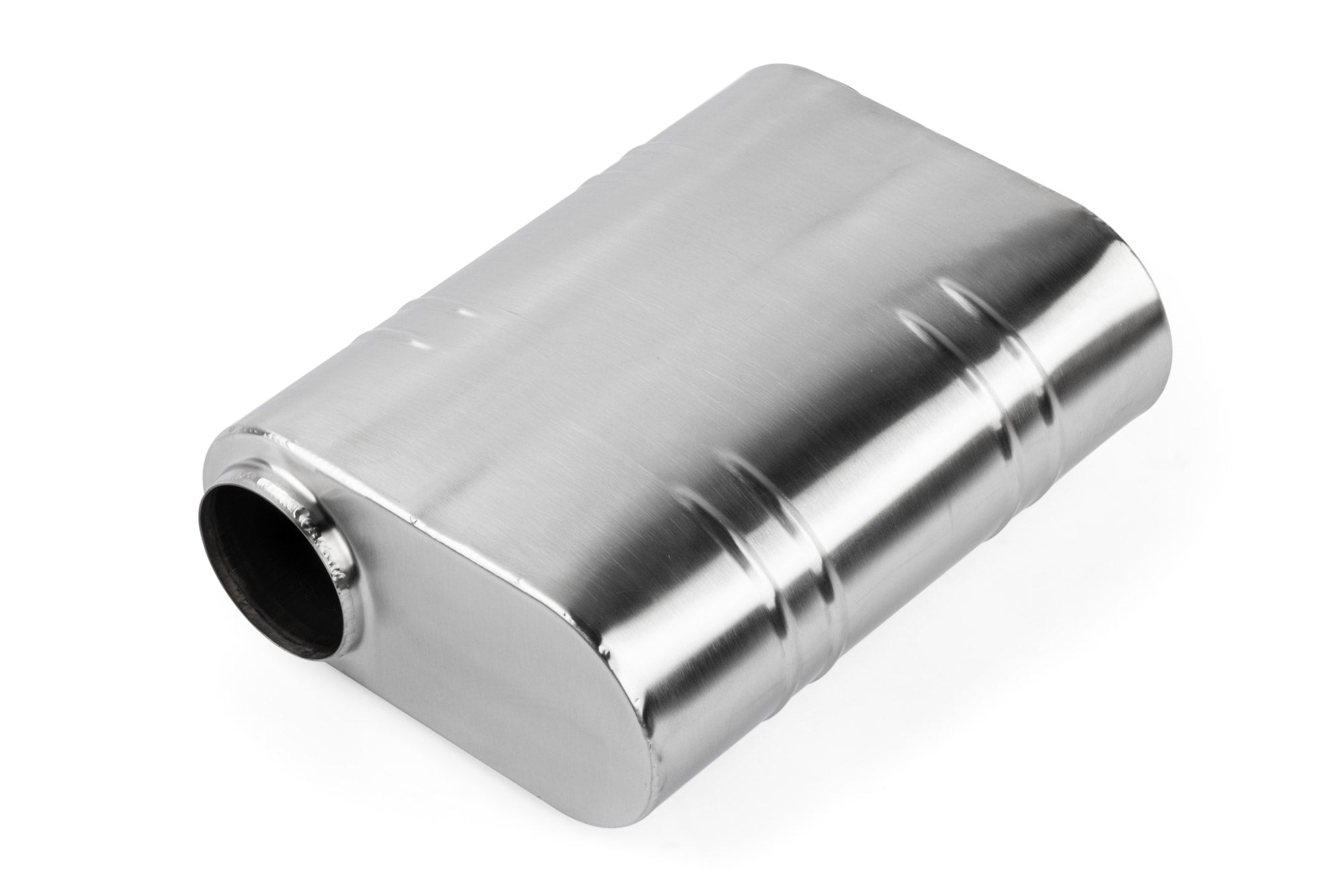

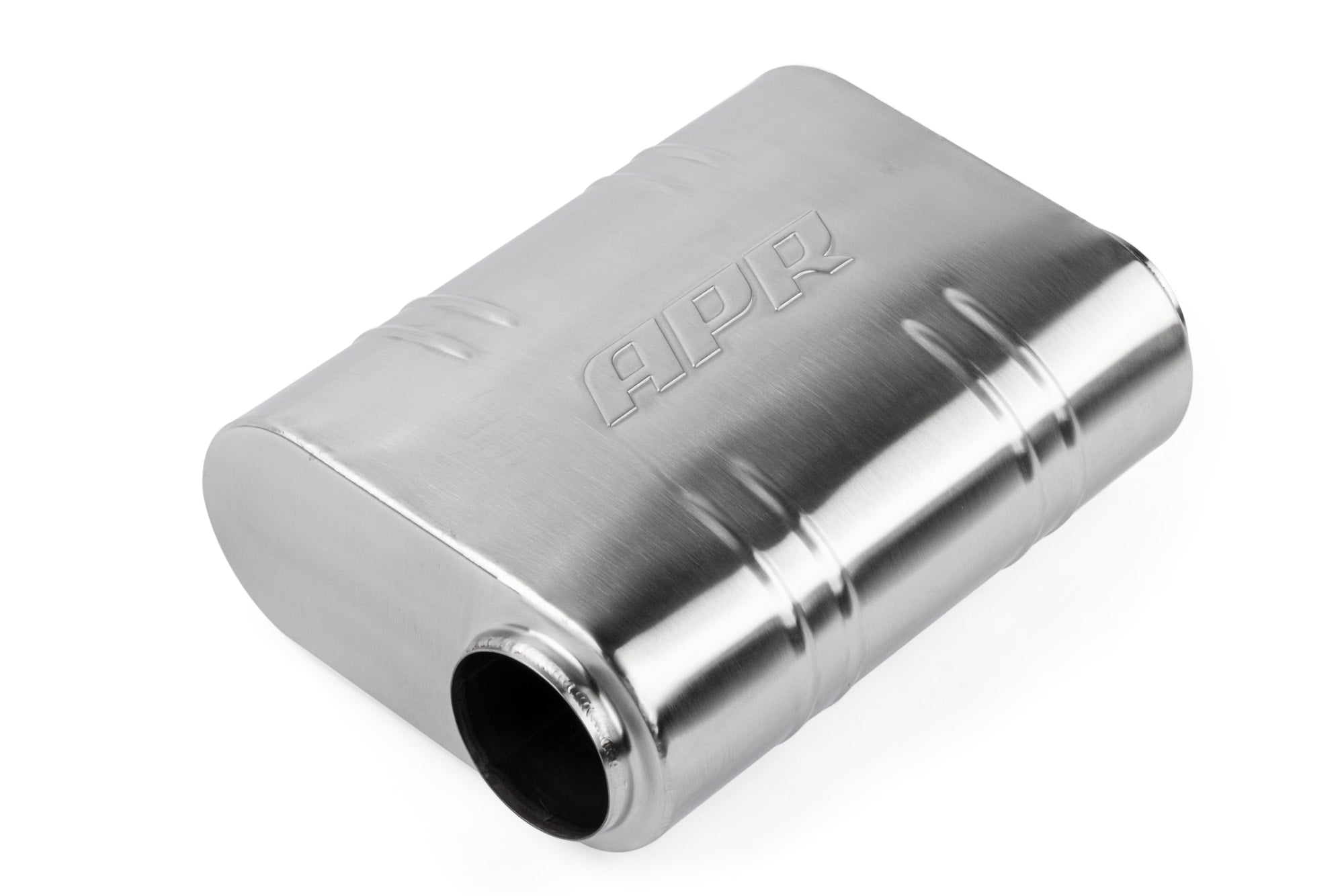

T304 stainless steel with straight-through 76mm (3") design with offset inlet and outlet. Rounded square body 311mm (12.24") x 240mm (9.45") x 110mm (4.33").

APR's premium line of Helmholtz Resonators are now available! Perfect for the do-it-yourself enthusiast fabricating a custom exhaust system, these resonators target and cancel out specific frequencies that create drone. | Internally the system is open with an small offshoot path leading to the main chamber designed to bounce soundwaves back into the exhaust flow path to eliminate unwanted frequencies. The main exhaust path is a straight through 76mm (3") pipe with offset inlet and outlet. There are no harsh twists, turns, or baffles to slow exhaust flow. You'll get full uninterrupted flow for maximum power. | The whole system is made from T304 stainless steel and features strong and attractive TIG-welding throughout. The system is stamped with an APR logo and rolled with two sets of double ridges for additional structural strength and killer looks. To top it off, each system is fully brushed clean providing an attractive premium finish.

T304 stainless steel with straight-through 76mm (3") design with offset inlet and outlet. Rounded square body 311mm (12.24") x 240mm (9.45") x 110mm (4.33").

  • T304 stainless steel construction
  • Unrestrictive straight through design
  • Helmholtz Resonator for frequency (drone) cancellation
  • Brushed finish
  • TIG-welding throughout

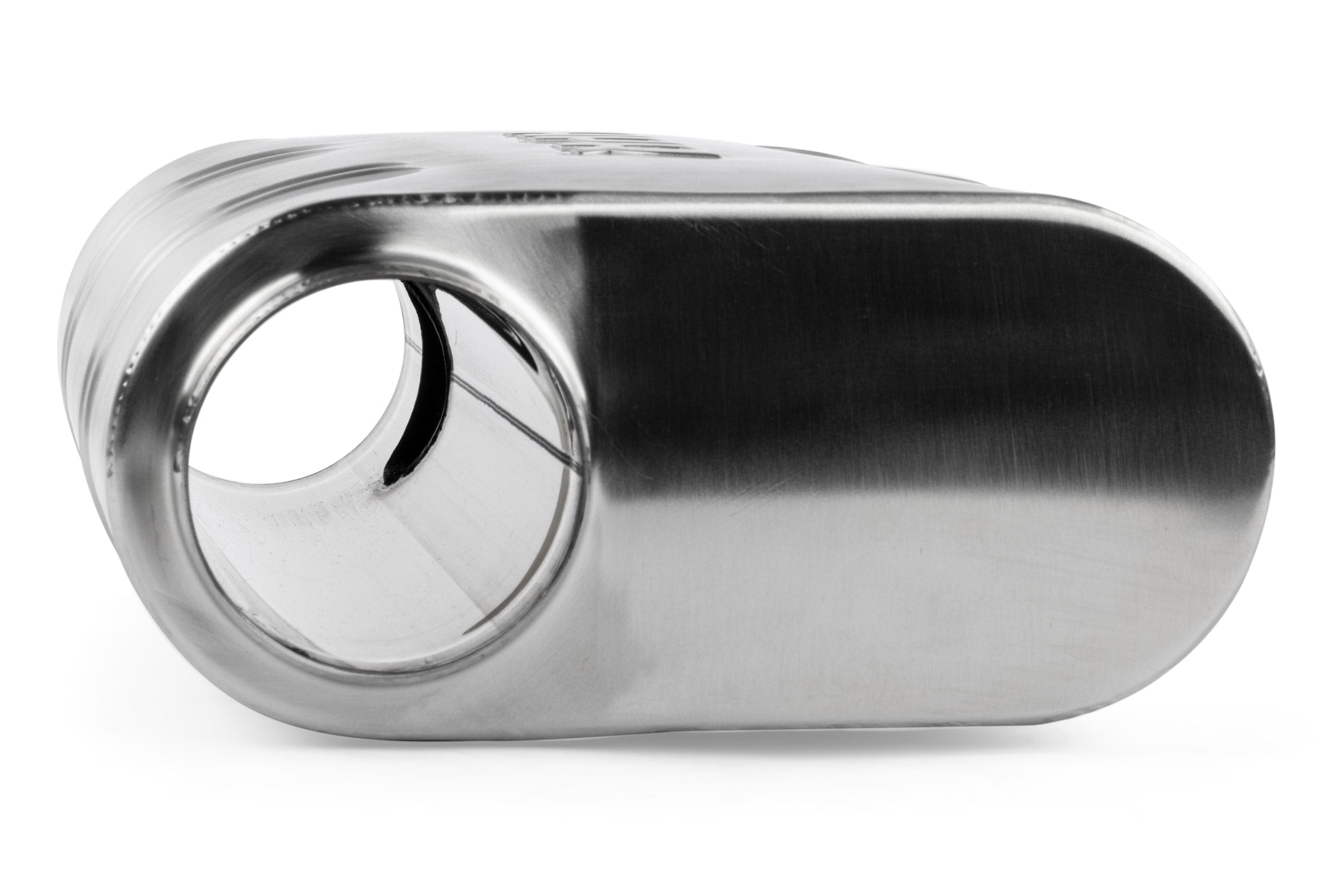

  • 76mm (3”) offset inlet and outlet
  • Rounded square 311mm (12.24”) x 240mm (9.45”) x 110mm (4.33”) external dimensions

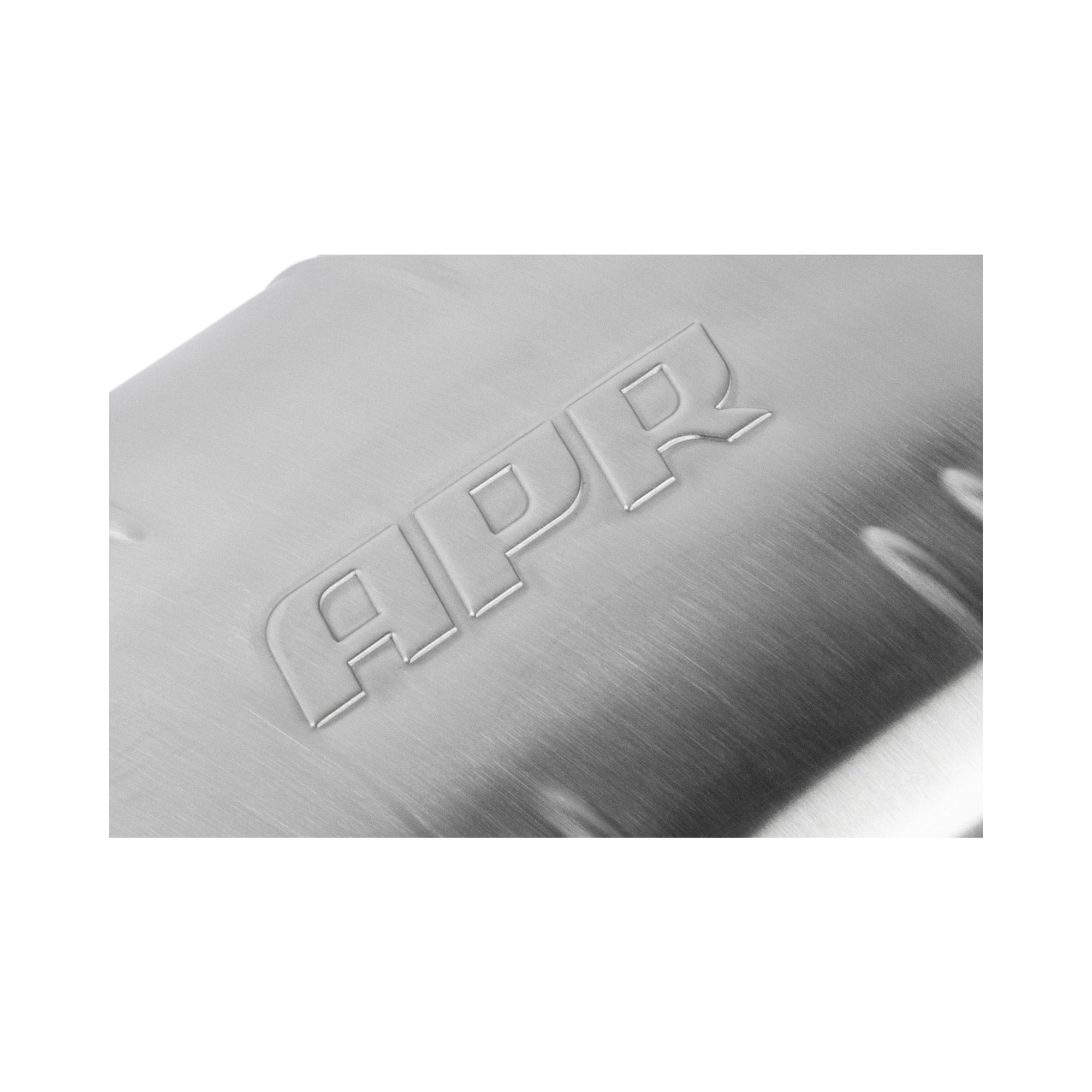

  • Stamped APR Logo
  • Rolled external structural and visual ridges
📖

About this product

T304 stainless steel with straight-through 76mm (3") design with offset inlet and outlet. Rounded square body 311mm (12.24") x 240mm (9.45") x 110mm (4.33").

🎬

Product Videos

📋

Product Specifications

Automotive Item Grade
Performance
Body Height
4.375
Body Length
13.375
Body Material
304 Stainless Steel
Body Material
T304 Stainless Steel
Body Width
9.50
Brand
APR
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Exhaust Component
Clamps Included
No
Color
Silver
Emission Code
5
Exhaust Tip Quantity
0
Finish
Brushed
Grade Type
Performance
Hanger Included
No
Heat Shield Attached
No
Inlet Connection
Slip-Fit
Inlet Gasket Quantity
0
Inlet Inside Diameter
2.90
Inlet Location
Offset
Inlet Outside Diameter
3.00
Inlet Quantity
1
Inlet Type
Weld-on
Material
T304 Stainless Steel
Muffler Finish
Brushed
Muffler Series
APR Premium
Muffler Style
Helmholtz
Muffler Type
Helmholtz Resonator
Outlet Connection
Slip-Fit
Outlet Gasket Quantity
0
Outlet Inside Diameter
2.90
Outlet Location
Offset
Outlet Outside Diameter
3.00
Outlet Quantity
1
Outlet Type
Weld-on
Overall Length
13.375
Part Type
Exhaust Muffler
Product Type
Exhausts (Components - Mufflers)
Prop 65 Yes/No
Yes
Reversible
No
Shape
Oval
Tunable
No
Universal Or Specific Fit
Universal
Warning
California Proposition 65
🛡️

Warranty & Compliance

Warranty
1 months · Warranted to be free from defects in the materials and workmanship prior to installation
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
8708925000
📐

Dimensions & Shipping

Product Dimensions
19.0 × 18.0 × 10.0 in
Shipping Dimensions
19.0 × 18.0 × 10.0 in
Weight
5443 g (5.44 kg)
