Earl's PerformancePart op111erlMade in IT
Product Details
⭐
Key Features
Allow oil to warm up before turning on pump, or wire with temperature switch.
Earls electric oil pump is ideal for circulating the gear oil through an external oil cooler - for cooling the differential or manual transmission. This heavy duty pump features a metal housing & is self-priming w/ a flow rate of up to 2.1 gallons per minute. The compact design is durable and has a continuous duty rating (see temperature range shown below). This pump includes (2) -6 AN Male to BSPP adapter fittings. Ideal for use with Earl's UltraPro oil cooler along w/ AN hose & hose ends.

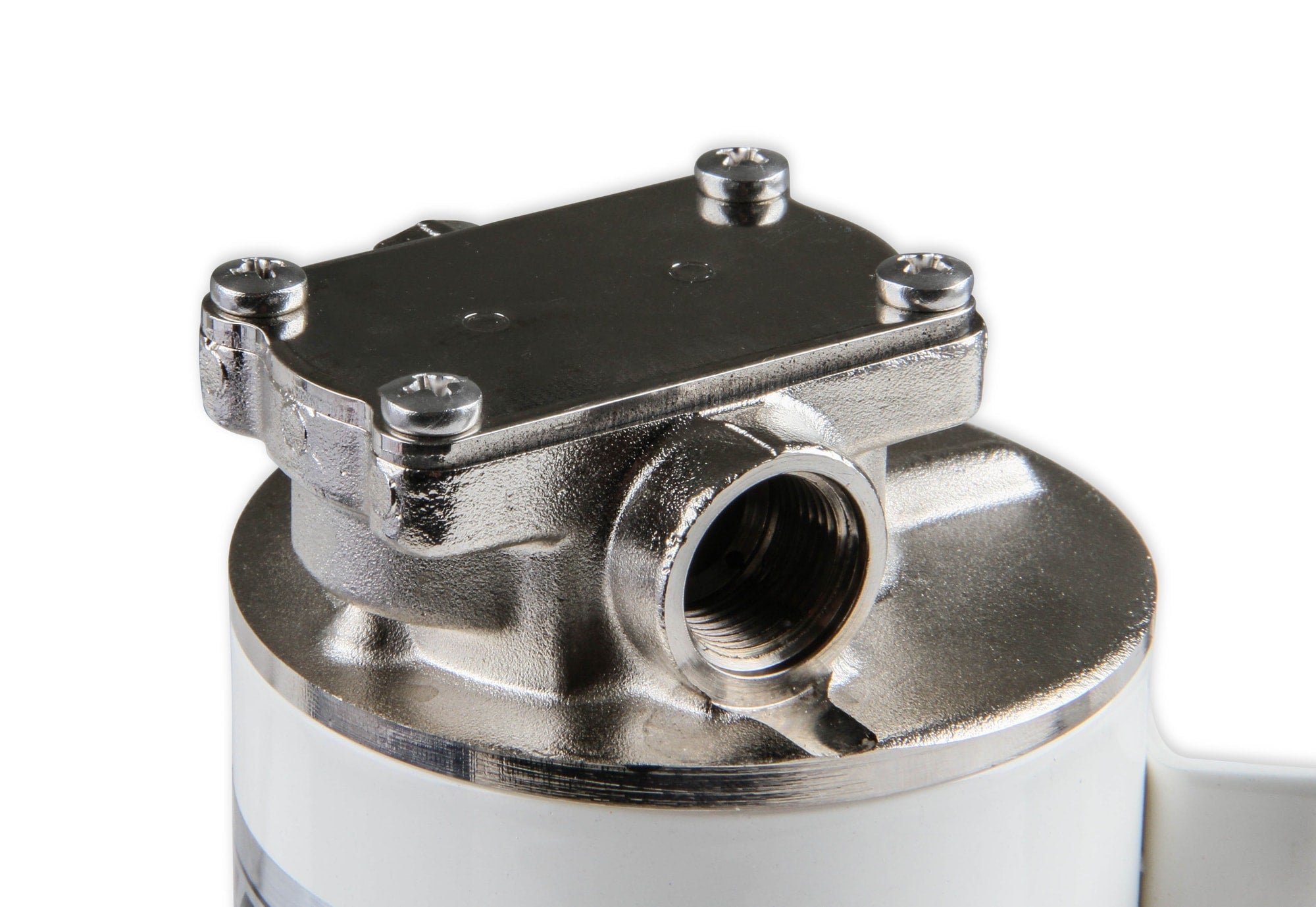

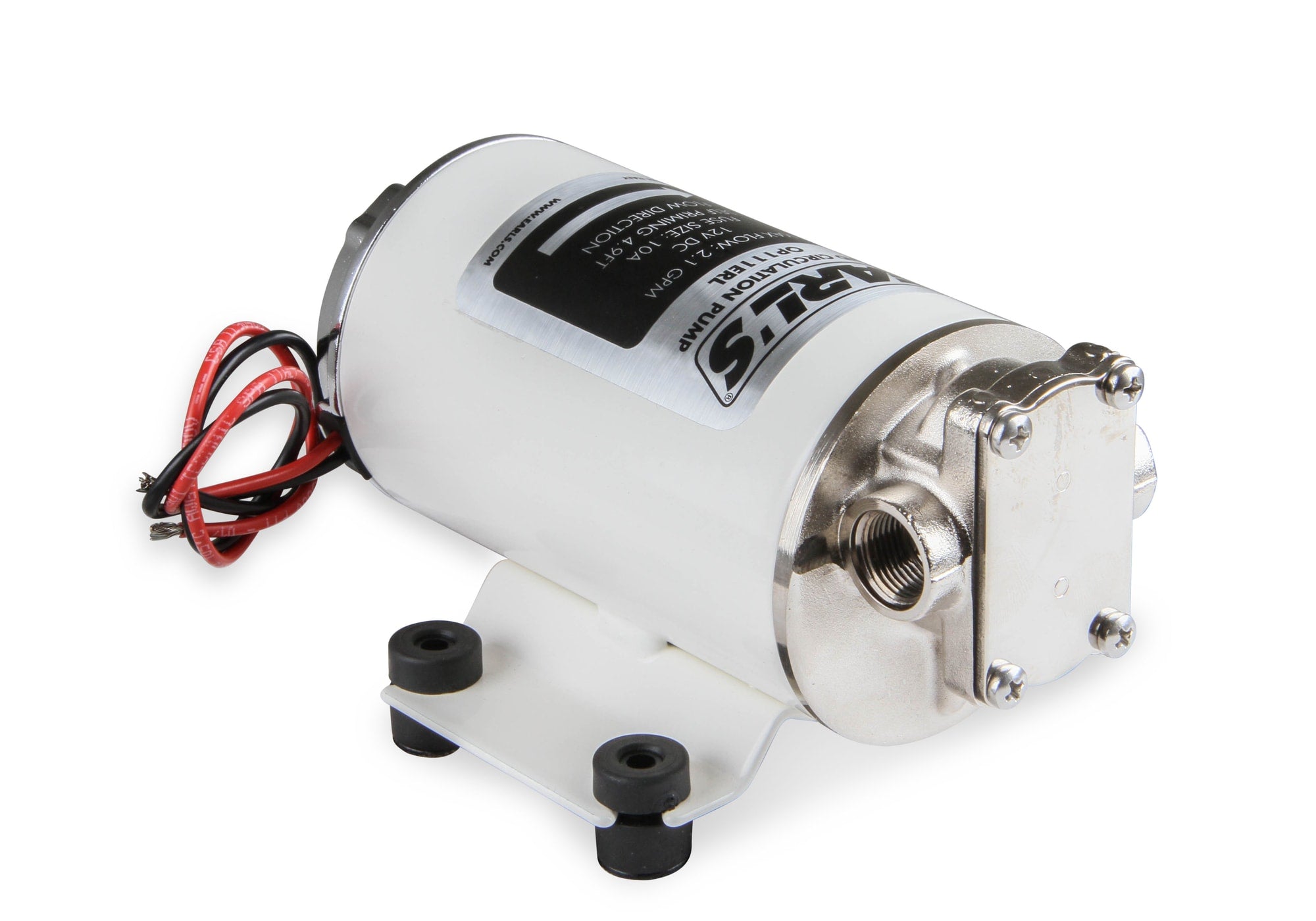

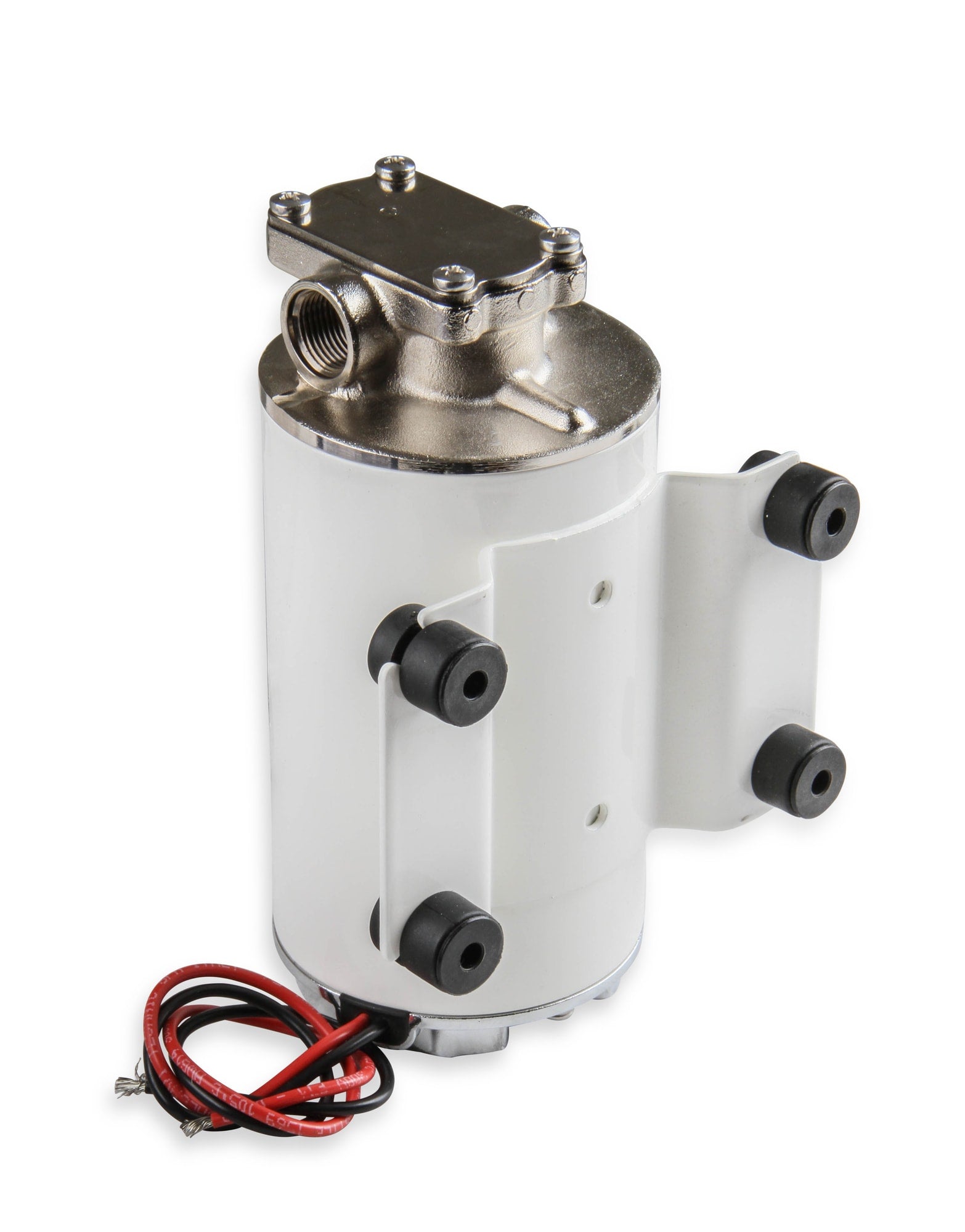

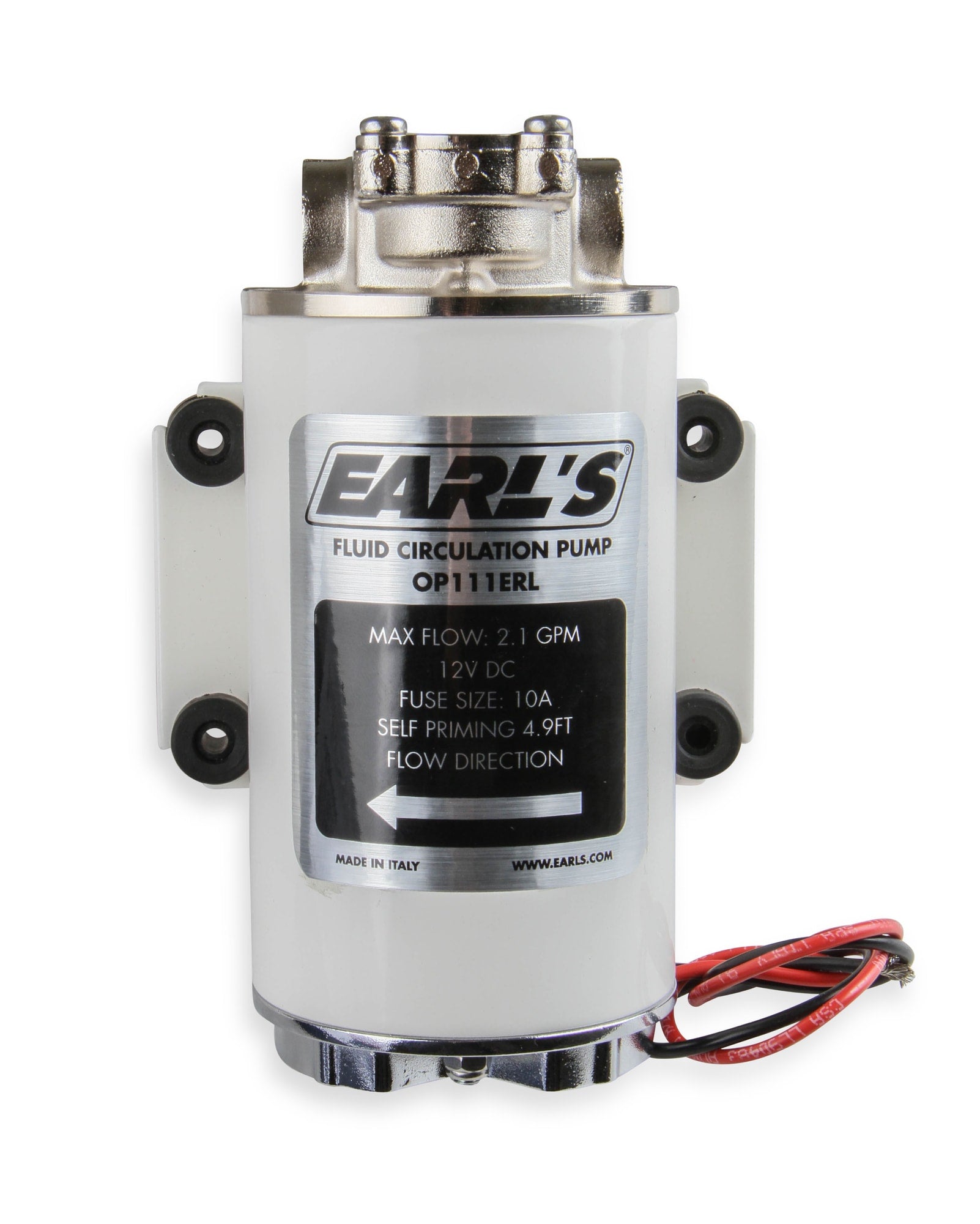

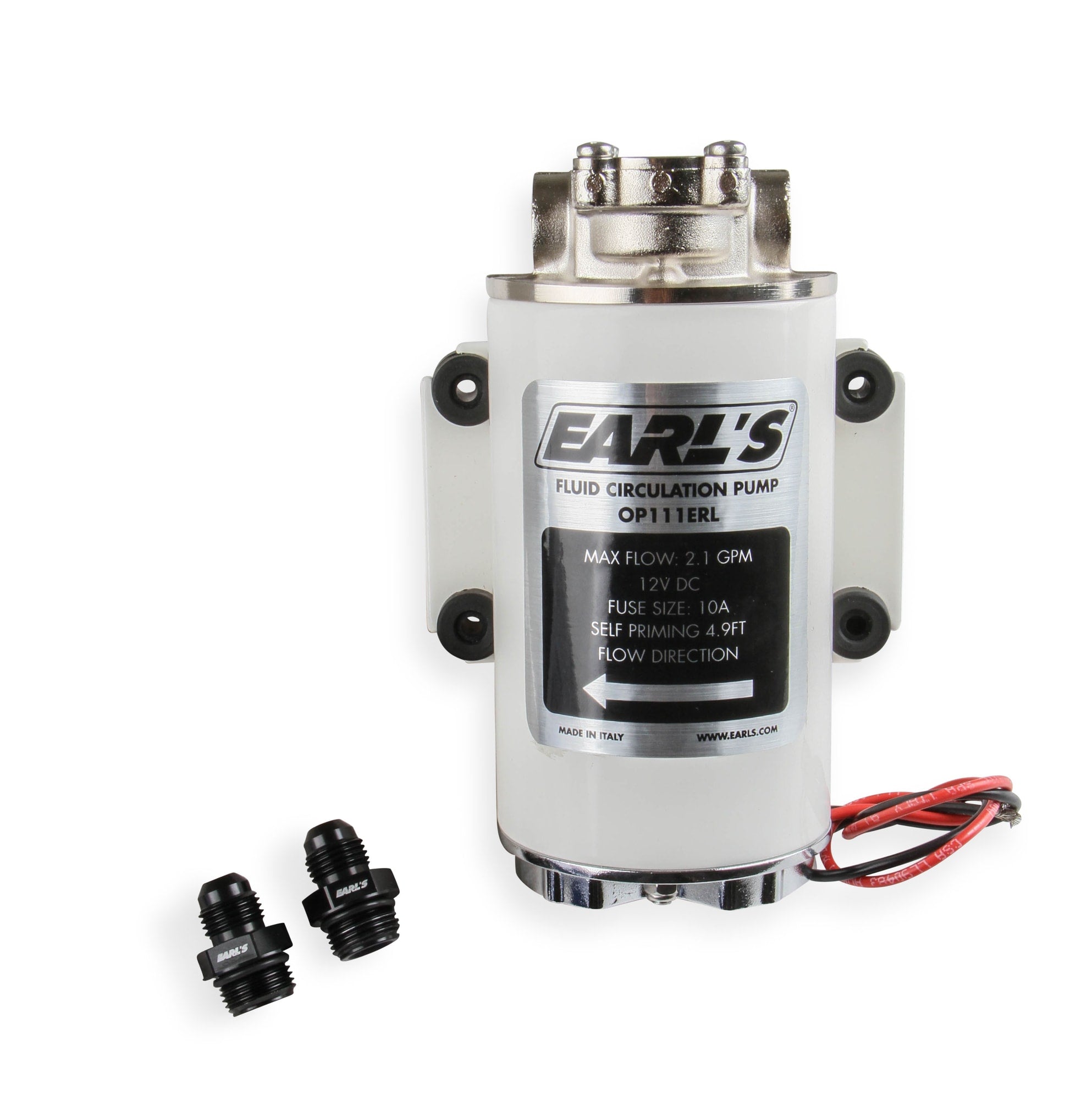

12-Volt DC Electric Oil Circulation Pump w/ 3/8" BSPP (British Standard Pipe Parallel) straight thread Female Ports
- Use w/ Relay & Fuse (available separately)
📖
About this product
12-Volt DC Electric Oil Circulation Pump w/ 3/8" BSPP (British Standard Pipe Parallel) straight thread Female Ports
📋
Product Specifications
Adapter AN Size ( A )
6 AN MALE
Adapter Port Size ( B )
3/8 BSPP MALE
Amp Draw
10
Brand
Earl's
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Plumbing AN Fittings and Hose
Collection
Electrical & Wiring
Collection
Electrical & Wiring - Lighting & Body Electrical
Depth
3.75"
Emission Code
5
Finish
White w/ Nickel Plating
Free Flow GPM (12v)
Up to 2.1
Height
6.5"
Material
Steel Pump w/ Brass Housing
Max Pressure
72.5 PSI
Mounting Bolt Pattern
4-Bolt 2.25" x 3.75"
Part Type
Engine Oil Pump
Product Type
Oil Pump
Prop 65 Yes/No
Yes
Seal Material
FKM
Temperature Range
14 to 265° F
Voltage
12 VDC
Warning
California Proposition 65
Weight
5.5 lb
Width
4.625"
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
IT
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
7.8 × 5.0 × 3.8 in
Shipping Dimensions
7.8 × 5.0 × 3.8 in
Weight
2381 g (2.38 kg)
