Product Details
⭐
Overview

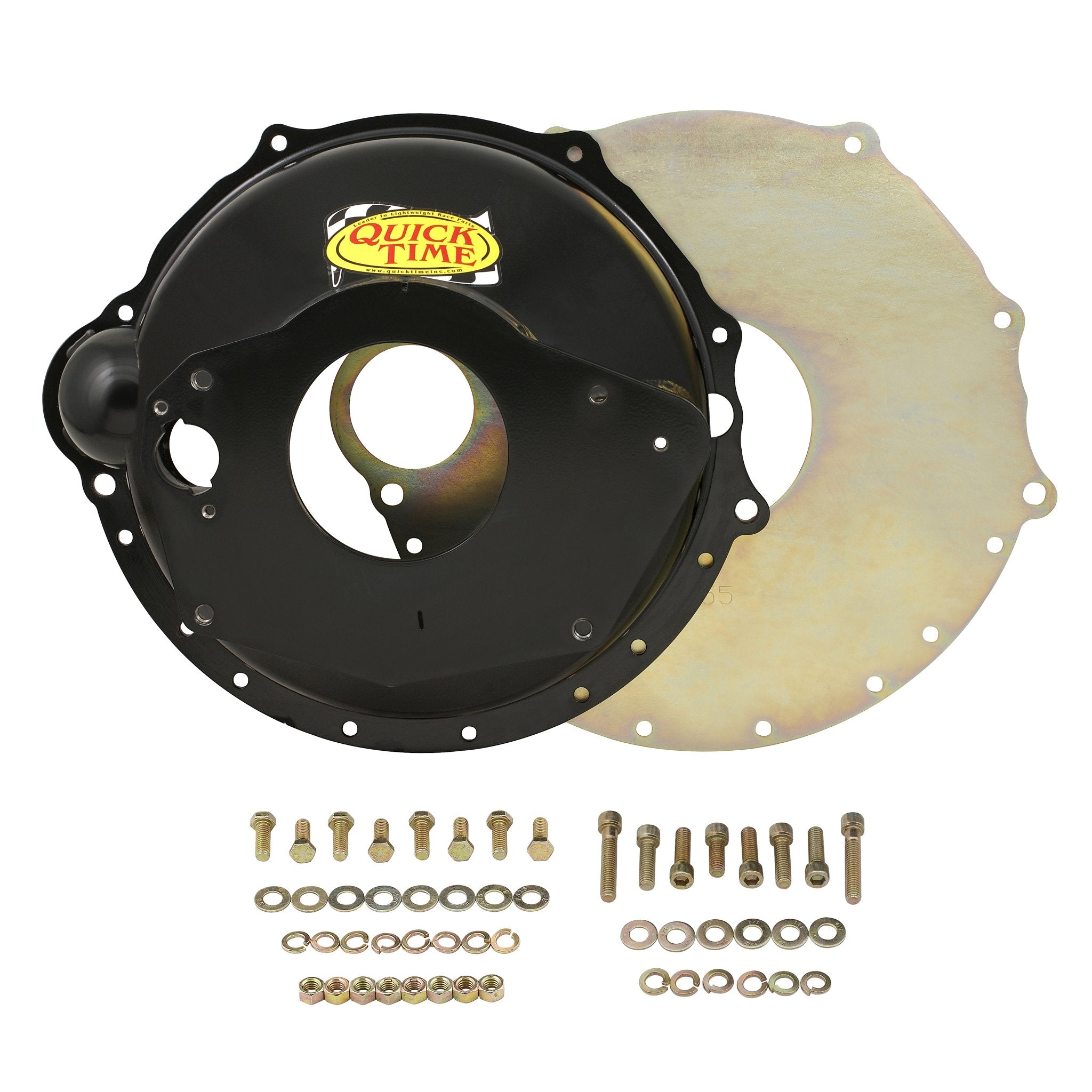

Perfect fit for Cummins Diesel engines with NV4500 transmissions
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- Built from high grade steel Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- 100% built in the USA
- Patent on 16 points of Bellhousing Design & Process
📋
Product Specifications
Brand
Quick Time
Certification
6.1 SFI
Clutch Diameter
12.25 inch Clutch Disc
Clutch Operation
Hydraulic
Engine Make
Cummins

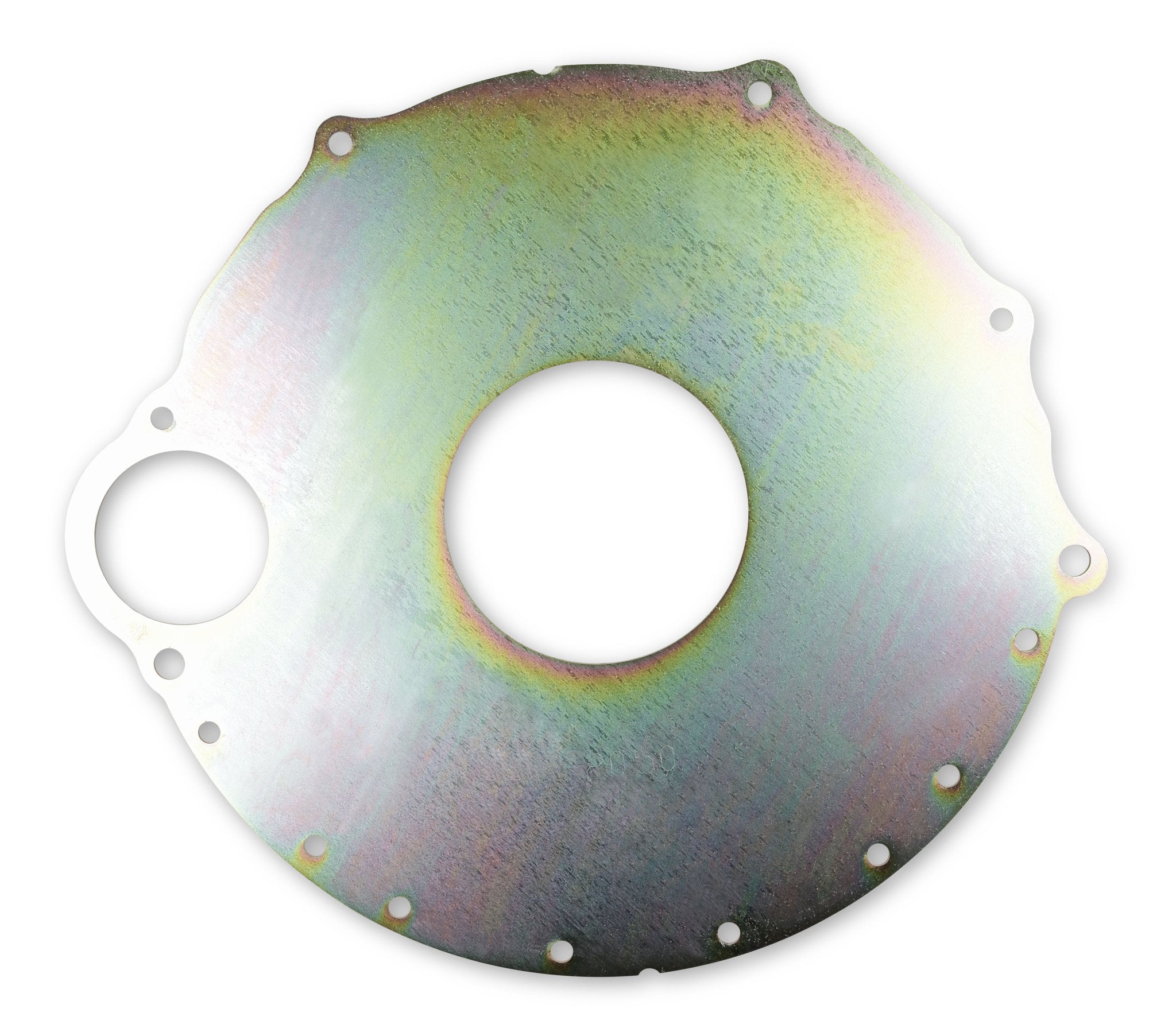

Engine Plate
RM-2050-C
Menu
Transmission Hard Parts
Part Type
Transmission Bell Housing
Patented
yes
Product Type
Bellhousing
SFI Approved
Yes
SFI Certification
6.1
Trans Bore
5.594
Trans. Bore Diameter
5.594 inch
Transmission Type
Manual
Warranty
Manufacturer's Limited 90 Day Warranty
Weight (lb)
26
Weight
26#
📐
Dimensions & Shipping
Product Dimensions
— × — × 16.99 in
Weight
19.754 kg
