Brothers TrucksPart UWH4754Made in US
Product Details
⚙️
Vehicle Fitment & Compatibility
View all 0 vehicle applications
Years
Make / Model
Submodel
Engine
1954
Chevrolet 1500
Base
1947–1948
Chevrolet Fleetline Truck
Base
1949–1952
Chevrolet Fleetline Truck
Deluxe
1949–1952
Chevrolet Fleetline Truck
Special
1947–1948
Chevrolet Fleetmaster Truck
Base
1947–1955
Chevrolet Truck
3600
1947–1955
Chevrolet Truck
3100
1947–1955
Chevrolet Truck
3800
1947–1955
Chevrolet Truck
Base
1947–1953
Chevrolet Truck
3600
1947–1953
Chevrolet Truck
3800
1947–1953
Chevrolet Truck
Base
1947–1953
Chevrolet Truck
3100
1948–1955
Chevrolet Truck
3700
1948–1954
Chevrolet Truck
3900
1948–1953
Chevrolet Truck
3900
1948–1953
Chevrolet Truck
3700
1955
Chevrolet Truck
3500
1955
Chevrolet Truck
3400
1955
Chevrolet Truck
3200
1955
Chevrolet Truck
3100
1955
Chevrolet Truck
3700
1955
Chevrolet Truck
3600
1955
Chevrolet Truck
3800
1954–1955
GMC M300
Base
1955
GMC M300
Base
1947–1953
GMC 100-22
Base
1953–1955
GMC 100-22
Base
1955
GMC 100-22
Base
1953–1954
GMC 100-24
Base
1953
GMC 100-24
Base
1952–1953
GMC 102-22
Base
1947–1953
GMC 150-22
Base
1953–1955
GMC 150-22
Base
1955
GMC 150-22
Base
1953–1954
GMC 150-24
Base
1953
GMC 150-24
Base
1951–1953
GMC 250-22
Base
1953–1955
GMC 250-22
Base
1955
GMC 250-22
Base
1953–1954
GMC 250-24
Base
1953
GMC 250-24
Base
1952–1953
GMC 253-22
Base
1951–1953
GMC 280-22
Base
1953–1955
GMC 280-22
Base
1955
GMC 280-22
Base
1953–1954
GMC 300-24
Base
1953
GMC 300-24
Base
1947
GMC CC100
Base
1947
GMC CC101
Base
1947
GMC CC102
Base
1947
GMC CC150
Base
1947
GMC CC250
Base
1947
GMC CC260
Base
1947
GMC CCV100
Base
1947
GMC CCX250
Base
1947
GMC EC100
Base
1947
GMC EC101
Base
1947
GMC EC102
Base
1947
GMC EC150
Base
1947
GMC EC152
Base
1947
GMC EC250
Base
1947
GMC EC251
Base
1947
GMC EC252
Base
1947
GMC EC280
Base
1947
GMC EC282
Base
1947
GMC EC283
Base
1947–1950
GMC FC100
Base
1947–1950
GMC FC101
Base
1947–1950
GMC FC102
Base
1947–1950
GMC FC152
Base
1947–1950
GMC FC250
Base
1947–1950
GMC FC251
Base
1947–1950
GMC FC252
Base
1947–1950
GMC FC253
Base
1947–1950
GMC FC280
Base
1947–1950
GMC FC281
Base
1947
GMC FC283
Base
1947–1950
GMC FC300
Base
1947–1950
GMC FC350
Base
1951–1953
GMC 250
Base
1953–1955
GMC 250
Base
1955
GMC 250
Base
1951–1953
GMC 300
Base
1953–1955
GMC 300
Base
1955
GMC 300
Base
1951–1953
GMC 100
Base
1953–1955
GMC 100
Base
1955
GMC 100
Base
1947–1952
GMC FC150
Base
1947–1949
GMC Truck
Base
1950–1953
GMC Truck
Base
1953–1955
GMC Truck
Base
1955
GMC Truck
Base
1951–1953
GMC 150
Base
1953–1955
GMC 150
Base
1955
GMC 150
Base
No applications match your search.
⭐
Key Features
Compatible with 1947-Early 1955 Chevrolet/GMC Truck

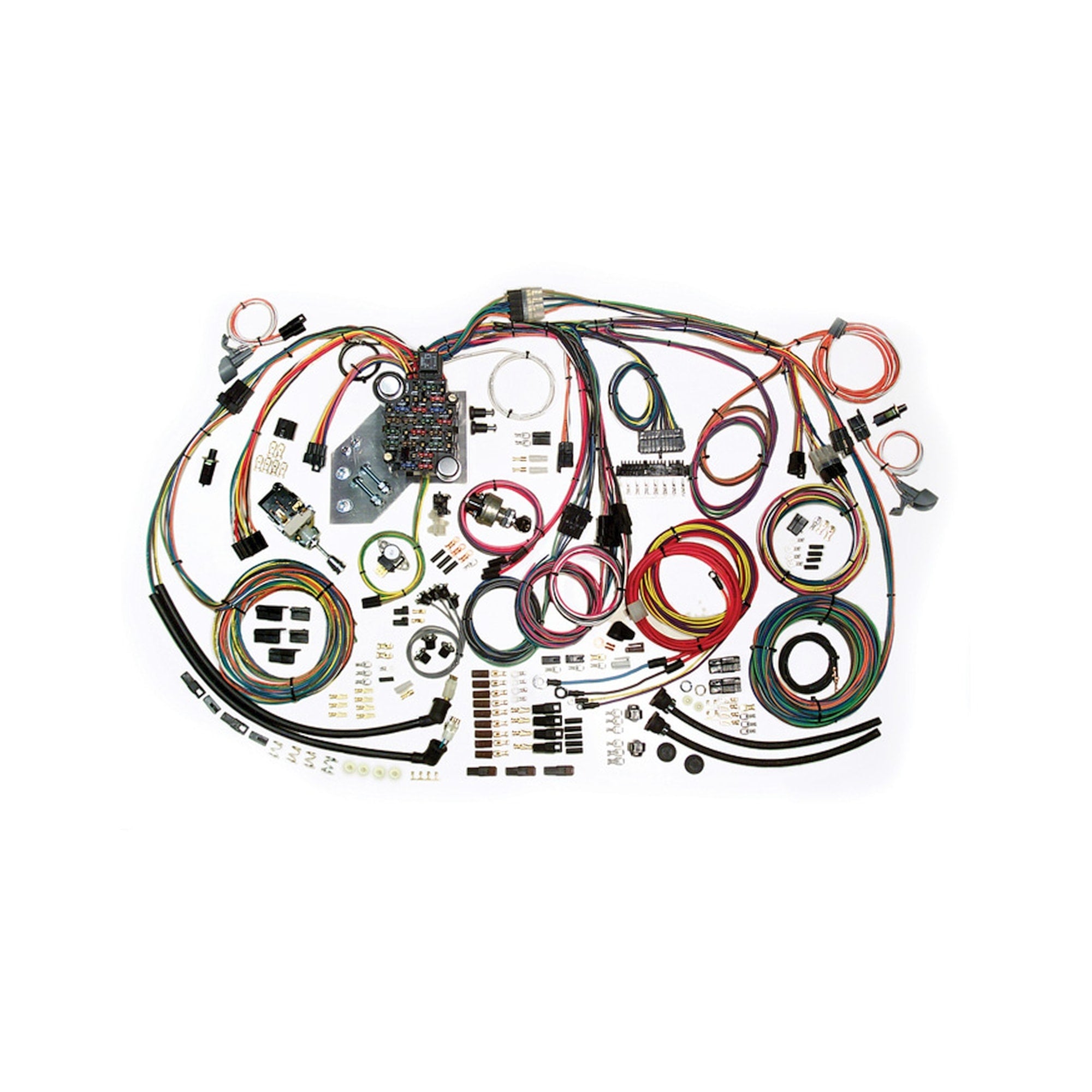

BROTHERS Trucks is proud to offer American Auto Wire's high-quality wiring harnesses. Classic Update kits are designed for projects that require more circuits than would have been available in an original chassis harness. Each kit includes all the basics needed to rewire a vehicle from headlight to tail light and will accommodate popular add-on items such as electronic fuel injection, aftermarket gauges, and common supporting modifications.
Compatible with 1947-Early 1955 Chevrolet/GMC Truck
- Harness Includes:
- An updated ATC fuse panel and fuses, along with modern GXL wire throughout. Wire functions are labeled every 3 to 5 inches
- Pre-built dash harness and our exclusive gauge cluster disconnect system for use with stock or aftermarket instruments
- Engine and front light harness with extra-long leads for custom routing and updated engine and transmission combinations. Original-style bulkhead connectors included
- Six-way power accessory plug can be used as a convenient power source for aftermarket accessories
- A rear body wiring with extra-long leads for custom routing
- 175 amp mega fuse kit with 6 gauge charge cable to support a high output charging system and internally regulated alternator
- Original-replacement connectors, terminals and lamp sockets
- Headlight switch with 26 amp internal circuit breaker and new floor dimmer switch included
- Dash harness connector for the 1969+ GM steering column connector. A mating connector and terminals are included for easy adaption to popular late-model columns
- Original replacement tube and grommet assemblies included
📖
About this product
Compatible with 1947-Early 1955 Chevrolet/GMC Truck
📋
Product Specifications
Brand
Brothers Trucks
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Electrical
Emission Code
6
Part Type
Accessory Wiring Harness
Product Type
Wiring Harness
Prop 65 Yes/No
Yes
Sub Category
Wire
Vendor Part Number
500467
Warning
California Proposition 65
🛡️
Warranty & Compliance
Warranty
90 months
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
6
📐
Dimensions & Shipping
Product Dimensions
19.95 × 12.75 × 6.3 in
Shipping Dimensions
19.95 × 12.75 × 6.3 in
Weight
7697 g (7.7 kg)
