Product Details
⭐
Overview

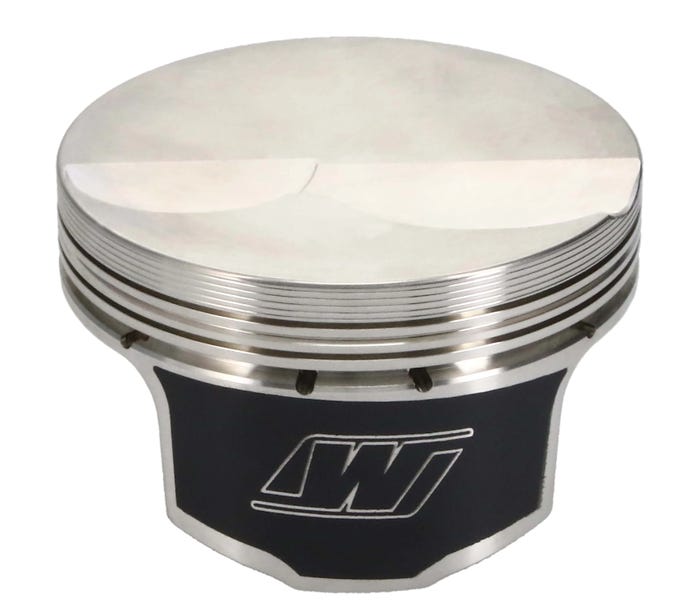

Appropriately dubbed the RED™ series, these forged pistons utilize Race Engineered Design™ to offer the strength and durability performance engines need with precision-machined features to provide a competitive edge. RED™ series piston kits are available for range of popular, domestic V8 platforms, the cornerstone of racing and performance from drag racing to circle track.
Engineered, forged, and machined in the USA from 2618 aluminum for tensile strength needed in performance racing and power adder applications
Dedicated forgings allow for optimized, engine-specific strutted design to maximize strength-to-weight characteristics
ArmorGlide® skirt coating reduces operating friction and noise while also reducing skirt and cylinder wear
Horizontal slot oiling in pin bores maintain optimal wrist pin and small-end lubrication, critical for long service life
Accumulator groove helps maintain consistent ring seal and power
Each part number includes premium rings – no need for additional sourcing
📋
Product Specifications
Brand
Wiseco
Btr Sku
RED0077X165
Engine Type
Gen III/Gen IV LS
Height
6.000000
Length
28.000000
Part Type
Pistons
Piston Bore Size
4.165"
Piston Pin Size
.927"
Piston Stroke
3.622"
Piston Style
FLAT TOP
Piston Volume
4.0cc
Rod Length
6.125"
Weight
16.000000
Width
11.000000
