Quick Fuel
Product Details
🔧
Vehicle Compatibility

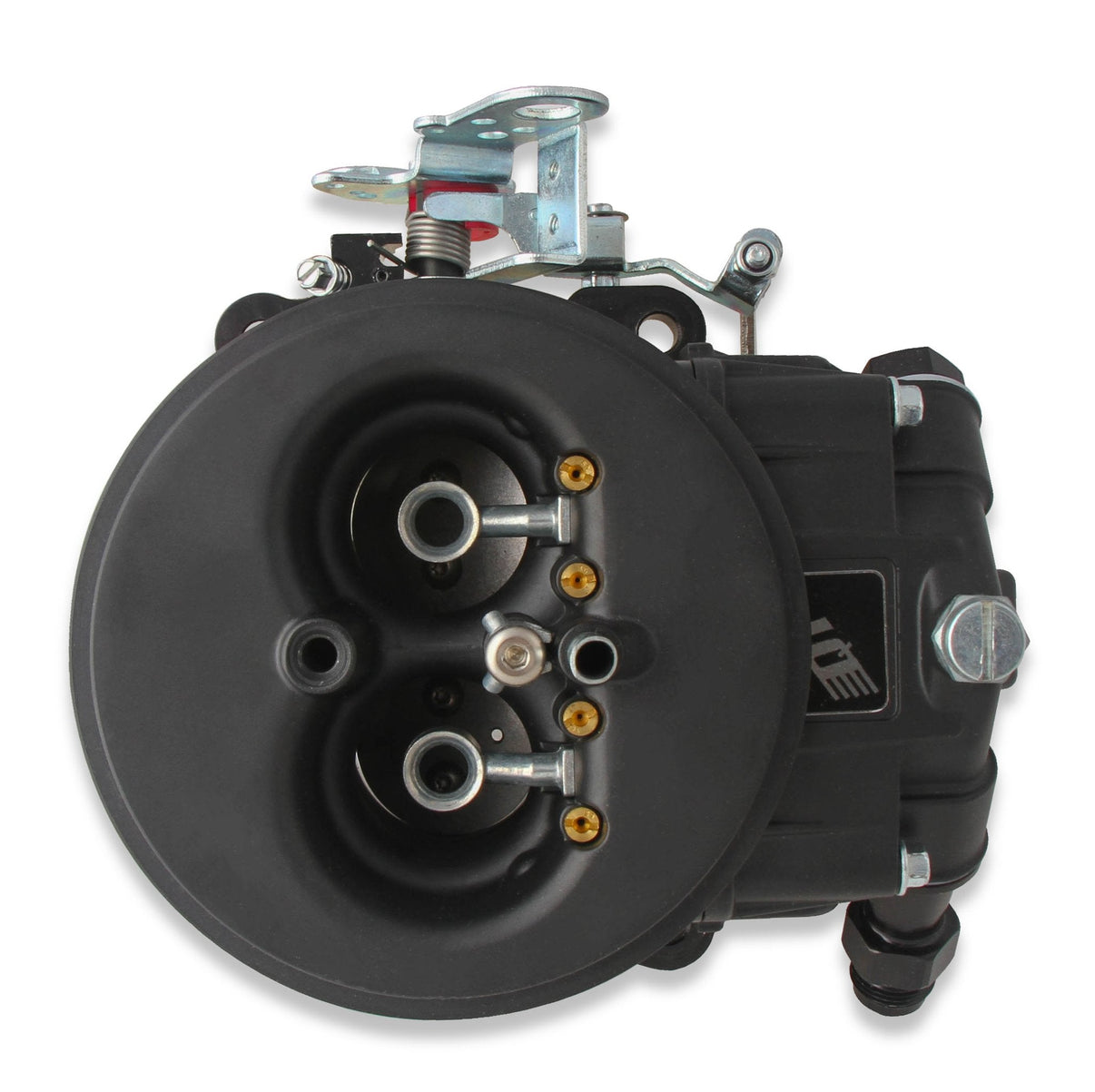

Fits XP-Series Carburetor 500CFM Circle Track Alcohol.
Please refer to manufacturer specifications for complete compatibility information.
⭐
Key Features
500 CFM - 2300 - Black - Methanol
- High-flow aluminum main body with centered venturi for improved performance and better air/fuel distribution
- Black anodized billet 2-Circuit metering block and throttle body
- Throttle body incorporates roller bearing seals which provide smoother operation,
- less wear on shaft, and longer life
- Anti-siphon check valve in main body to reduce pump pull-over
- Changeable emulsion bleeds and power valve channel restrictions for better tuning capabilities
- Dual inlet fuel bowl with #8AN fittings
- Dual sight glass windows for easy float adjustment
- Single wedge circle track float
- Exclusive Black Diamond® coating for enhanced corrosion protection and appearance.
- Provides a 6% reduction in fuel temperature.
🎬
Product Videos
No videos available for this product.
📋
Product Specifications
Barrel Quantity
4
Barrels
2
Billet Color
Black
Booster
Down Leg
Brand
Quick Fuel
Carburetor Use
Professional Race
CFM
500
Choke
None
Circuit
2
Cubic Feet Per Minute Rating
500
Flange Type
Square/4150
Fuel System
Carbureted
Fuel Type
Alcohol
Gasket Or Seal Included
Yes
Grade Type
Performance
High Speed Air Bleed
28
Idle Air Bleed Size
55
Linkage Attached
Yes
Marine Use
No
Part Type
Carburetor
Primary Main Jet
128
Primary Power Valve
45
Primary Pump Nozzle Size
55
Product Type
Carburetor
Secondaries
None
Secondary Main Jet
N/A
Supercharged Application
No
Throttle Bore
1-11/16 inch
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
