ICT Billet Alternator Bracket Kit - C5/SS Sedan/G8/04-06 CTS-V Balancer - 551887-1

ICT BILLET ALTERNATOR BRACKET KIT - C5/SS SEDAN/G8/04-06 CTS-V BALANCER - 551887-1
• Requires: 2008-2017 SS, G8, Caprice LS crank pulley (12674582)
• Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum

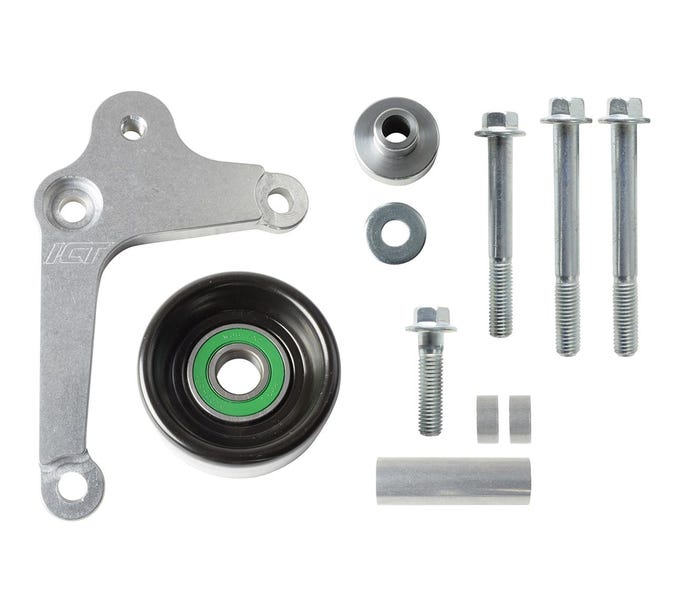

• Includes: alternator bracket, idler pulley, and mouting hardware
• **Alternator: Suggested part # 92254798, 92254672, or equivalent. (will not fit Corvette/CTSV or 2010 up Camaro large bolt pattern alternators), Will *fit any other LS powered vehicle alternators with any amperage.
• If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)

*May require slight grinding on block (see photos) if using a 145/160 amp alternator (105 amp alternator is a direct fit)

**This can only be used on blocks with at least 2 mounting holes on the front of the block. Blocks that only have 1 mounting hole will require drill template 551445 to drill and tap the 2nd M10-1.5mm hole.This hole is in a non-critical part of the block that is away from the cylinder, oil, and water jackets.This bracket only bolts to the front face of the engine block.
