Holley Sniper EFI

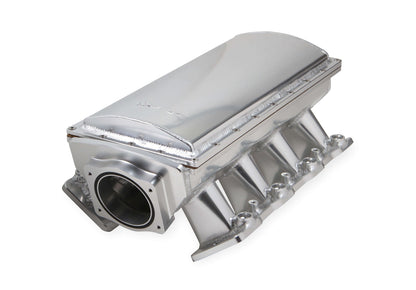

Collecteur d'admission SNIPER EFI LS3 HI-RAM 90 mm argent - Série compétition Sniper EFI - GM LS3/L92 - 90 mm - Argent

Prix normal £1,534.99 GBP inc VAT
Expédition calculée lors du paiement.
SKU: 838231

Stock Levels:

Checking stock levels…
🇬🇧 UK warehouse
🇺🇸 US warehouse
Estimated Delivery


Voir les détails
Holley Sniper EFIPart 838231✓ Fits 42 vehiclesMade in CN

Product Details

⚙️

Vehicle Fitment & Compatibility

42 applications
Compatible Engines
6.2L V8 376ci6.0L V8 364ci
Compatible Transmissions
6L80TR6060
Application Notes
90 (mm) Throttle Body BoreDual Intake Ports HeadSilver
View all 42 vehicle applications
Years
Make / Model
Submodel
Engine
2015
Chevrolet Camaro
6.2L V8 376ci TR6060
2015
Chevrolet Camaro
6.2L V8 376ci TR6060
2015
Chevrolet Camaro
6.2L V8 376ci TR6060
2015
Chevrolet Camaro
6.2L V8 376ci TR6060
2015
Chevrolet Camaro
6.2L V8 376ci TR6060
2015
Chevrolet Camaro
6.2L V8 376ci TR6060
2015
Chevrolet Camaro
6.2L V8 376ci TR6060
2015
Chevrolet Camaro
6.2L V8 376ci TR6060
2015
Chevrolet Camaro
6.2L V8 376ci TR6060
2015
Chevrolet Camaro
6.2L V8 376ci TR6060
2015
Chevrolet Camaro
6.2L V8 376ci TR6060
2015
Chevrolet Camaro
6.2L V8 376ci TR6060
2010–2011
Chevrolet Corvette
6.2L V8 376ci
2010–2011
Chevrolet Corvette
6.2L V8 376ci
2010–2011
Chevrolet Corvette
6.2L V8 376ci
2010–2011
Chevrolet Corvette
6.2L V8 376ci
2010–2011
Chevrolet Corvette
6.2L V8 376ci
2010–2011
Chevrolet Corvette
6.2L V8 376ci
2012–2013
Chevrolet Corvette
6.2L V8 376ci 6L80
2012–2013
Chevrolet Corvette
6.2L V8 376ci 6L80
2012–2013
Chevrolet Corvette
6.2L V8 376ci 6L80
2012–2013
Chevrolet Corvette
6.2L V8 376ci
2012–2013
Chevrolet Corvette
6.2L V8 376ci
2012–2013
Chevrolet Corvette
6.2L V8 376ci
2012–2013
Chevrolet Corvette
6.2L V8 376ci TR6060
2012–2013
Chevrolet Corvette
6.2L V8 376ci TR6060
2012–2013
Chevrolet Corvette
6.2L V8 376ci TR6060
2012–2013
Chevrolet Corvette
6.2L V8 376ci TR6060
2012–2013
Chevrolet Corvette
6.2L V8 376ci TR6060
2012–2013
Chevrolet Corvette
6.2L V8 376ci TR6060
2012–2013
Chevrolet Corvette
6.2L V8 376ci TR6060
2012–2013
Chevrolet Corvette
6.2L V8 376ci TR6060
2012–2013
Chevrolet Corvette
6.2L V8 376ci TR6060
2016–2017
Chevrolet SS
6.2L V8 376ci 6L80
2016–2017
Chevrolet SS
6.2L V8 376ci 6L80
2016–2017
Chevrolet SS
6.2L V8 376ci 6L80
2016–2017
Chevrolet SS
6.2L V8 376ci TR6060
2016–2017
Chevrolet SS
6.2L V8 376ci TR6060
2016–2017
Chevrolet SS
6.2L V8 376ci TR6060
2009
Pontiac G8
6.0L V8 364ci 6L80
2009
Pontiac G8
6.0L V8 364ci 6L80
2009
Pontiac G8
6.0L V8 364ci 6L80
No applications match your search.

Key Features

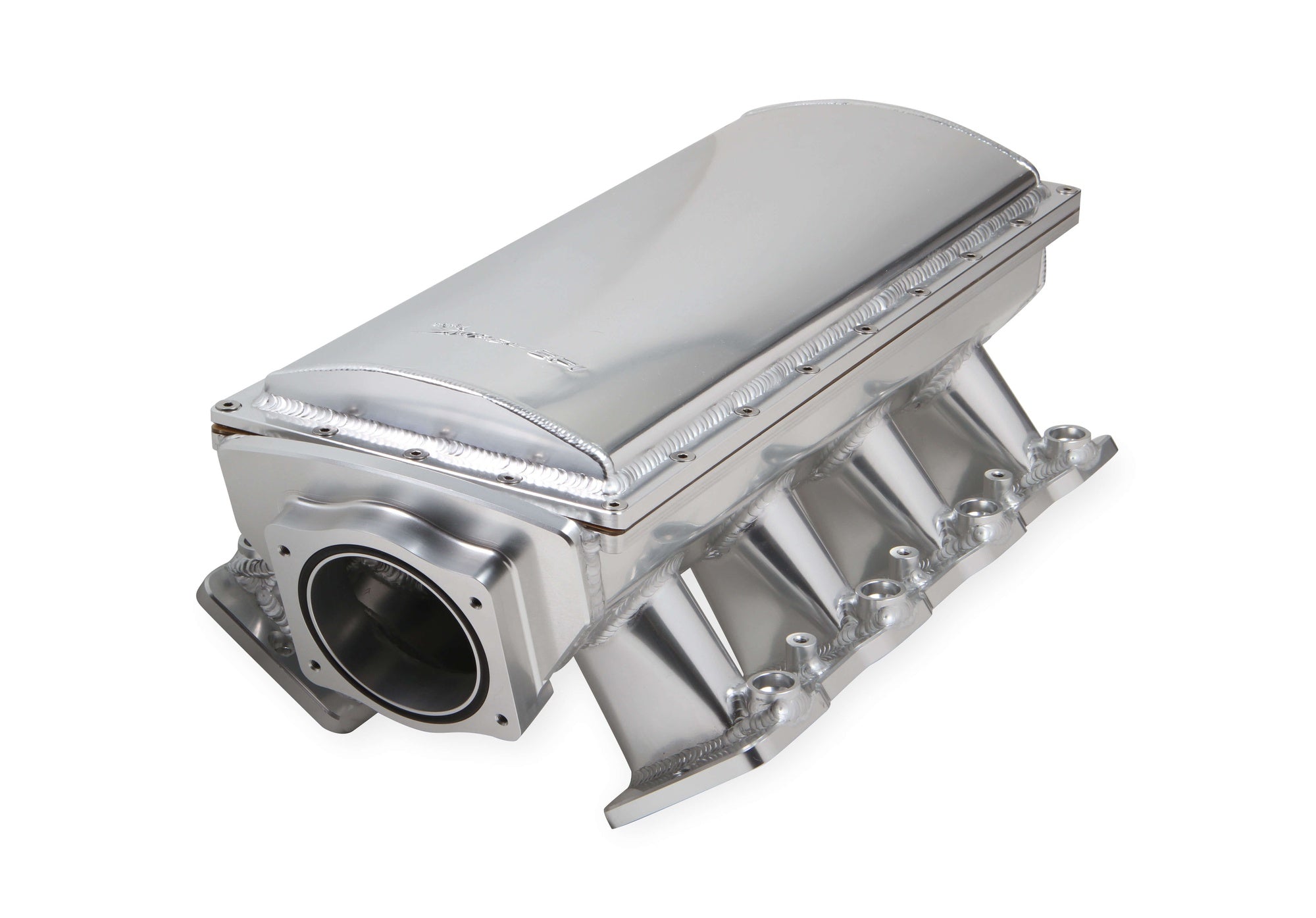

Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 90mm Race Series w/ Removable top, Throttle Body Spacer & Fuel Rail Kit w/ Sniper EFI Logo - Silver

Continued feedback from racers and install shops, related to our original line of EFI intakes, were critical in the development of our Race Series line of fabricated intake manifolds. The Race Series Intakes are more robust, good looking, perform above and beyond the original Sniper EFI series of intakes, and offer a very competitive alternative to much higher priced offerings in the marketplace making for a compelling value for those in the market for a high-performance sheet metal style intake manifold. | Holley Sniper EFI Fabricated Manifolds continue to push the aftermarket by introducing our latest Race Series line of intakes for GM LS3/L92 engine platform. | Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit, TB Spacer, and a removable top. Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity.

Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 90mm Race Series w/ Removable top, Throttle Body Spacer & Fuel Rail Kit w/ Sniper EFI Logo - Silver

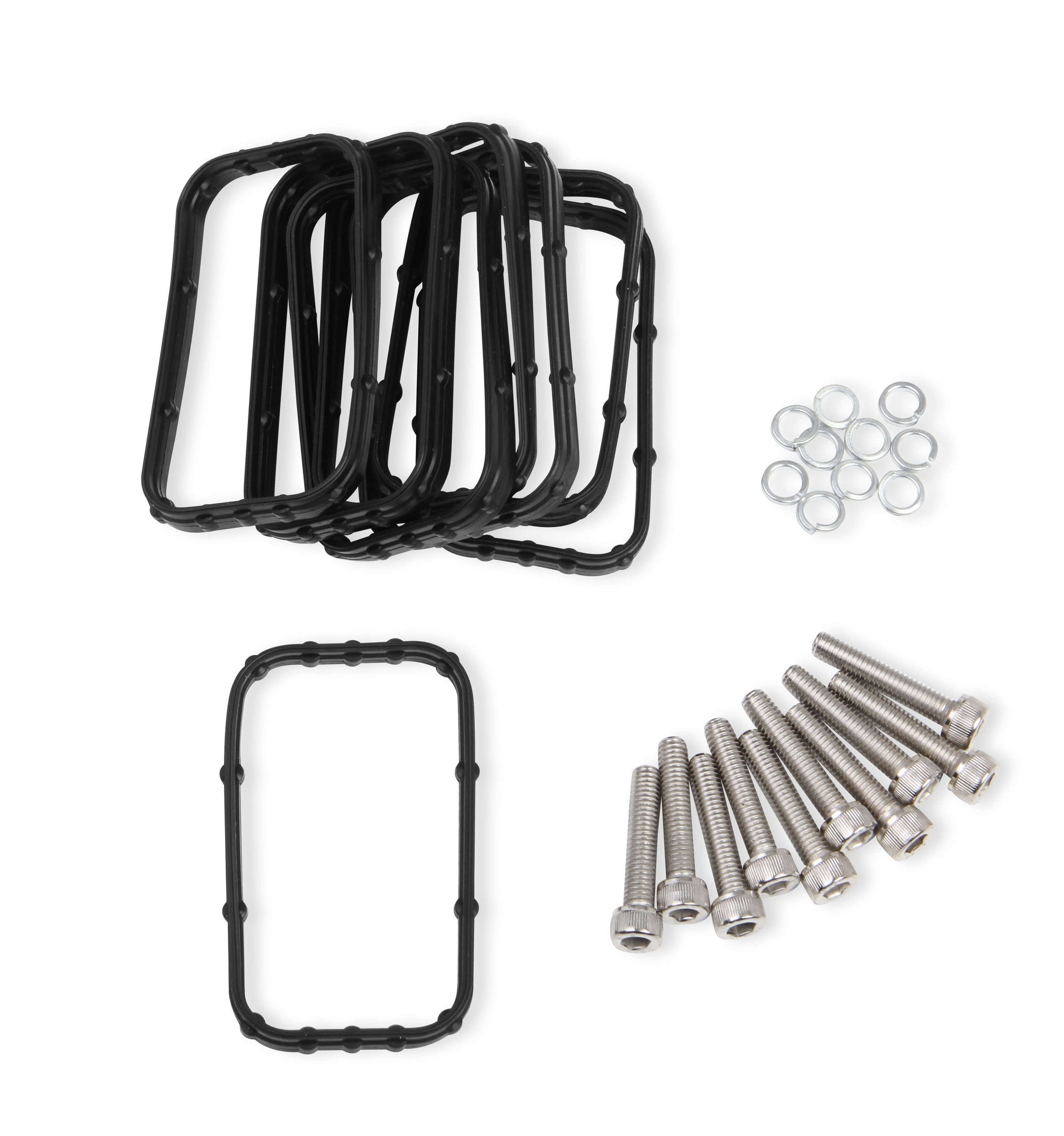

  • Product includes all gaskets and hardware for a hassle-free installation

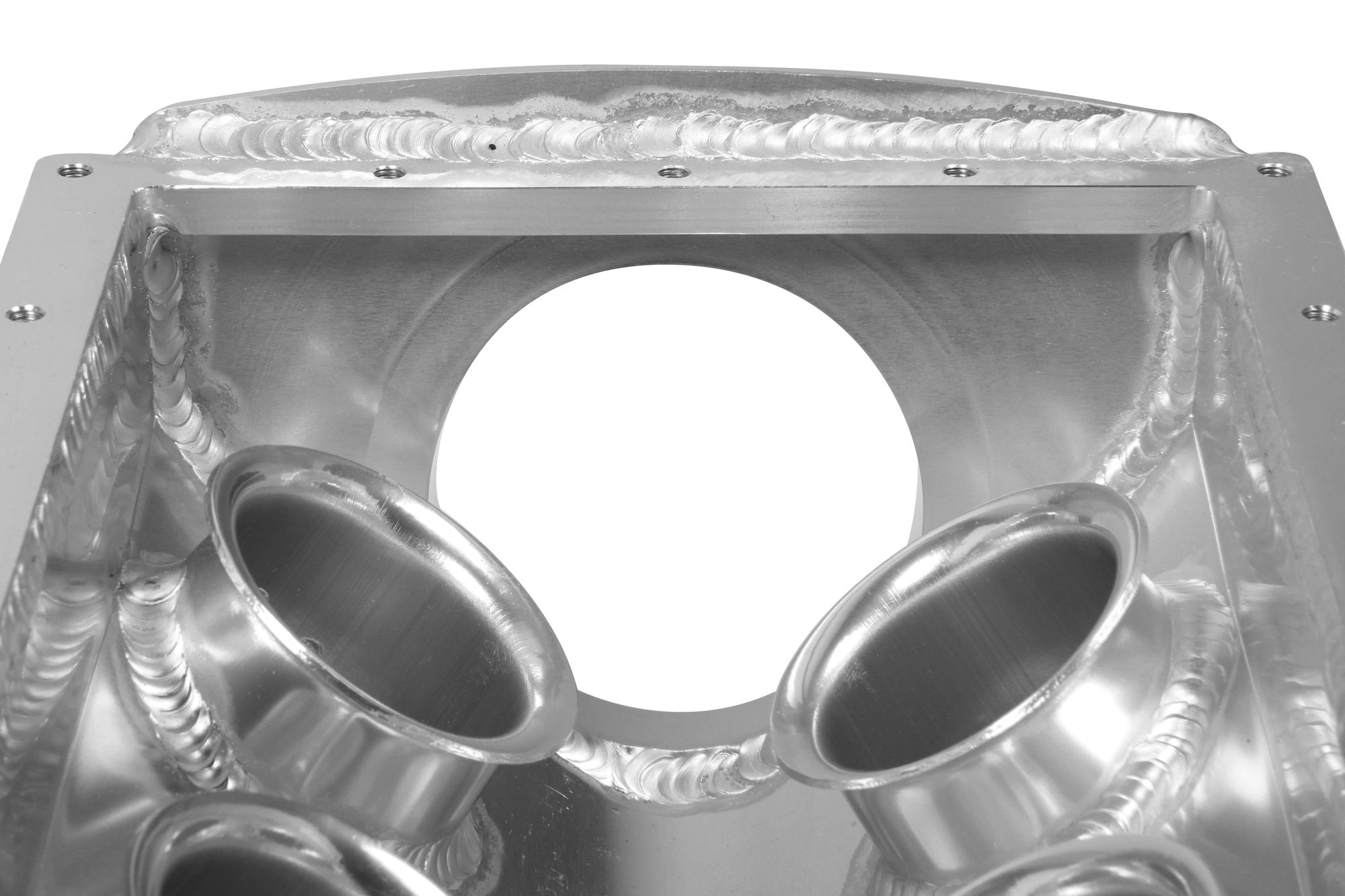

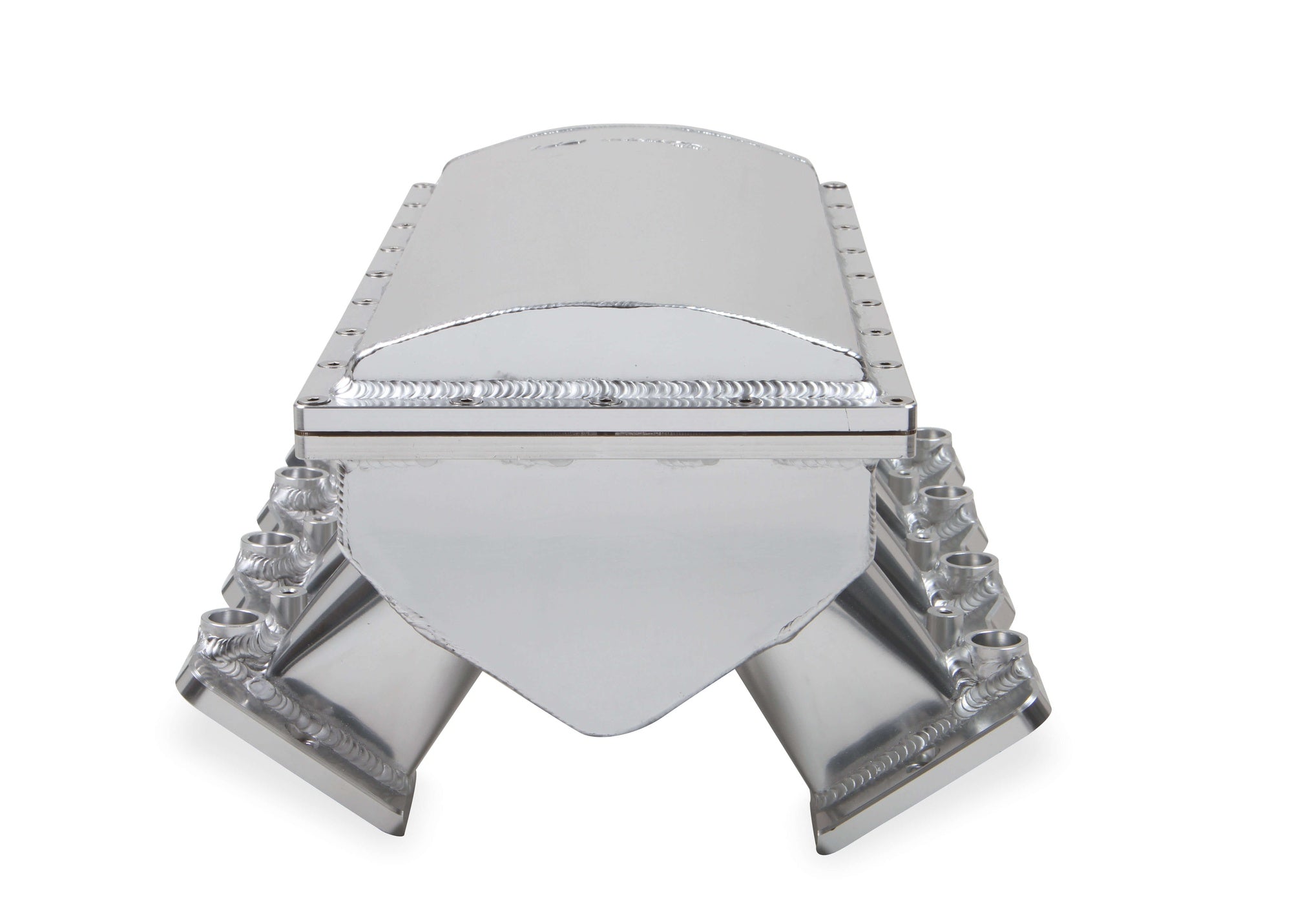

  • Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
  • 5mm (13/64") thick T6061 sheet aluminum construction for maximum durability
  • Larger Intake plenum vs. standard Sniper EFI manifolds for max effort engines and boosted applications

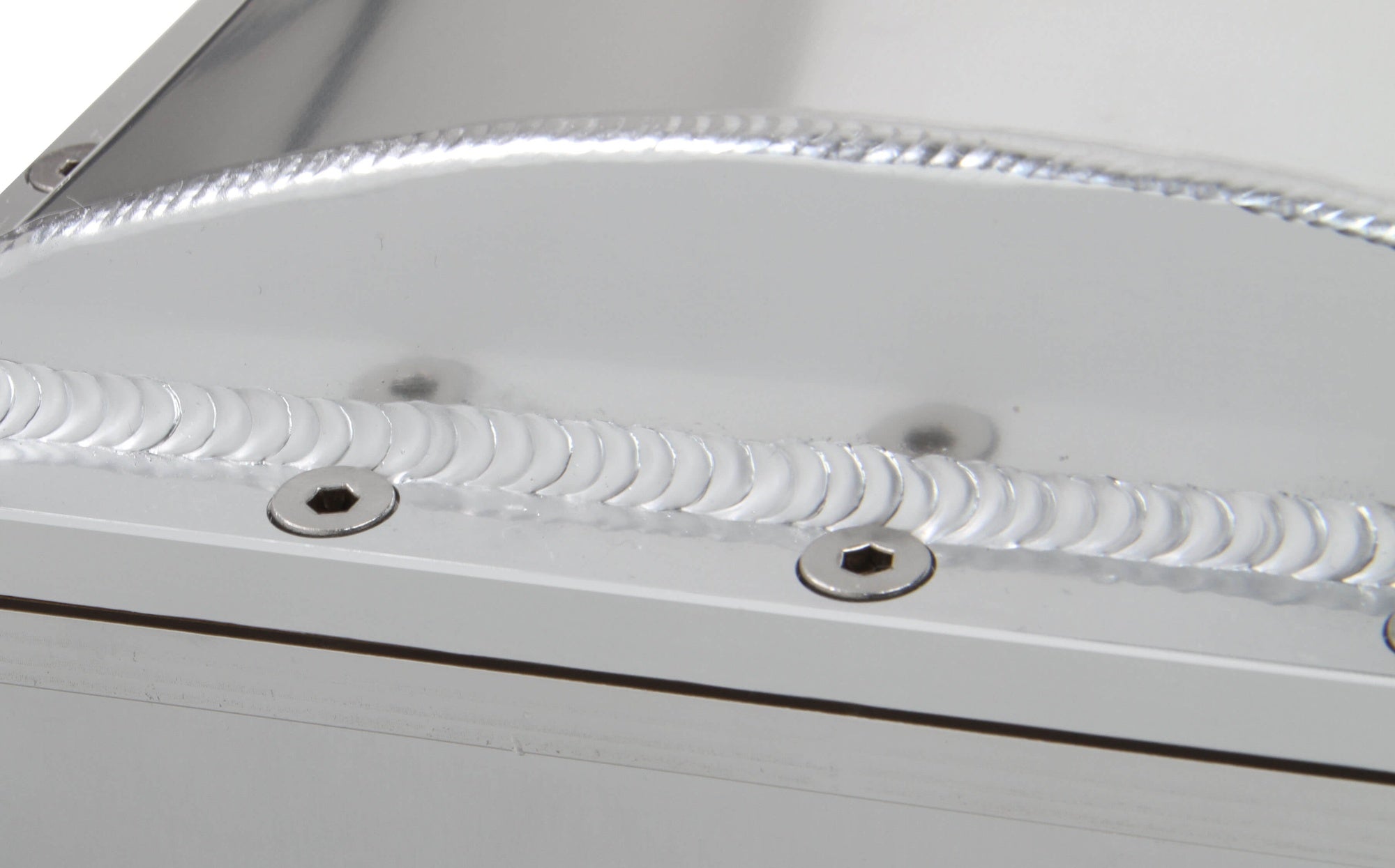

  • 100% TIG welded for strength and durability
  • Silver finish creates high impact under-hood styling
  • Longer Intake runner lengths offering a wider RPM operating range of 2400-8200 RPM

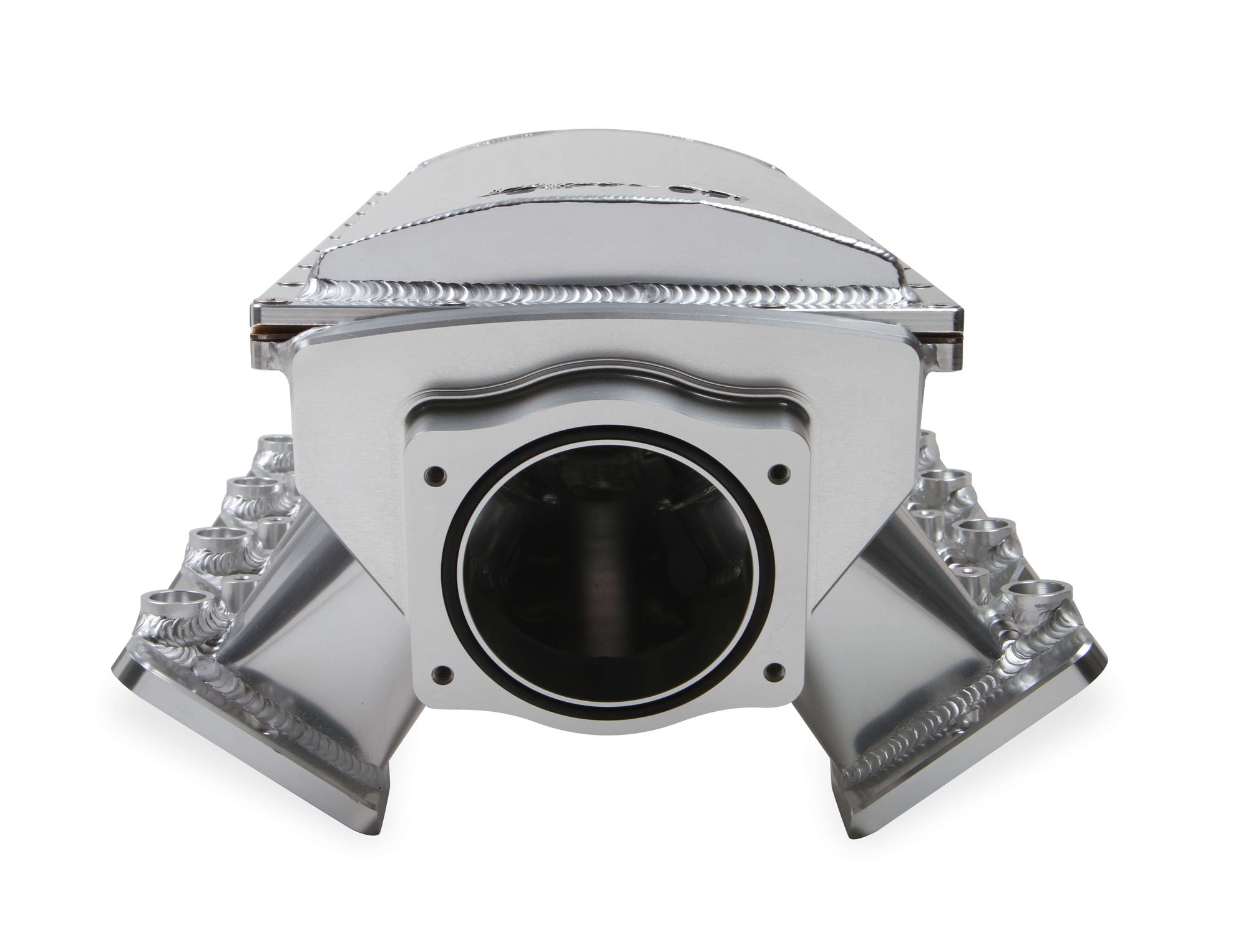

  • 90mm throttle bore opening for increased air flow
  • Welded seams inside and out for added strength and durability on high horsepower, max-effort engines and boosted applications

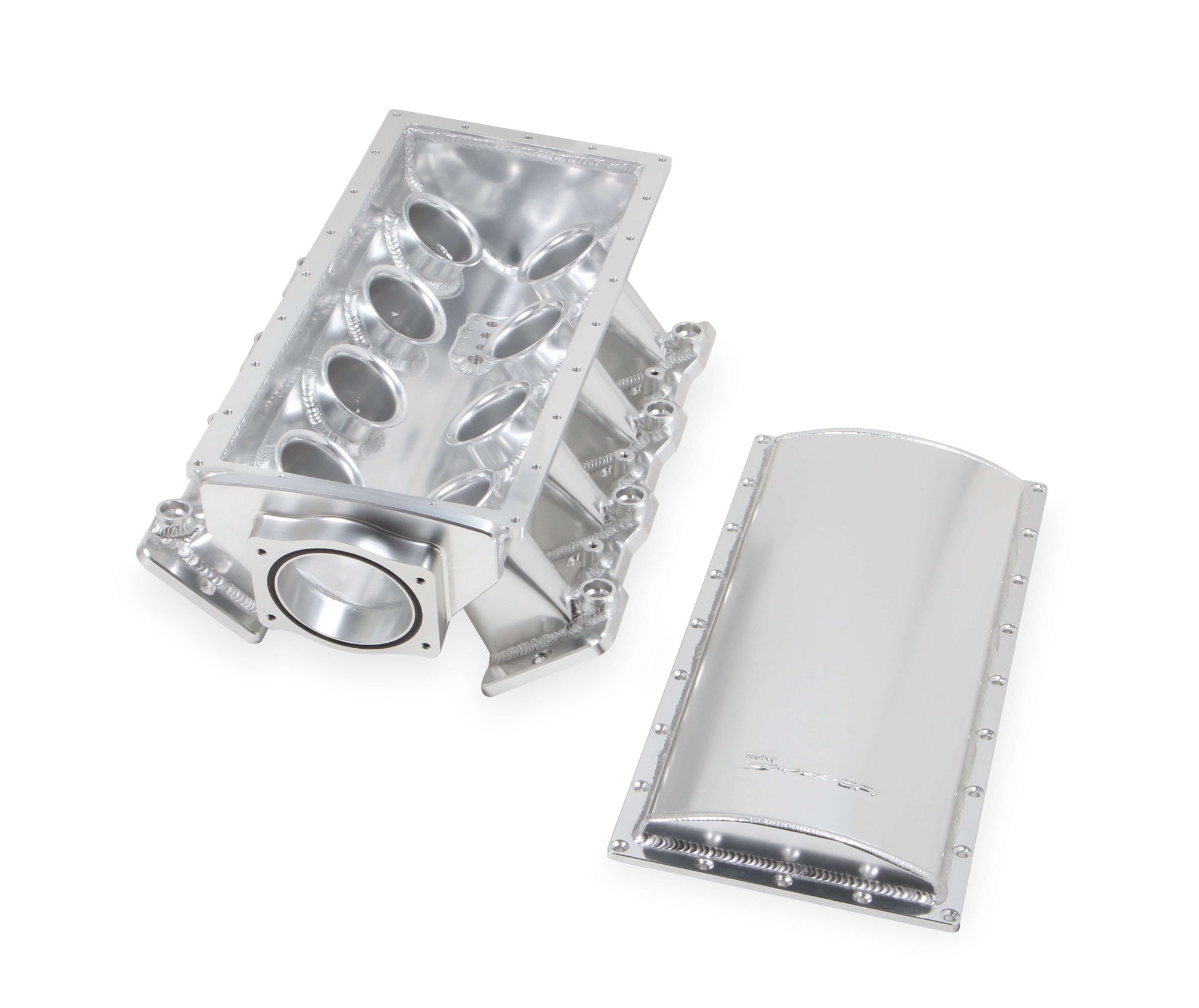

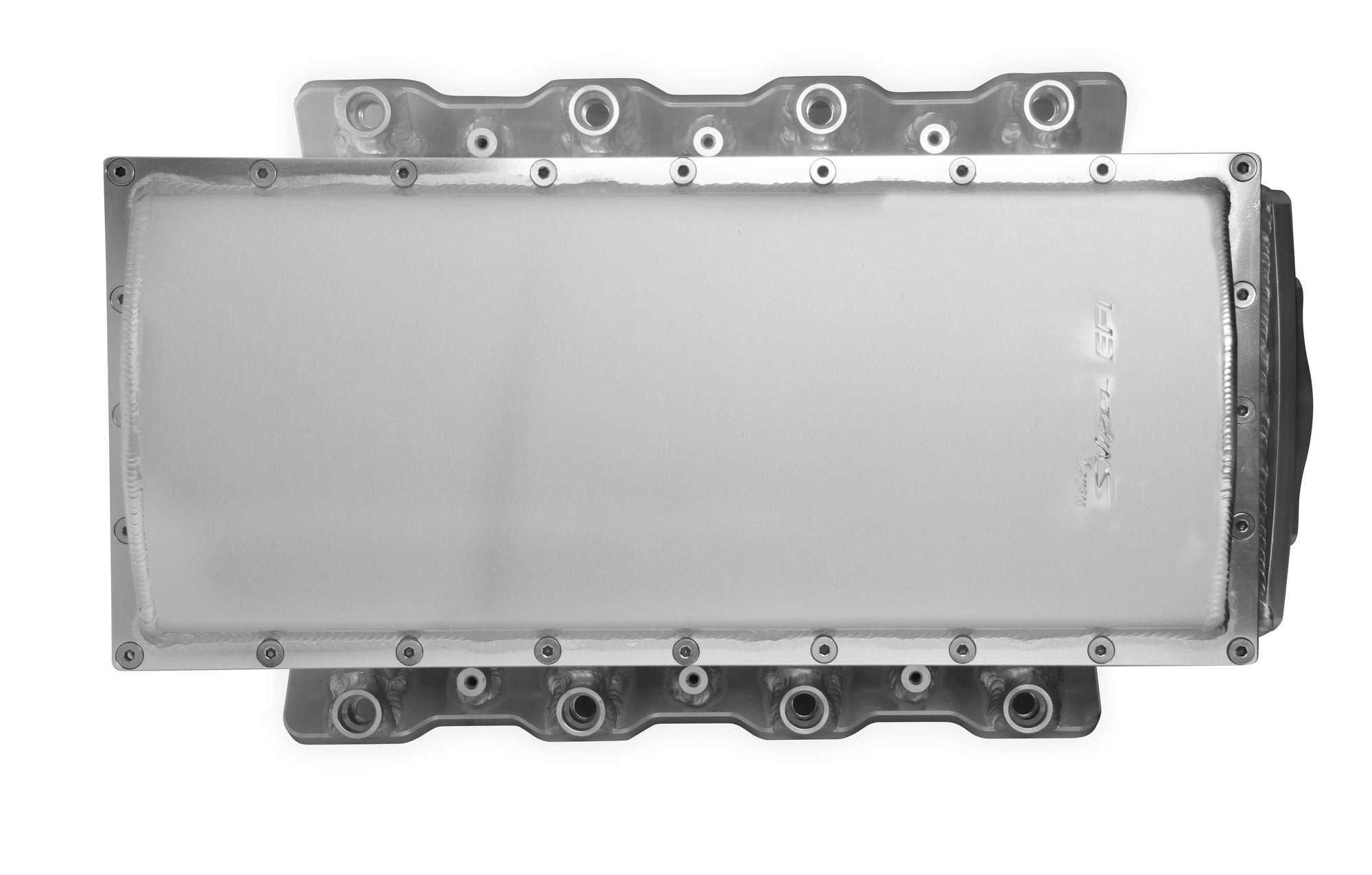

  • Removable top for ease of inspection, modification, and addition of sensors

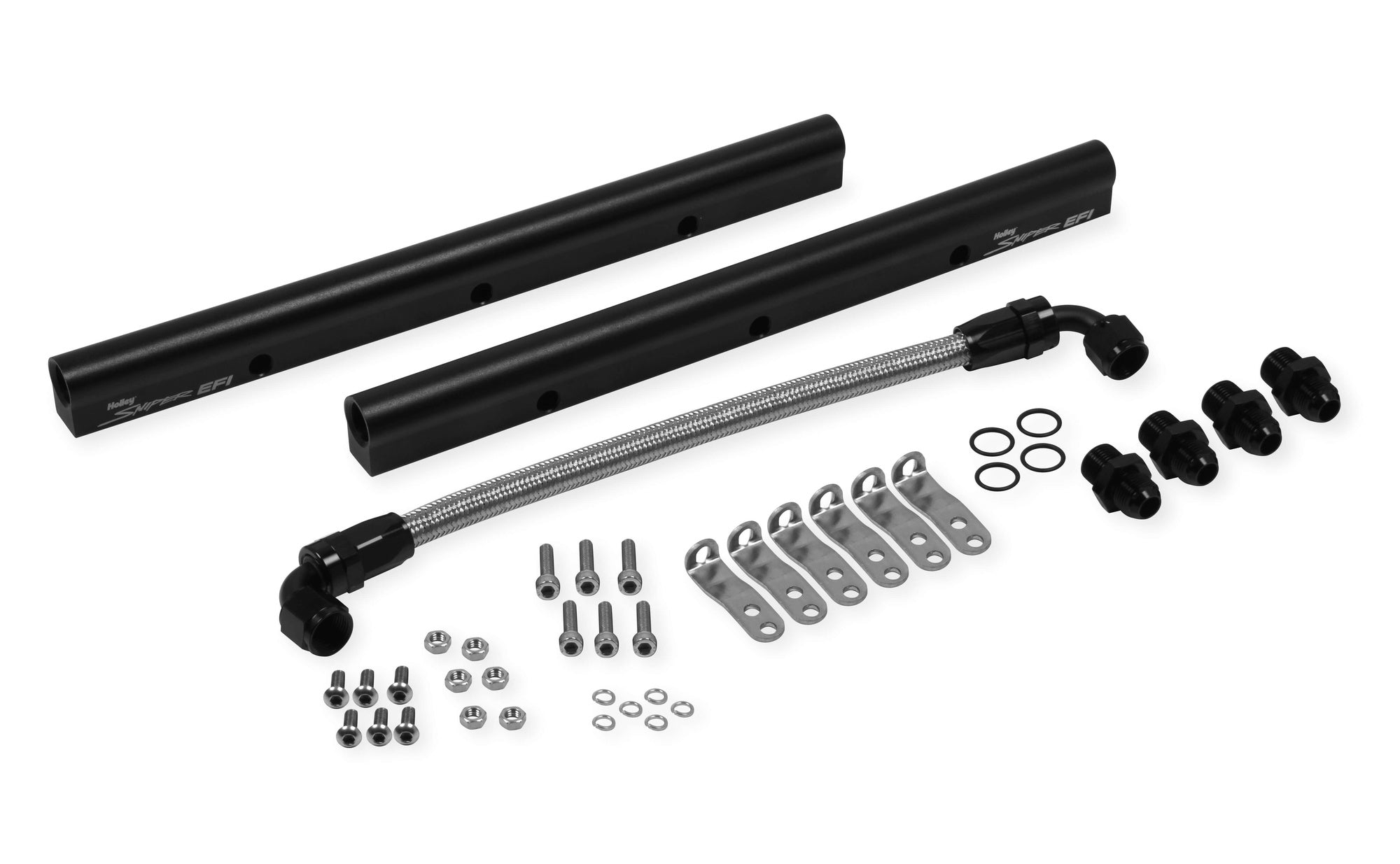

  • Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
📖

About this product

Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 90mm Race Series w/ Removable top, Throttle Body Spacer & Fuel Rail Kit w/ Sniper EFI Logo - Silver

📋

Product Specifications

Automotive Item Grade
Performance
Basic Operating RPM Range
3500-8000
Basic Operating RPM Range
4500-7500
Brand
Holley Sniper EFI
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Carburetor Flange
N/A
Carburetor Quantity
N/A
Carburetor Studs Included
No
Category
Sniper EFI Intakes
CNC Ported
No
Color
Silver
Construction
Fabricated

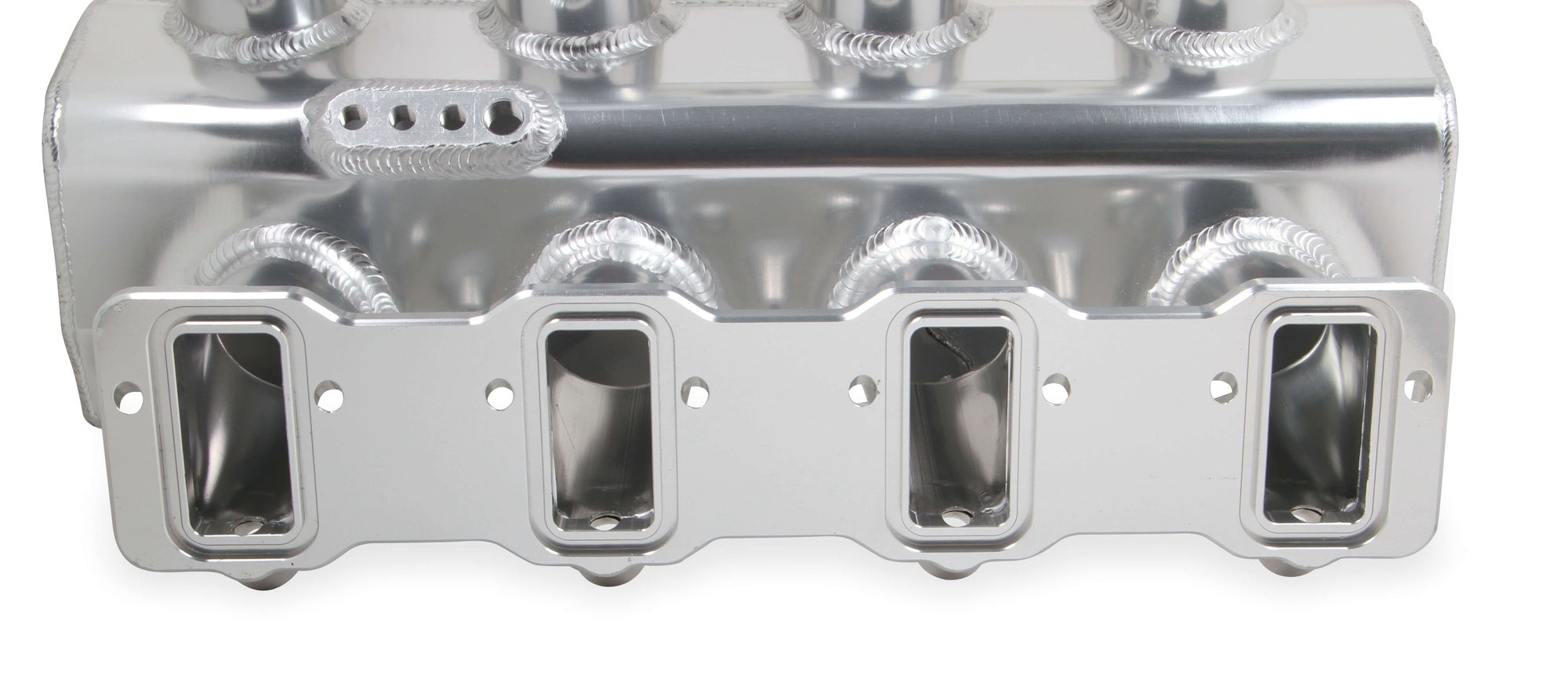

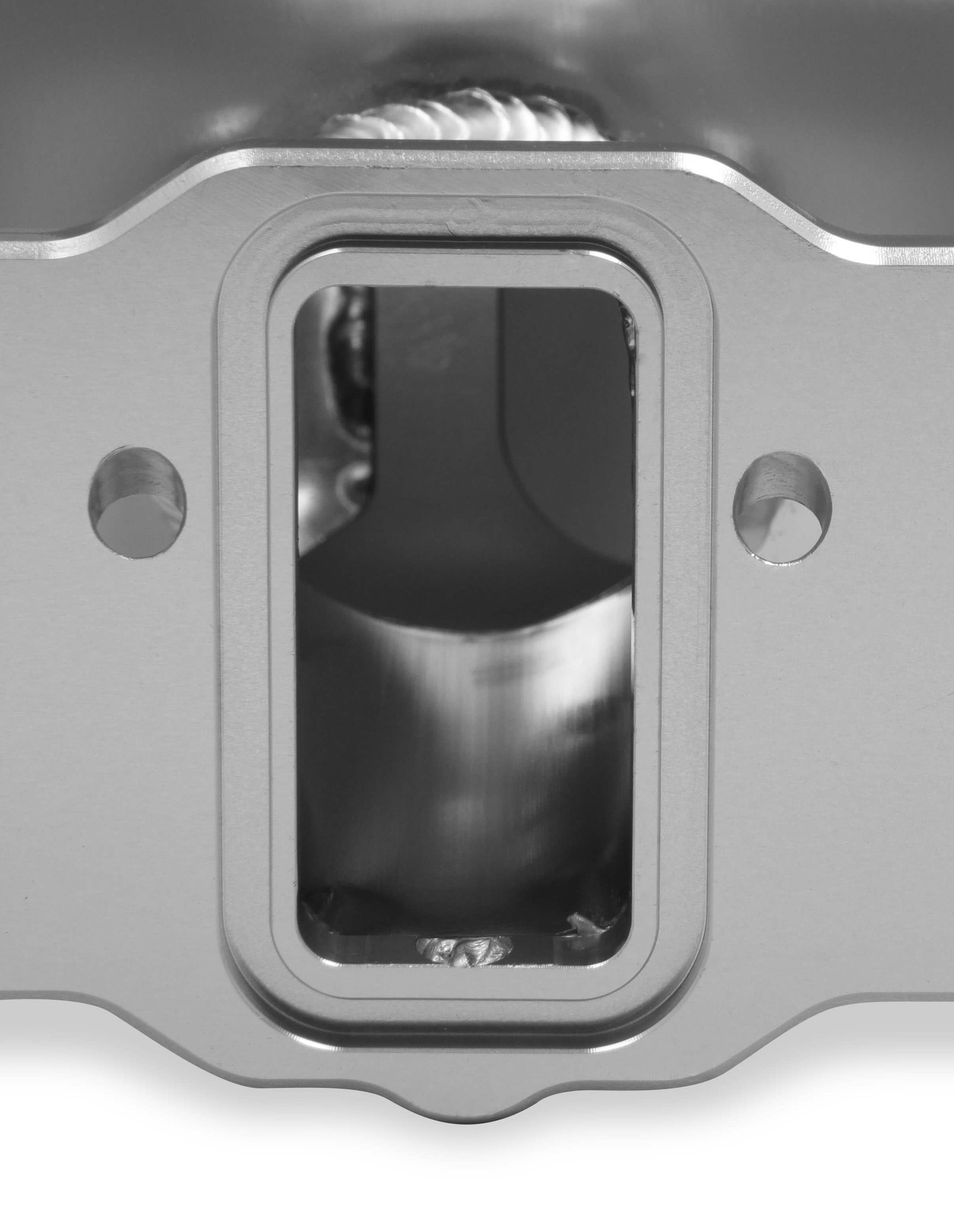

Cylinder Head Port Shape
Rectangle
Deck Height
9.24
EGR Port
No
Emission Code
4
Flange Style
N/A
Front Maximum Height
9.62
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Fuel System Type
EFI
Gasket Or Seal Included
Yes
Grade Type
Performance
Injector Style Provision
LS3/L92 EV6 USCAR
Intake Port Gasket(s) Included
Yes
Manifold Type
Fabricated
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Polished
Plenum Finish
Silver
Product Type
Intake Manifold
Prop 65 Yes/No
Yes
Rear Maximum Height
9.015
Recommended Use
Forced Induction
Removable Runners
No
Removable Top/Lid
No
Runner Length
5.512" (140mm)
Single Or Dual Plane Type
Single
Style
EFI
Throttle Body Bore Diameter
90
Throttle Body Gasket Included
Yes
Throttle Body Included
No
Throttle Bore
90mm
Vacuum Ports
(3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️

Warranty & Compliance

Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
4
HS Code
8409915085
📐

Dimensions & Shipping

Product Dimensions
22.7 × 15.2 × 12.9 in
Shipping Dimensions
22.7 × 15.2 × 12.9 in
Weight
9525 g (9.53 kg)
