HolleySKU 302-24bkMade in CN
Product Details
⭐
Key Features

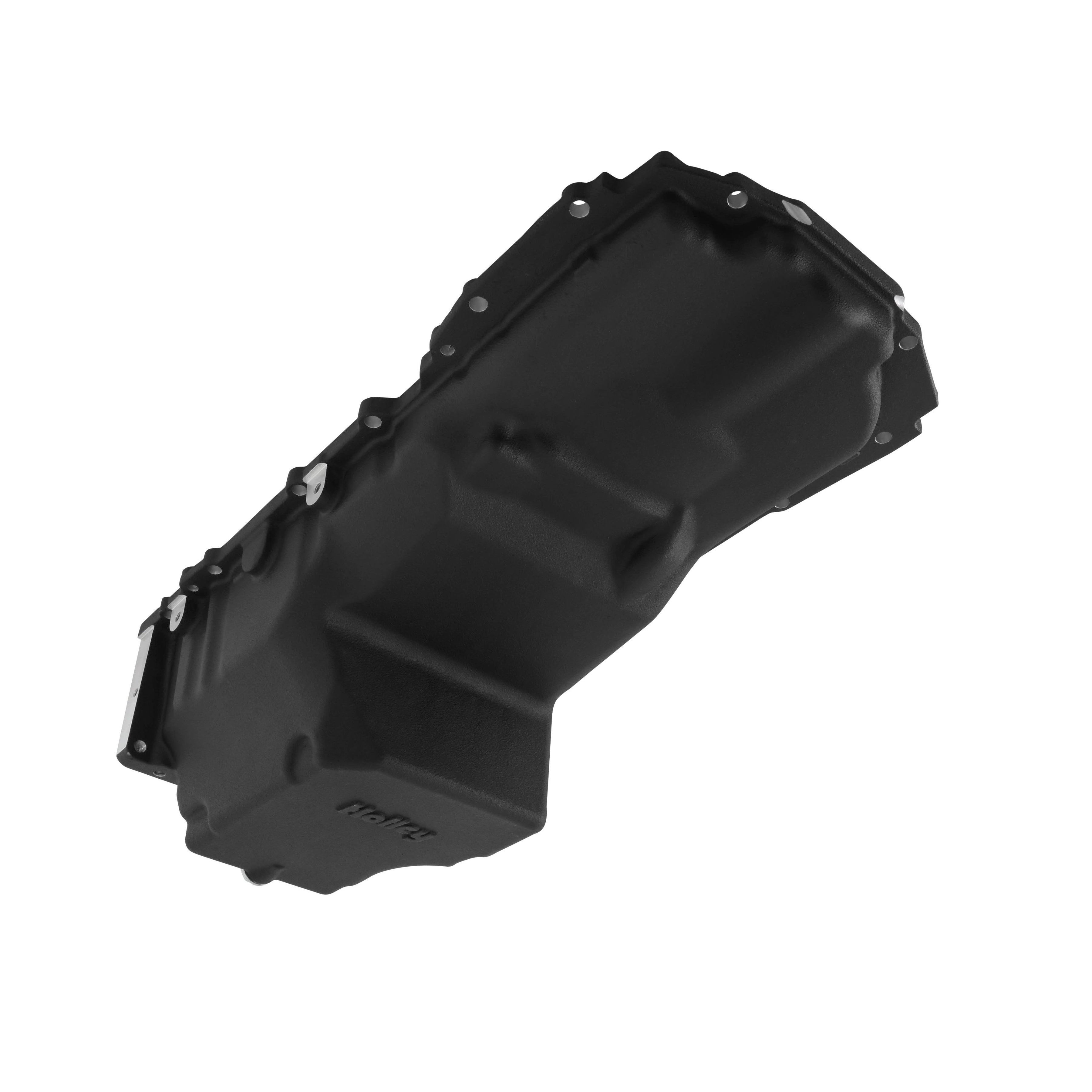

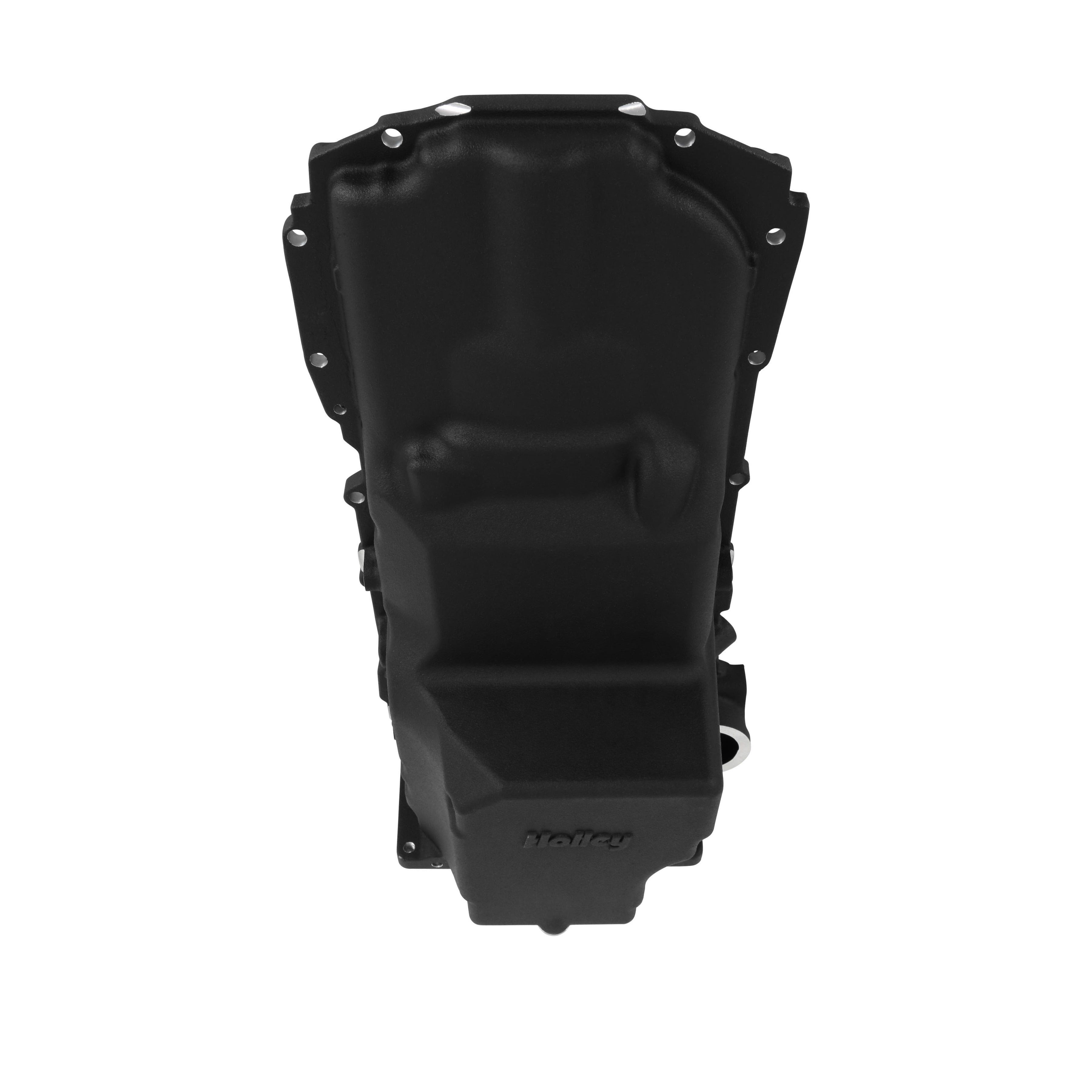

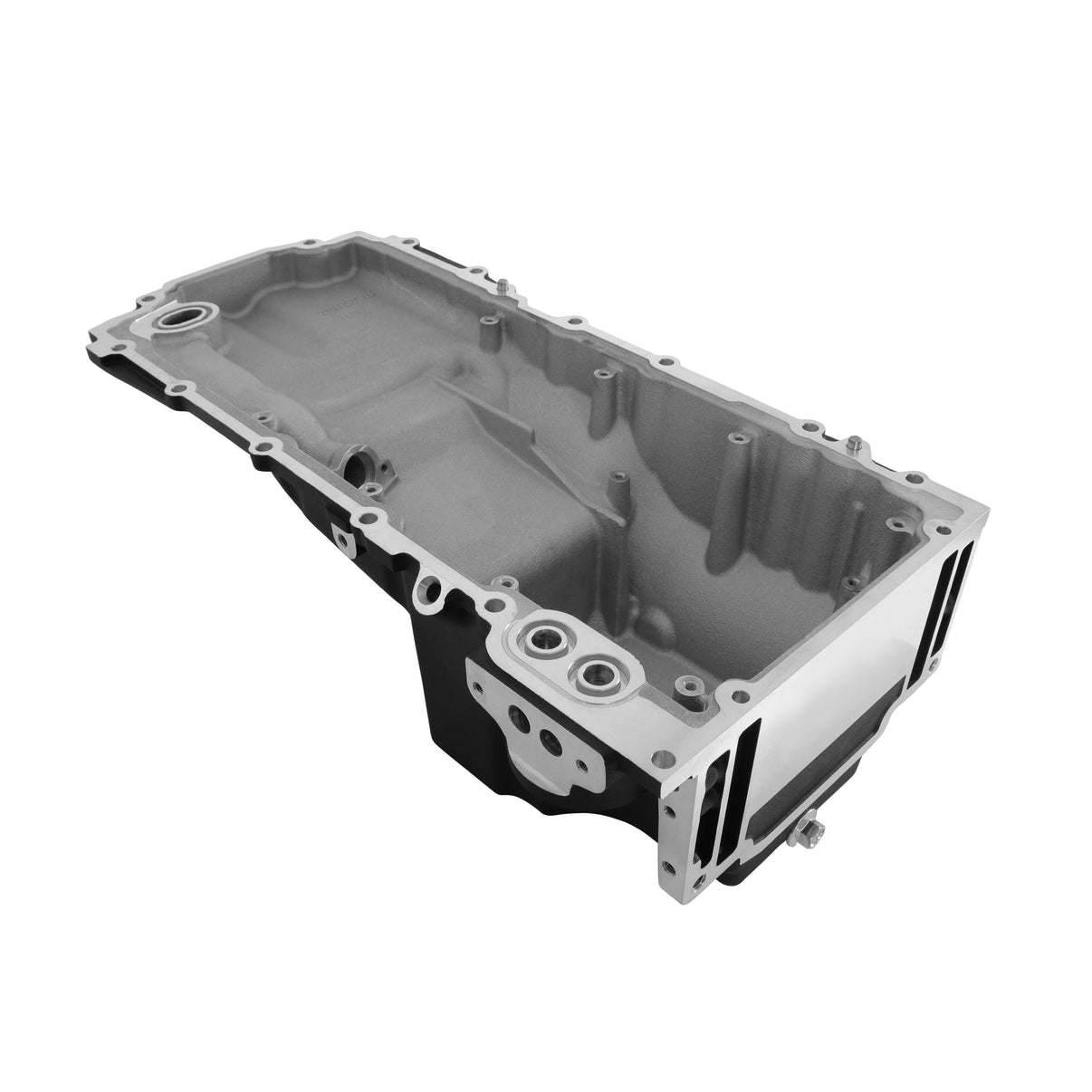

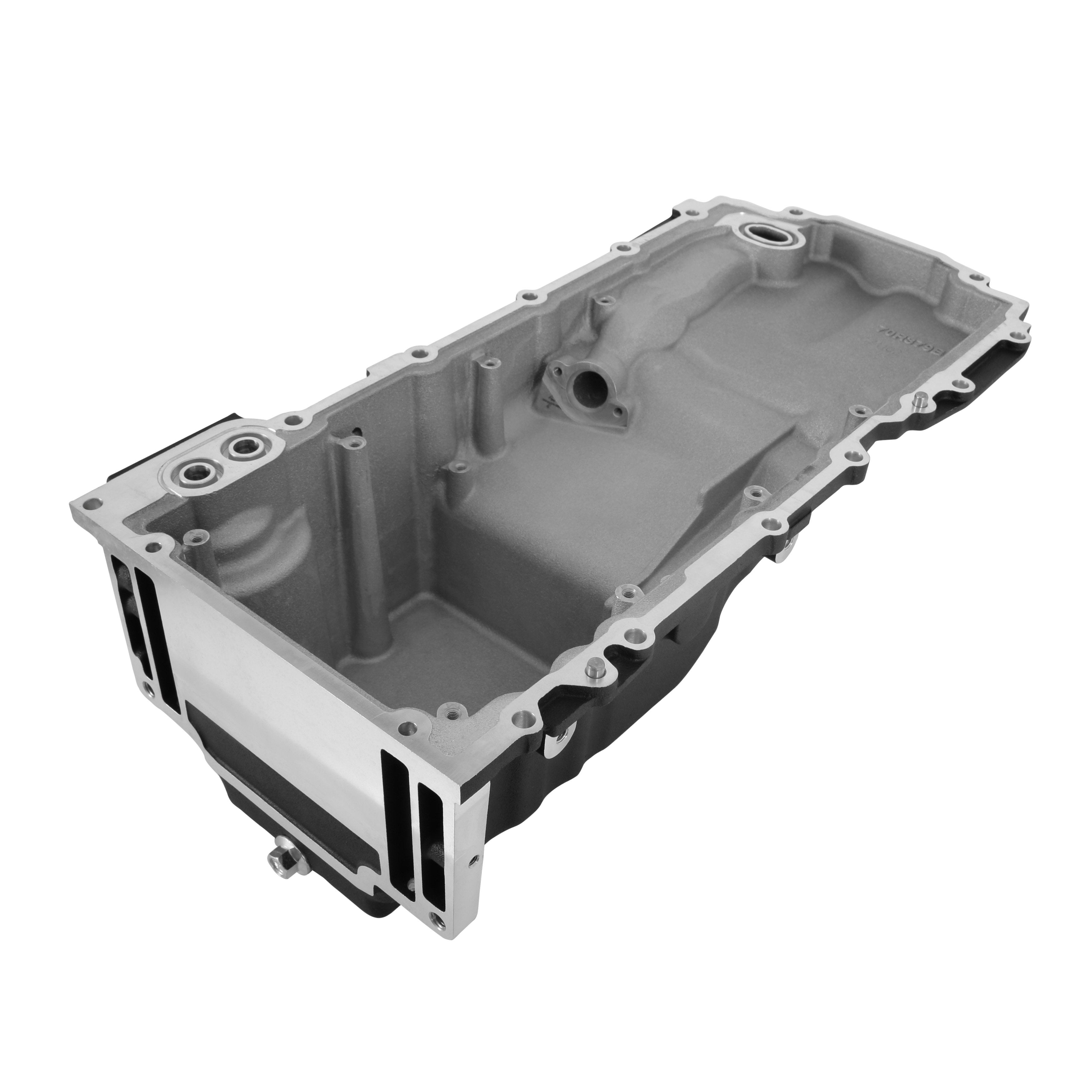

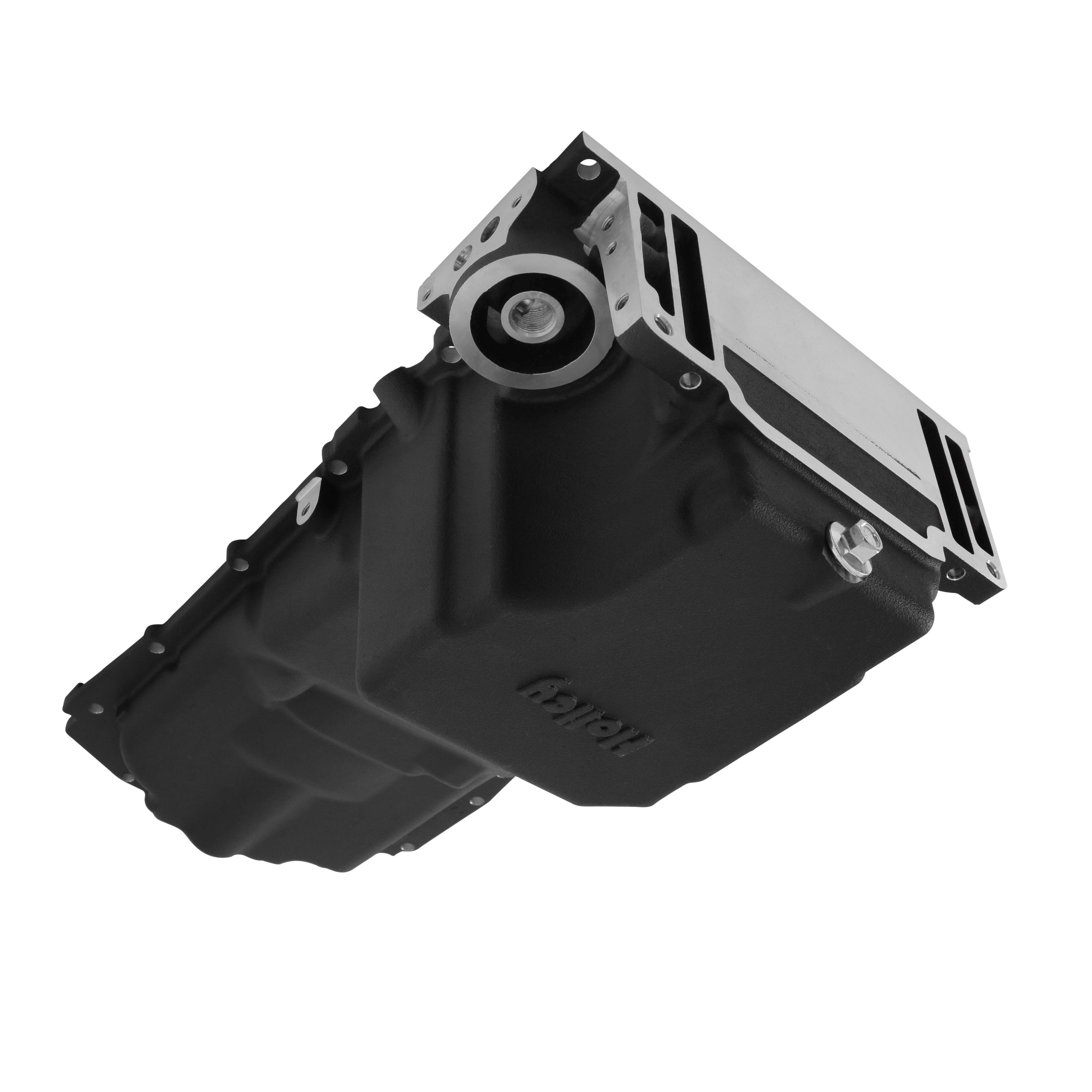

GM LT Swap Oil Pan
GM's popular LT engines find their way into a huge variety of vehicles. Unfortunately, the factory LT pans don't always fit in the vehicles we would like. Holley's new LS 4WD Off-Road Engine Swap Oil Pan is designed to help. It provides maximum clearance to the chassis and drivetrain for the K10 chassis and other LT swapped 4WD applications, plus provides an OE (Original Equipment) Style fitment for durability and proper sealing. In addition, the 302-24 and 302-24BK are compatible with all popular transmissions (SM465, NV4500, TH350, TH400, 700R4, 4L60-4L70, 4L80, 6L80 and 6L90). Holley also offers an optional off-road hinged door baffle (#302-33 for LS engines and #302-34 for LT engines) and rock shield (#302-35) that can be added at any time to further protect your investment. *See Installation Notes below for important information regarding necessary modifications to windage tray, capacity, etc. (see instructions for full details).
Fits 1973-1987 GM K10 LT Swapped Trucks and Other 4WD LT Swap Projects
- Fits GM K10 and other LT Swapped 4-wheel drive applications

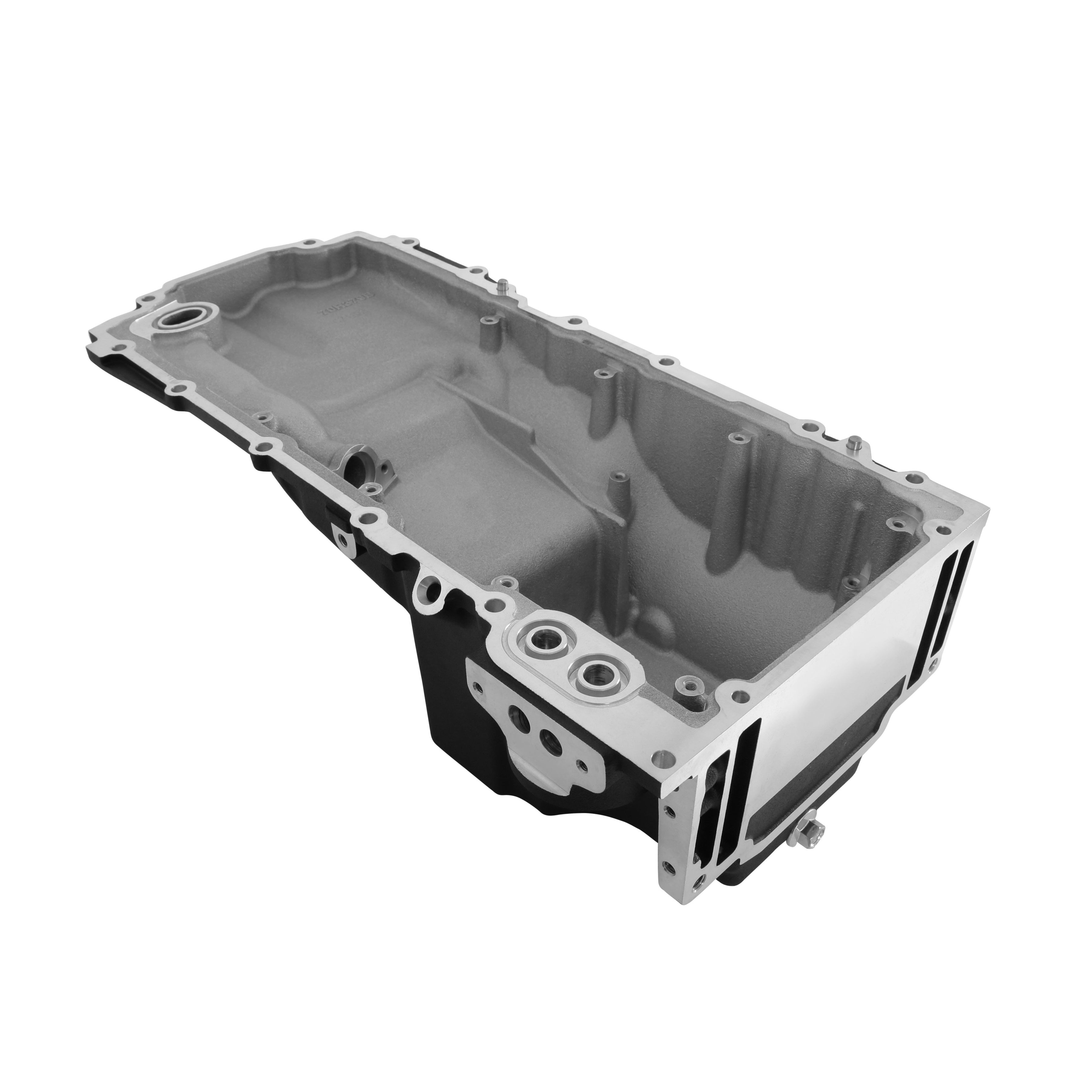

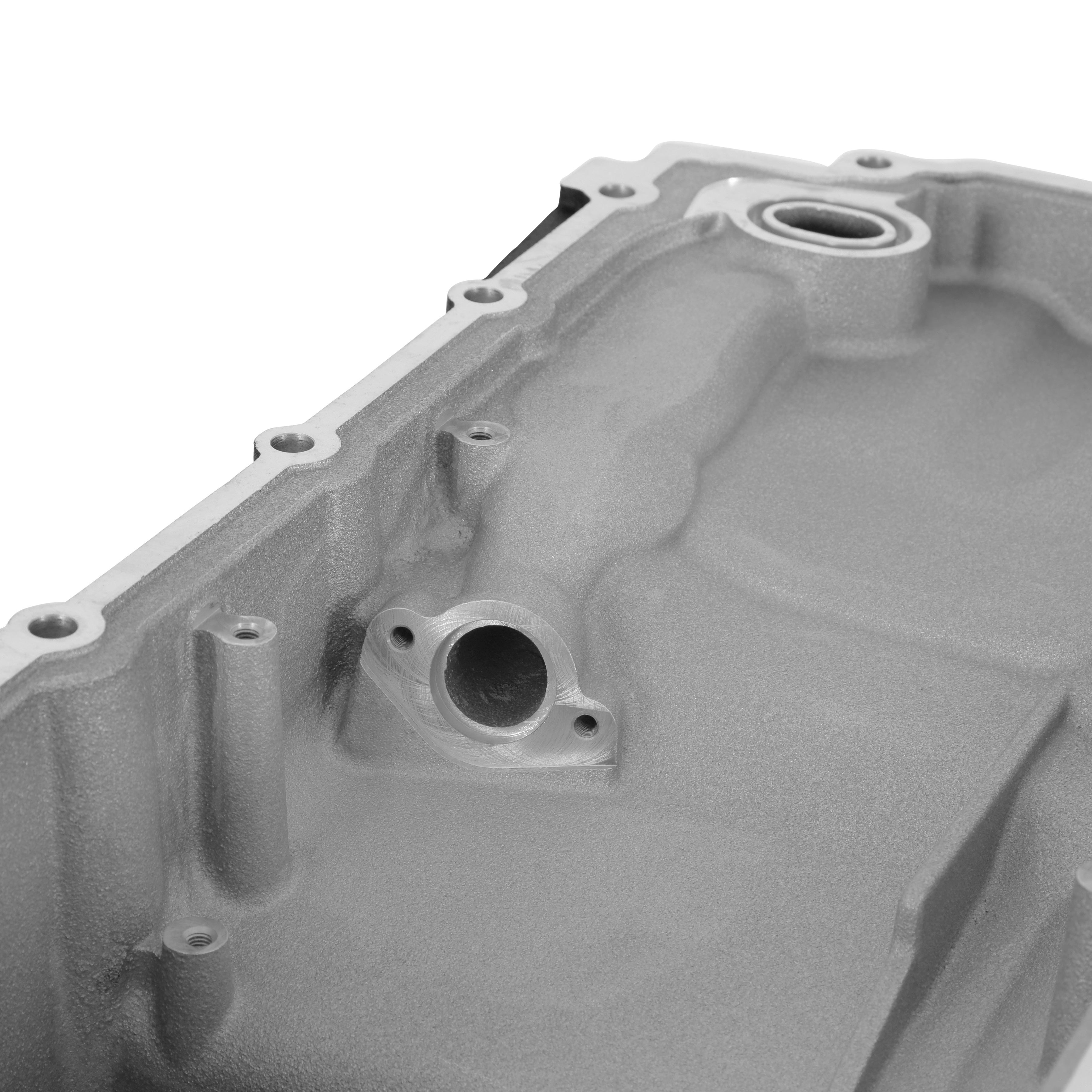

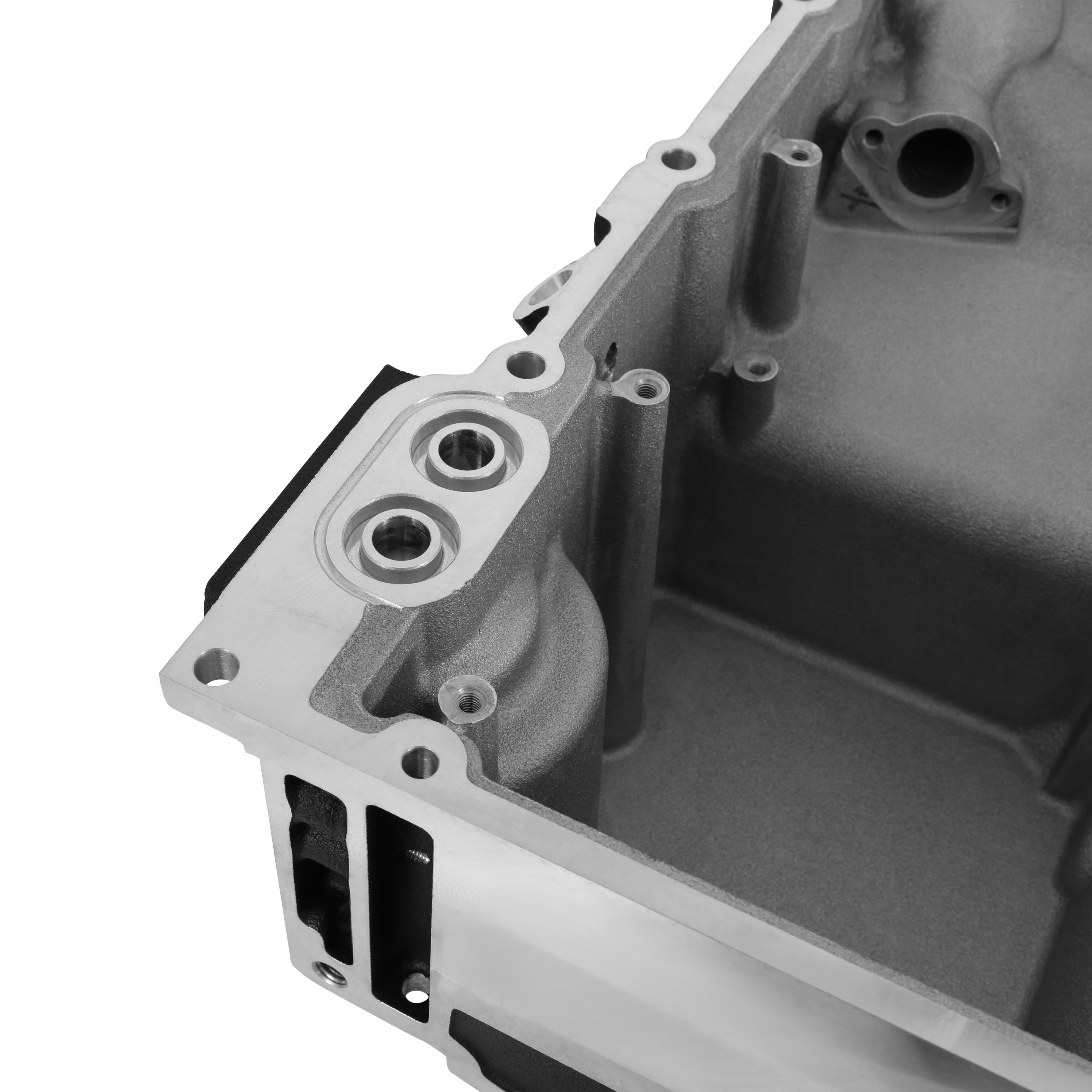

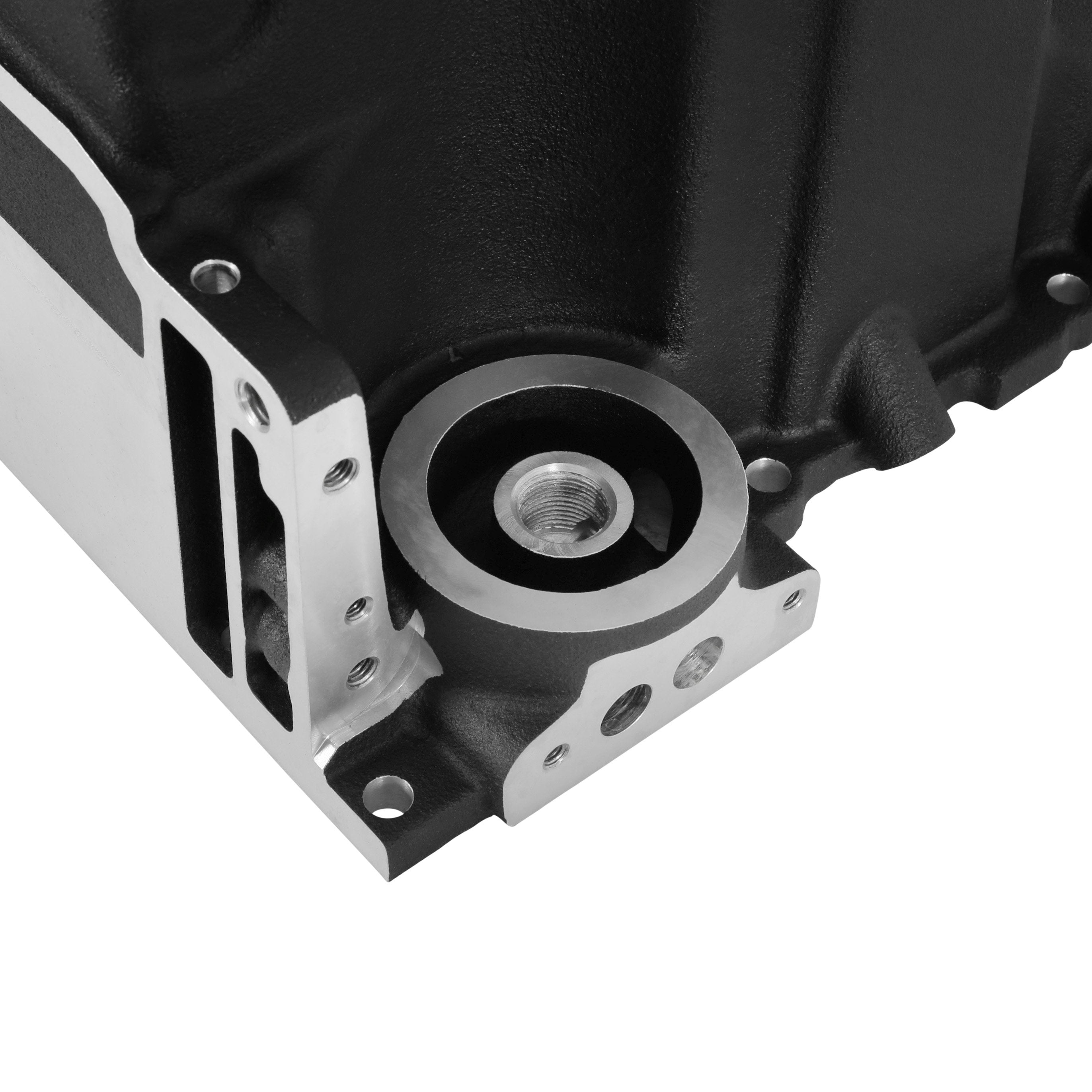

- Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE flange gasket and sealing, proper structural rigidity, and OE bell-housing attachments
- Compatible with hinged-door baffle #302-34 and rock shield #302-35 which can be added at any time
- Traditional high-quality cast aluminum appearance with clean exterior styling

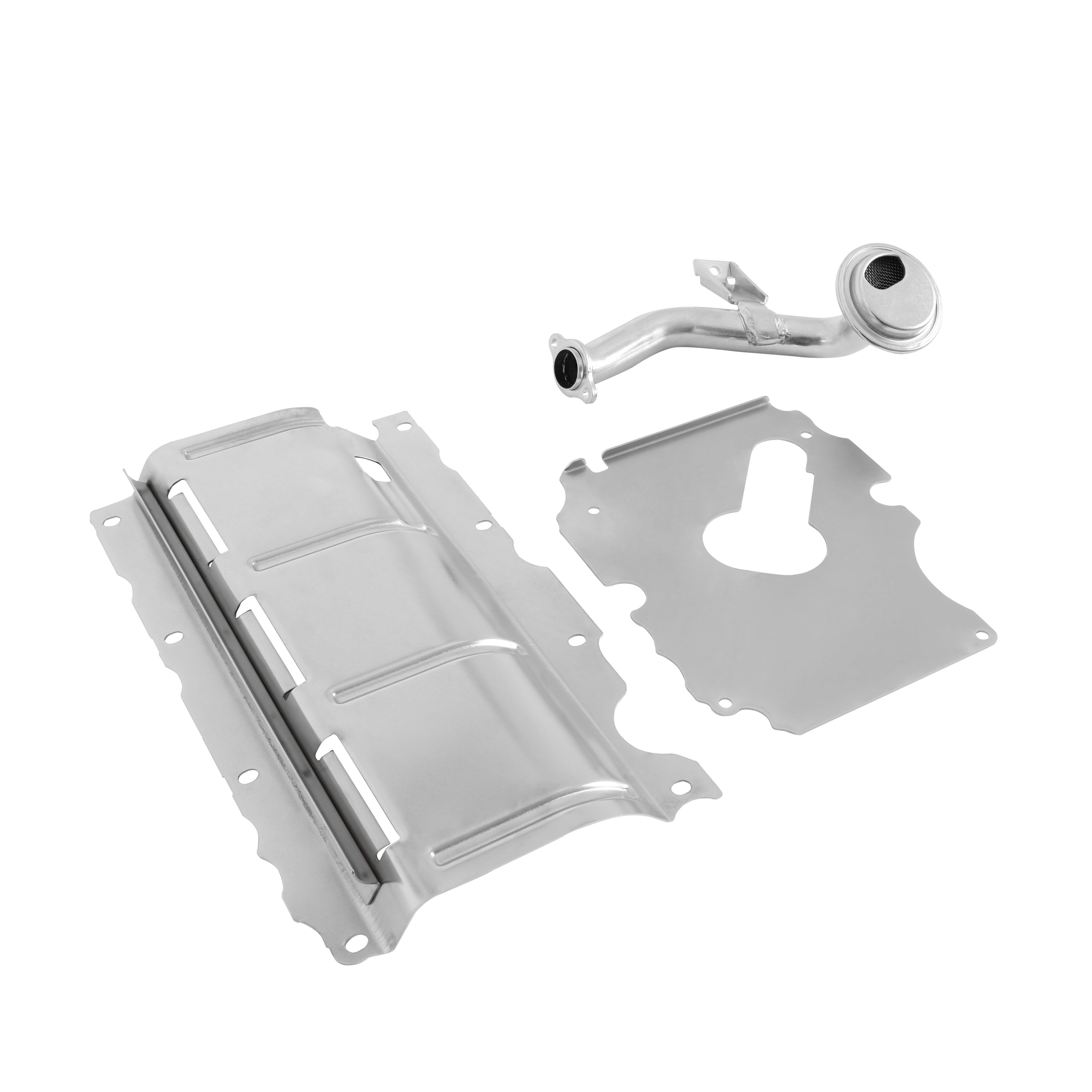

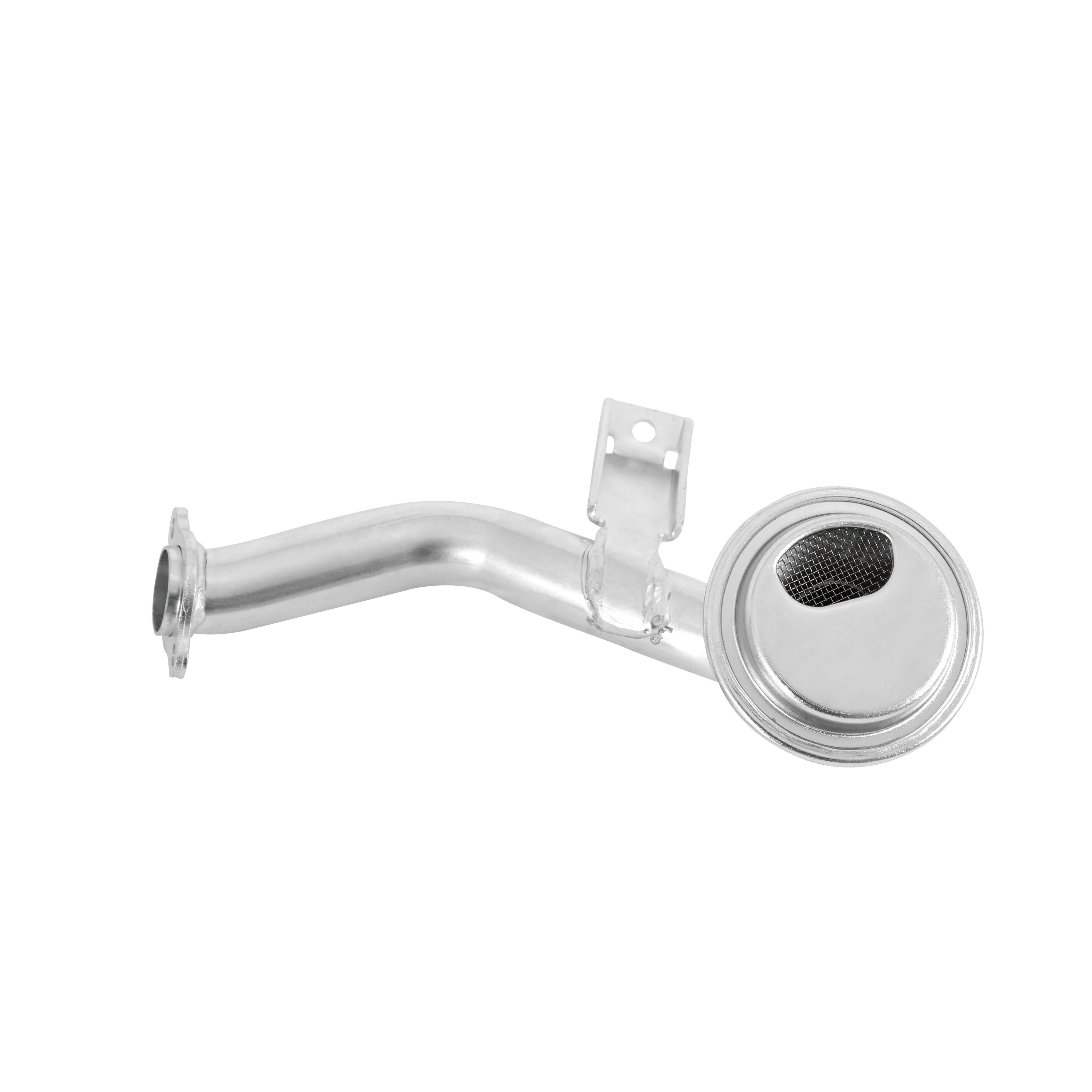

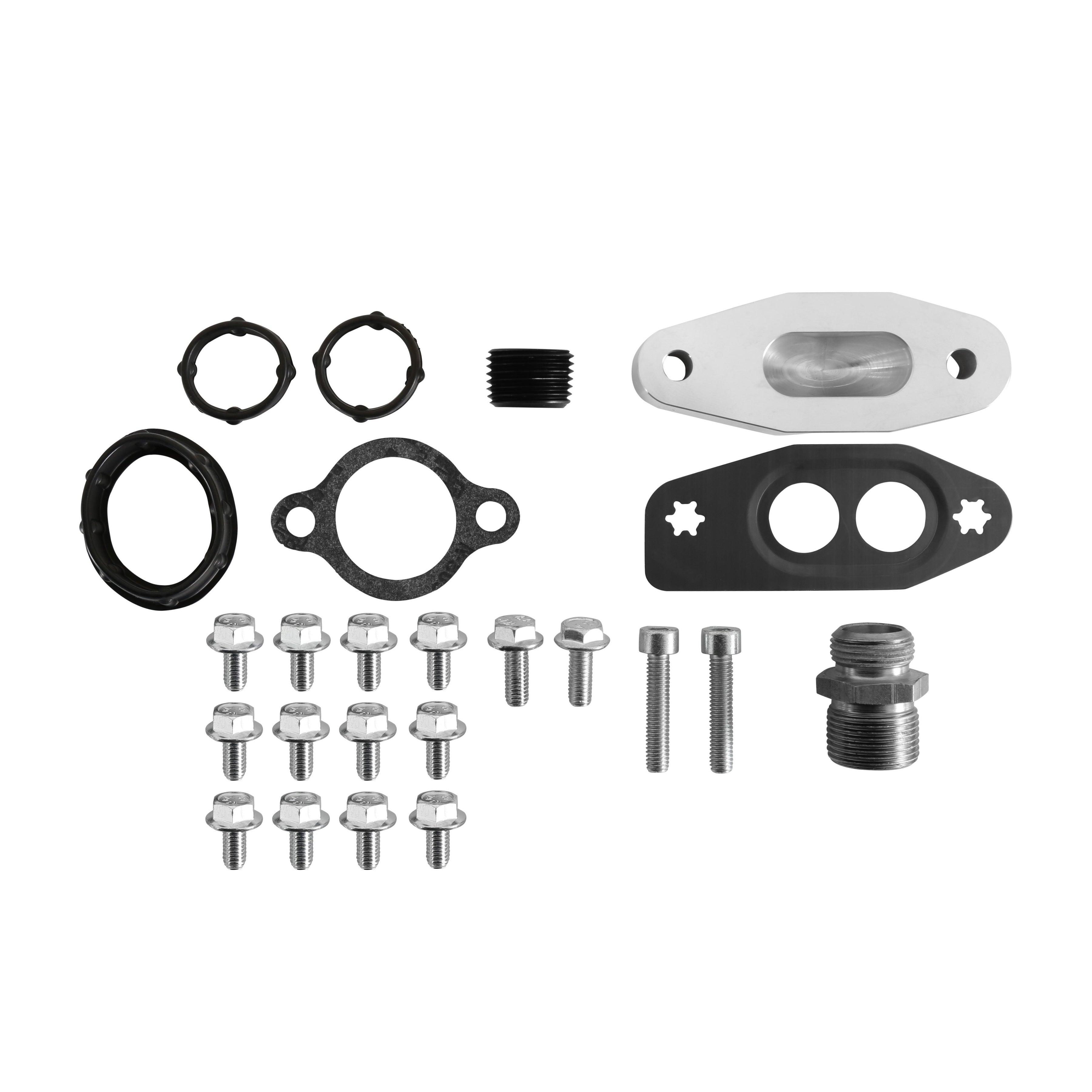

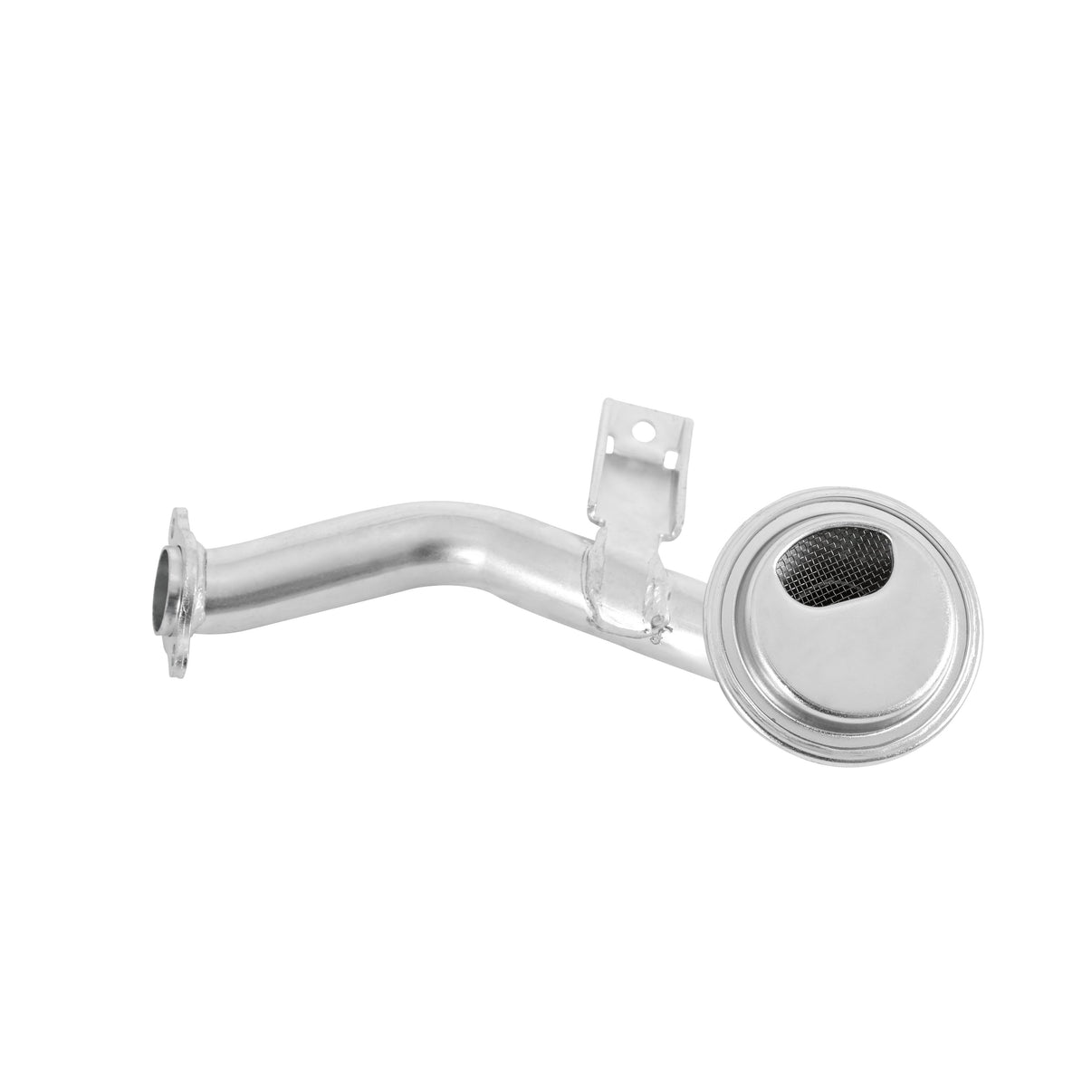

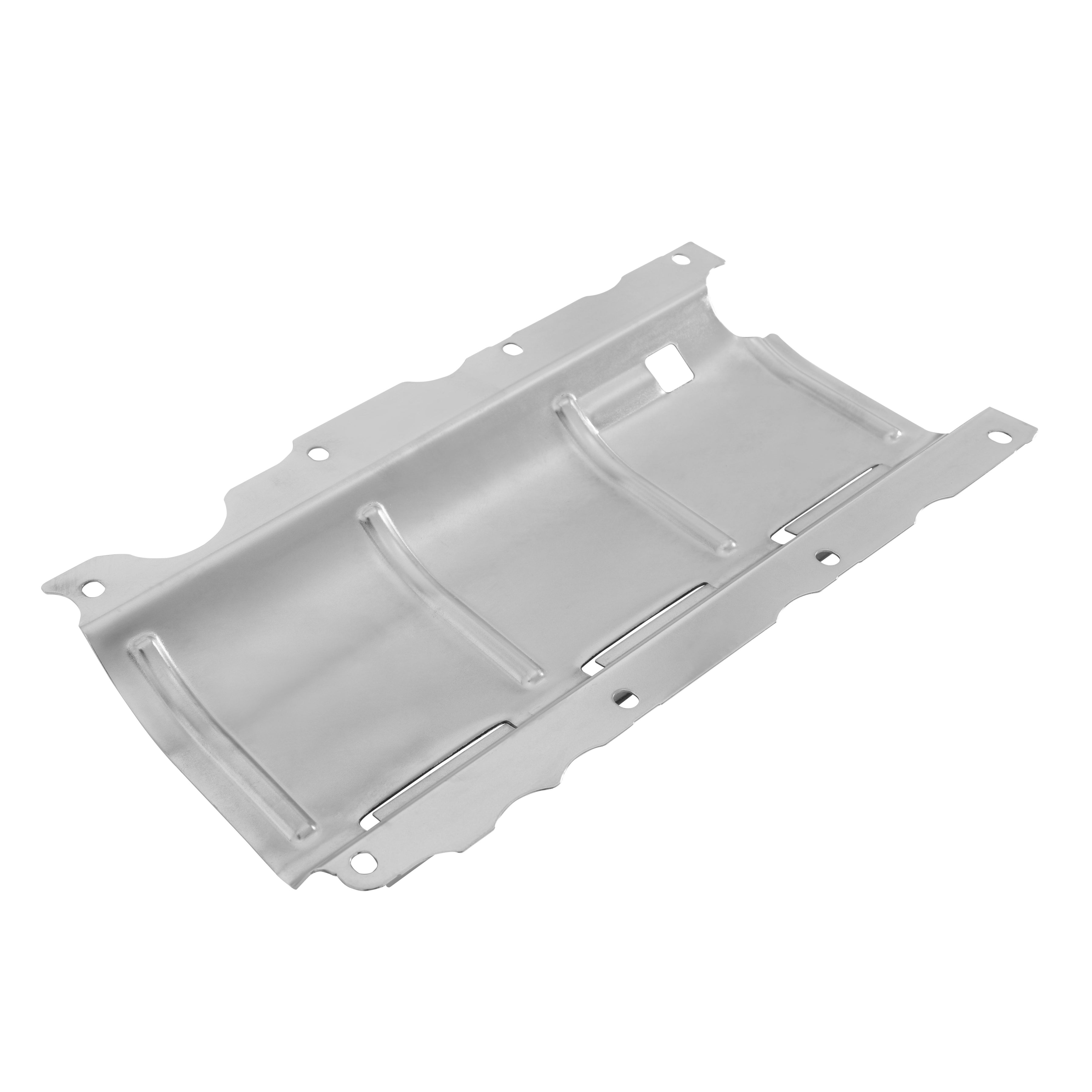

- Complete kit including sump baffle, pick-up tube, pick-up o-ring, oil filter stud, & oil passage cover
- Maximum crankshaft stroke - 4.00-inches
📖
About this product
Fits 1973-1987 GM K10 LT Swapped Trucks and Other 4WD LT Swap Projects
📋
Product Specifications
Application
GM Gen V LT
Automotive Item Grade
Performance
Baffled
No
Brand
Holley
California Proposition 65 Chemical Name
4
Capacity
5.6
Capacity
5.6 QT
Category
Engine
Choose Your Part
Oil Pan Kit
Color
Black
Crank Shaft Wiper Included
No
Dipstick Port
No
Drain Plug Included
Yes
Emission Code
5
Finish
Black Powdercoated
Grade Type
Performance
Material
Cast Aluminum
Maximum Stroke
4.00"
Oil Pan Capacity
5.6 Quarts
Oil Pan Type
Off-Road / 4WD
Oil System Capacity (w/ Filter)
6.1 Quarts
Part Type
Engine Oil Pan
Pickup Included
Yes
Product Type
Oil Pan Kit
Sub Category
Cylinder Block Components
Sump Location
Rear
Sump Type
Wet
Turbo Oil Drainback
No
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Windage Tray Included
No
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
Emissions Code
5
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
24.3 × 14.6 × 10.6 in
Shipping Dimensions
24.3 × 14.6 × 10.6 in
Weight
9494 g (9.49 kg)
