Holley Sniper EFIPart 19-375Made in US
Product Details
⭐
Key Features
*** EFI rated fuel hose and clamps required when connecting to existing vehicle fuel lines. Bolt pattern is 4.375"

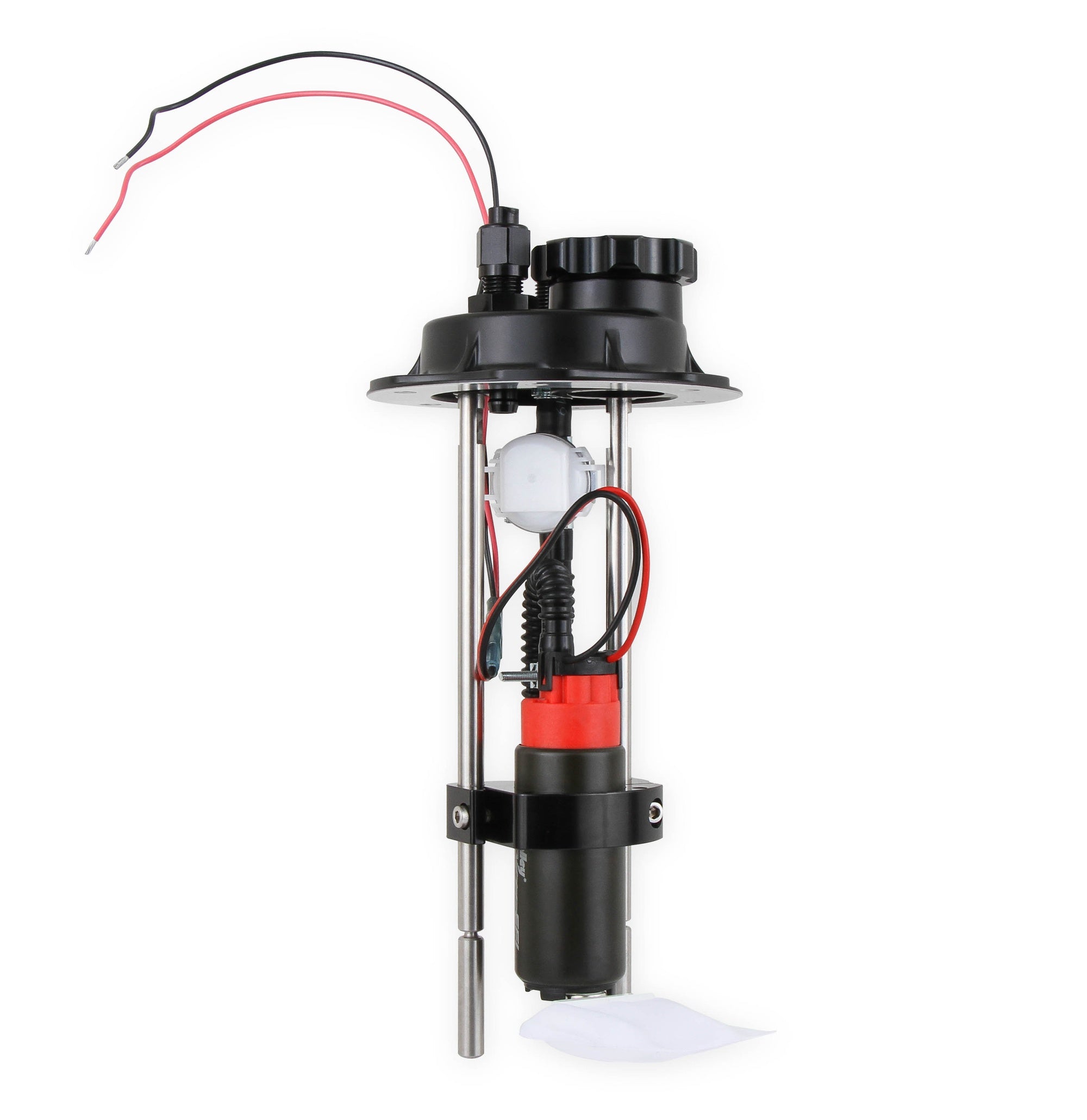

Updating your racing fuel system to EFI is so simple! | Sniper is introducing their latest Diecast Fuel Cell EFI Pump Modules. The modules were designed to drop in as a direct replacement for your existing 6 bolt flange fuel cell cap assembly. The diecast aluminum top flange includes an 6AN inlet port, a 6AN outlet port, and a fuel filler cap. The fuel pump depth is fully adjustable from 7.5" to 12" deep. The EFI modules are available with single 340 LPH fuel pumps in both return and returnless system designs. | The module kits include all the hardware to install into your existing fuel cell. All that you need to add is your fuel line. | ***Assembly fits common RJS, Jaz, Summit, Jegs, RCI, Speedmaster and Speedway fuel cells. | ***Supports up to 700 EFI or 900 Carb HP (HP Rating @ 60 PSI at 13.5 Volts / 10.4 AMP Draw)
6-Bolt Flange 340 LPH E85 Compatible Drop-In EFI
- Update your fuel cell to EFI the easy way!
- Designed to drop right into your existing 6 bolt flange fuel cell

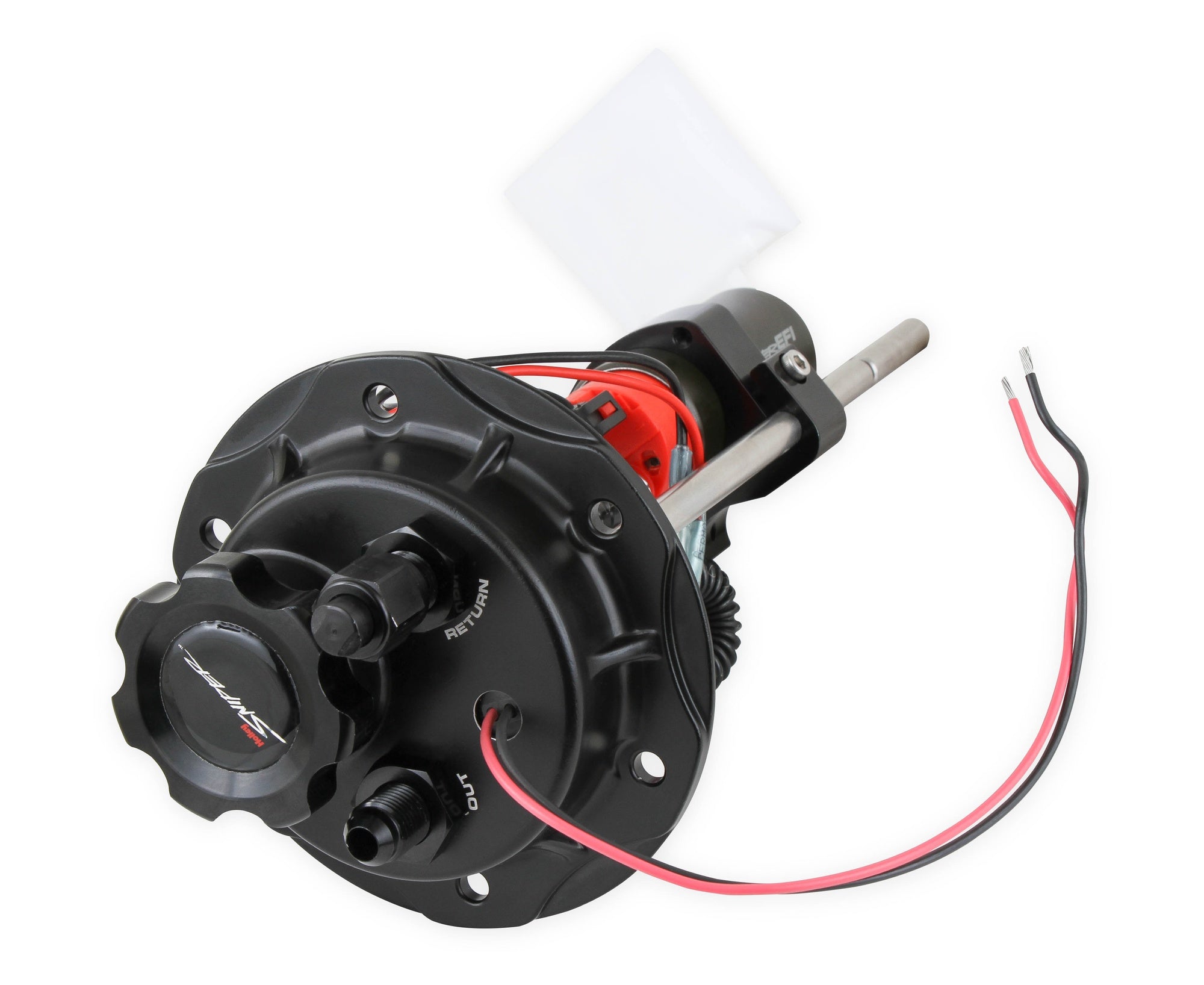

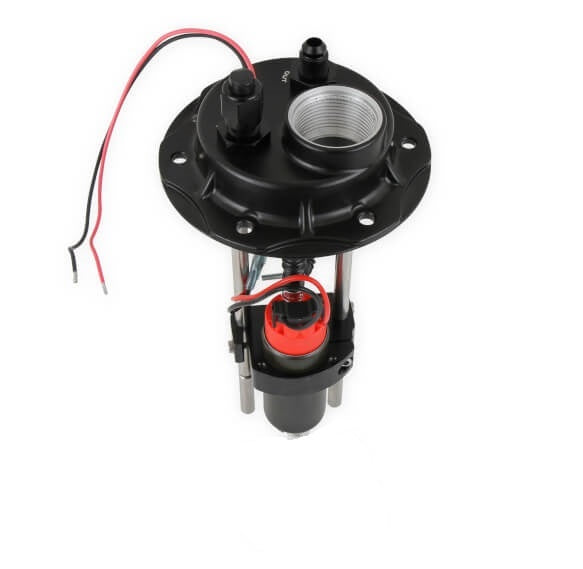

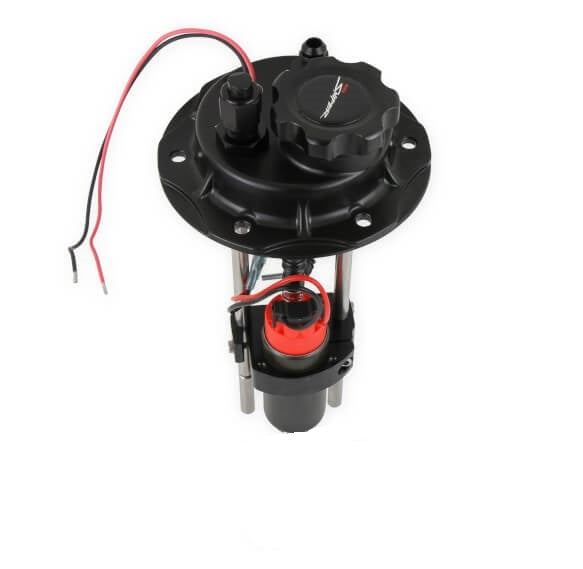

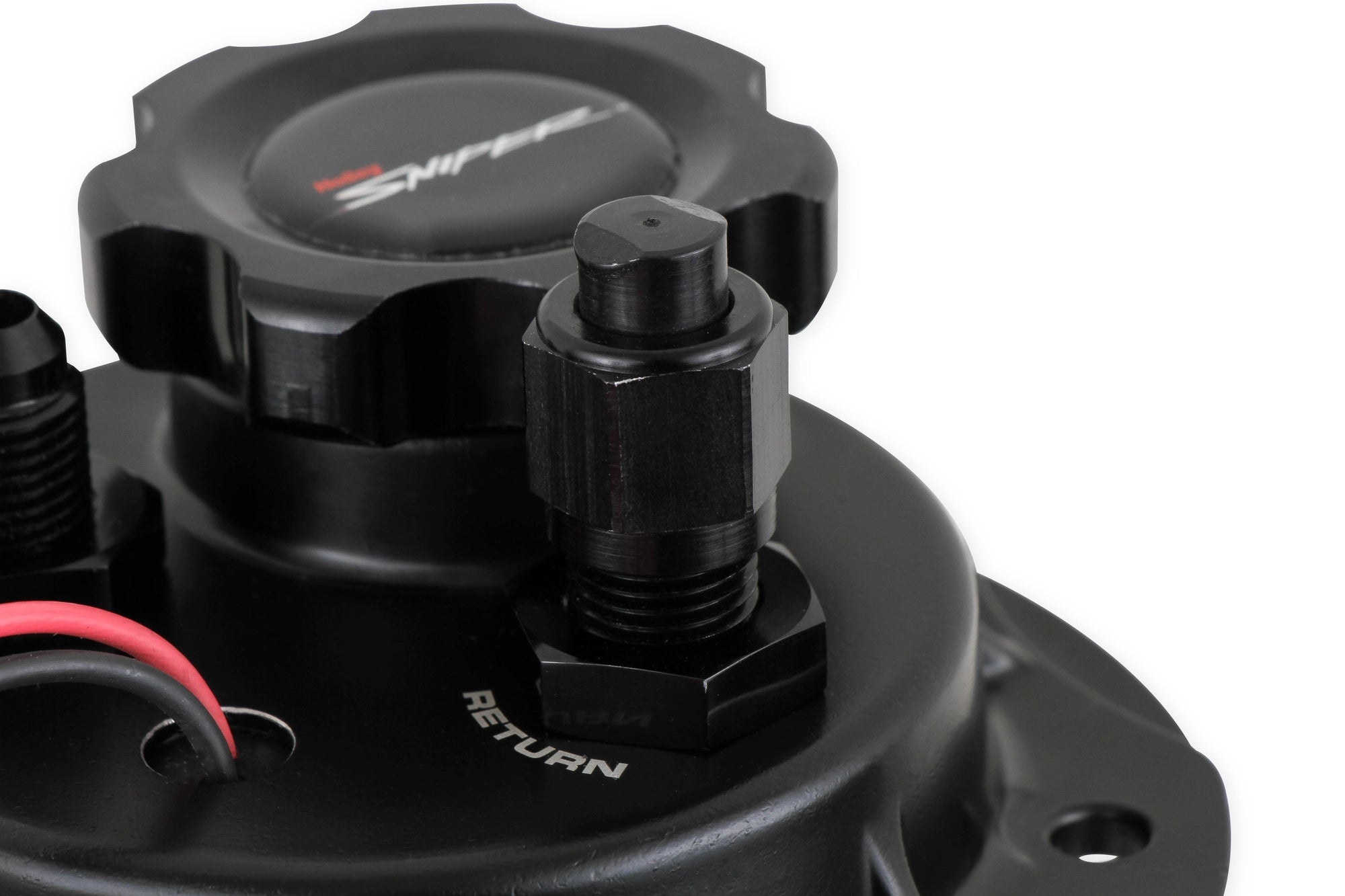

- Diecast aluminumt top flange housing includes an 6AN inlet and 6AN outlet port and a fuel filler cap

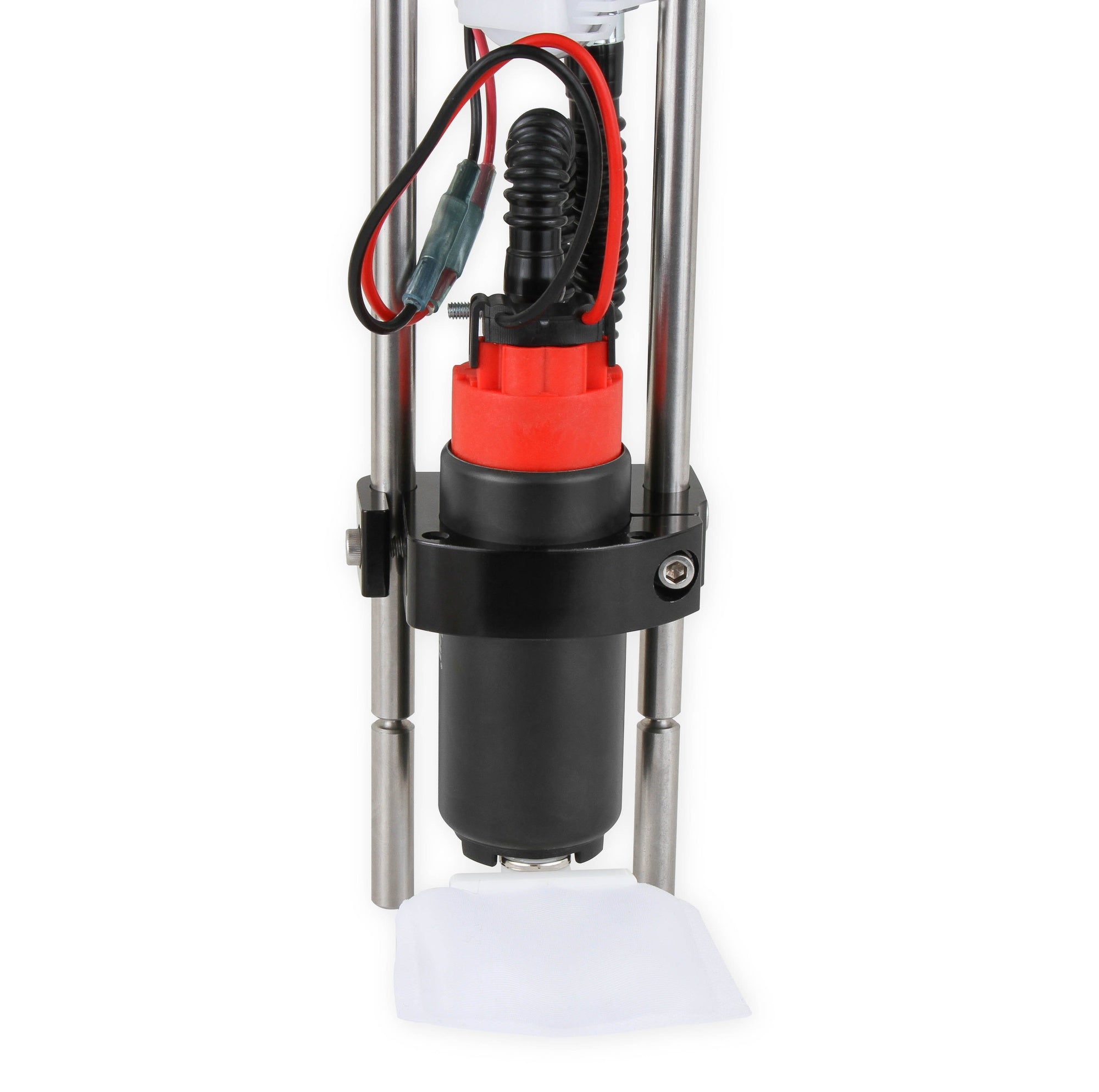

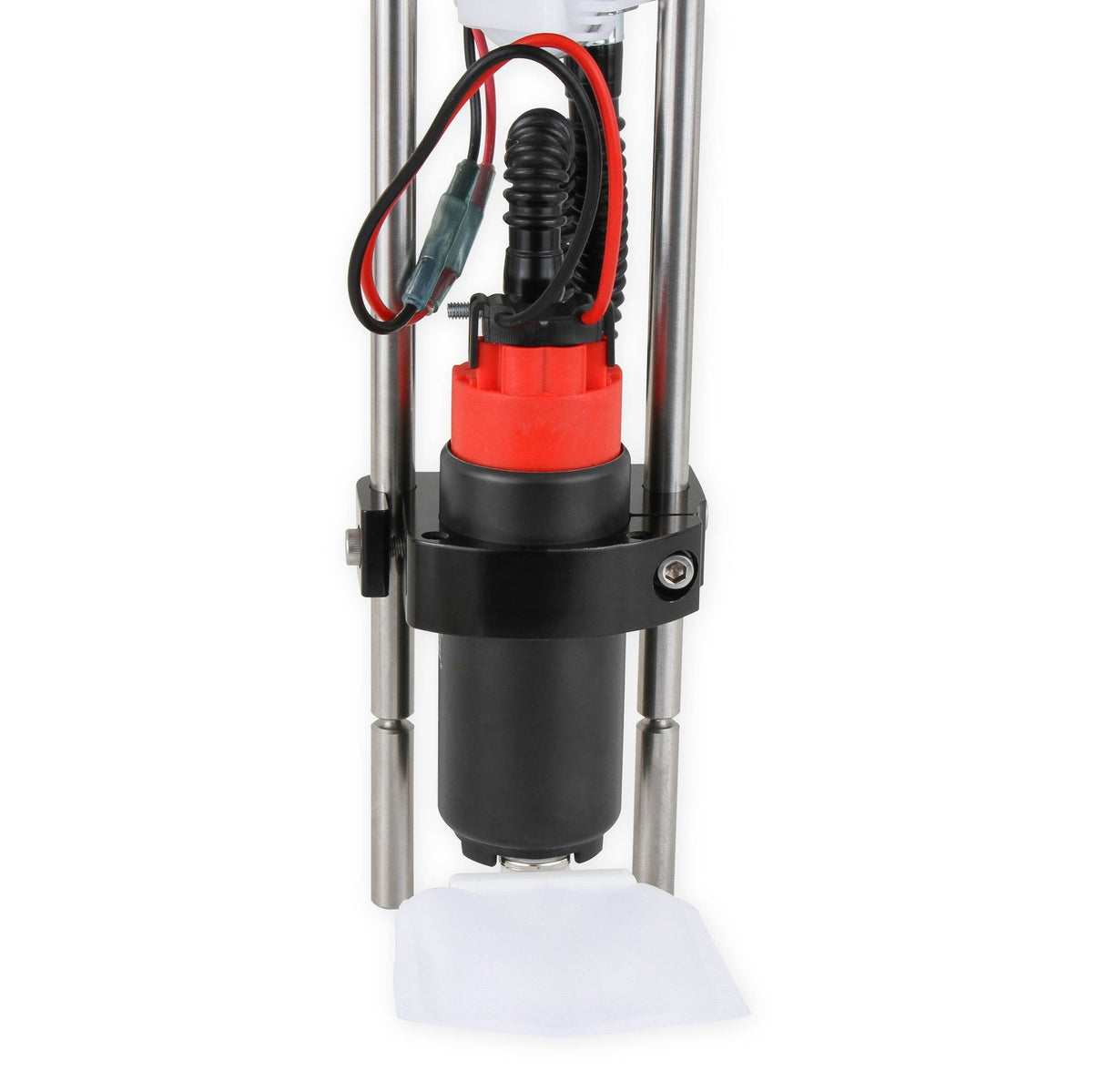

- The pump depth is fully adjustable for fitment in the most popular cell sizes 7.5”-12” deep.
- The pump depth is fully adjustable for fitment in the most popular cell sizes 7.5"-12" deep.
📖
About this product
6-Bolt Flange 340 LPH E85 Compatible Drop-In EFI
📋
Product Specifications
Application
Universal
Brand
Holley Sniper EFI
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Air and Fuel Delivery
Emission Code
5
Flange Style
6 Bolt
Free Flow GPH
90
Free Flow LPH
340
Fuel Sending Unit Included
No
Fuel Tank Pressure Sensor Included
No
Fuel Type
Gasoline
Gasket Or Seal Included
Yes
Inlet Size
6 AN
Max PSI
80
Outlet Size
6 AN
Part Type
Fuel Pump Module Assembly
Product Type
Fuel Pump
Prop 65 Yes/No
Yes
Returnless
Yes
Single Or Dual Pump
Single

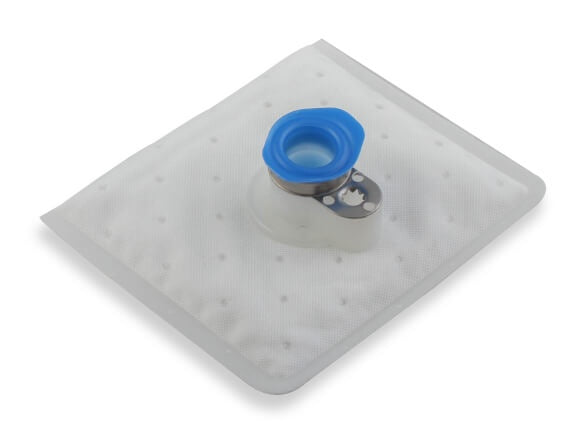

Strainer Included
Yes
Sub Category
Fuel Pumps and Related Components
Universal Or Specific Fit
Universal
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
16.1 × 8.7 × 8.4 in
Shipping Dimensions
16.1 × 8.7 × 8.4 in
Weight
2152 g (2.15 kg)
