Holley EFIPart 526-2Made in US
Product Details
⭐
Key Features
Kits do not include hose from the fuel tank to the pre-filter or the return line from the fuel pressure regulator to the tank.This kit is recommended for pump or race gas use only. The included fuel pump is not compatible with E-85.
Holley EFI fuel kits are the perfect addition to your Terminator or Holley EFI kit. They are engineered using Holley fuel pumps, regulators and filters coupled with quality Earl's plumbing to provide a fuel system tailored to the needs of your Terminator EFI System
Billet Fuel Pump, Billet Regulator, Billet Filters, Earl's Pro-Lite 350™ Black hose, Swivel-Seal™ hose ends

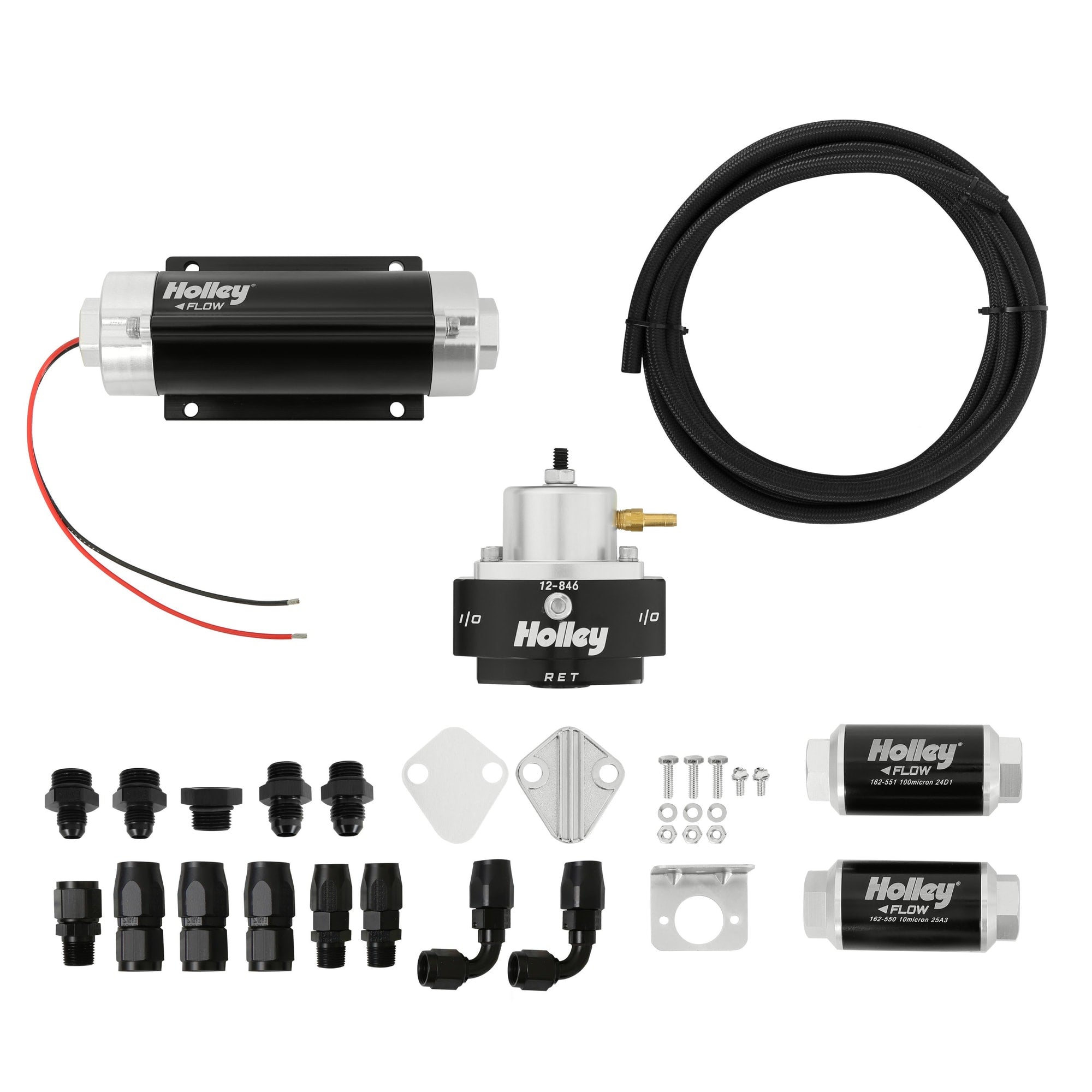

- Holley EFI fuel kits provide everything needed for a complete supply fuel system for the Terminator EFI. The following items are included:

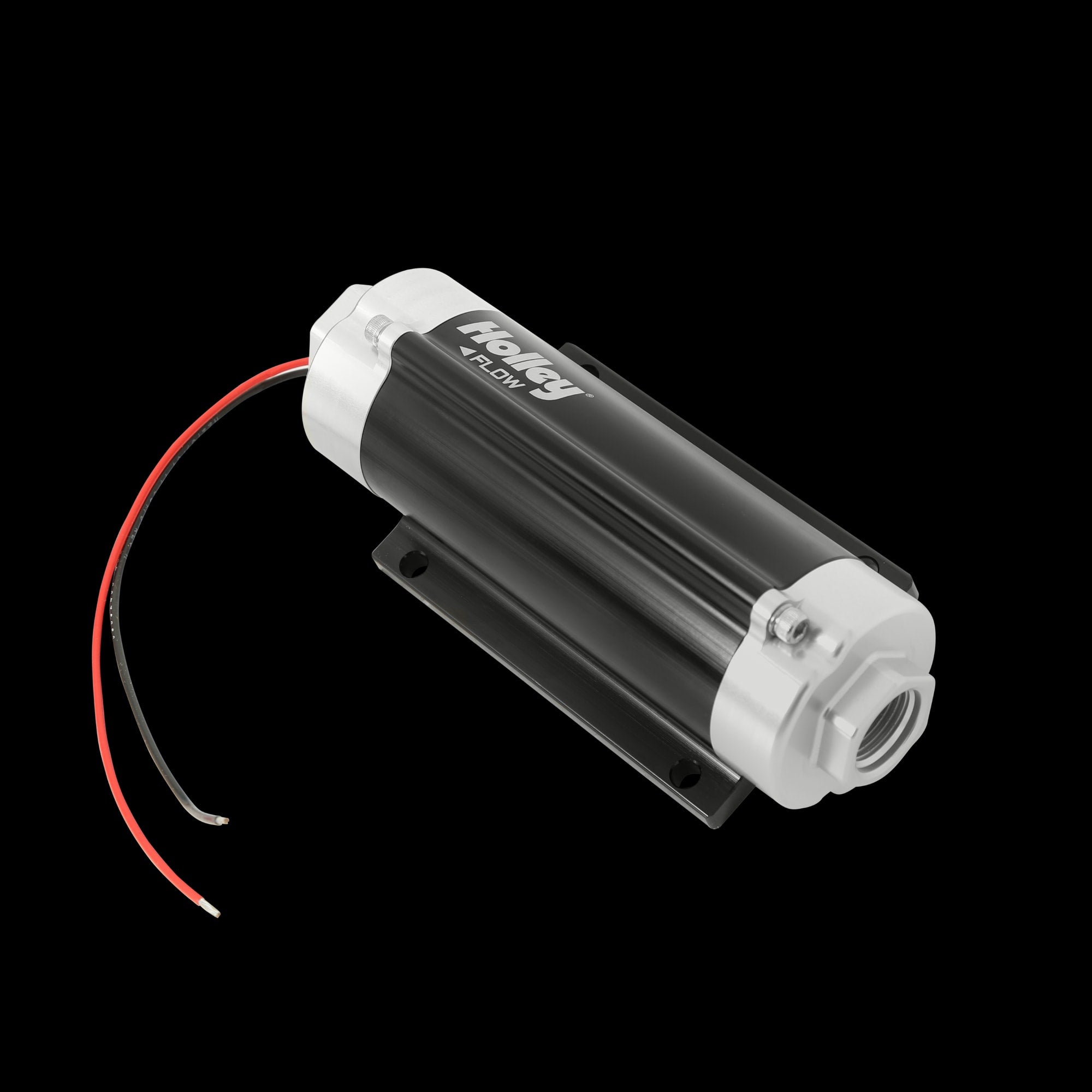

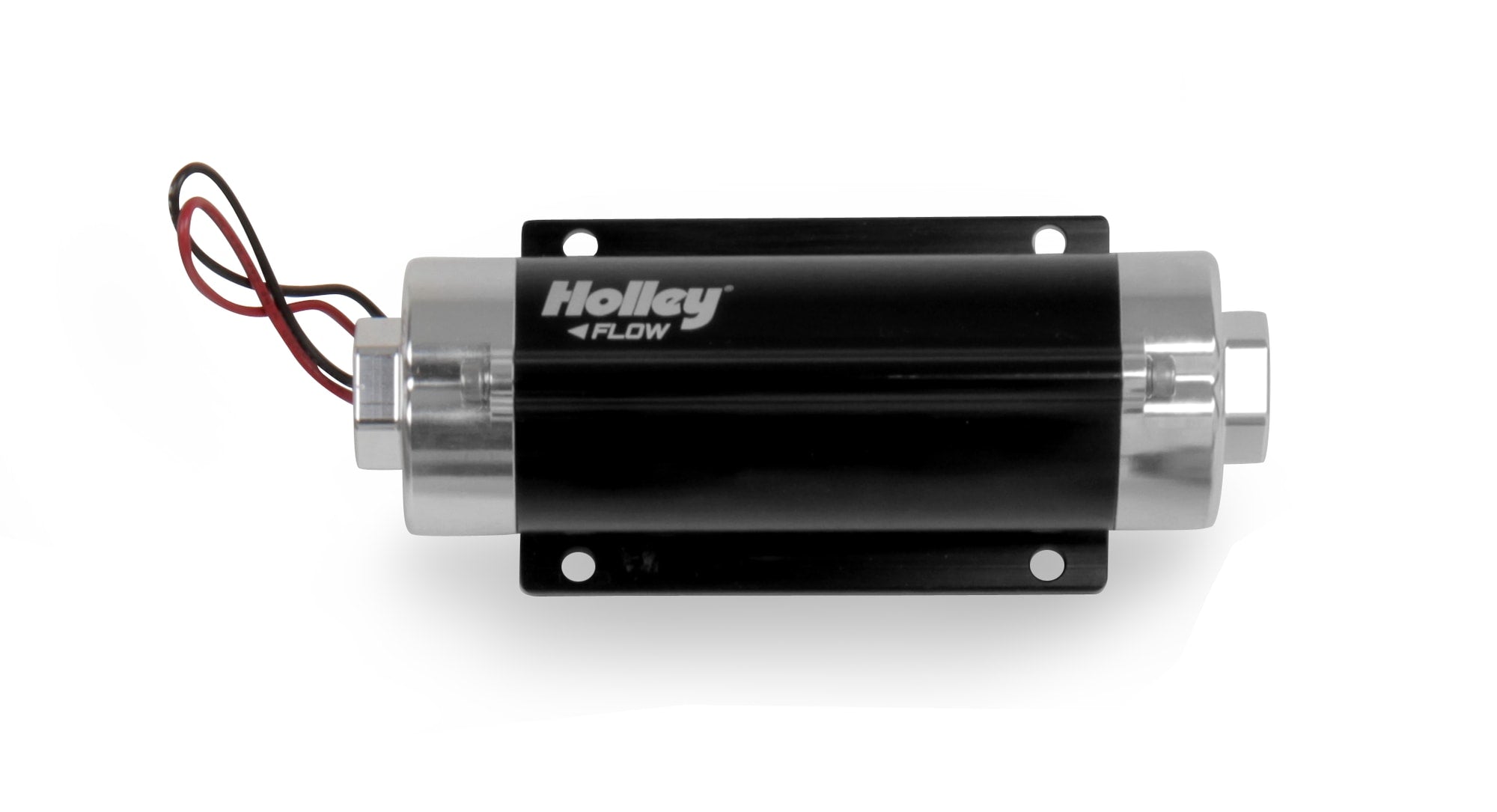

- Billet Fuel PumpP/N 12-600 65 GPH
- Billet RegulatorP/N 12-846 Adjustable from 40-70psi with manifold reference

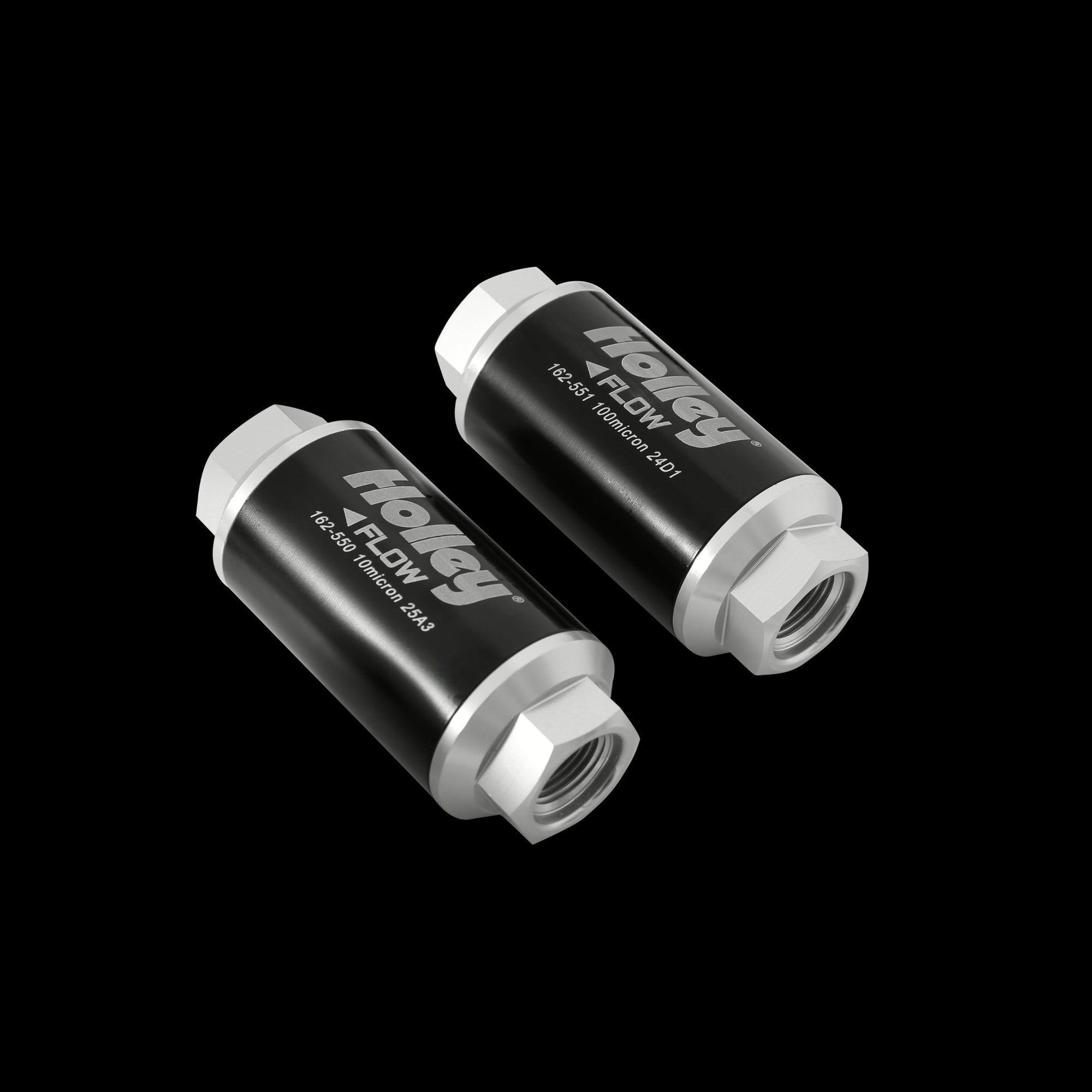

- Billet FiltersP/N's 162-550 (100 GPH 10 Micron) and 162-551 (100 GPH 100 Micron)

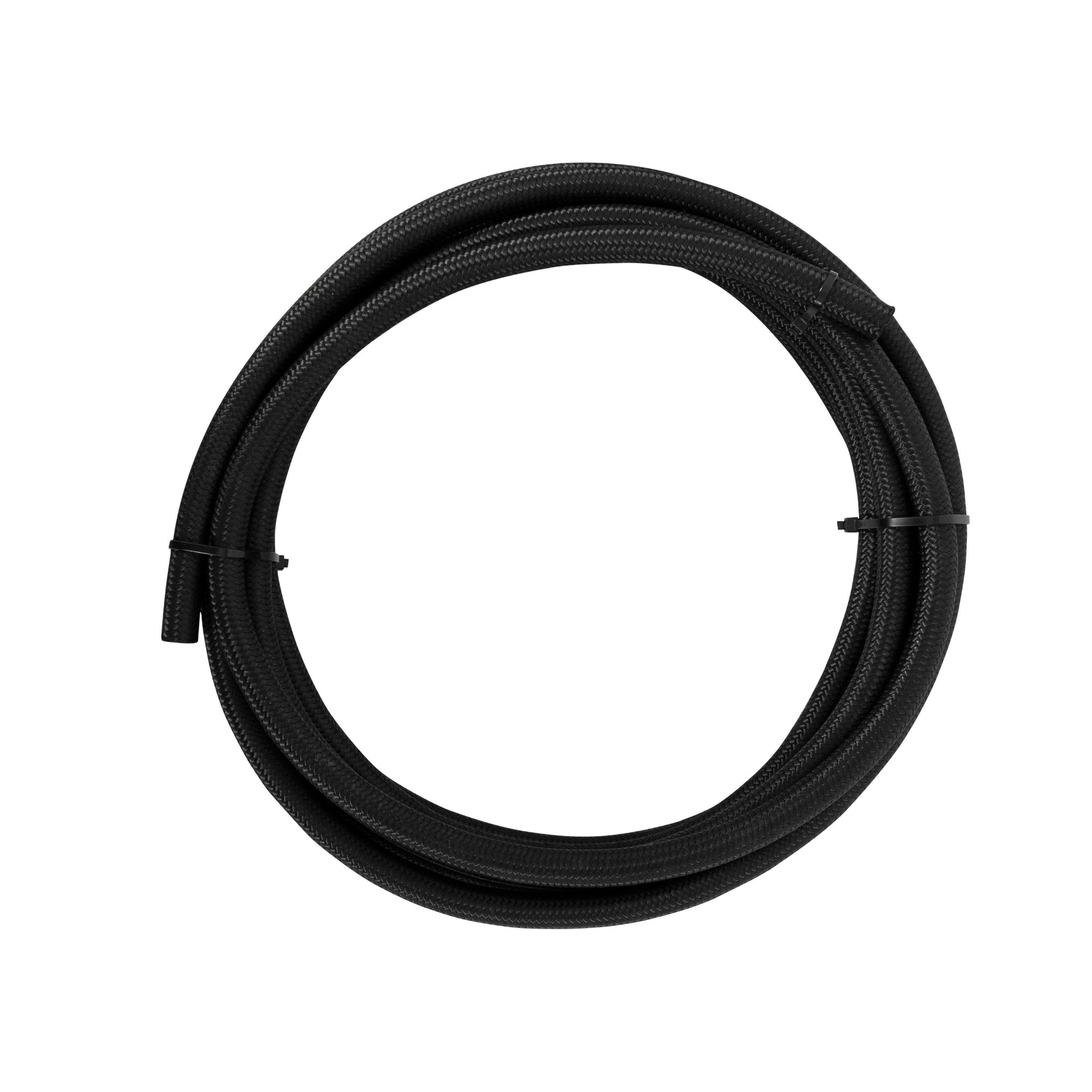

- Earl's Pro-Lite 350™ Black HoseP/N 350006ERL, 20 ft. of -6 hose

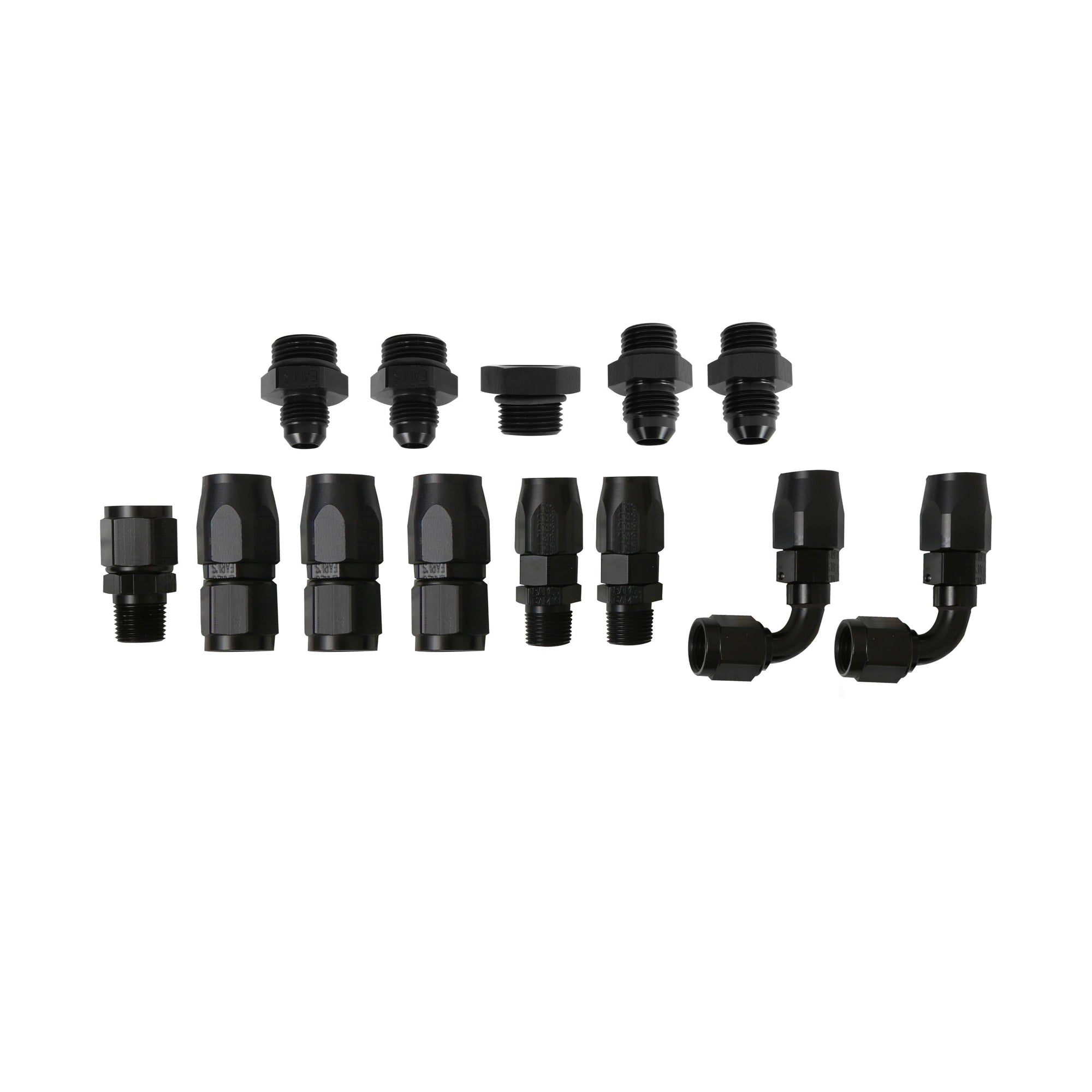

- Swivel-Seal™ Hose EndsView the instructions below for a list of all fittings included
📖
About this product
Billet Fuel Pump, Billet Regulator, Billet Filters, Earl's Pro-Lite 350™ Black hose, Swivel-Seal™ hose ends
📋
Product Specifications
Automotive Item Grade
Performance
Brand
Holley EFI
California Proposition 65 Chemical Name
20
Category
Air and Fuel Delivery
Cfm
N/A
Color
Silver
Country
US
Emission Code
3
Emission Code
4
Finish
Anodized
Forced Induction Hp@43psi
450
Forced Induction Hp@60psi
380
Forced Induction Hp@8psi
560
Free Flow GPH
65
Fuel Delivery Type
Fuel Injection
Fuel Sending Unit Included
No
Fuel Type
Gasoline
Gasket Or Seal Included
No
Gph@43psi
48
Gph@60psi
41
Gph@8psi
65
Grade Type
Performance
Hose End Size
6 AN
Hose Length
20'
Hose Series
Earl's Pro-Lite 350ž Black
Hose Series
Earl's Pro-Lite 350™ Black
HTS Code
8409915085
Internal Or External
External
Lph@43psi
181
Lph@60psi
155
Lph@8psi
230
Mounting Bracket Included
Yes
Mounting Hardware Included
Yes
Naturally Aspirated Hp@43psi
600
Naturally Aspirated Hp@60psi
500
Naturally Aspirated Hp@8psi
730
Negative Ground
Yes
Outlet Type
ORB
Part Type
Electric Fuel Pump
Pressure Range
40-70 PSI
Product Type
EFI Fuel System Kit
Prop 65 Yes/No
No
Regulator Included
Yes
Seal And Lock Ring Included
No
Strainer Included
No
Sub Category
Fuel Pumps and Related Components
Terminal Quantity
2
Universal Or Specific Fit
Universal
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Wiring Harness Included
No
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
4
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
12.3 × 11.5 × 8.0 in
Shipping Dimensions
12.3 × 11.5 × 8.0 in
Weight
4221 g (4.22 kg)
