Holley EFIPart 526-5Made in US
Product Details
⭐
Key Features
This kit is recommended for pump or race gas use only. The included fuel pump is not compatible with E-85.
Holley EFI fuel kits are the perfect addition to your Sniper EFI or Holley EFI kit. They are engineered using Holley fuel pumps, regulators and filters coupled with quality Earl's plumbing to provide a fuel system tailored to the needs of your EFI System. | The secret to Earl's Vapor Guard hose is in its layers. The innermost Primary Barrier Layer offers high resistance to heat and aggressive fuels. The middle Earl's Vapor Guard™ Barrier is a Thermoplastic layer that provides superior fuel isolation and virtually eliminates vapors from escaping through the hose. The Exterior Cover Barrier provides extreme tolerance to heat and ozone giving Earl's Vapor Guard a three way shield against hose deterioration.

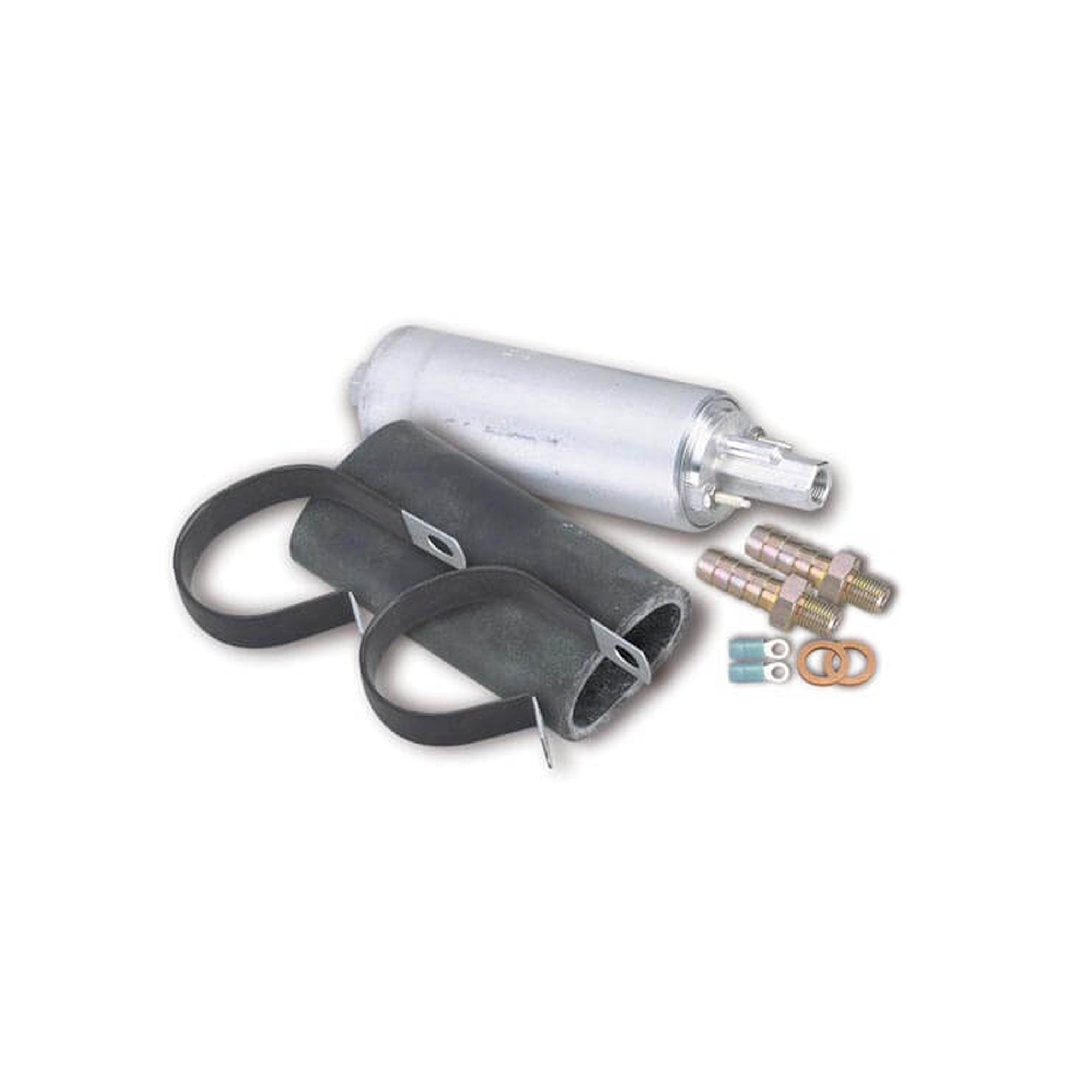

Fuel system consisting of; 20ft of 3/8" Vapor Guard™ Fuel Hose, 12-920 Fuel Pump, Filters, necessary hardware and bulkhead fitting to return fuel into the tank!

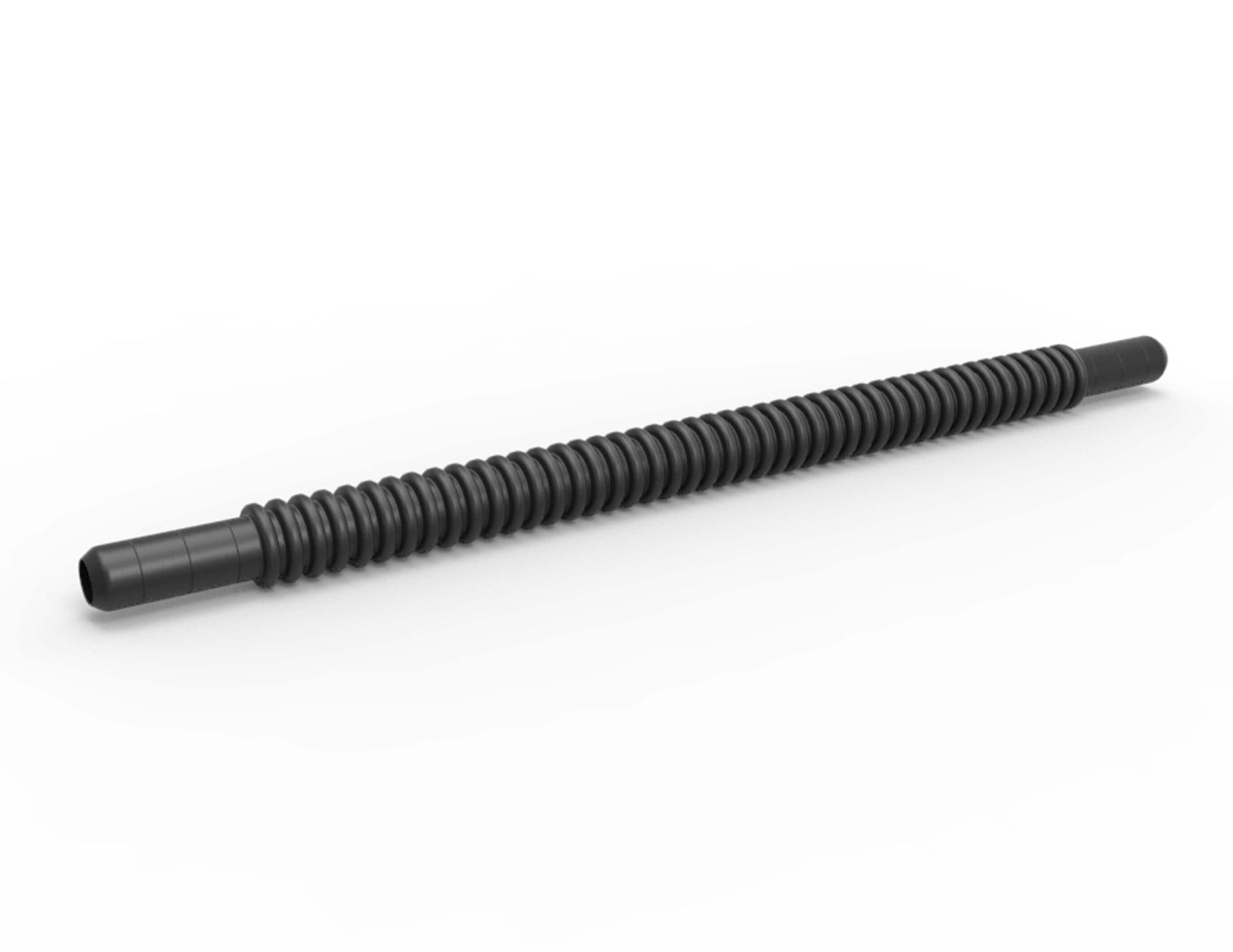

- 20ft of 3/8” Vapor Guard Fuel Hose
- 12-920 Fuel Pump

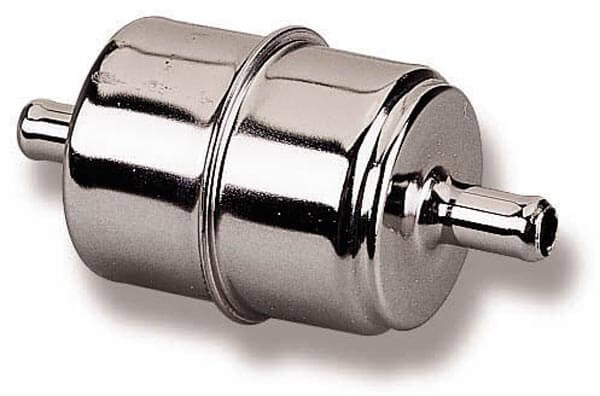

- Pre and Post Fuel Filters
- Necessary hardware and bulkhead fitting to return fuel into the tank
- •Multi-fuel compatible: Approved for use with leaded and unleaded Gasoline, Diesel, Biodiesel, E-85, 100% Methanol, ETHANOL and Gasohol fuels
- •Multi-layer rubber hose designed to withstand to the corrosive properties of modern fuels
📖
About this product
Fuel system consisting of; 20ft of 3/8" Vapor Guard™ Fuel Hose, 12-920 Fuel Pump, Filters, necessary hardware and bulkhead fitting to return fuel into the tank!
📋
Product Specifications
Application
Ford
Automotive Item Grade
Performance
Brand
Holley EFI
California Proposition 65 Chemical Name
20
Category
Air and Fuel Delivery
Color
Silver
Country
US
Emission Code
3
Emission Code
4
Finish
Anodized
Finish
Black
Forced Induction Hp@43psi
600
Forced Induction Hp@60psi
530
Free Flow GPH
80
Fuel Delivery Type
Fuel Injection
Fuel Sending Unit Included
No
Fuel Type
Pump Gas/Race Gas
Gasket Or Seal Included
No
Gph@43psi
67
Gph@60psi
62
Grade Type
Performance
Hose Length
20'
Hose Size
3/8"
HTS Code
8409915085
Internal Or External
External
Lph@43psi
254
Lph@60psi
235
Mounting Bracket Included
Yes
Mounting Hardware Included
Yes
Naturally Aspirated Hp@43psi
800
Naturally Aspirated Hp@60psi
690
Negative Ground
Yes
Outlet Type
ORB
Part Type
Electric Fuel Pump
Product Type
EFI Fuel System Kit
Prop 65 Yes/No
No
Regulator Included
Yes
Seal And Lock Ring Included
No
Strainer Included
No
Sub Category
Fuel Pumps and Related Components
Terminal Quantity
2
Universal Or Specific Fit
Universal
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Wiring Harness Included
No
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
4
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
12.4 × 11.6 × 7.9 in
Shipping Dimensions
12.4 × 11.6 × 7.9 in
Weight
2359 g (2.36 kg)
