Holley

Carburateur Holley Ultra XP 2BBL

Prix normal £1,036.00 GBP inc VAT
Expédition calculée lors du paiement.
SKU: 0-4412hbx

Stock Levels:

Checking stock levels…
🇬🇧 UK warehouse
🇺🇸 US warehouse
Estimated Delivery


Voir les détails
HolleyPart 0-4412HBXMade in US

Product Details

Key Features

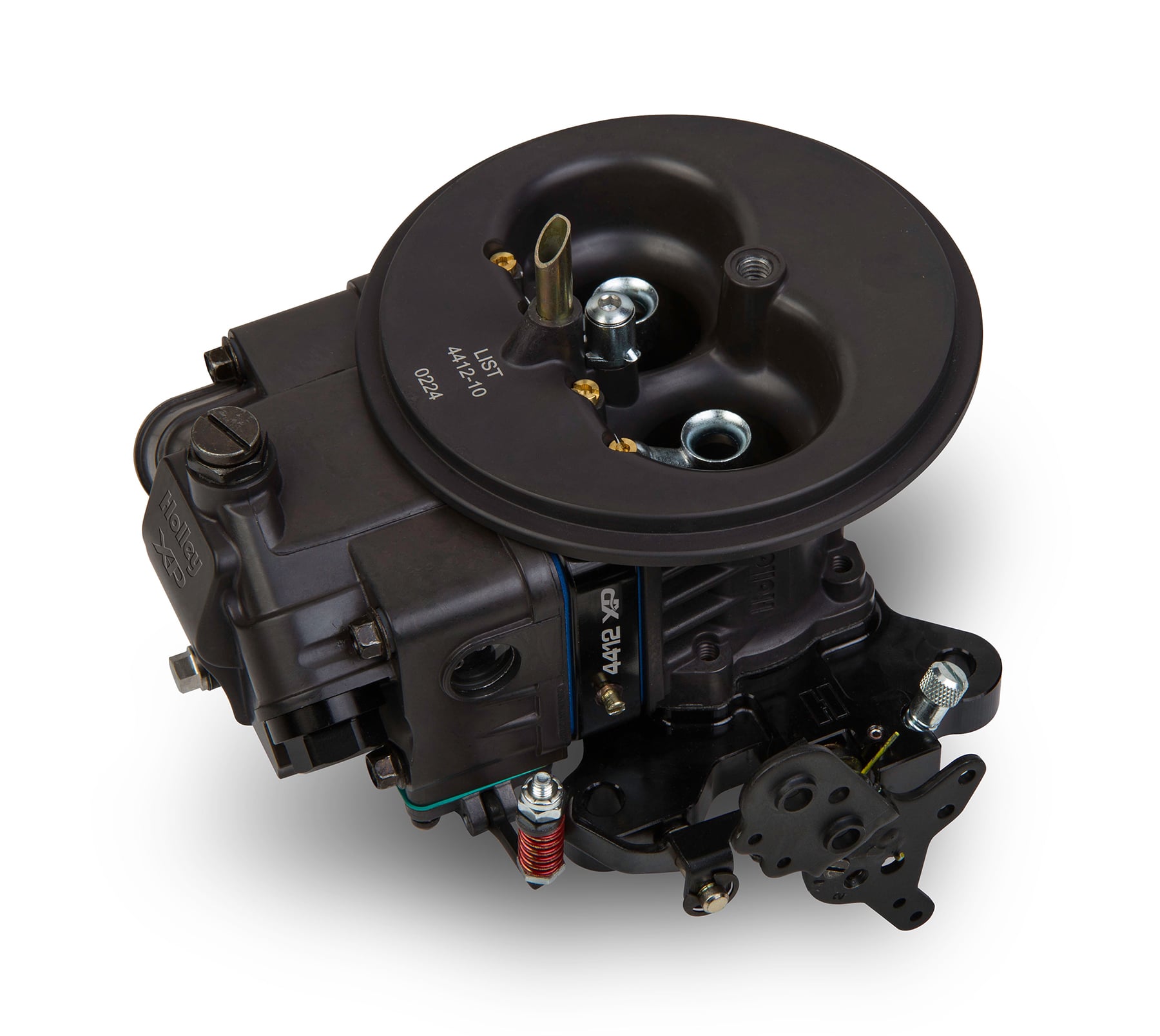

Ultra XP 2BBL

The original Holley 0-4412 has powered thousands of racers to the winners' circle! How do you make it better? Add the proven design elements of the popular Ultra series for more tunability, more durability, more weight savings and more features! The Ultra XP 2bbl carburetors feature all aluminum construction for nearly 50% weight savings over their zinc counterparts, contoured venturii inlet for unobstructed airflow, screw in air bleeds for easy fine tuning, black anodized fully adjustable billet aluminum metering block and baseplate, high capacity fuel bowl which features 20% more fuel capacity to eliminate starvation, integrated fuel shelf to minimize fuel aeration and internal baffling to control fuel slosh and a centered air cleaner flange for improved airflow and performance. Other notable features include wedged floats, knurled hand adjustable curb idle screw and down leg boosters. Ultra XP 2bbl carburetors are approved for use in NASCAR® Mid-West/West Coast Late Model Divisions and utilize the same venturii and throttle bore dimensions of the classic 4412 2bbl carburetor. Available in shiny or Hard Core Gray finishes, the Ultra XP 2bbl will outperform any production 2bbl available.

500 CFM - 2300 - Hard Core Gray - Gasoline

  • All aluminum construction - for nearly 50% weight savings over zinc version
  • Hard Core Gray with Black™ billet aluminum metering block and base plate
  • No choke tower for unobstructed airflow
  • Air bleeds moved outward to allow a smoother transition of airflow
  • Air cleaner flange centered over venturii for improved airflow and performance. 5/16-18 bent air cleaner stud included
  • Down-leg boosters for improved fuel signal
  • Contoured hex head squirter screw for streamlined airflow
  • Internal pump passage on metering block equipped with tunable bleed off
  • Same 1-3/8” Venturii & 1-11/16” Throttle Bore size and Throttle Plate/Throttle Shaft size of original 0-4412
  • Fuel bowl provides 20% more fuel capacity while controlling slosh with internal baffling
  • Clear sight windows on both sides of bowl for easy & safe fuel level adjustments
  • Fuel trough designed into floor of bowl to route fuel flow directly to the jets and assists in keeping jets covered by fuel
  • Built in drain plug provides easy access to empty contents of bowl
  • -8 (O-ring) inlet threads offer a large variety of plumbing options (come with an extended -8 O-ring to -8AN male adapter and -8 plug). Can be plumbed from either side
  • Throttle shaft rides in oil impregnated sintered bronze bushings for smooth throttle actuation
  • Throttle shaft capped to prevent entry of debris & contaminates
  • 30cc pump with metal lever. Anti-siphon valve in mainbody to reduce pump pull over
  • Dedicated race-only throttle lever with all unnecessary street attachment points & tangs removed
  • Knurled (hand adjustable) curb idle screw allows for easy idle adjustment without the use of tools
  • Set screw for wide open throttle stop adjustment
  • Wedge float provides fuel control while cornering
  • 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
📖

About this product

500 CFM - 2300 - Hard Core Gray - Gasoline

📋

Product Specifications

Automotive Item Grade
Performance
Barrel Quantity
2
Barrels
2
Billet Color
Hard Core Gray with Black
Body Color
Hard Coat Gray
Body Color
Hard Core Gray
Body Finish
E-Coated
Body Material
Aluminum
Booster Design
Downleg
Booster
Downleg
Brand
Holley
California Proposition 65 Chemical Name
20
Carburetor Material
Aluminum
Carburetor Use
Performance and Race
Category
Air and Fuel Delivery
CFM Rating
500
Cfm
500
Choke
None
Color
Hard Coat Gray
Condition
New
Cubic Feet Per Minute Rating
500
Emission Code
3
Finish
Hard Core Gray
Flange Shape
Rectangular
Flange Type

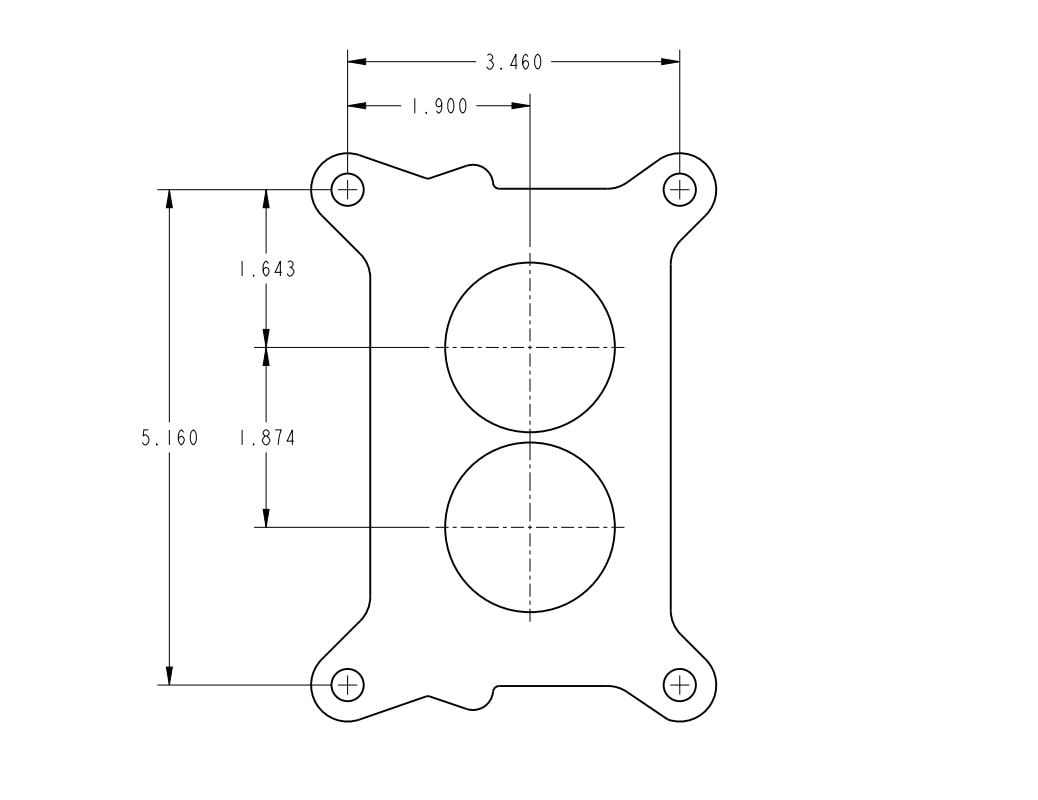

2300 2-BBL
Fuel Inlet
Single
Fuel Type
Gasoline
Fuel
Gasoline
Grade Type
Performance
Linkage Attached
Yes
Marine Approved
No
Marine Use
No
Material
Aluminum
Mounting Hole Quantity
4
Part Type
Carburetor
Primary Jet Diameter
74
Primary Main Jet Size
74
Primary Main Jet
74
Primary Power Valve
3.5
Primary Pump Nozzle Size
28
Product Type
Carburetor
Secondaries
None
Spacer Included
No
Sub Category
Carburetion
Supercharged Application
No
Supercharger Compatible
No
Throttle Bore Diameter
1.688 inch
Throttle Bore
1.688 inch
Venturii Size
1.376 inch
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️

Warranty & Compliance

Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
3
HS Code
8409915085
📐

Dimensions & Shipping

Product Dimensions
12.5 × 11.2 × 7.8 in
Shipping Dimensions
12.5 × 11.2 × 7.8 in
Weight
2291 g (2.29 kg)
