Holley EFIPart 112-587Made in US
Product Details
⭐
Key Features
This throttle body is an air valve only (no injectors).
Holley's new 1000 CFM throttle body shares the same air entry area design that powers every NASCAR Sprint Cup Series™ car. The throttle body features integrated throttle position, idle air control, and intake air temperature sensors. Ford and GM transmission kick down levers as well as all necessary vacuum ports.

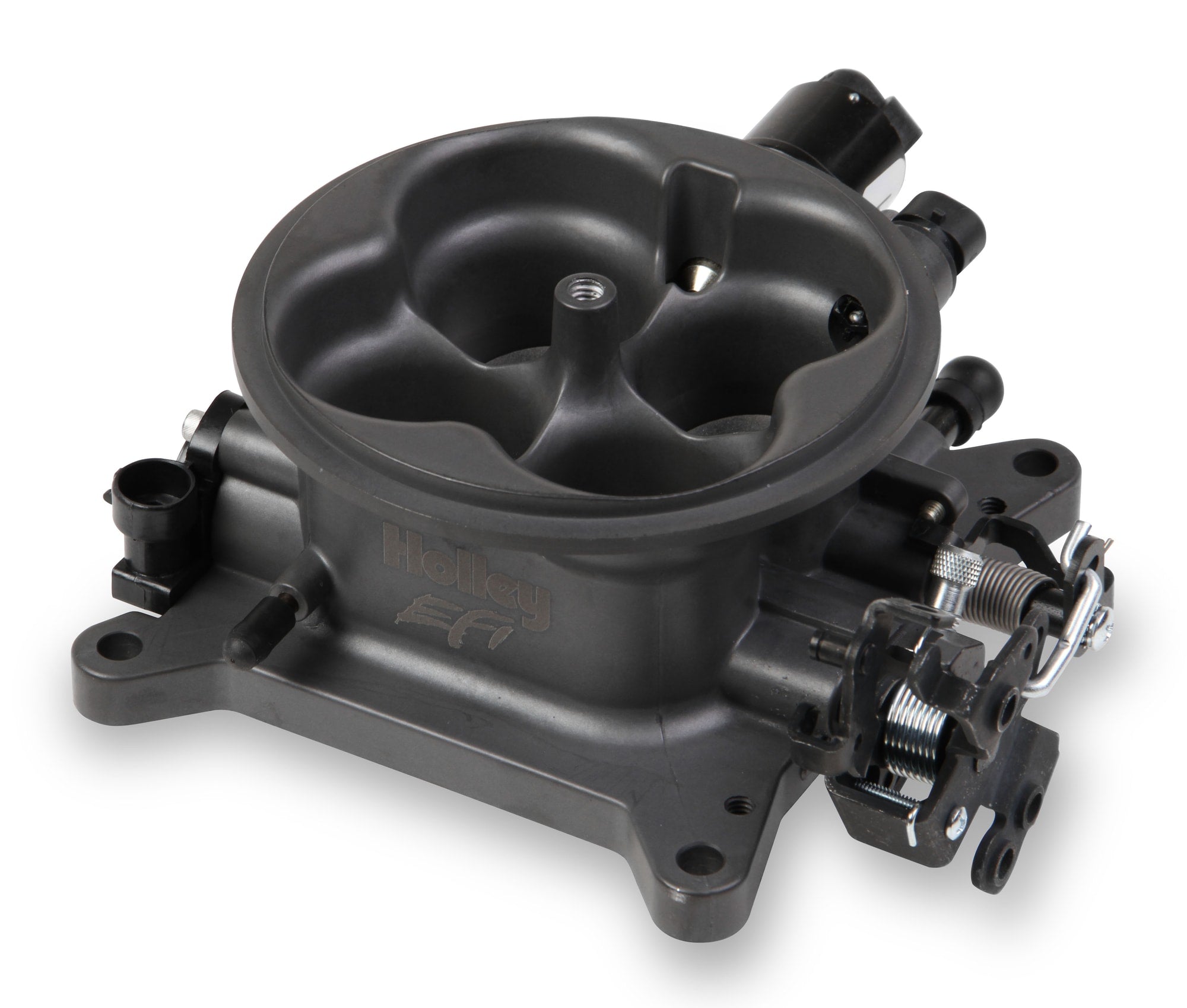

Universal 4BBL 1000CFM 4150 Flange Throttle Body - Hard Core Gray
- Standard square bore mounting pattern for installation on various intake manifolds
- Flows 1000 CFM to handle high horsepower engines
- Exclusive CFD computer modeled air entry area delivers maximum velocity and accelerated air speed
- Integrated TPS, IAC, and Air Temperature Sensor
- Hi Flow IAC passages for larger cubic inch engines for idle stability

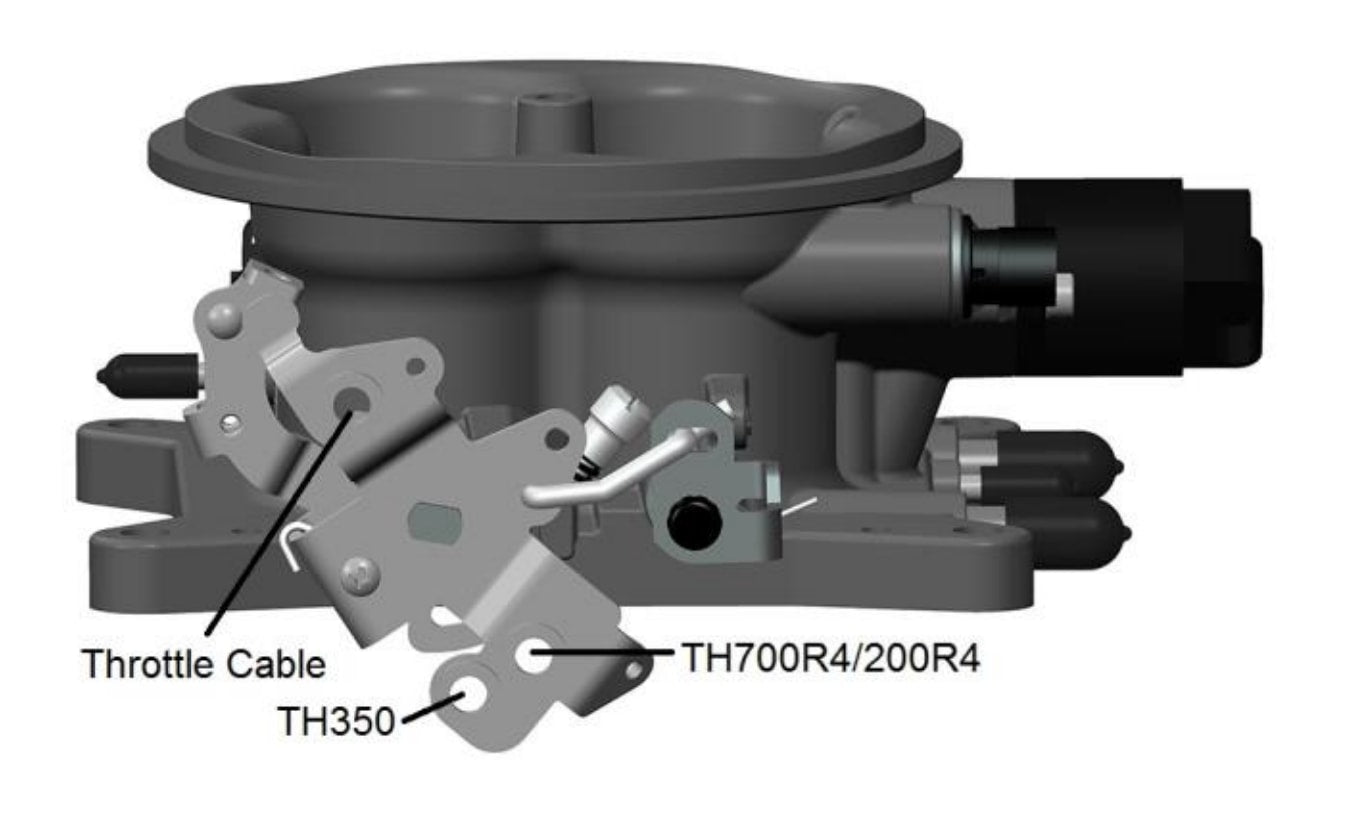

- Ford transmission kick down lever for use with Ford automatic transmissions
- Integrated GM 700R4 transmission kick down location, no adapters needed

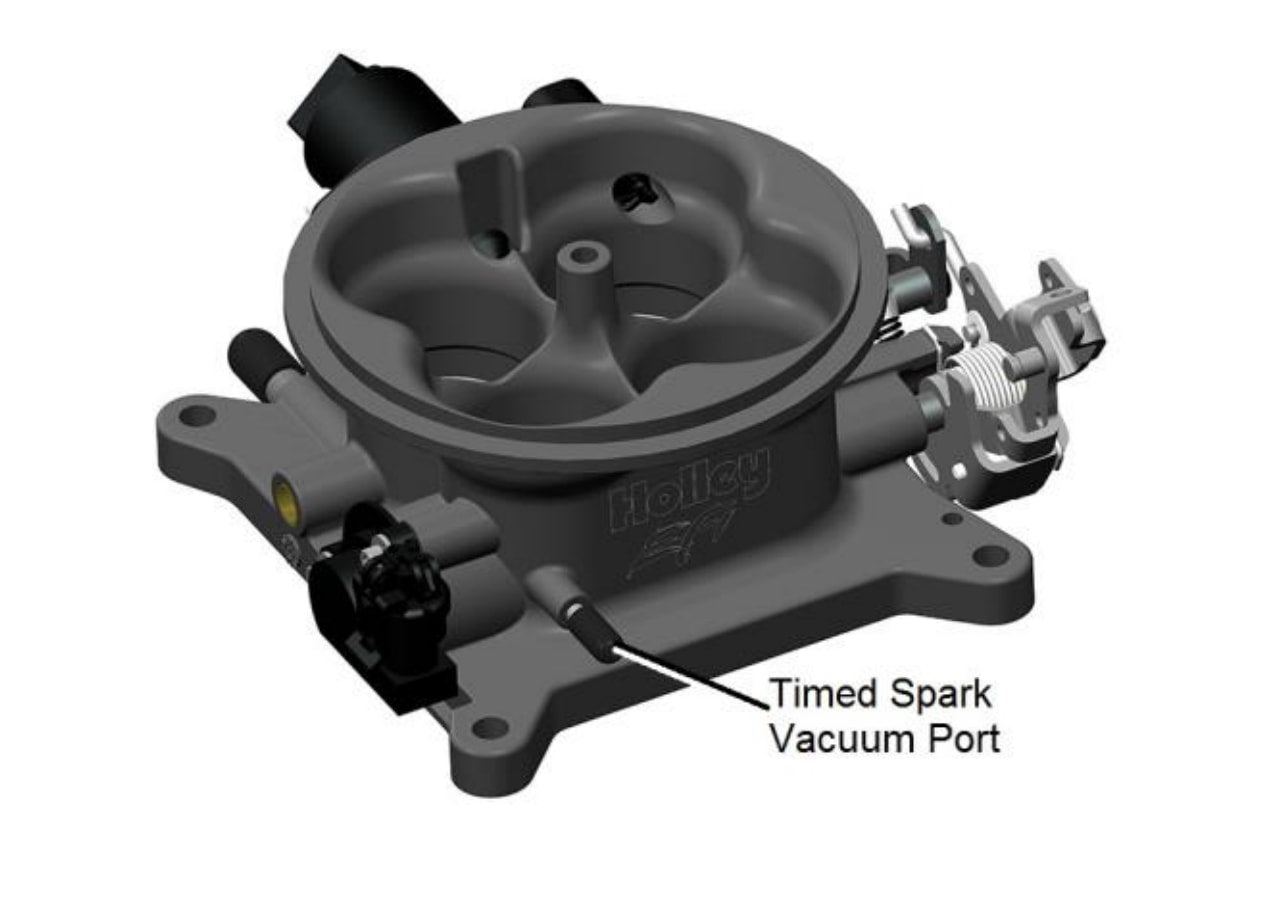

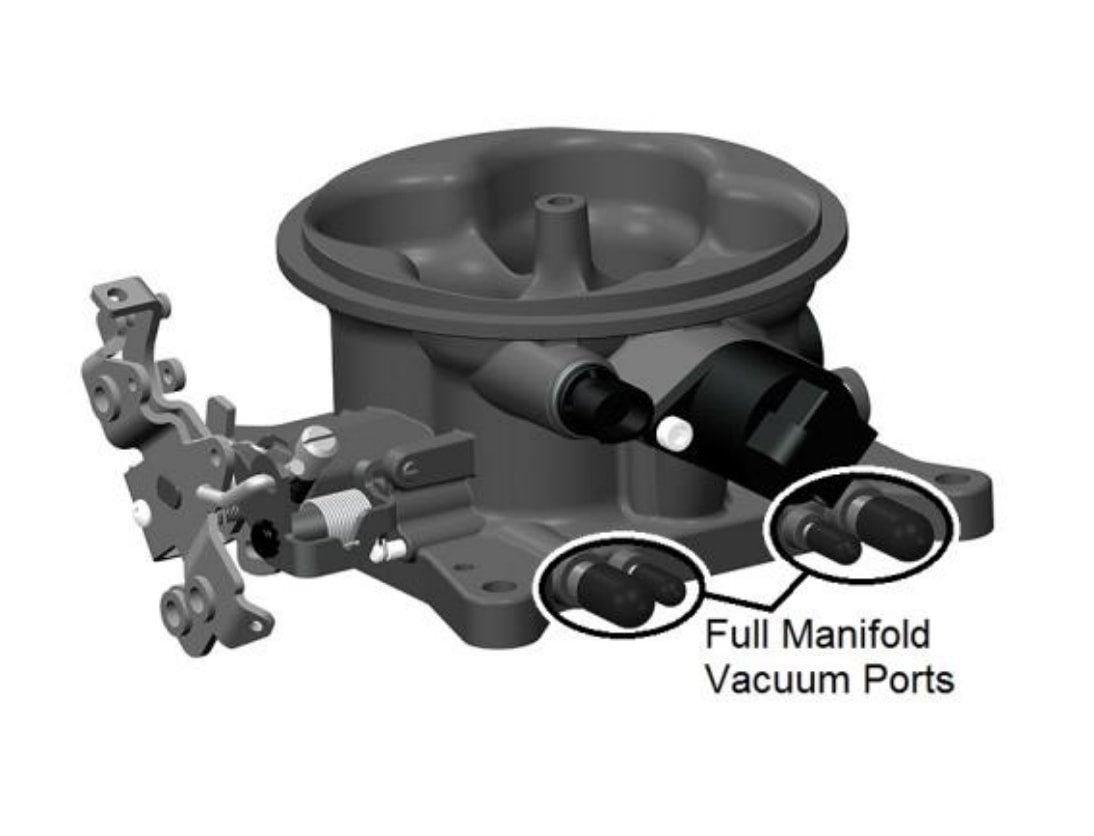

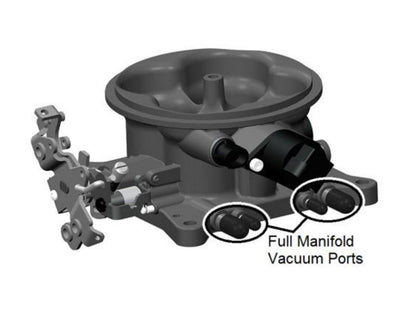

- (1) timed spark, (2) 3/8" and (2) 3/16" full manifold necessary vacuum ports
- 1.75" throttle plates mounted to PTFE coated throttle shafts for higher flow and a smoother feel
- High quality die cast aluminum for strength and weight reduction
- Hard Core Gray finish
📖
About this product
Universal 4BBL 1000CFM 4150 Flange Throttle Body - Hard Core Gray
📋
Product Specifications
Adjustable
Yes
Automotive Item Grade
Performance
Barrels
4
Billet Color
Black
Bore Diameter
4x1.75 IN
Brand
Holley EFI
California Proposition 65 Chemical Name
20
Category
Air and Fuel Delivery
Cfm
1000
Color
Black
Country
US
Emission Code
3
Finish
Black
Flange Style
4150/4160 Square Bore
Fuel Injectors Included
No
Fuel System Type
EFI
Gasket Or Seal Included
No
Grade Type
Performance
HTS Code
8409915085
Idle Air Control Motor Included
Yes
Mounting Hardware Included
No
Part Type
Fuel Injection Throttle Body
Product Type
Throttle Body
Prop 65 Yes/No
No
Sub Category
Fuel Injection System and Related Components
Throttle Body Finish
Hardcore Gray
Throttle Body Material
Cast Aluminum
Throttle Body Spacer Included
No
Throttle Bore
1.750 inch
Throttle Position Sensor Included
Yes
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
3
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
13.35 × 11.7 × 8.15 in
Shipping Dimensions
13.35 × 11.7 × 8.15 in
Weight
2204 g (2.2 kg)
