Earl's PerformancePart 1200600erlMade in US
Product Details
⭐
Key Features
These pumps do not have an internal bypass. A bypass style regulator and return line are required. NOT FOR USE WITH METHANOL! Will not work with E-85 or Diesel This pump is not designed to use a standard conical seat style union in the inlet or outlet o

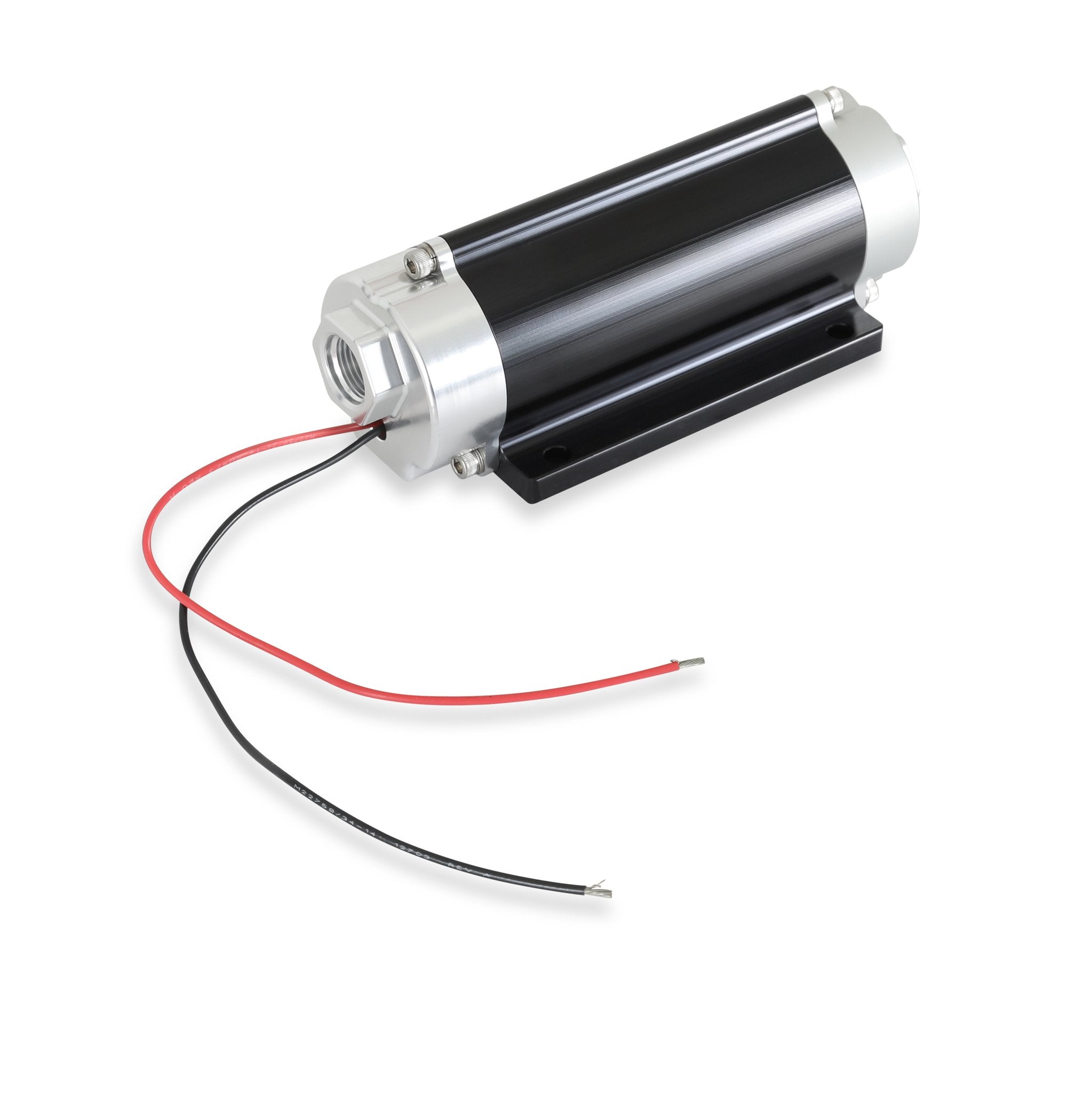

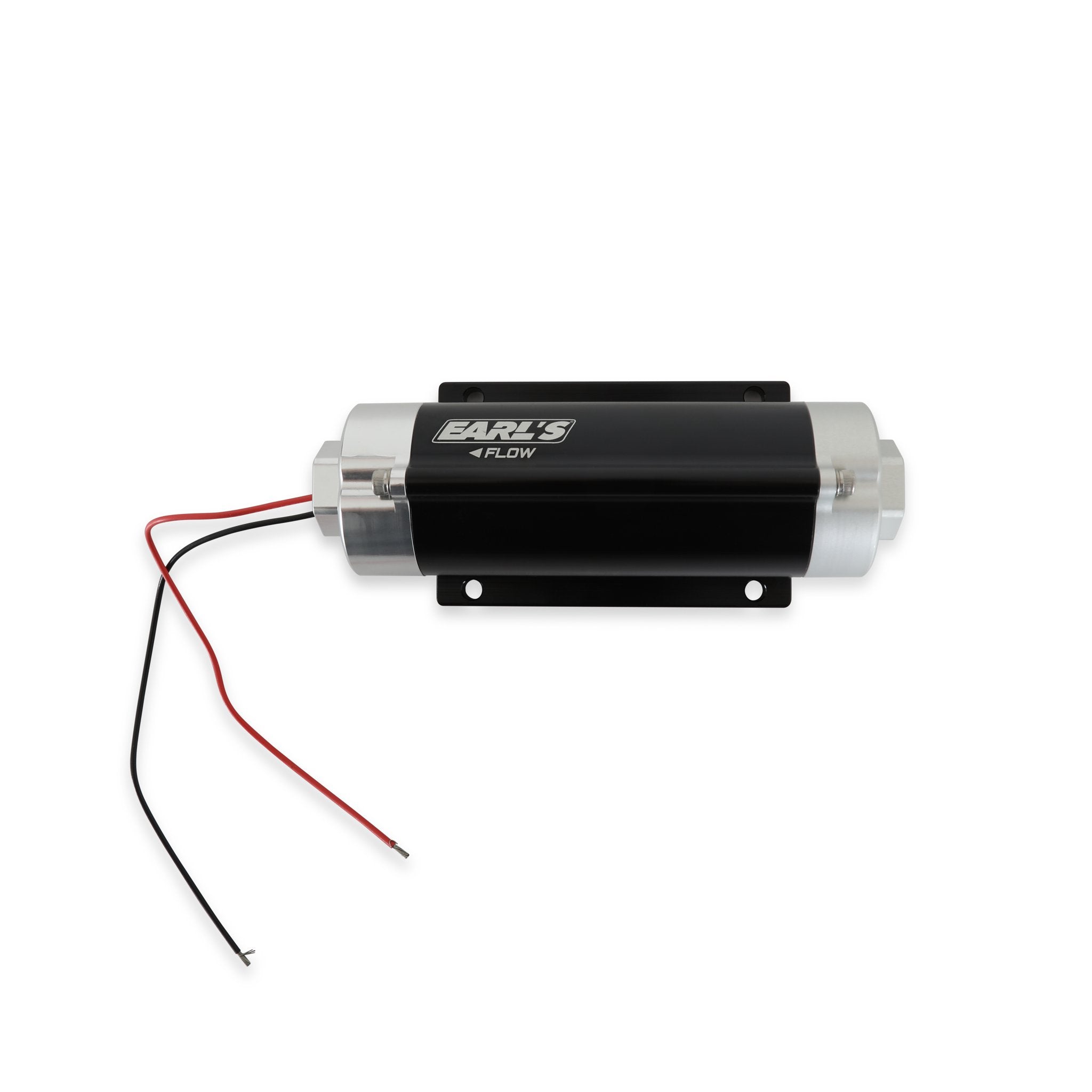

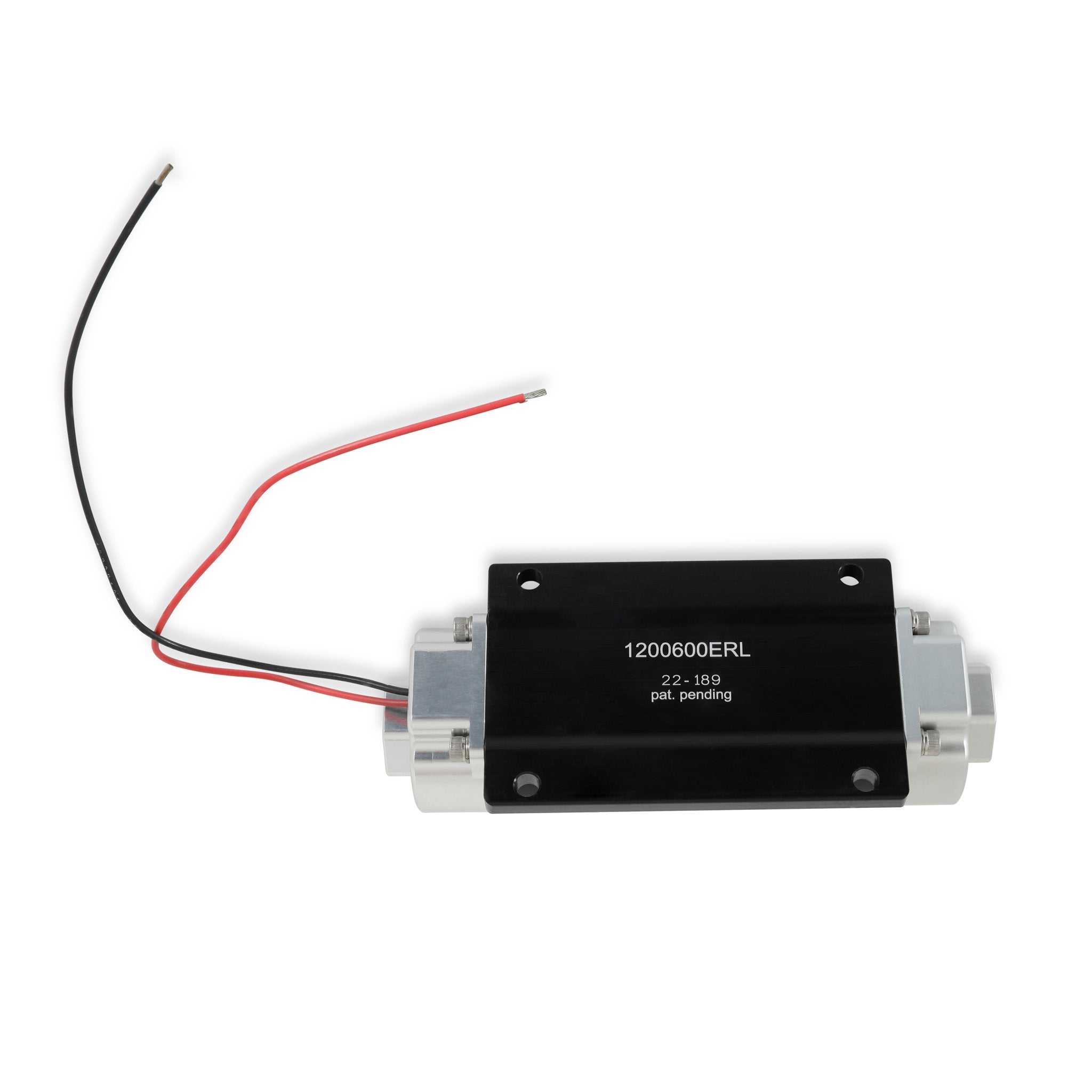

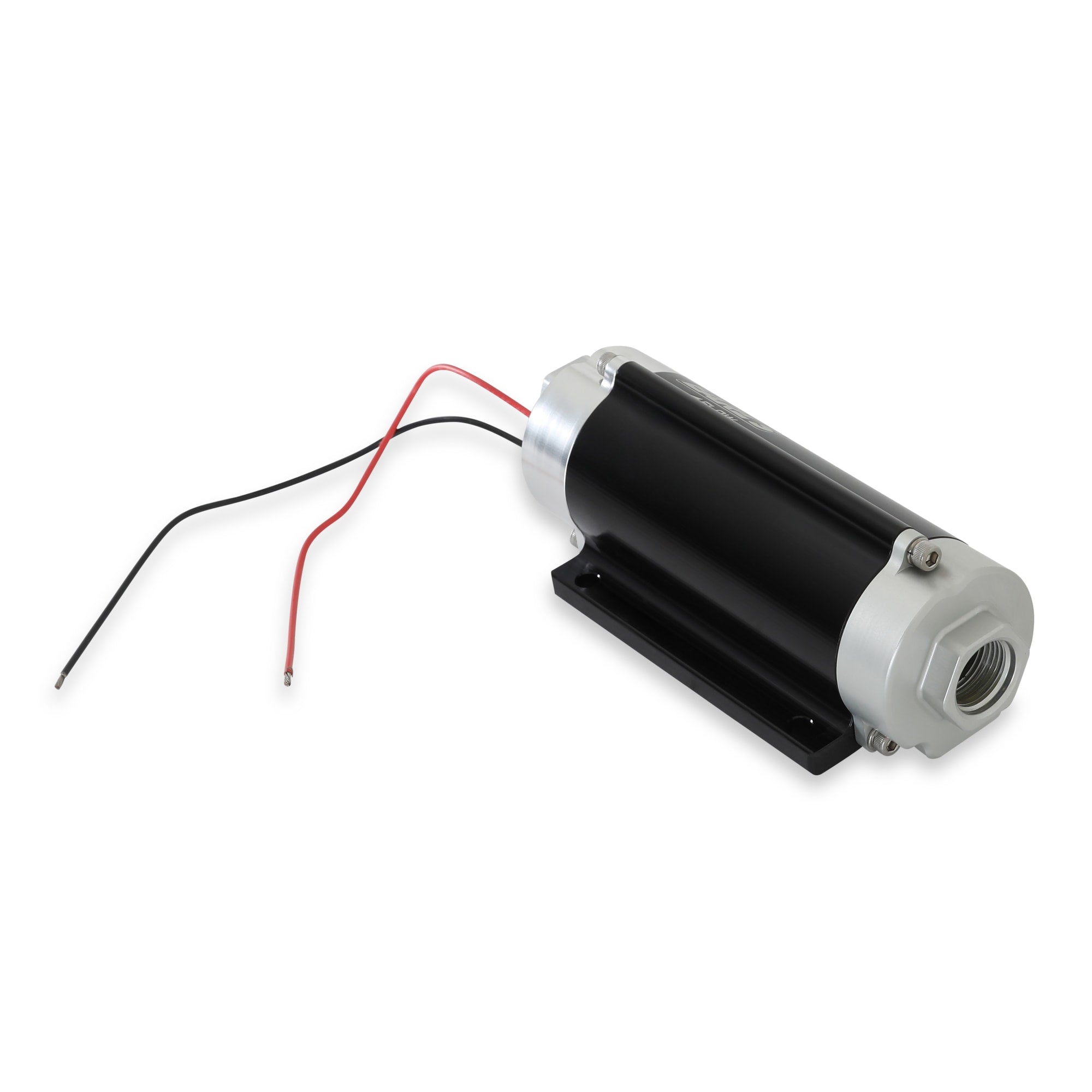

Earl's™ In-Line Billet Fuel Pumps are designed to be the perfect companion to your carbureted or fuel injected race car, off-road truck or any engine needing fuel! The HP™ fuel pumps feature OEM gerotor technology which yields lightweight, quiet operation and 100,000+ mile durability in a cost effective, attractive package. The 1200600ERL features improved hot fuel handling capabilities and was designed to greatly reduce the negative effects of heated fuel now common with many of today's pump gas blends. It is compatible for use with pump gas or race gas. If you are using E-85 or diesel, no need to worry, Earl's has still got you covered with the 1200890ERL fuel pump. HP fuel pumps work well on the street or in racing applications with up to 18.5 volt charging systems and 80 psi
Street/Strip Carb or EFI Applications Supports up to 600 EFI or 730 Carb HP Compatible with Pump or Race gas
- Billet aluminum construction for durability & good looks
- -10 an O-ring inlet and -8 an O-ring outlet for high flow and superior sealing
- Excellent for use with carbureted or EFI applications
- Fully submersible in-tank for custom applications, space savings and less plumbing
- Compatible with 12v to 18.5v systems for street or race use
- Compact (7.5 long x 3 wide x 2.75 tall) for easy installation on frame rails or other tight areas
- Proven durability beyond 3,000 hours in gasoline
- Weighs only 3.1 lbs.
- 10 AMP maximum amp draw
- Not designed for use on aircraft of any type.
📖
About this product
Street/Strip Carb or EFI Applications Supports up to 600 EFI or 730 Carb HP Compatible with Pump or Race gas
📋
Product Specifications
Application
Universal
Automotive Item Grade
Performance
Brand
Earl's
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Air and Fuel Delivery
Collection
Air & Fuel Delivery - Fuel Pumps & Accessories
Color
Silver
Emission Code
5
Finish
Anodized
Forced Induction Hp@43psi
450
Forced Induction Hp@60psi
380
Forced Induction Hp@8psi
560
Free Flow GPH
65
Fuel Sending Unit Included
No
Fuel System
Carbureted
Fuel System
EFI
Fuel Type
Gasoline
Gasket Or Seal Included
No
Gph@43psi
48
Gph@60psi
41
Gph@8psi
65
Inlet Size
10 AN O-Ring - 7/8-14 SAE
Lph@43psi
181
Lph@60psi
155
Lph@8psi
230
Material
Aluminum
Mounting Hardware Included
No
Outlet Size
8 AN O-Ring - 3/4-16 SAE
Part Type
Electric Fuel Pump
Product Type
Fuel Pump
Prop 65 Yes/No
Yes
Pump Body Color
Black Anodized
Strainer Included
No
Terminal Quantity
2
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Wiring Harness Included
No
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
8413301000
📐
Dimensions & Shipping
Product Dimensions
11.2 × 7.2 × 3.2 in
Shipping Dimensions
11.2 × 7.2 × 3.2 in
Weight
1338 g (1.34 kg)
