Holley Sniper EFIPart 19-184✓ Fits 6 vehiclesMade in TW
Product Details
⚙️
Vehicle Fitment & Compatibility
6 applicationsCompatible Transmissions
U/K
Body Types
U/K
Application Notes
EFI SwapLT SwapLS Swap
View all 6 vehicle applications
Years
Make / Model
Submodel
Engine
1963–1966
Chevrolet C10 Pickup
U/K
1963–1966
Chevrolet C10 Pickup
U/K
1963–1966
Chevrolet C20 Pickup
U/K
1963–1966
Chevrolet C20 Pickup
U/K
1963–1966
Chevrolet K10 Pickup
U/K
1963–1966
Chevrolet K10 Pickup
U/K
No applications match your search.
⭐
Key Features

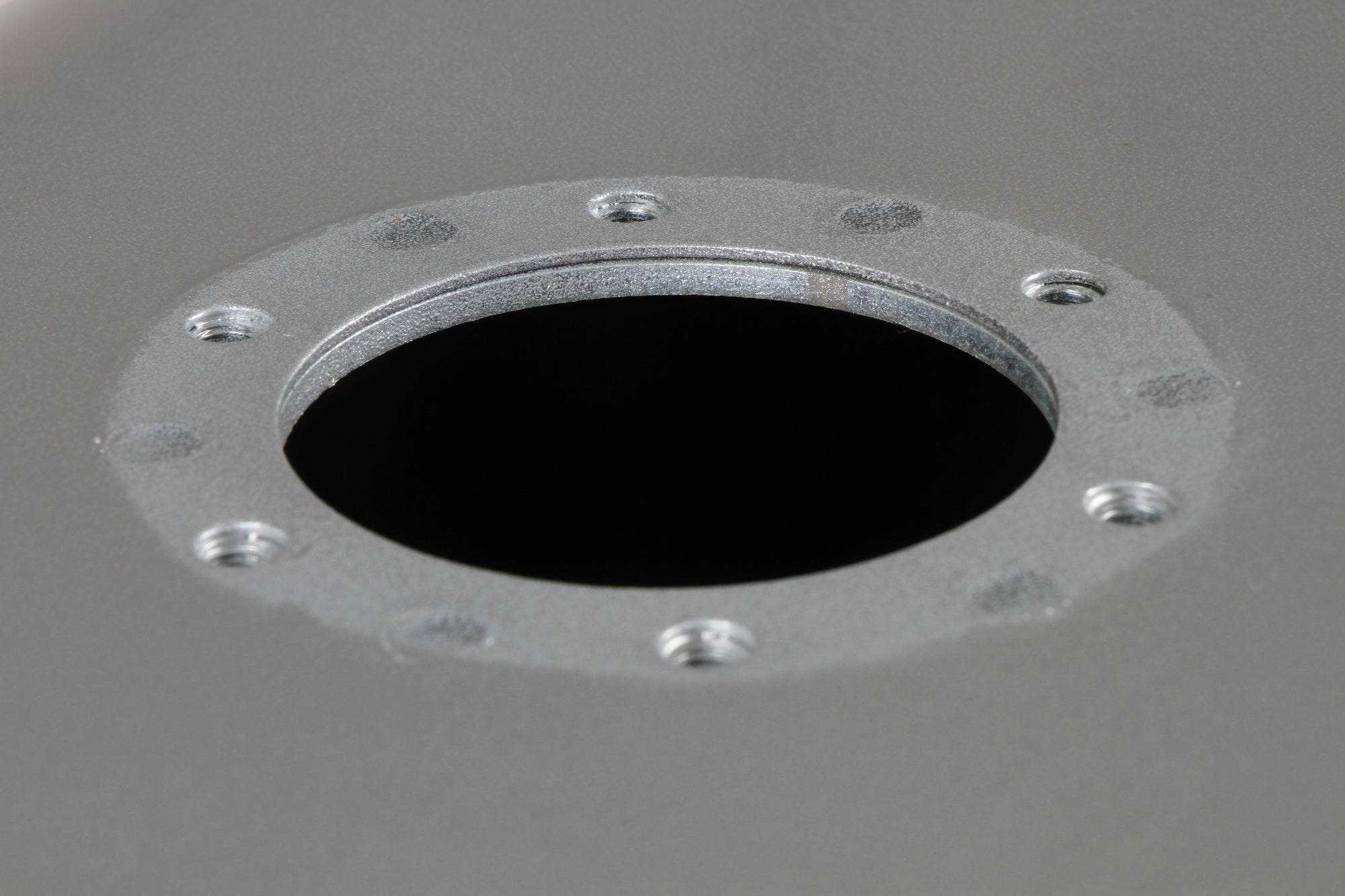

When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank.

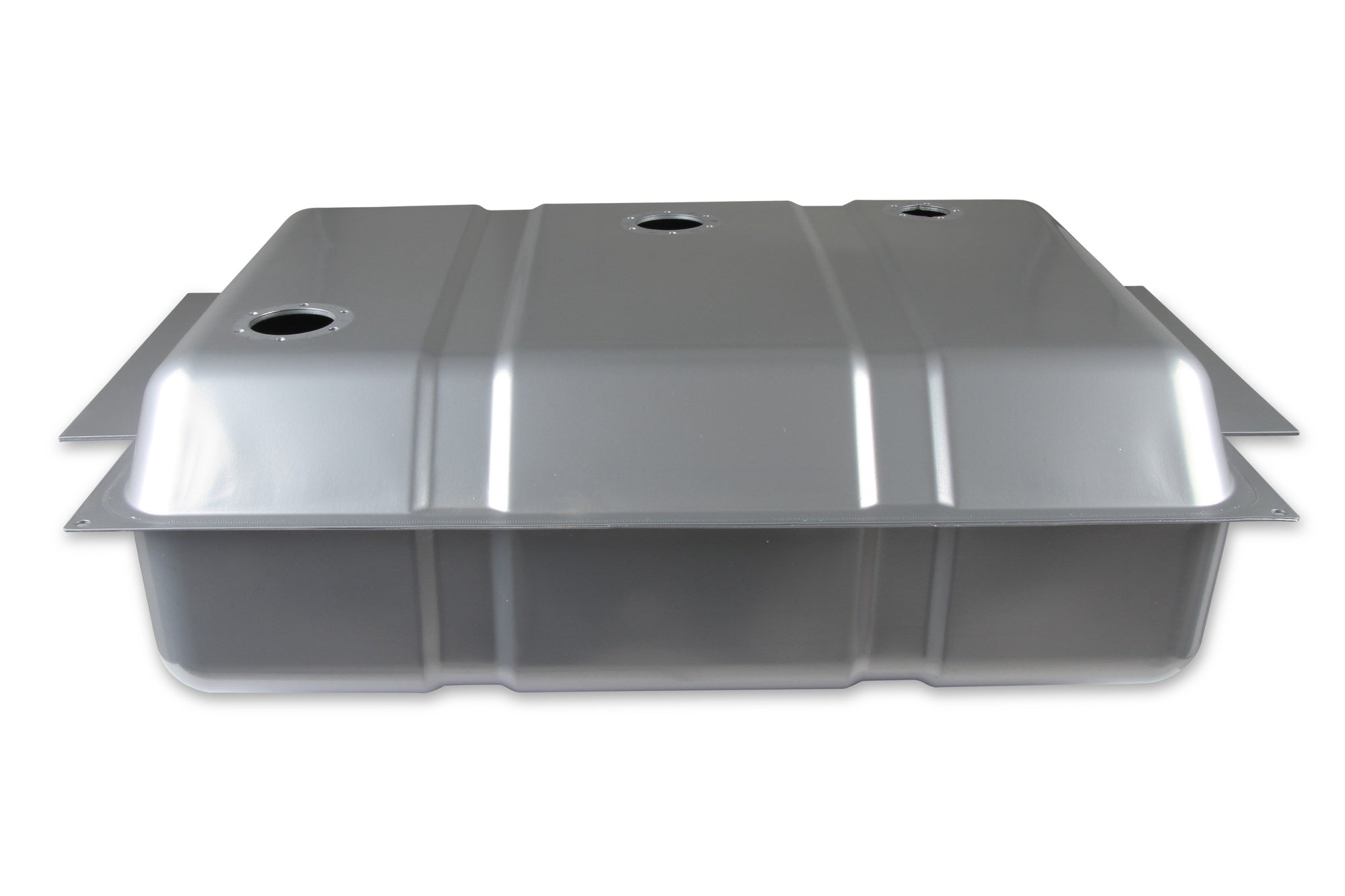

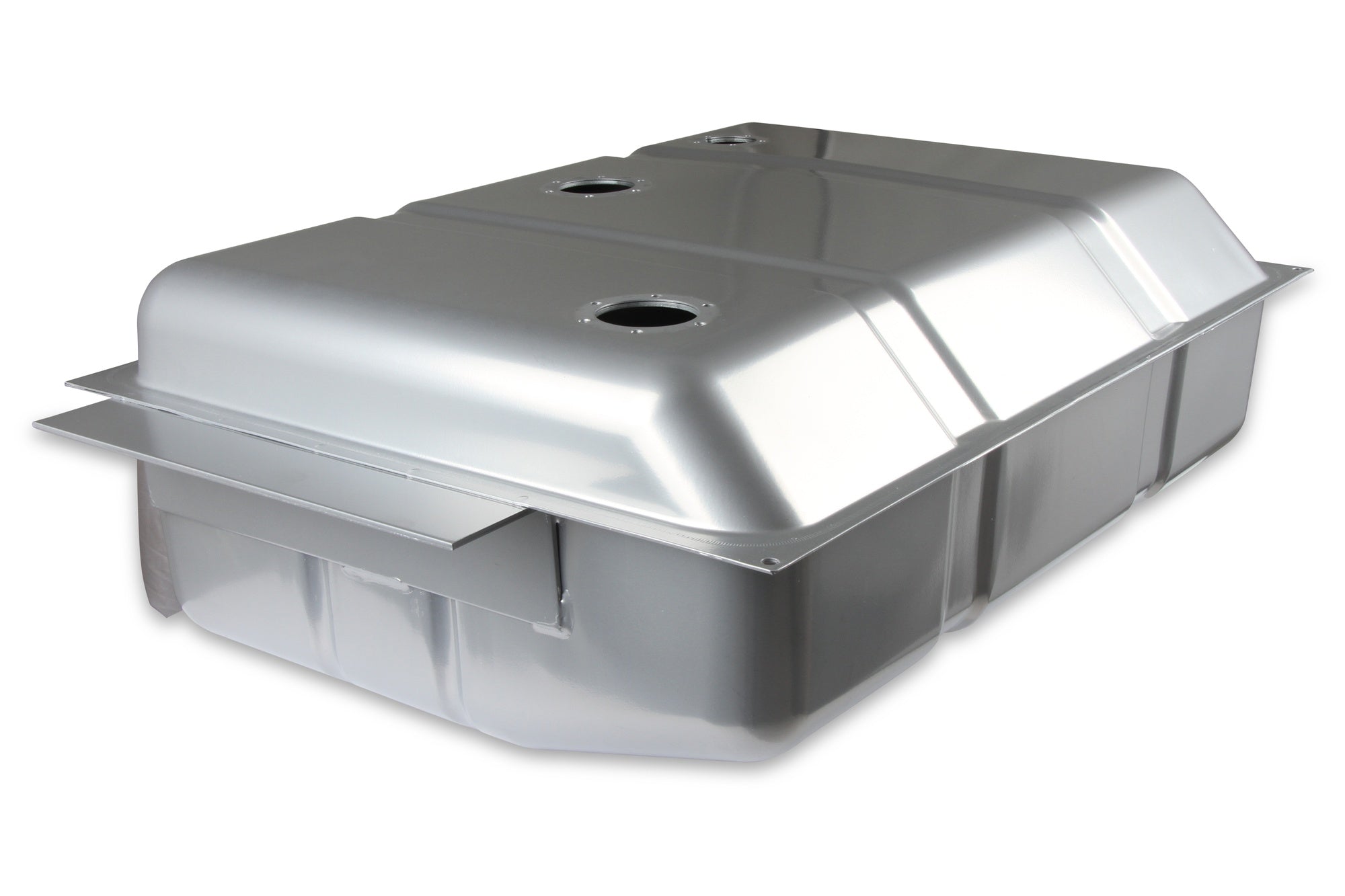

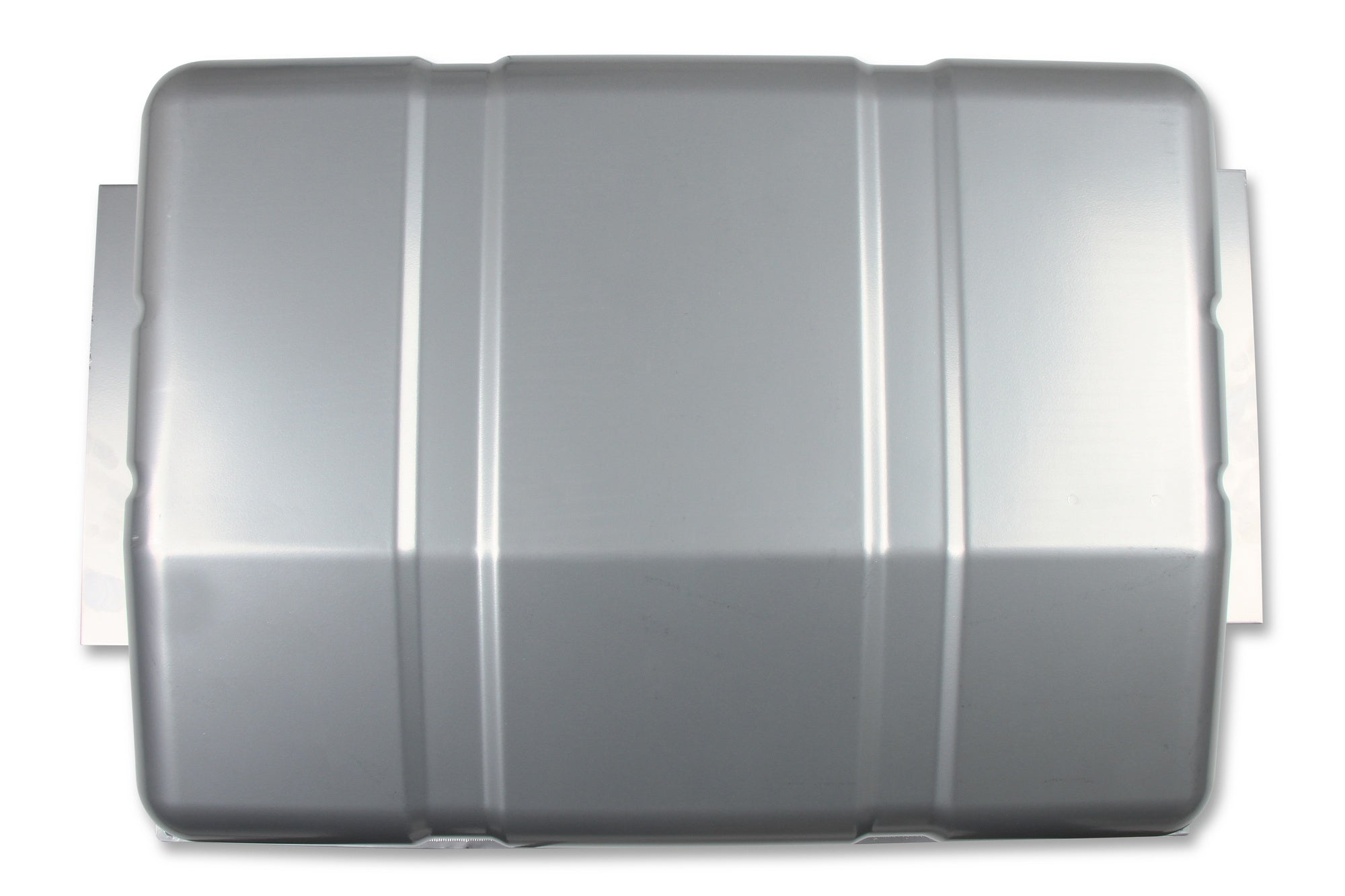

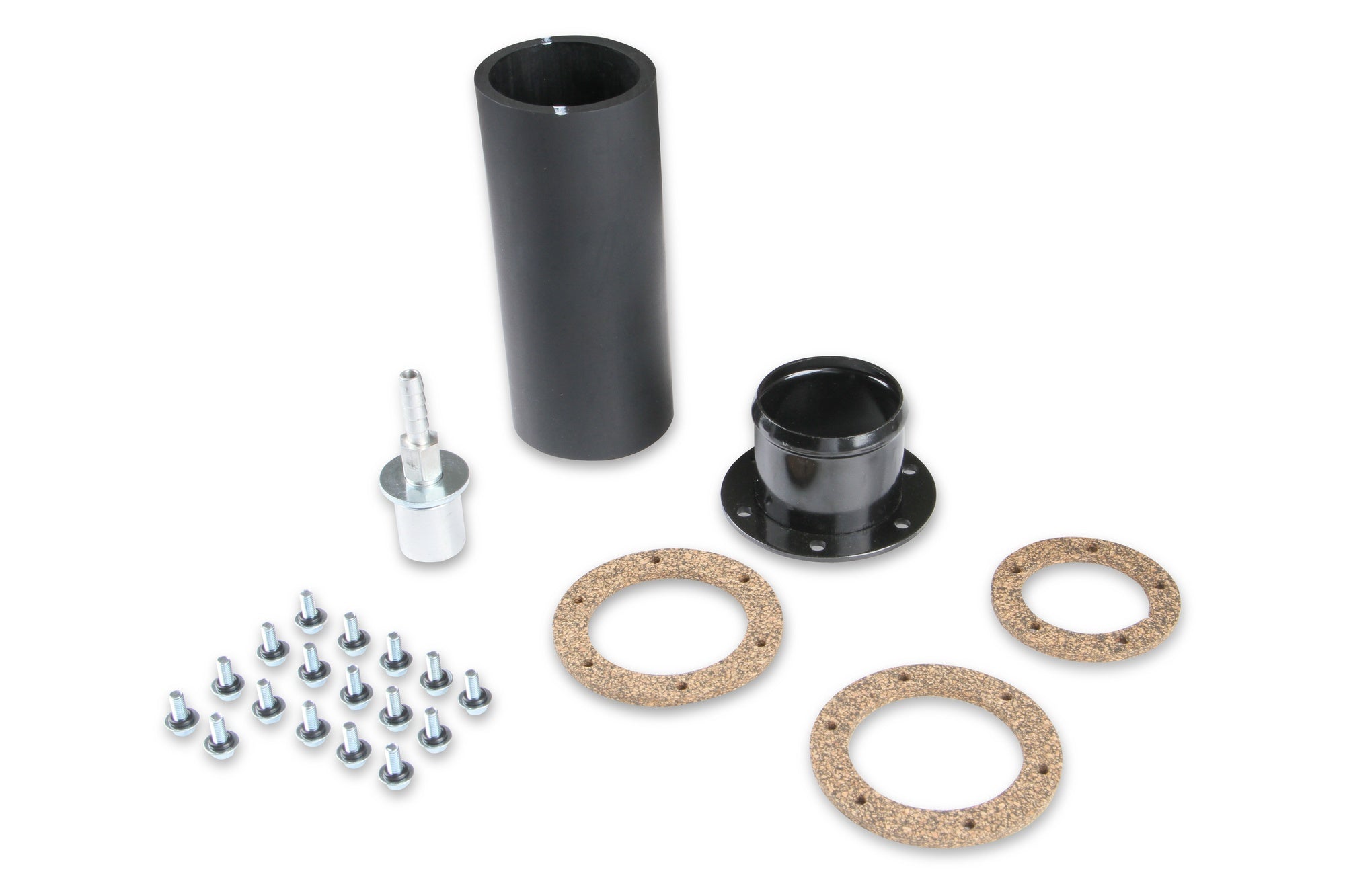

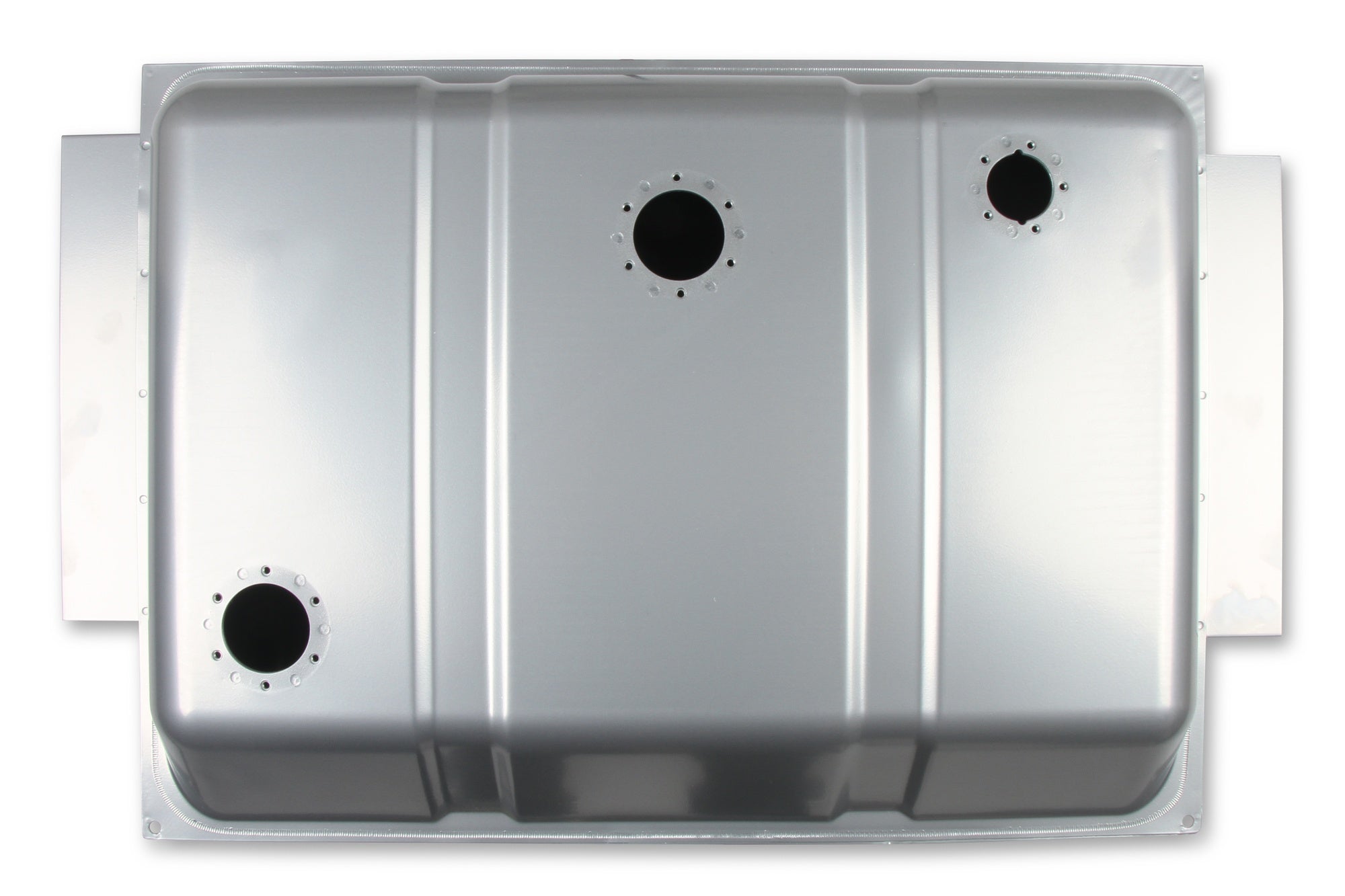

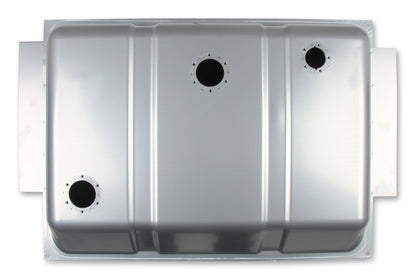

The 19-184 fuel system kit is designed for the 1963-66 Chevy/GMC trucks. This fuel tank mounts under the truck bed using the flanges to bolt in place. The tank is designed to bolt up to the bottom side of the frame rails but it can be mounted in different configurations including on top or even in-between the rails in some cases. It is up to the installer to drill and locate the mounting holes. Mounting hardware is not included. | The fuel filler neck will go up through the bed floor. You can purchase the optional 19-186 Side Fill Kit to mount fuel filler on the bedside. | The kit includes the tank, a 255 lph fuel pump, internal baffling, and a fuel level sender. The tank is powder coated for corrosion resistance and great looks. | 18 gallon capacity. | Supports up to 550 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw). | Size is 32-1/4" x 20-1/2" x 9-3/4" (including the mounting flange). | Size is 28" x 20-1/2" x 9-3/4" (measured without the mounting flange).
1963-1966 Chevy/GMC Truck Under Bed Mount 255 LPH EFI TANK

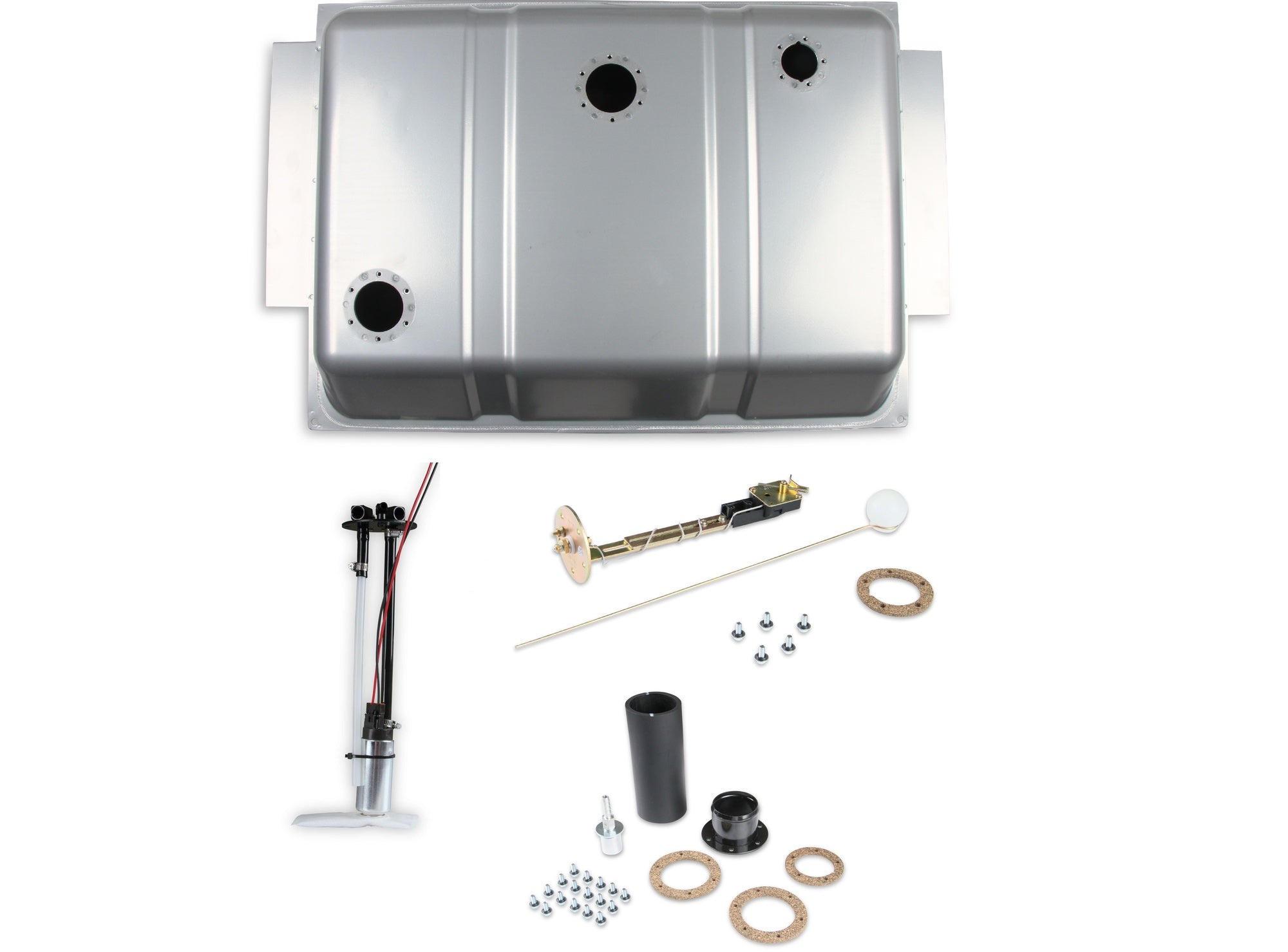

- Tanks are coated galvanized steel then powder coated silver for total corrosion protection

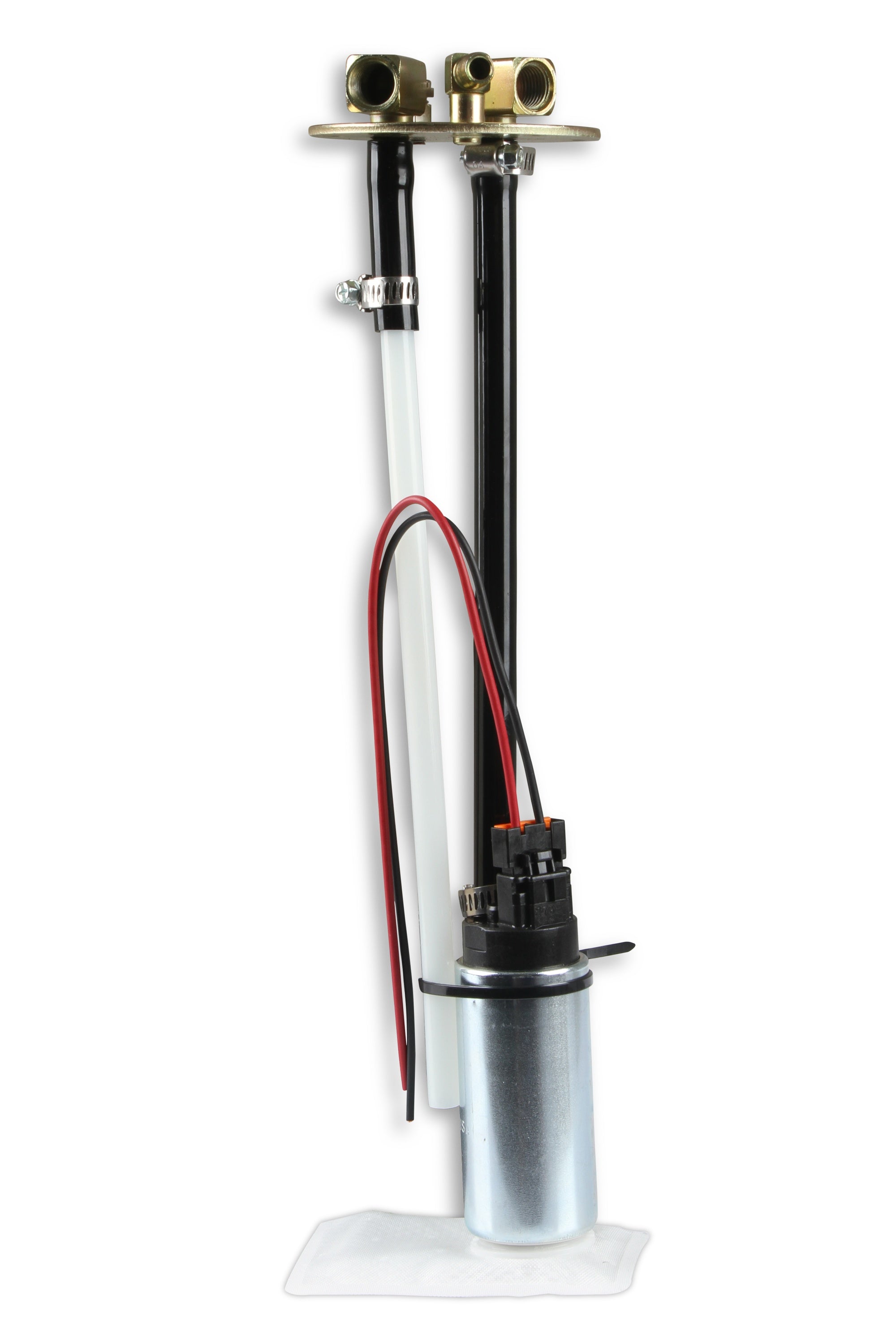

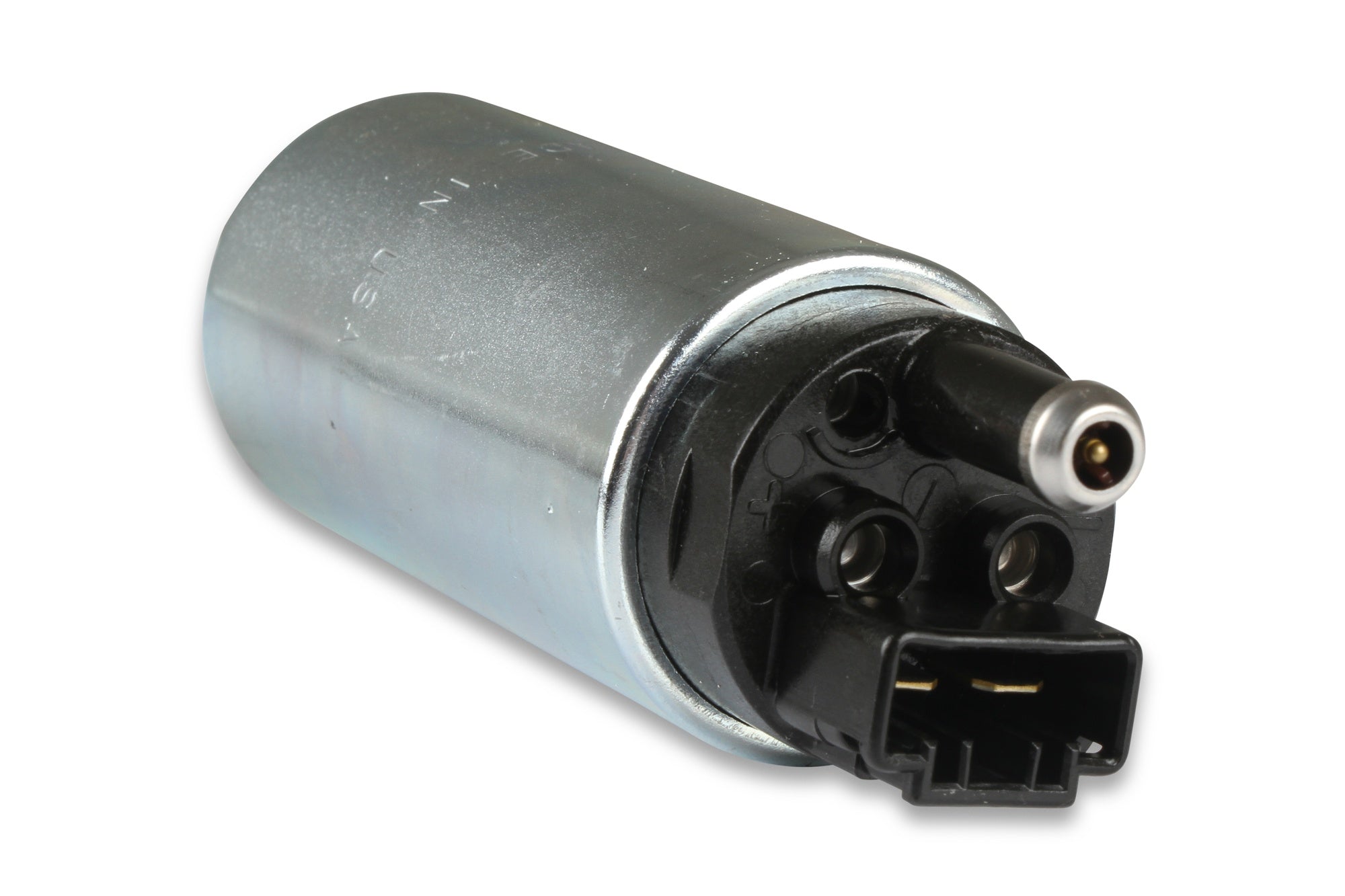

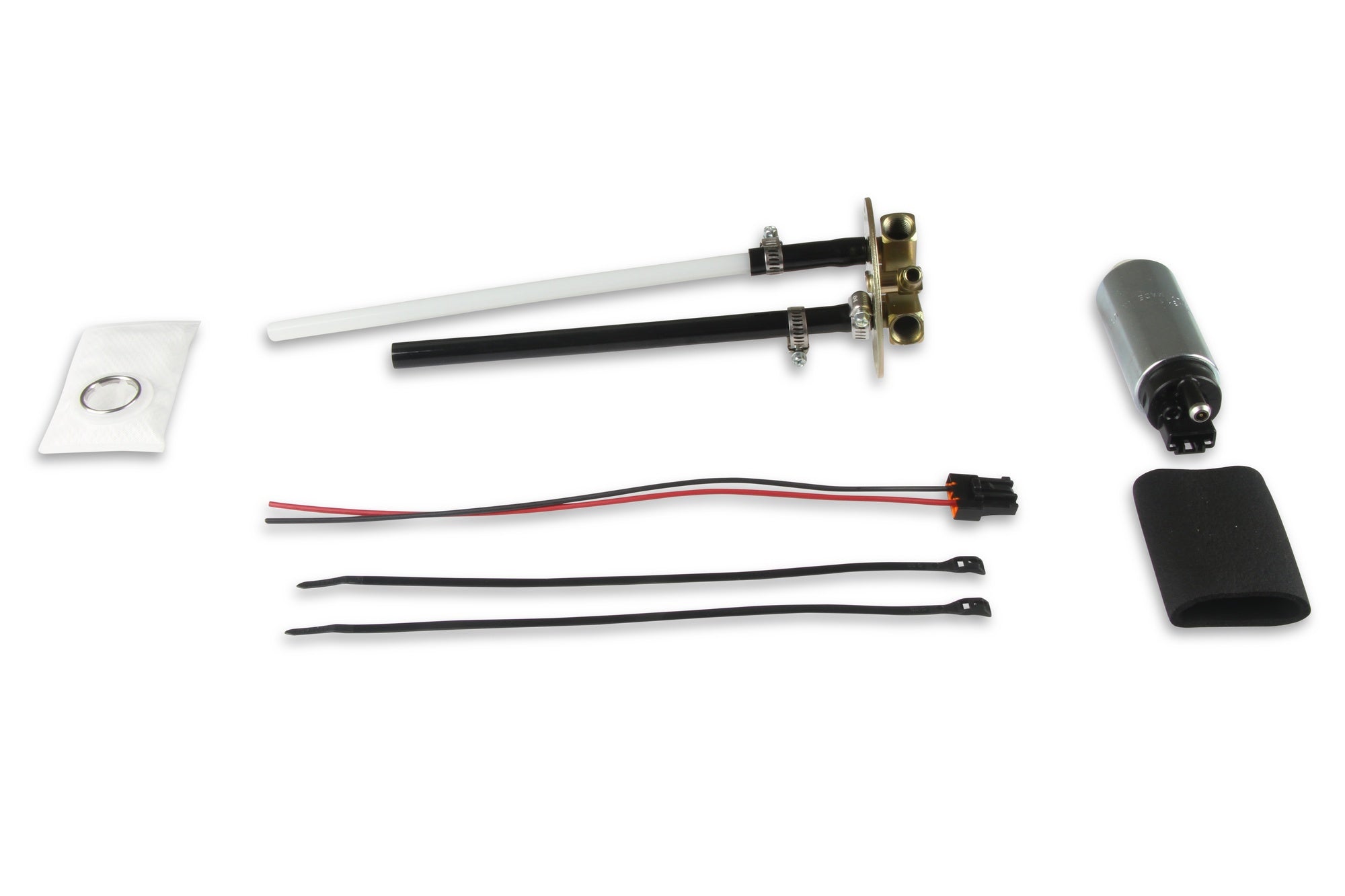

- 255 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness

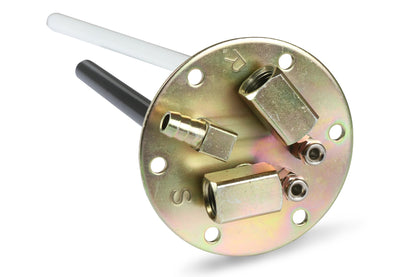

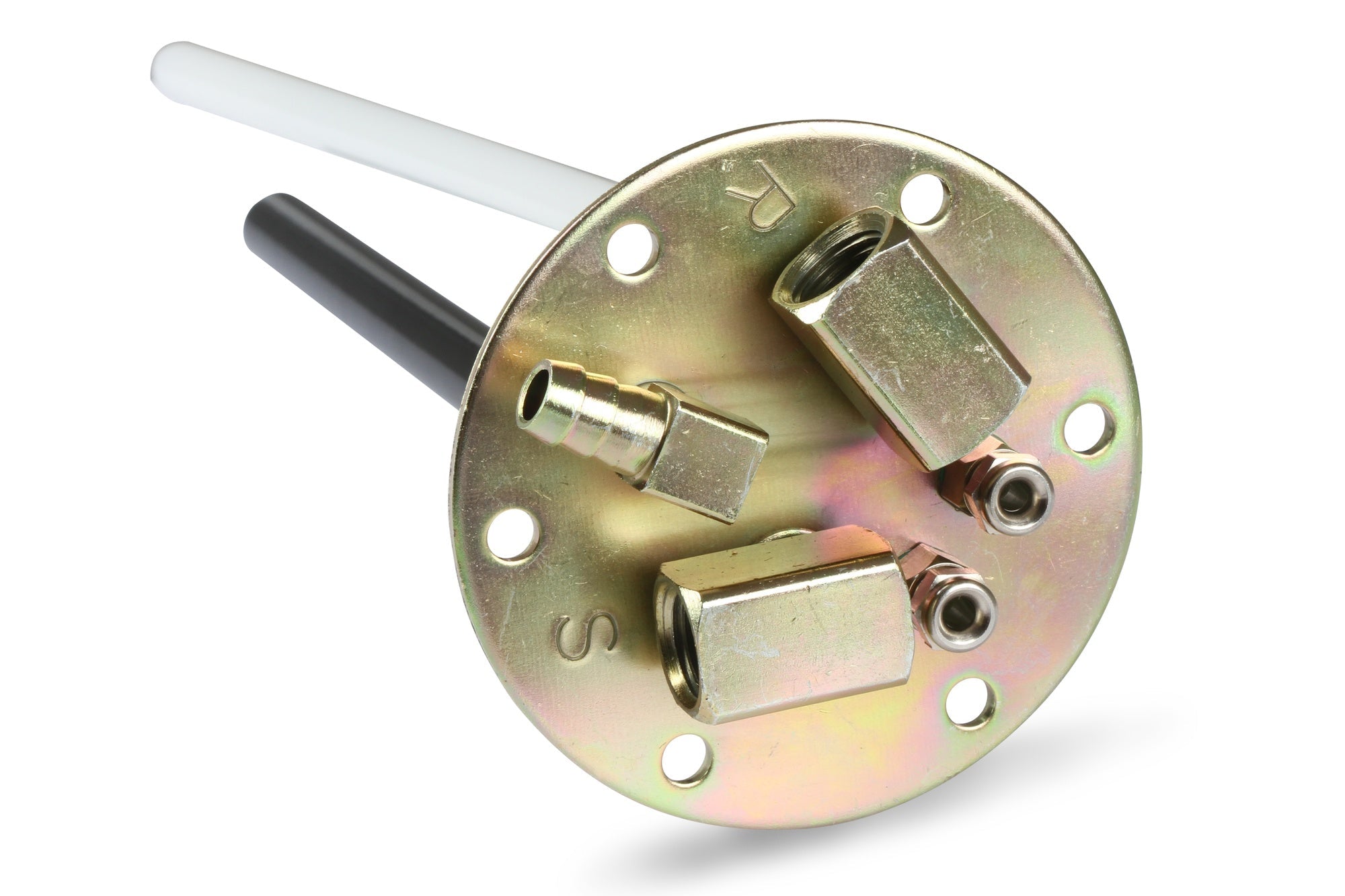

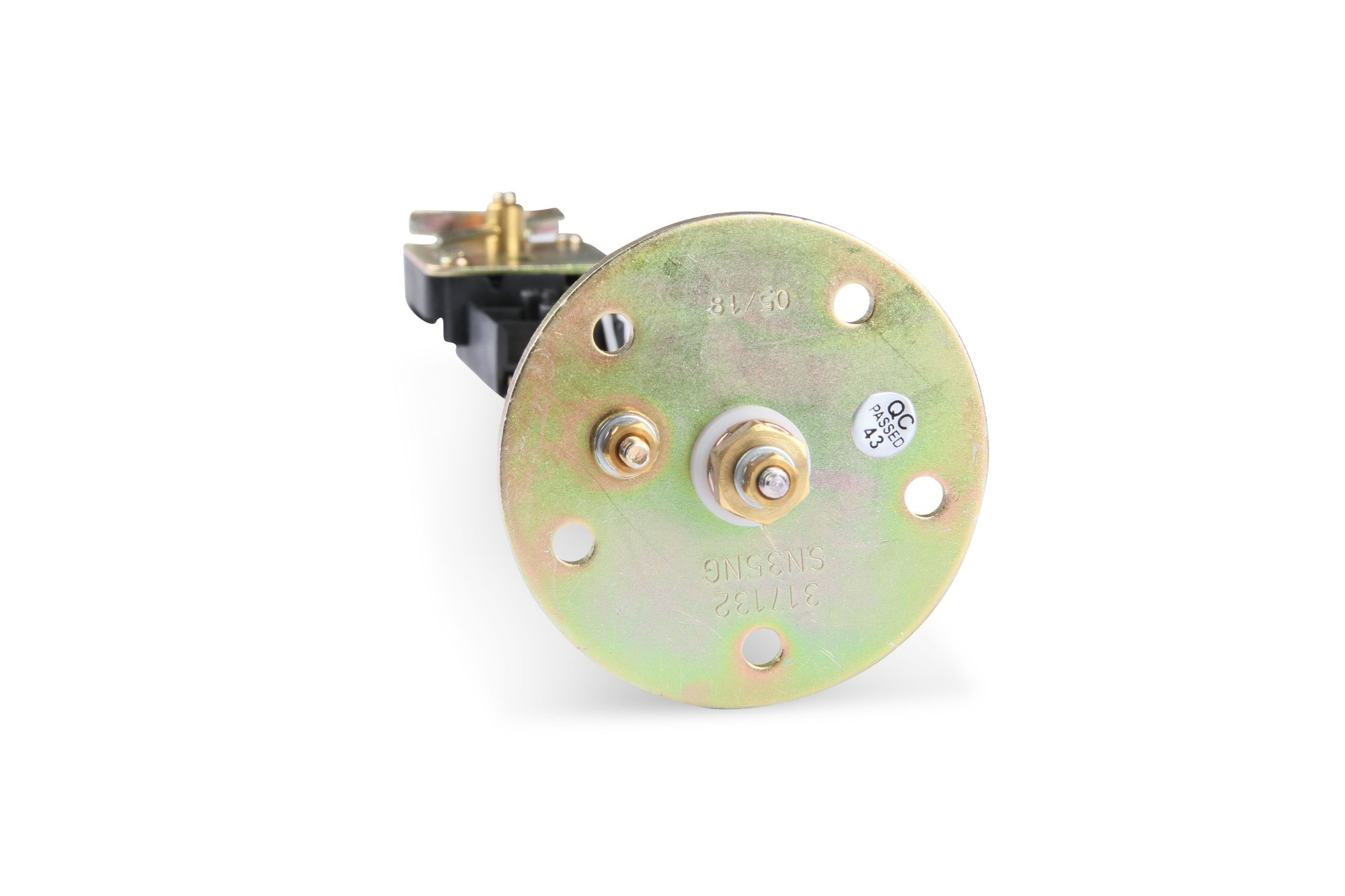

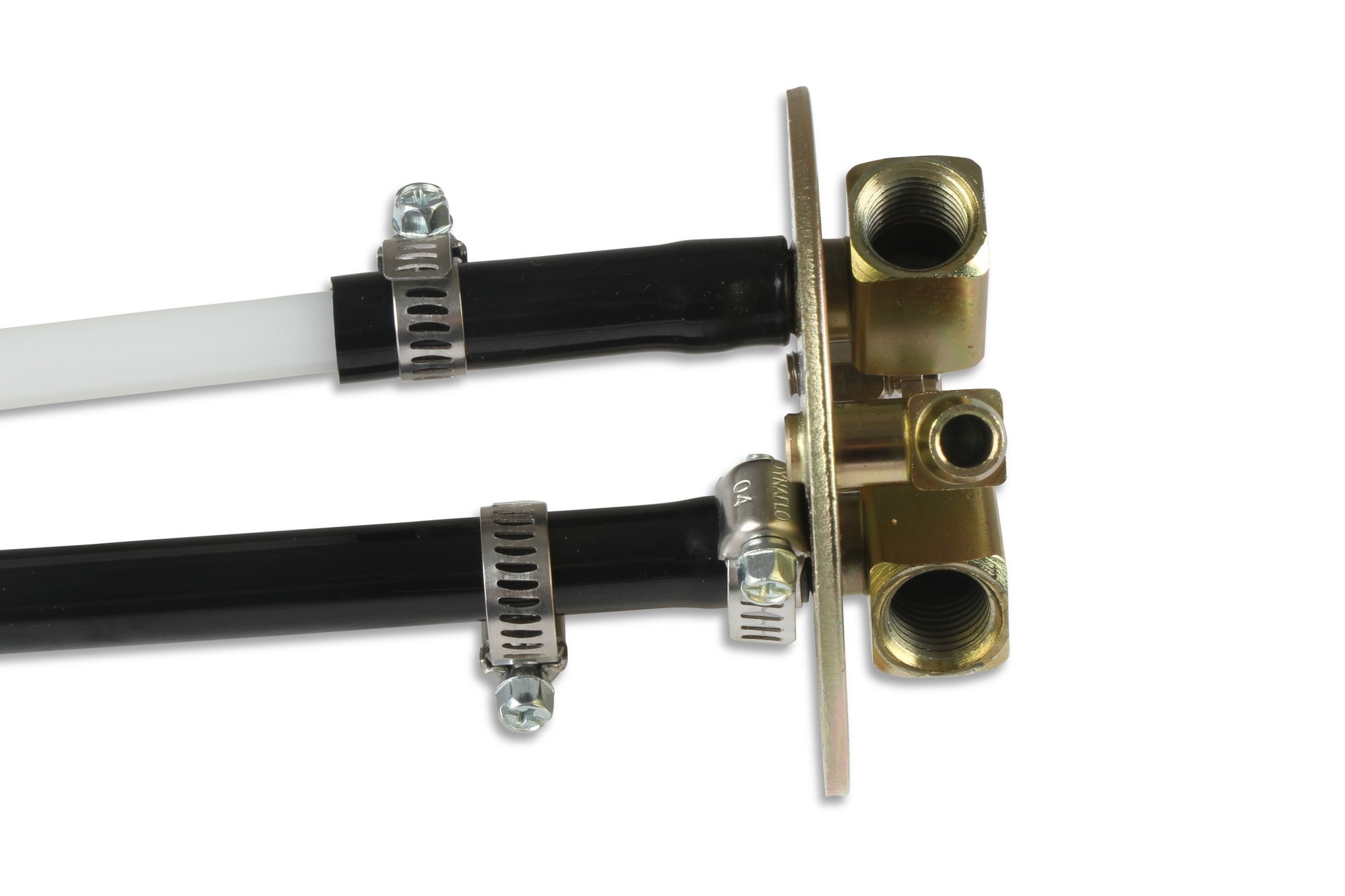

- Sender has ¼” NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting

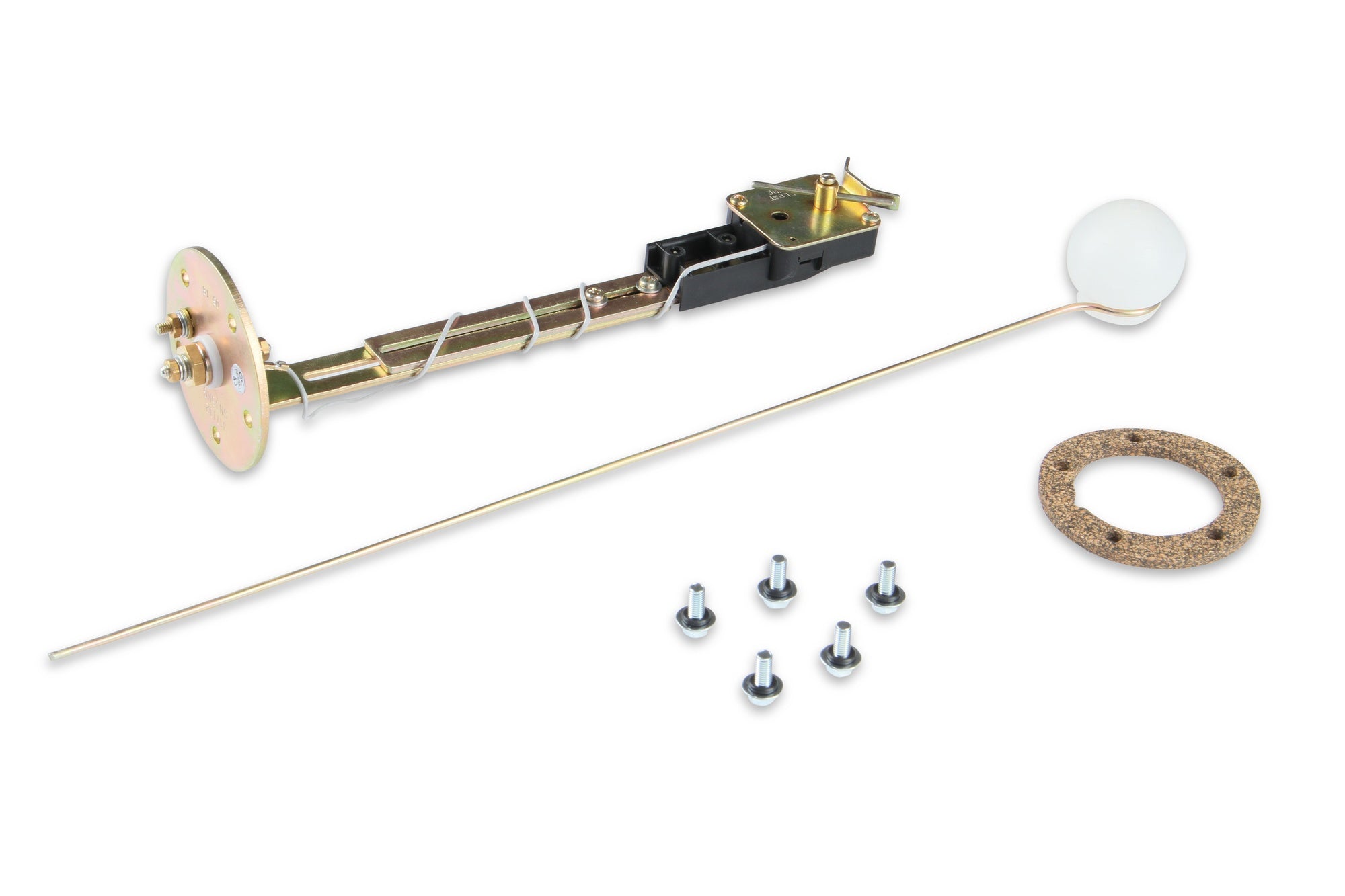

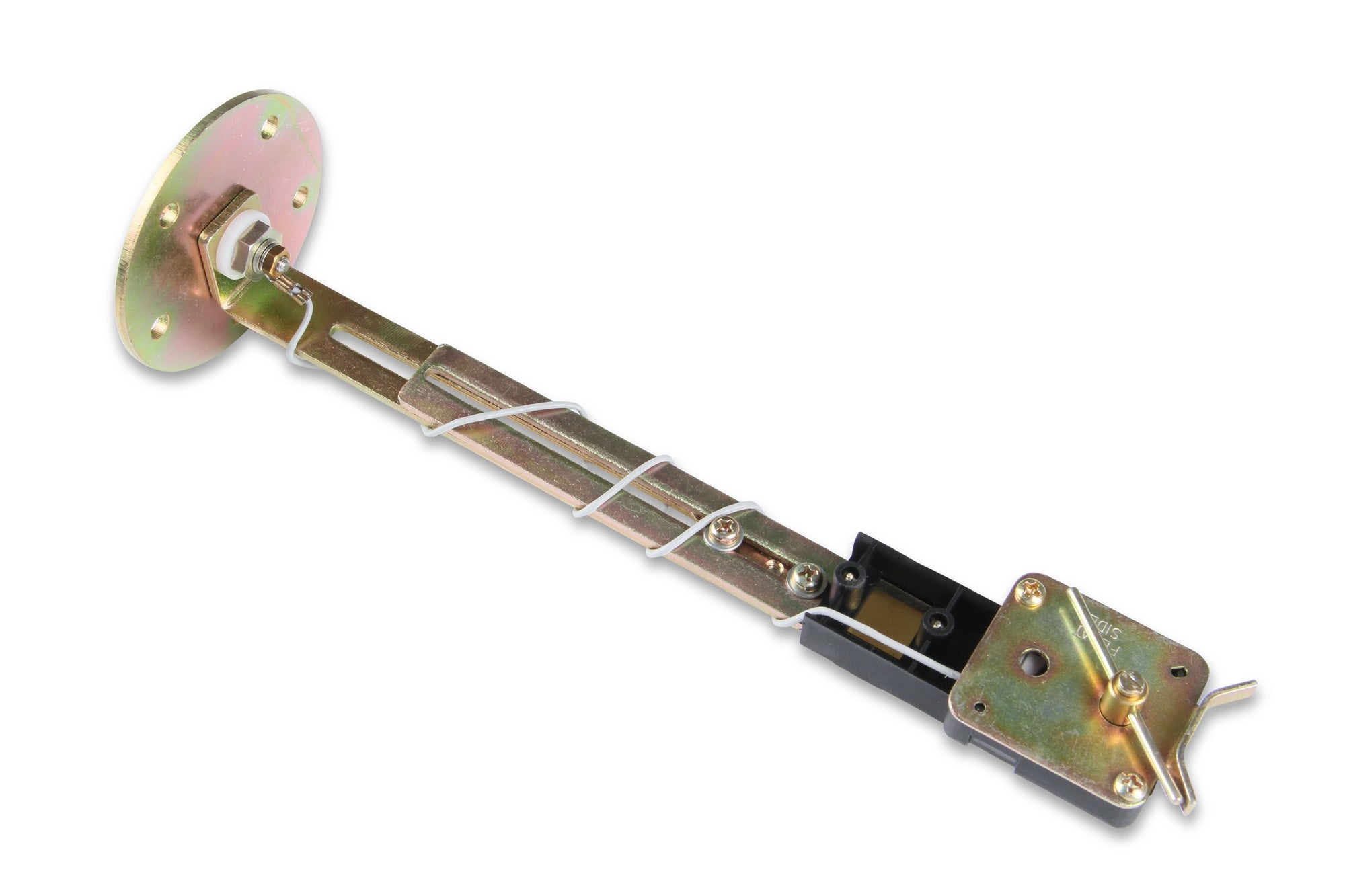

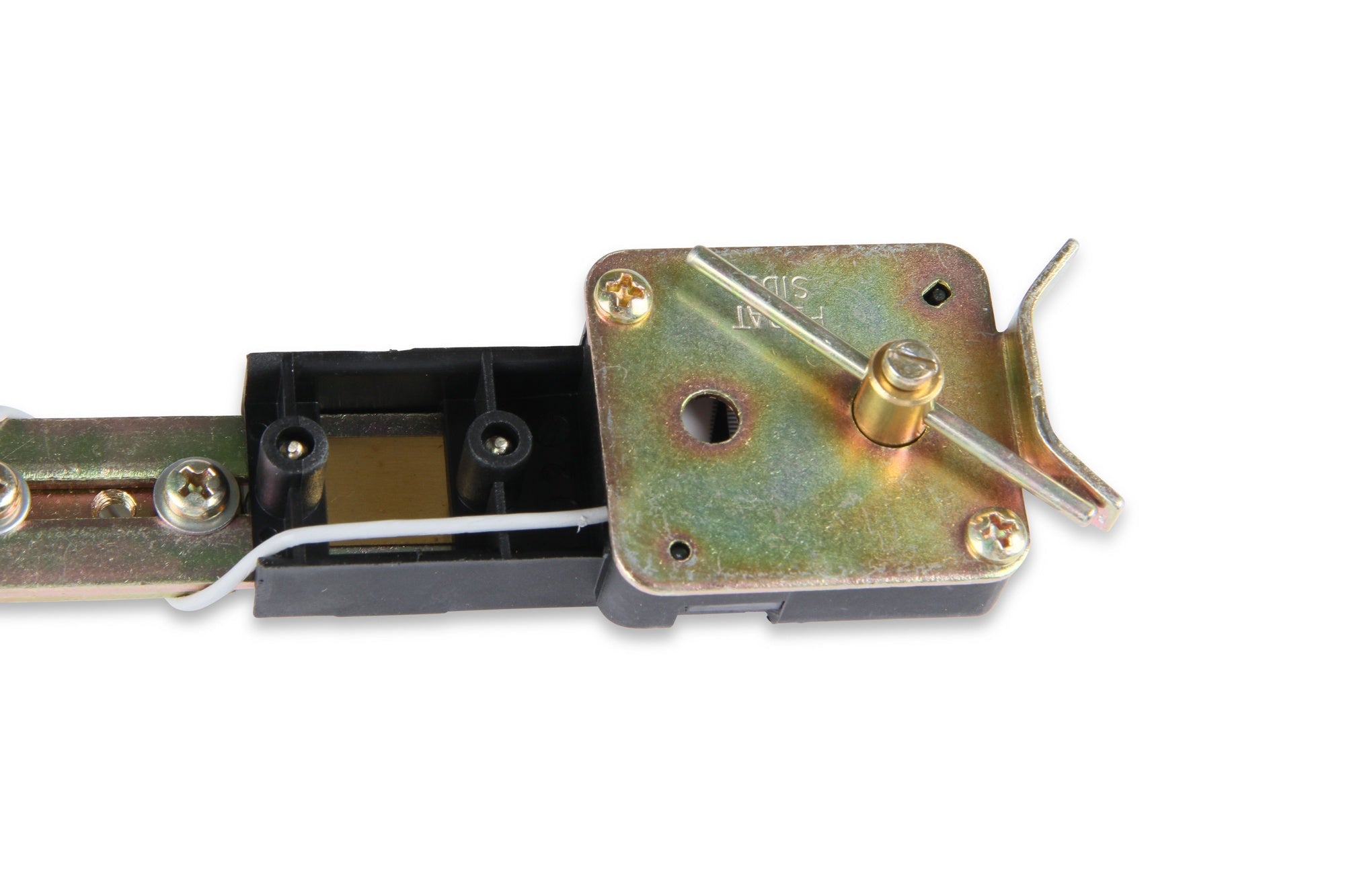

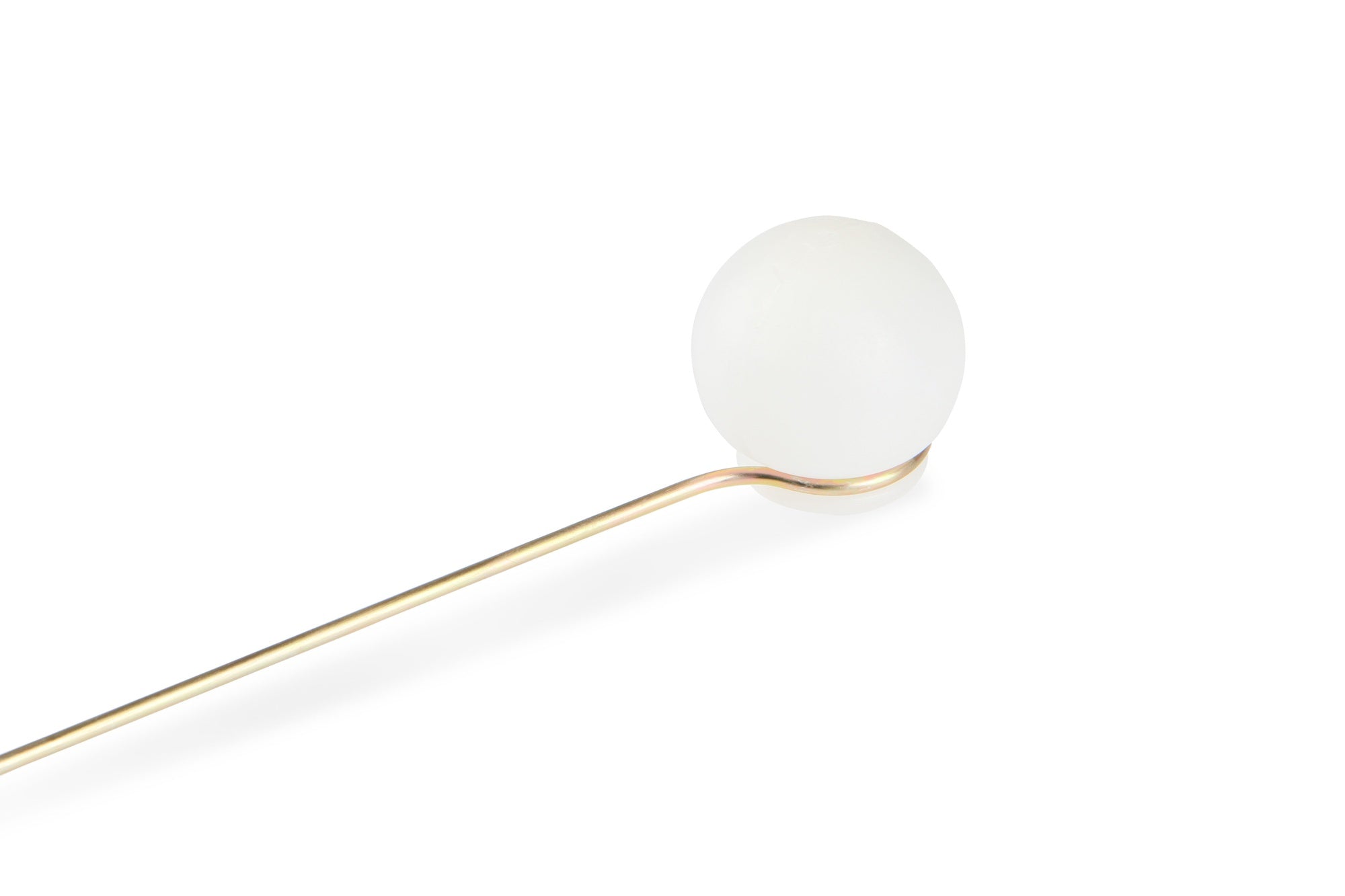

- Fuel level sender included with the correct Ohm range for your factory gauges
📖
About this product
1963-1966 Chevy/GMC Truck Under Bed Mount 255 LPH EFI TANK
📋
Product Specifications
Application
1963-1966 GM C10 Trucks Gen-V LT Swap
Attached Sump
Yes
Automotive Item Grade
Performance
Baffled Sump
Yes
Brand
Holley Sniper EFI
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Air and Fuel Delivery
Choose Your Part
Fuel Tank
Color
Silver
Drain Plug
No
Emission Code
3
Filler Neck Attached
No
Finish
Powdercoated
Free Flow LPH
255
Fuel Sending Unit Ohms
0-30 Ohms
Fuel System Compatibility
Electronic Fuel Injection
Fuel System Type
Gasoline
Fuel Tank Coating
Powder Coated
Gallon Capacity
18
Grade Type
Performance
Lock Ring Included
No
Material
Steel
Maximum Flow Rating
255 LPH
Mounting Straps Included
No
New Straps Included
Yes
O-Ring Included
Yes
Part Type
Fuel Tank and Pump Assembly Combination
Product Type
Fuel Tank
Prop 65 Yes/No
Yes
Resistance Ohms Empty
0 82
Resistance Ohms Full
30 82
Sending Unit Included
Yes
Sub Category
Fuel Pumps and Related Components
Tank Capacity
18 GA
Tank Color
Gray
Tank Material
Steel
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
TW
⚠ Prop 65 Warning
Yes
1
Emissions Code
3
HS Code
8413301000
📐
Dimensions & Shipping
Product Dimensions
35.1 × 26.1 × 11.9 in
Shipping Dimensions
35.1 × 26.1 × 11.9 in
Weight
14719 g (14.72 kg)
