Holley Sniper EFI

Pompe à carburateur SNPR CAST RETROFIT HANGR - Module d'alimentation en carburant moulé sous pression Sniper EFI pour carburateur intégré au réservoir, sans retour - 340 l/h

Prix normal £377.99 GBP inc VAT
Expédition calculée lors du paiement.
SKU: 19-365

Stock Levels:

Checking stock levels…
🇬🇧 UK warehouse
🇺🇸 US warehouse
Estimated Delivery


Voir les détails
Holley Sniper EFIPart 19-365Made in US

Product Details

Key Features

It is recommended to use a Holley 12-753 30 Amp Fuel Pump Relay along with a minimum size of 12 Gauge wire for your installation.

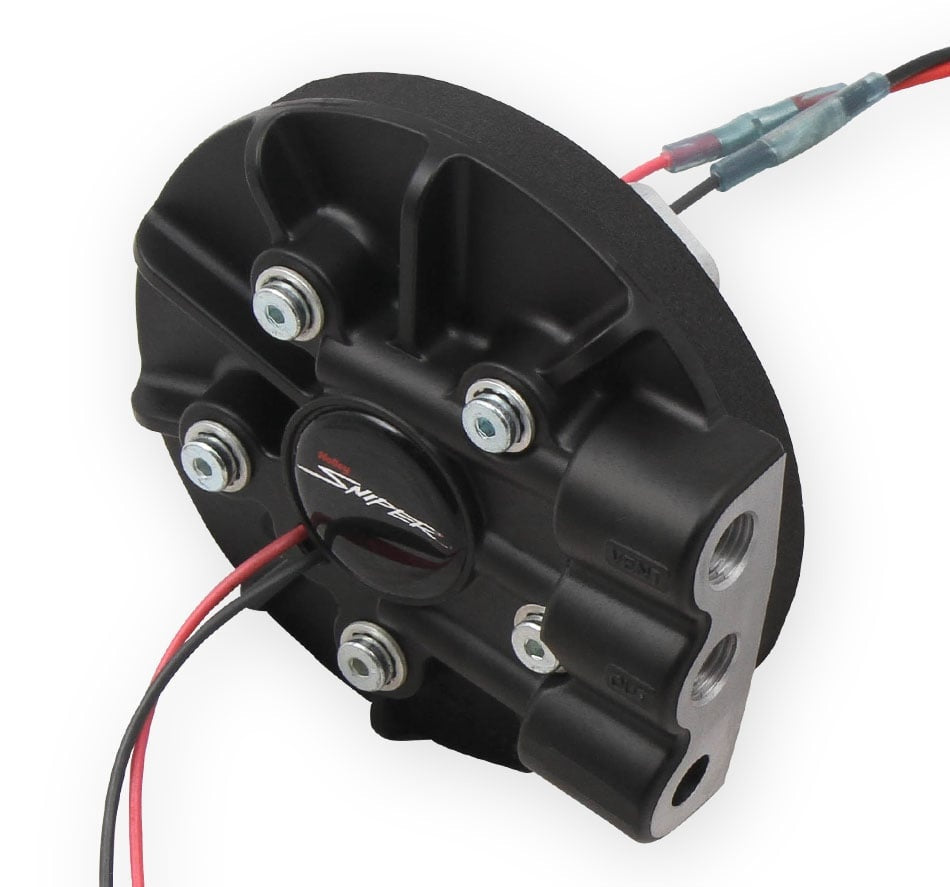

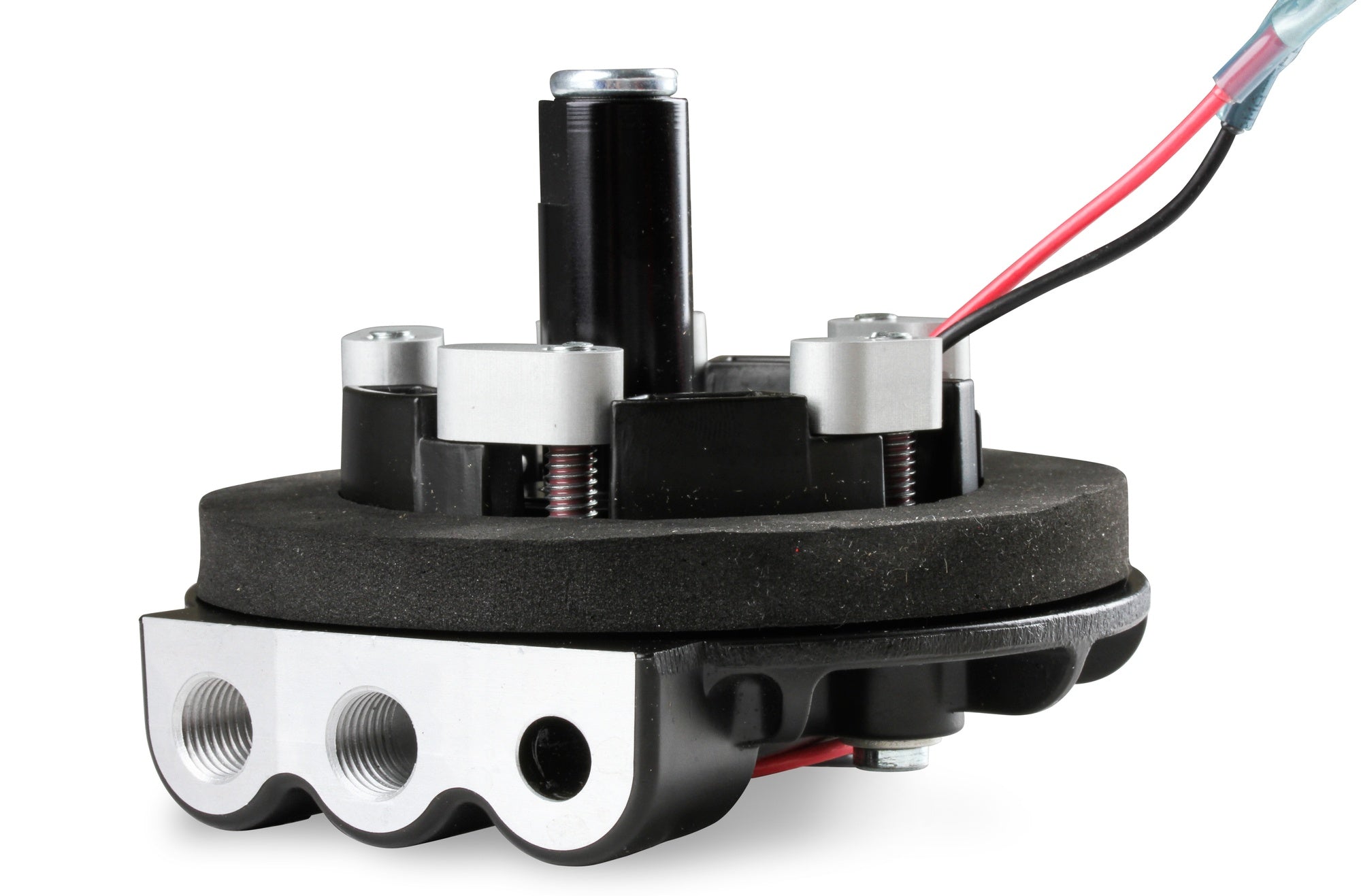

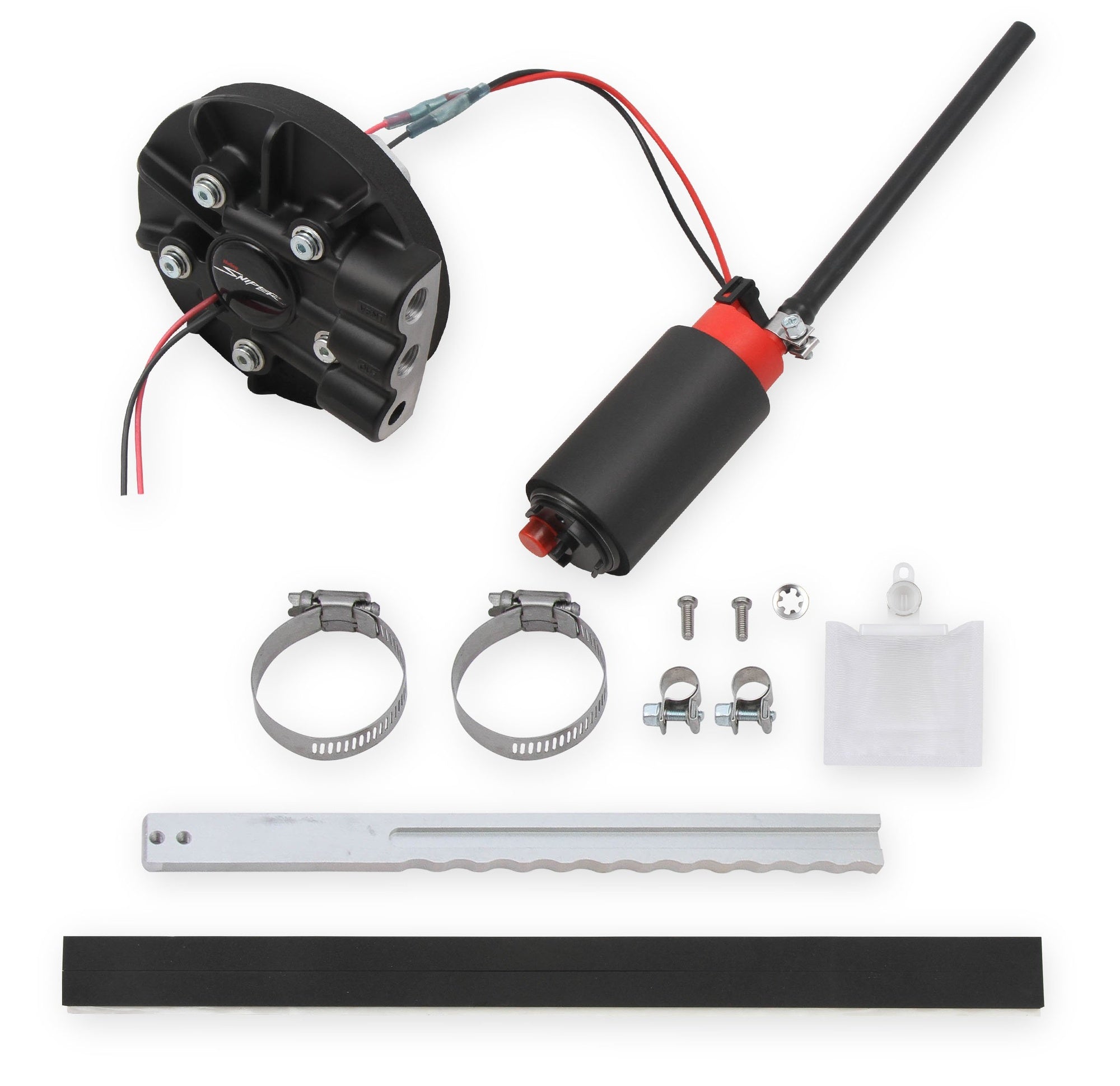

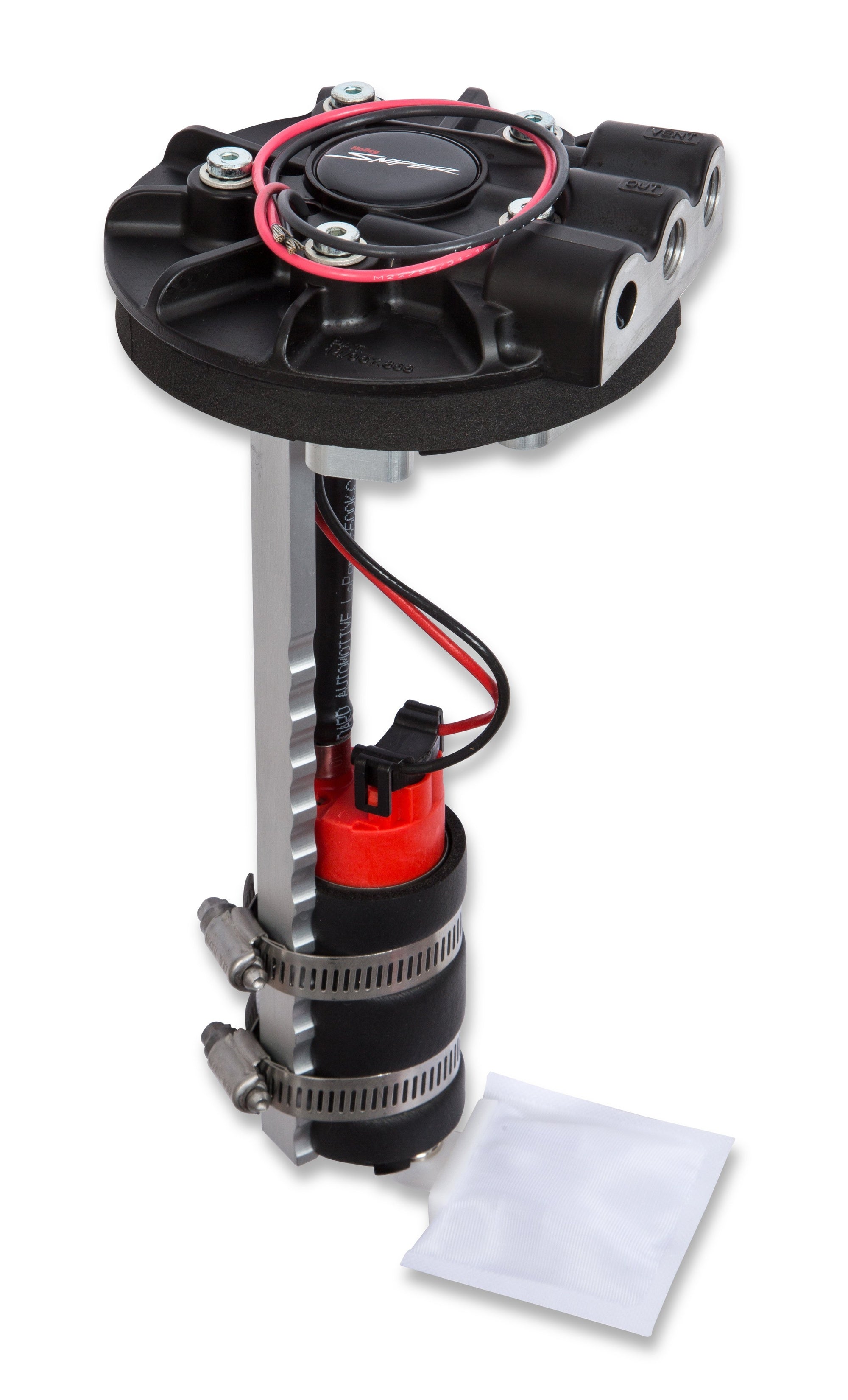

External electric fuel pumps have been the performance standard for decades. They continue to perform well, however, the evolution of fuel pump technology has surpassed them in quiet operation and fuel delivery capabilities that an in-tank module can deliver. | Looking ahead to the future, Sniper has designed their latest retrofit pump module especially for the carbureted applications. The module design is very similar to the existing EFI pump modules using a 340 LPH pump, but includes a built-in regulator for lower fuel pressure that carburetor applications require. | Now you can convert your factory tank or fuel cell to an in-tank fuel system quickly and easily! The conversion is easily accomplished with basic tools and requires no welding or fabrication. The aluminum module design includes a die cast pump hanger bracket to control pump vibration while also providing a low profile design to fit where space is at a premium. Once installed, hook up your fuel lines and your power source/ground and you're off and running! NO hassle! | An added bonus is that you can upgrade this module if you eventually change to an EFI system by changing the internal regulator. | Supports up to 900 Carb HP (@ 6 PSI at 13.5 Volts / 10.4 AMP Draw) of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, fuel cell location, etc...

340 LPH Drop-In Retrofit Carbureted Fuel System-E85 Compatible Supports up to 900 Carb HP (HP Rating @ 6 PSI at 13.5 Volts / 10.4 AMP Draw)

  • The easiest way to convert your vehicle to an in-tank fuel system
  • Installs in any fuel tank from 7” to 12” deep to fit a wide variety of applications
  • The low profile design is only 1.275" thick above the tank mounting surface for added clearance when needed

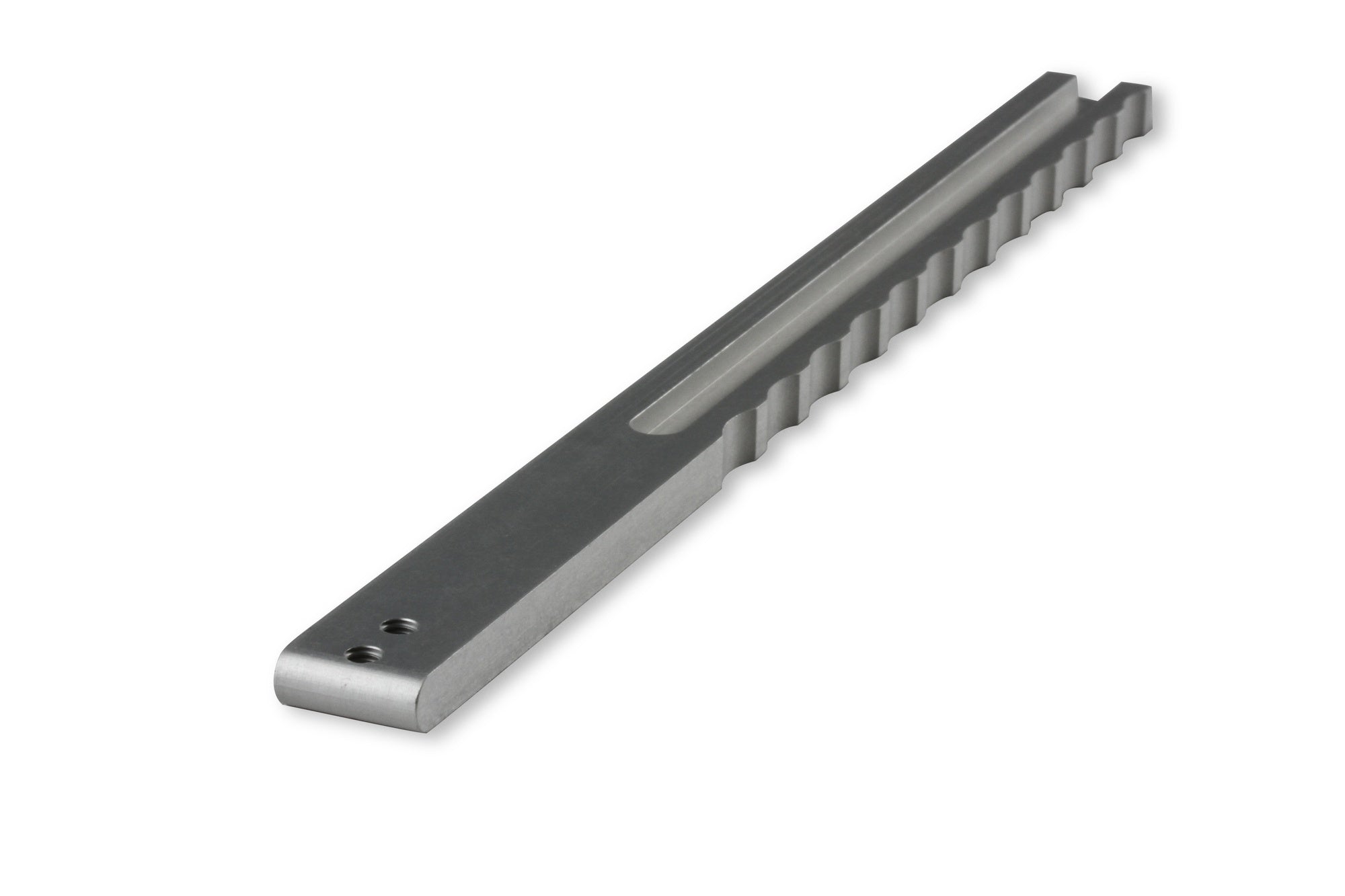

  • The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit
  • The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride
  • Die cast aluminum construction for corrosion resistance and long lasting good looks

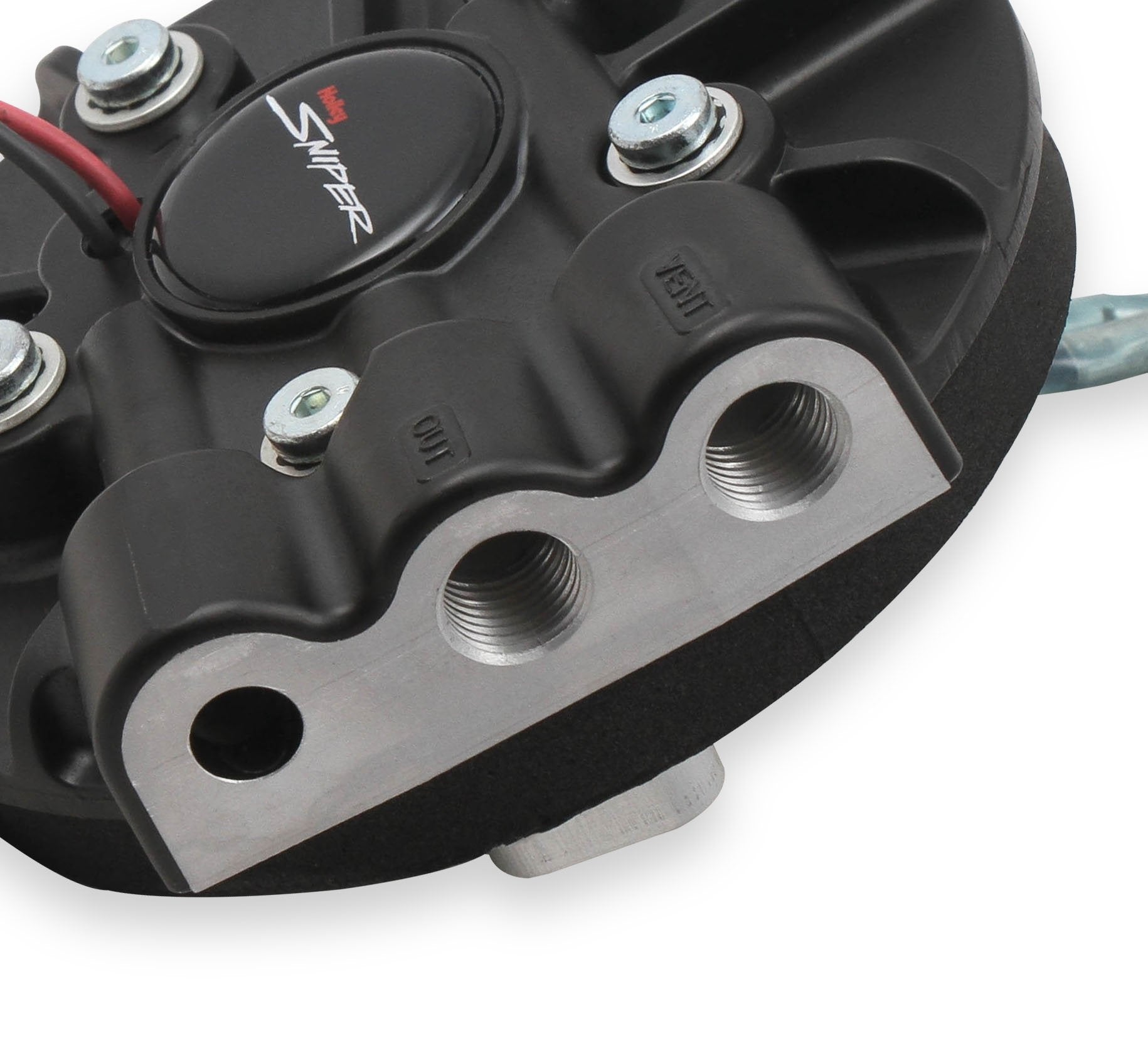

  • ¼” NPT ports for a wide variety of plumbing options

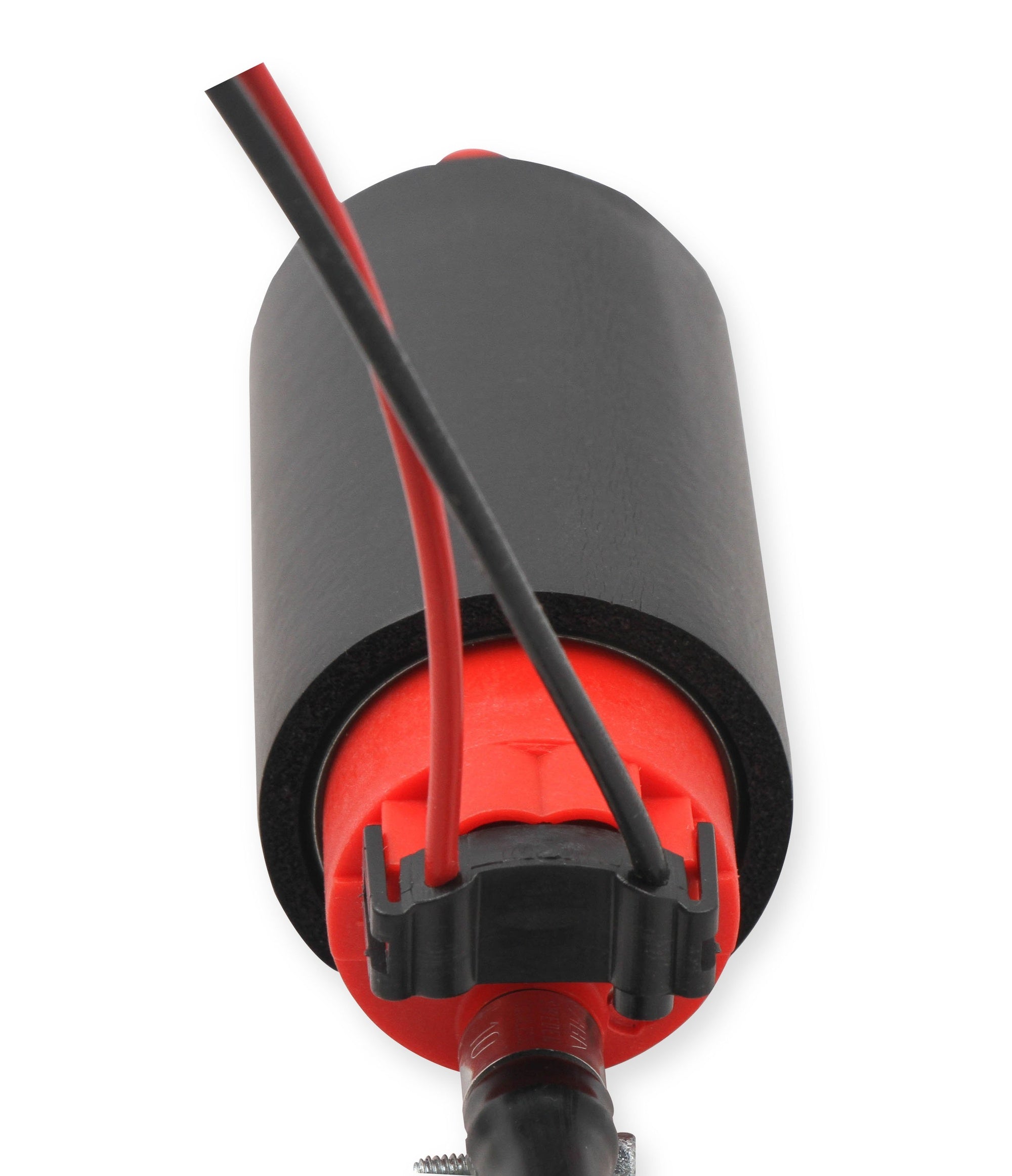

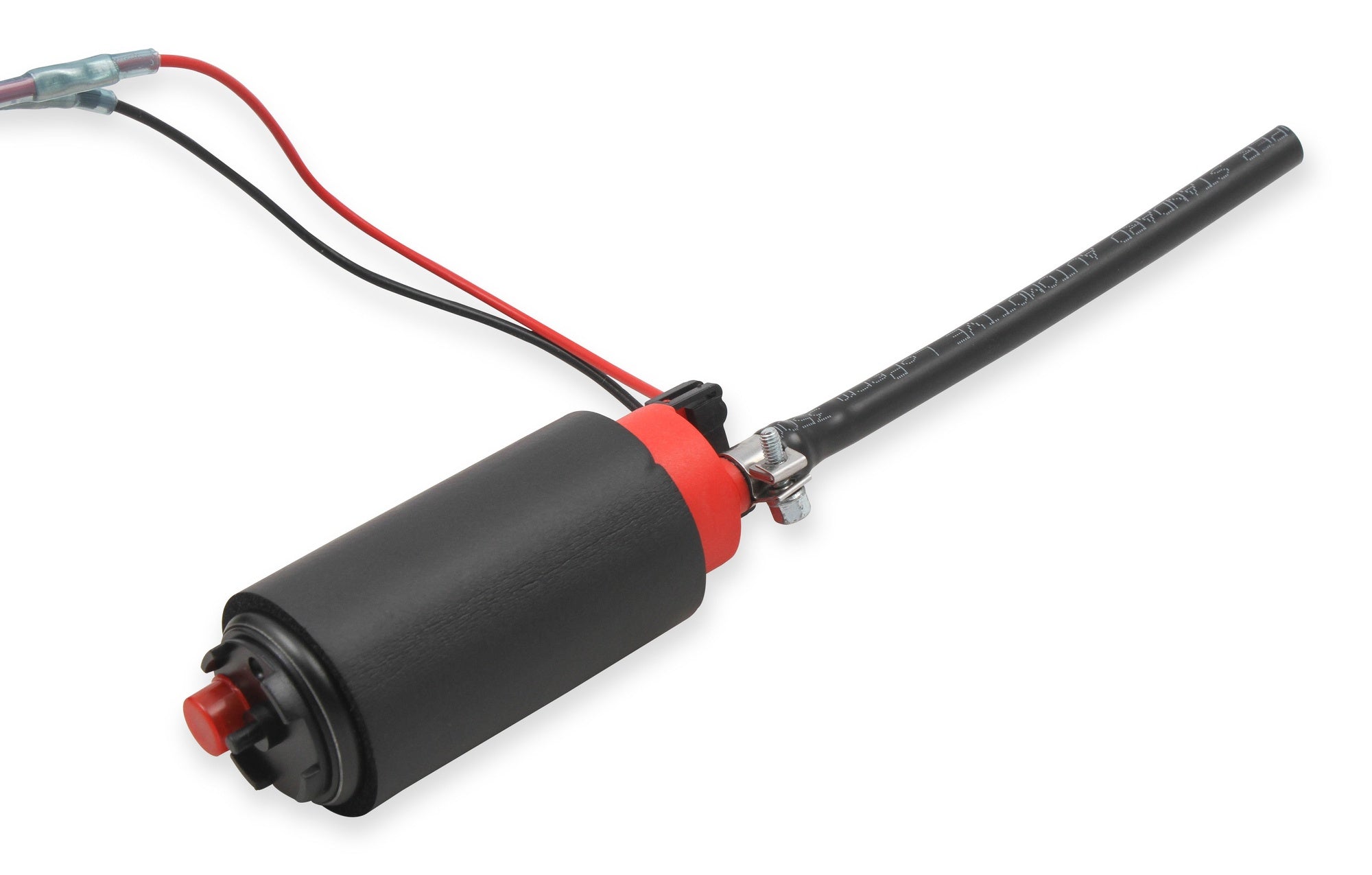

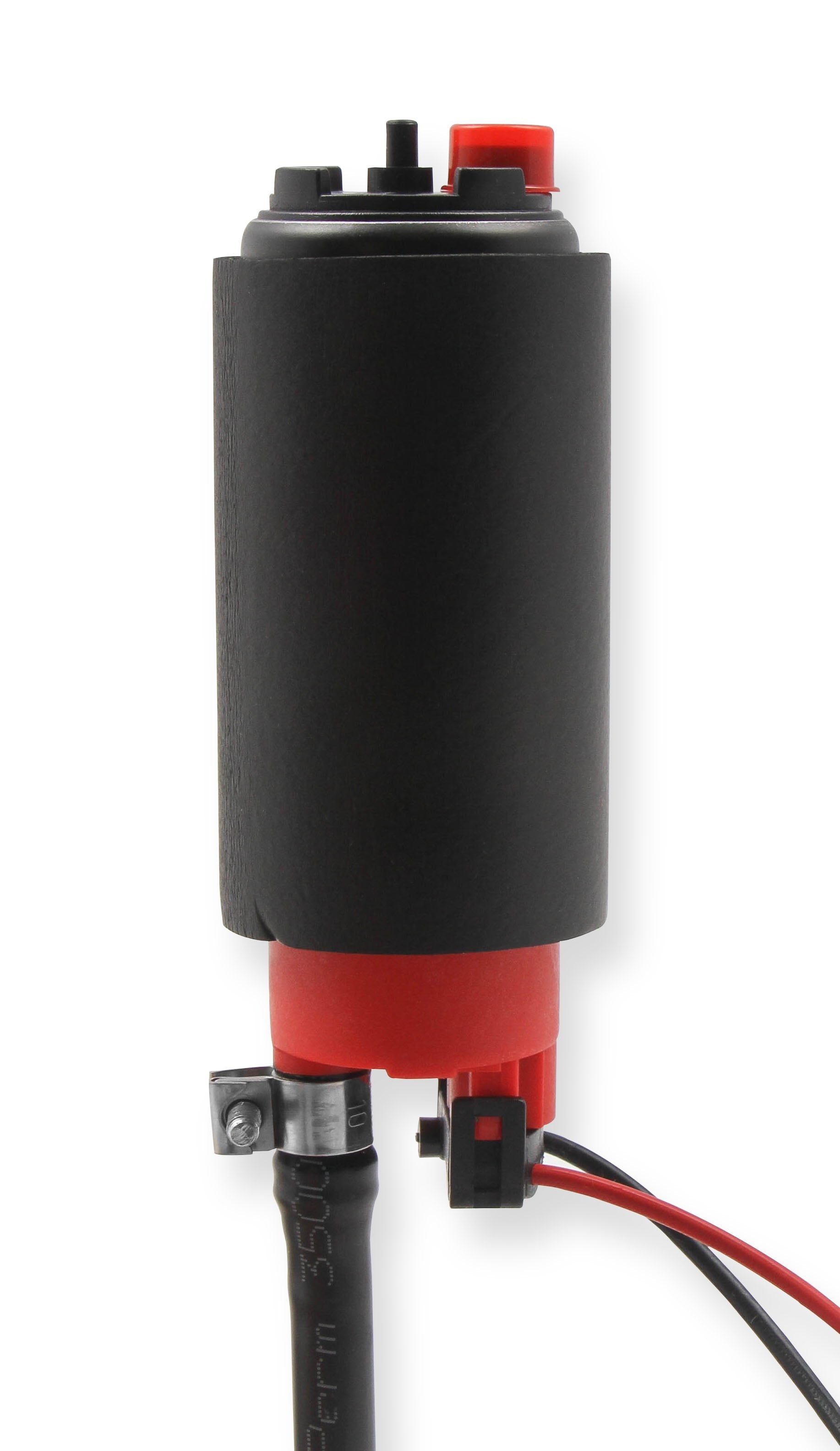

  • 340LPH pump that is E85 compatible for returnless style systems
📖

About this product

340 LPH Drop-In Retrofit Carbureted Fuel System-E85 Compatible Supports up to 900 Carb HP (HP Rating @ 6 PSI at 13.5 Volts / 10.4 AMP Draw)

🎬

Product Videos

📋

Product Specifications

Application
Universal
Brand
Holley Sniper EFI
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Air and Fuel Delivery
Diameter
4.8"
Emission Code
3
Free Flow LPH
340
Fuel Sending Unit Included
No
Fuel System Type
Gasoline/E85 Compatible
Fuel Tank Pressure Sensor Included
No
Fuel Type
E85
Gasket Or Seal Included
Yes
Material
Die Cast Aluminum
NPT Thread
1/4 NPT
Part Type
Fuel Pump Module Assembly
Product Type
Fuel Pump Module
Prop 65 Yes/No
Yes

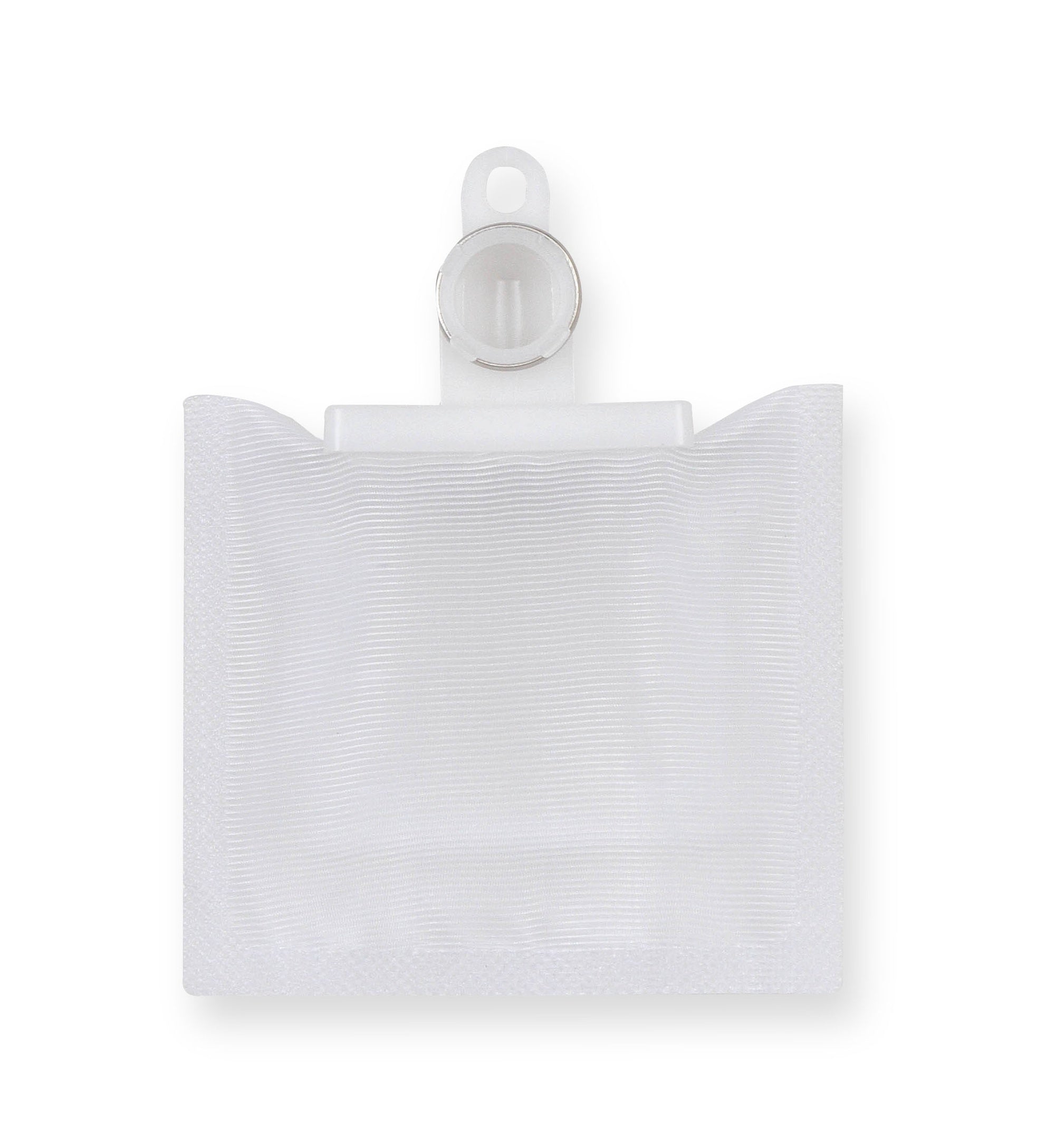

Strainer Included
Yes
Sub Category
Fuel Pumps and Related Components
Universal Or Specific Fit
Universal
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️

Warranty & Compliance

Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
3
HS Code
8409915085
📐

Dimensions & Shipping

Product Dimensions
14.4 × 6.4 × 6.4 in
Shipping Dimensions
14.4 × 6.4 × 6.4 in
Weight
1315 g (1.32 kg)
