Earl's PerformancePart 253004erlMade in US
Product Details
⭐
Key Features
GF-600S Viton® is a registered trademark of DuPont™
Earl's is pleased to release a new one-way check valve that is ideal for use on fuel and oil systems. Now offered with internal stainless steel hinge and GF-600S Viton® seal. The GF-600S Viton® is the highest quality seal material for all types of fuels including diesel & alcohol. The Internal spring releases to full flow at 1 psi (Note: blowing through it will only partially release the hinge). High PSI Rating is 1250 PSI. This product uses a proven military design & provides for a more compact unit over conventional flapper check valves.

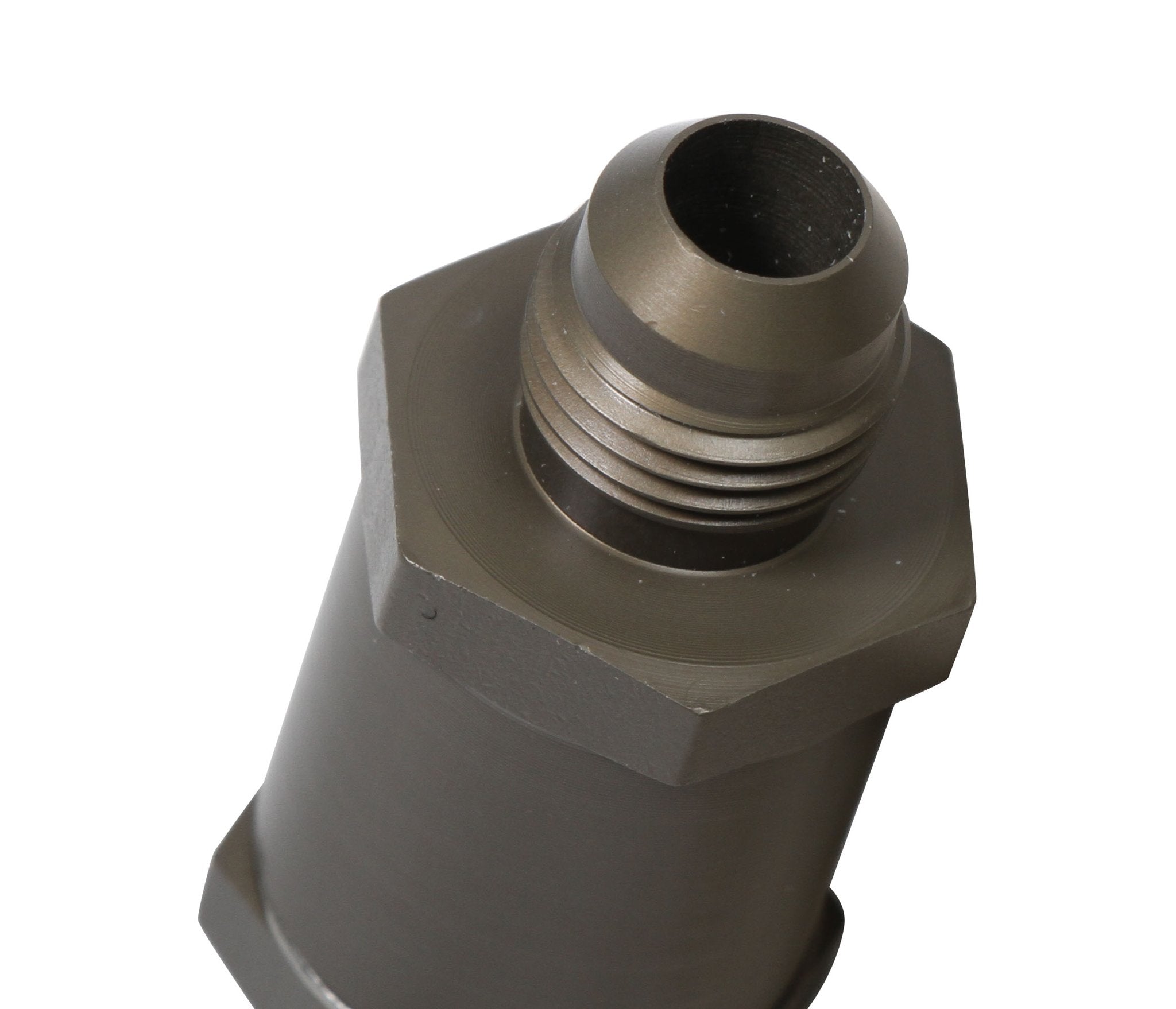

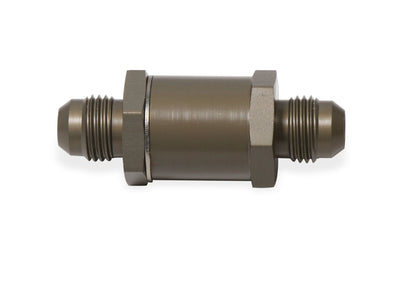

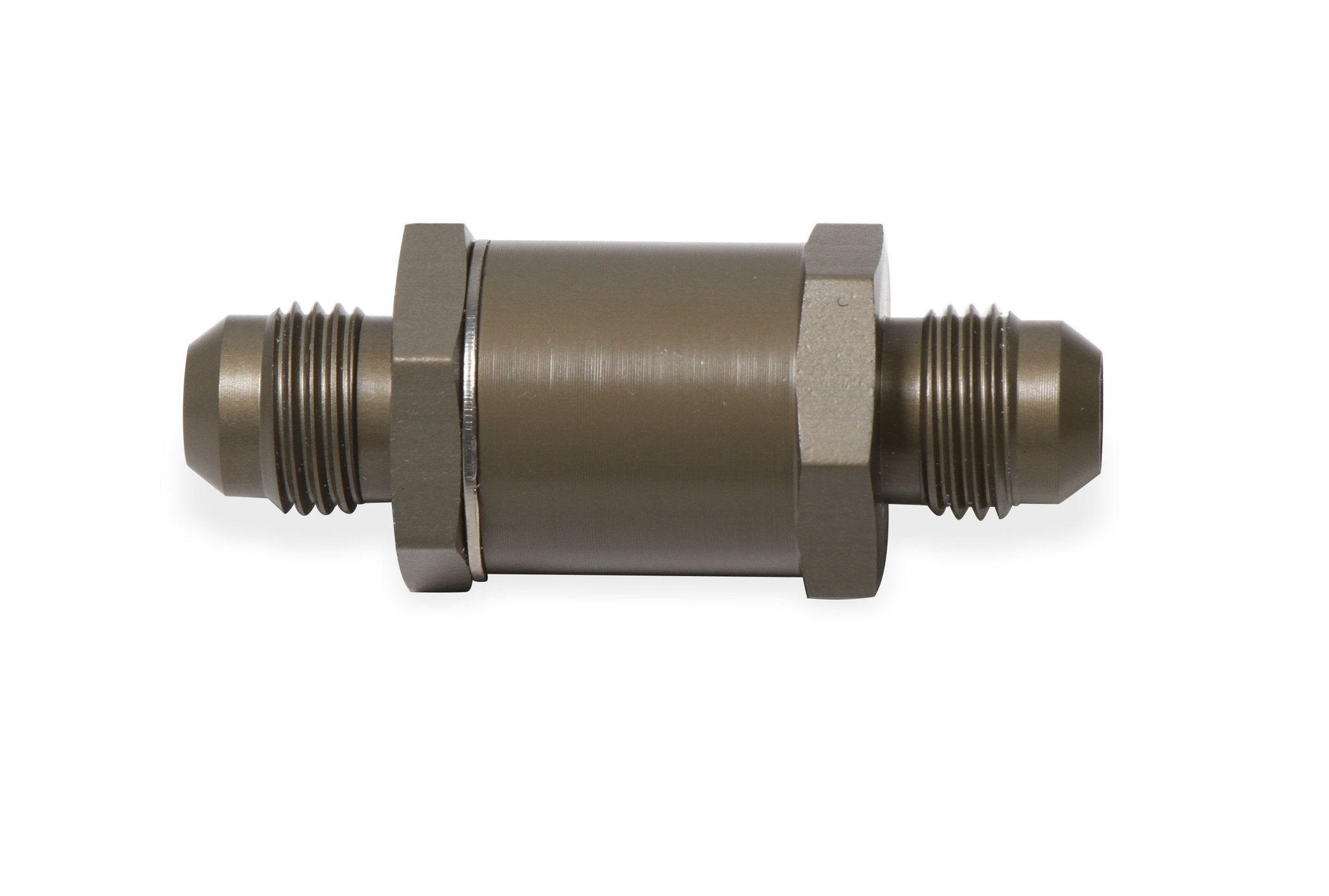

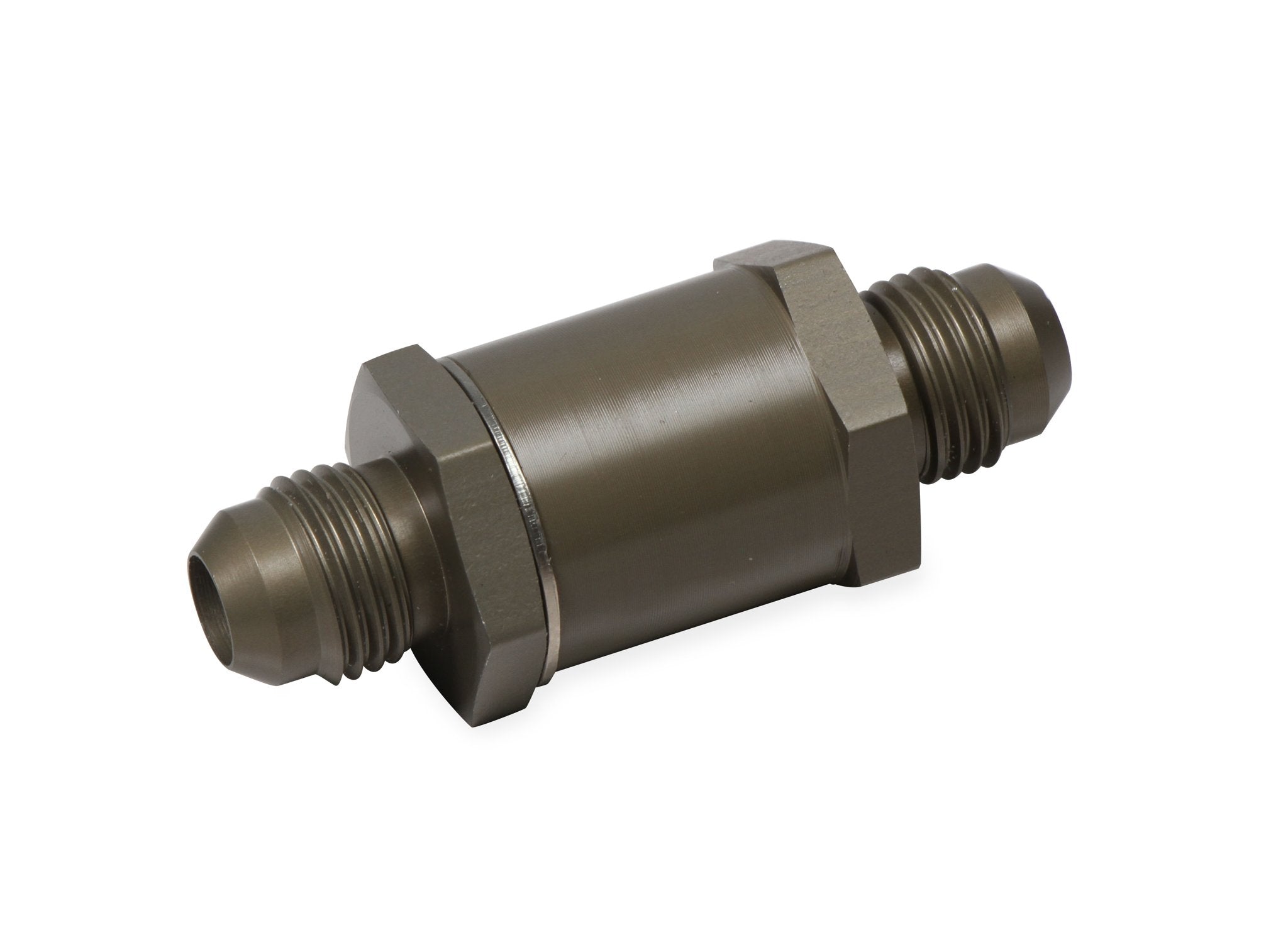

Check Valve - 4AN Male – Stainless Steel Hinge Door with GF-600S Viton® Seal
- Body is Anodized Aluminum
📖
About this product
Check Valve - 4AN Male – Stainless Steel Hinge Door with GF-600S Viton® Seal
📋
Product Specifications
Adapter Type
Check Valve
Body Length
1.25"
Brand
Earl's
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Plumbing AN Fittings and Hose
Diameter
.864 in
Emission Code
5
Finish
Anodized Pewter
Inlet / Outlet Size
16 AN MALE
Material
Aluminum
Overall Dimension
2.35"
Part Type
Multi-Purpose Check Valve
Product Type
Check Valve
Prop 65 Yes/No
Yes
PSI Rating
1250
Seal Material
GF-600S Viton®
Warning
California Proposition 65
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
3.7 × 1.3 × 1.1 in
Shipping Dimensions
3.7 × 1.3 × 1.1 in
Weight
45 g (0.05 kg)
