Holley EFIPart 300-306Made in CN
Product Details
⚙️
Vehicle Fitment & Compatibility
View all 0 vehicle applications
Years
Make / Model
Submodel
Engine
1900
No applications match your search.
⭐
Key Features
*** Please see the diagrams in the product images for other dimensions. *** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available. Warning: Many For
• EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. | • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations | Manifold is designed for a 8.2" deck height. | *** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available. | The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. This manifold comes with a 95MM 1986-95 Ford 5.0 throttle body flange side mount top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! | • Cast aluminum construction.

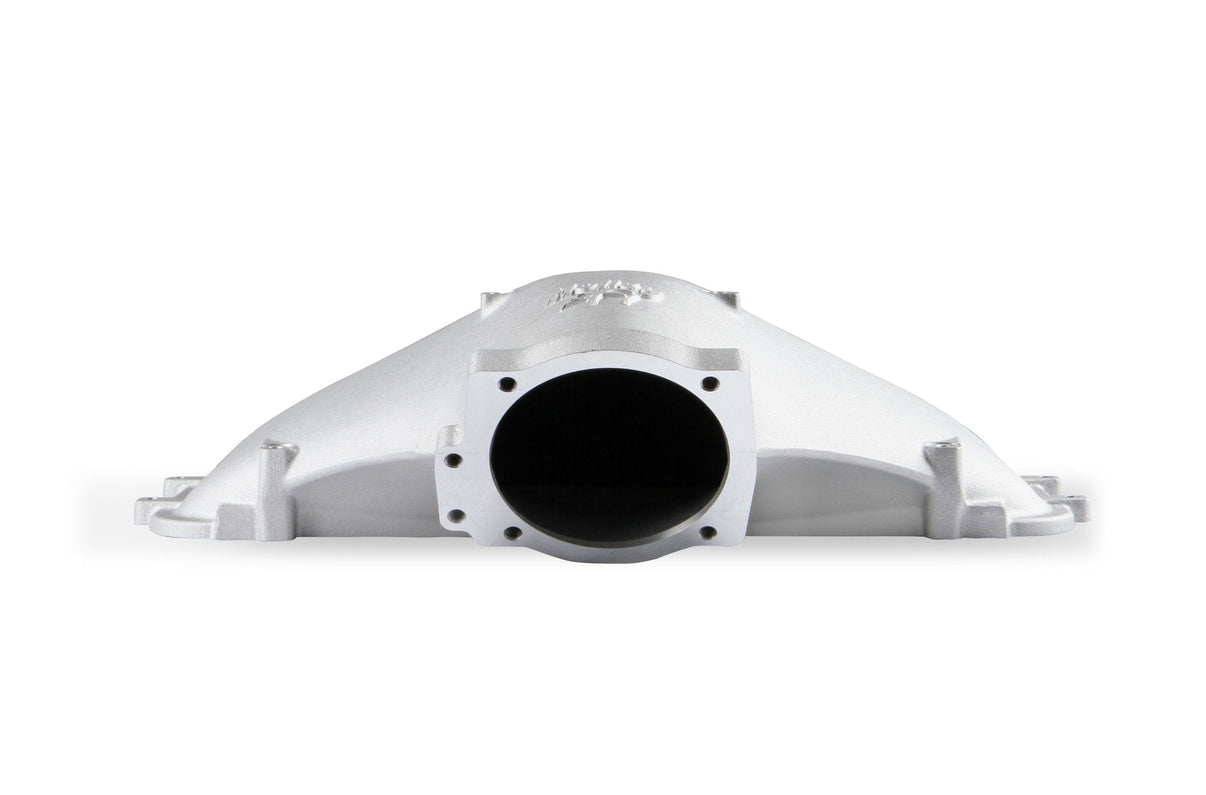

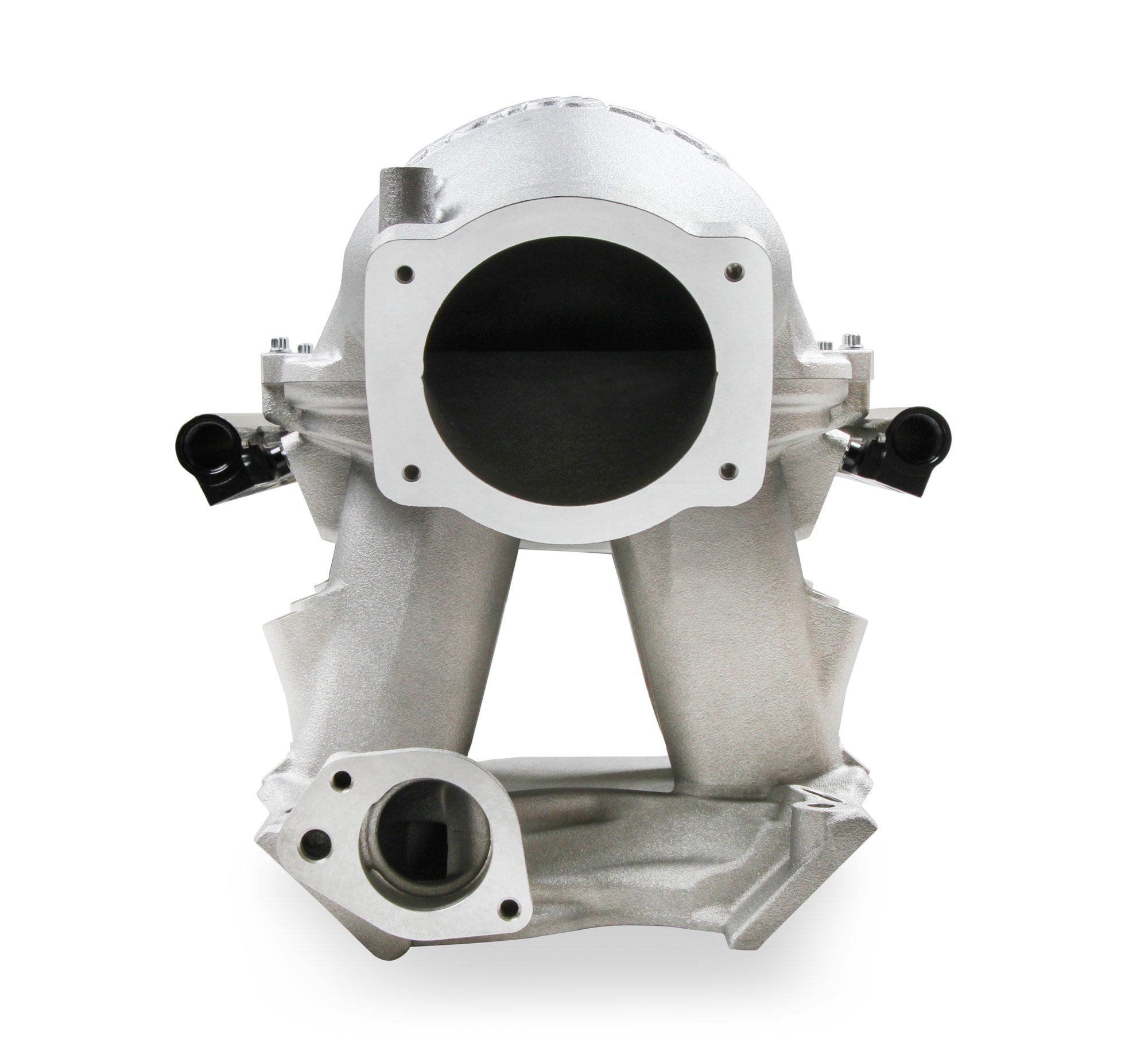

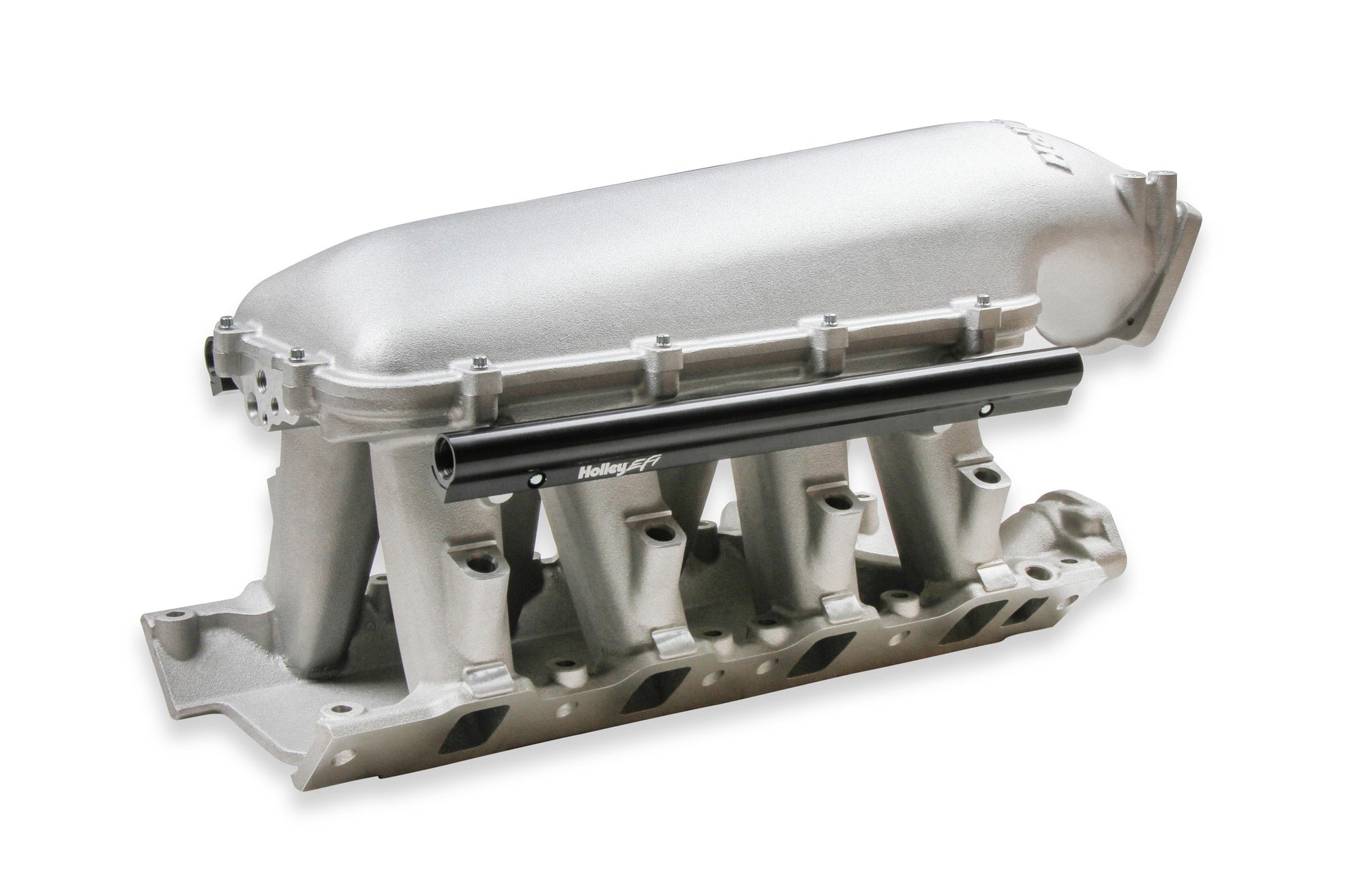

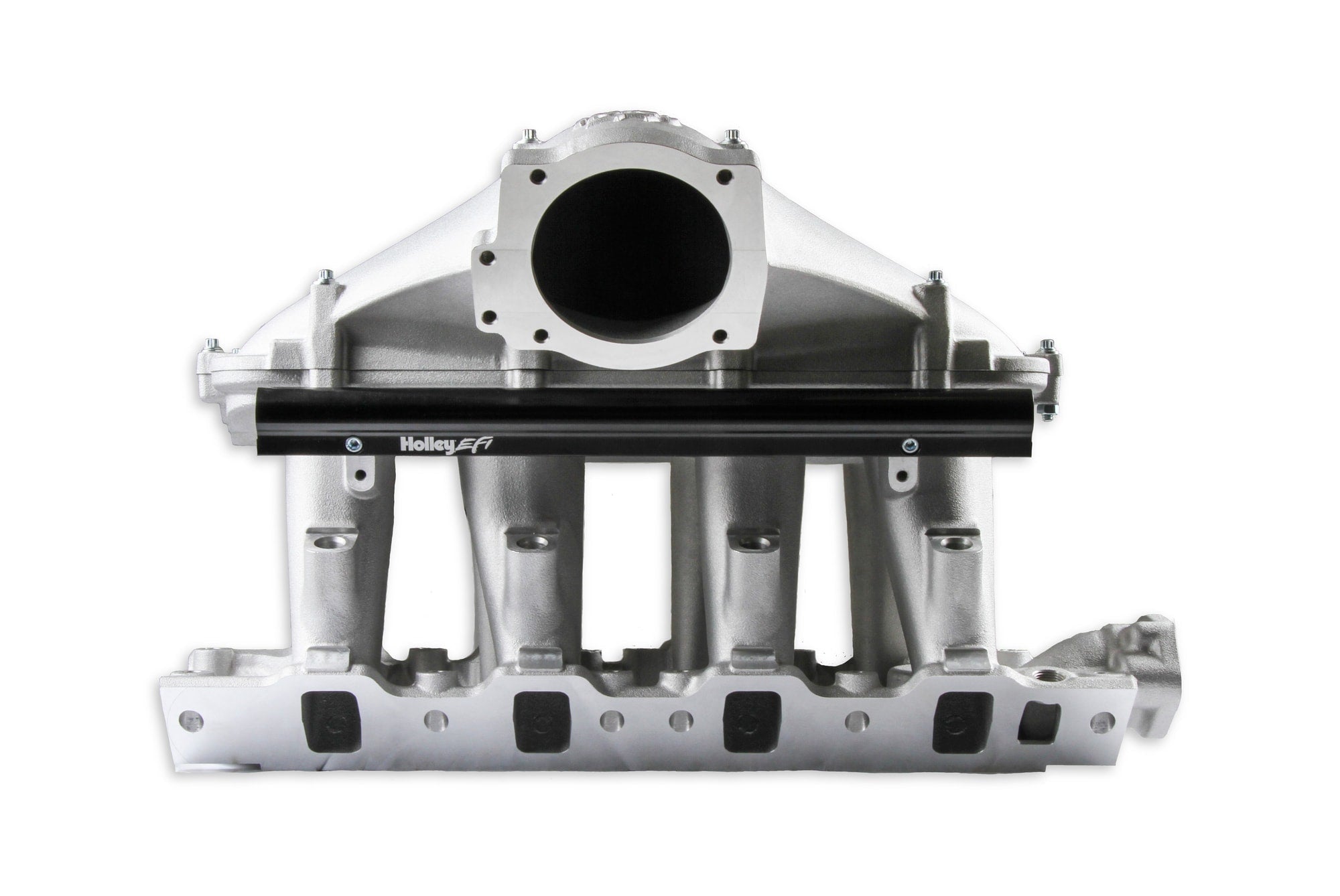

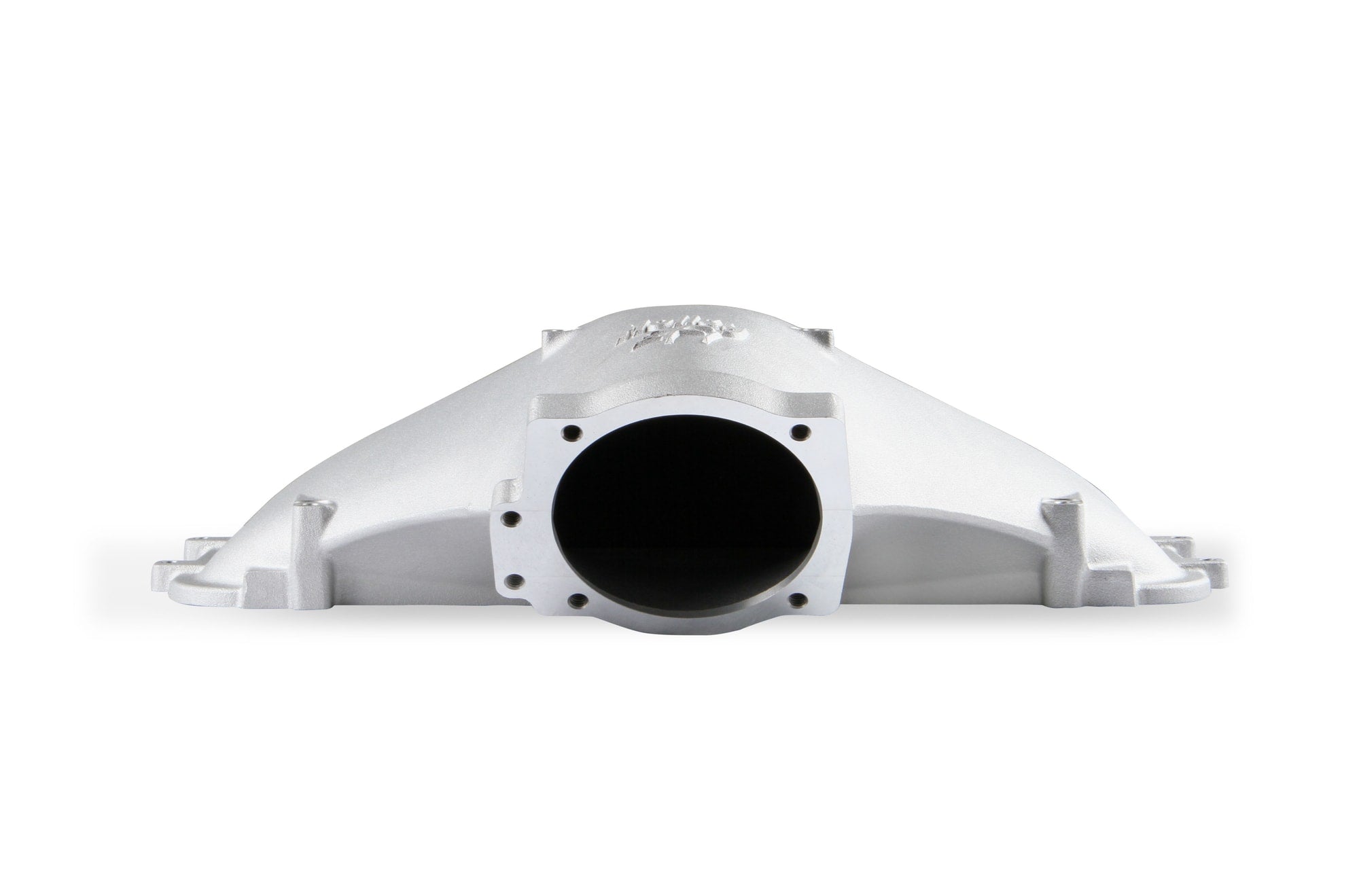

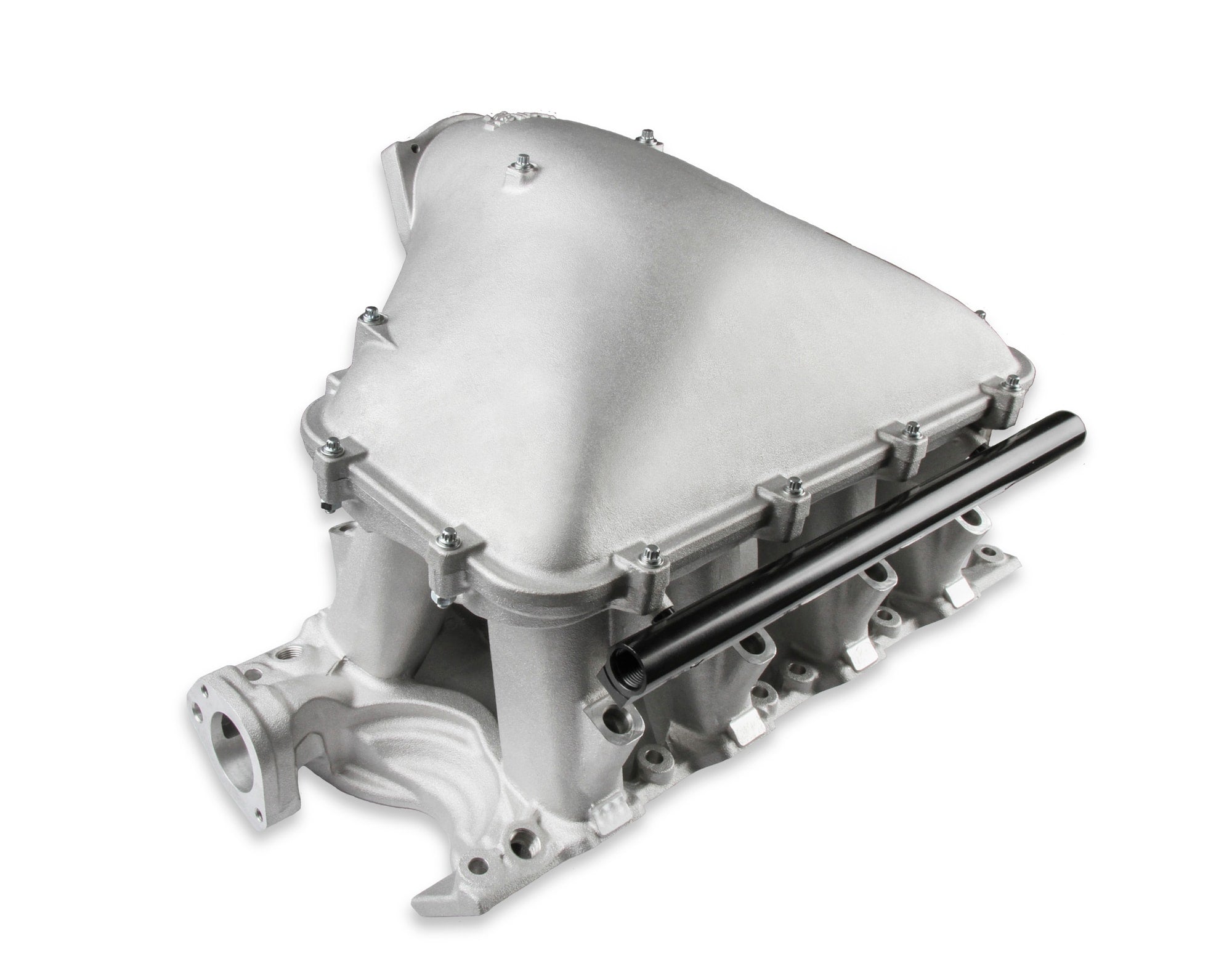

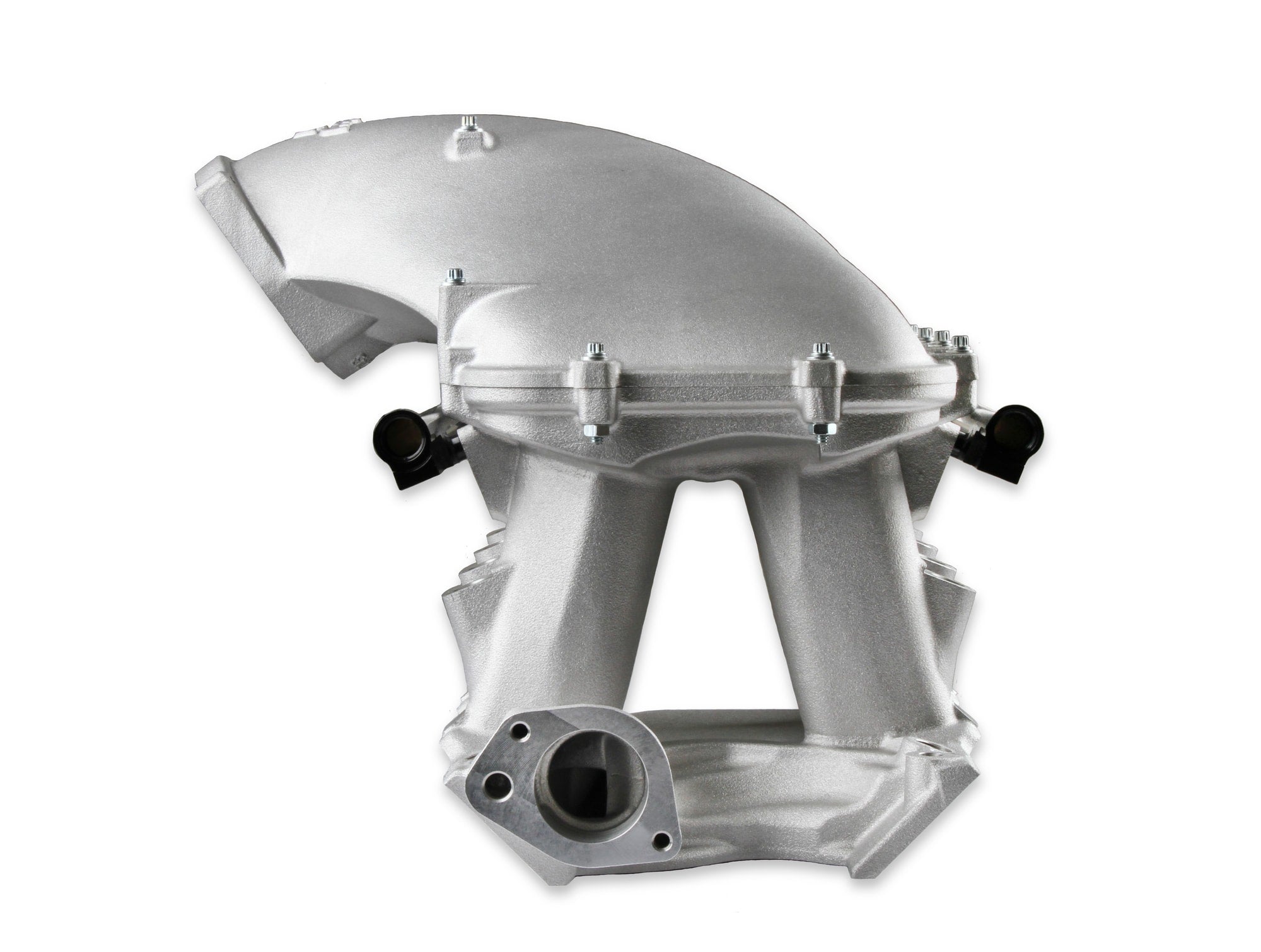

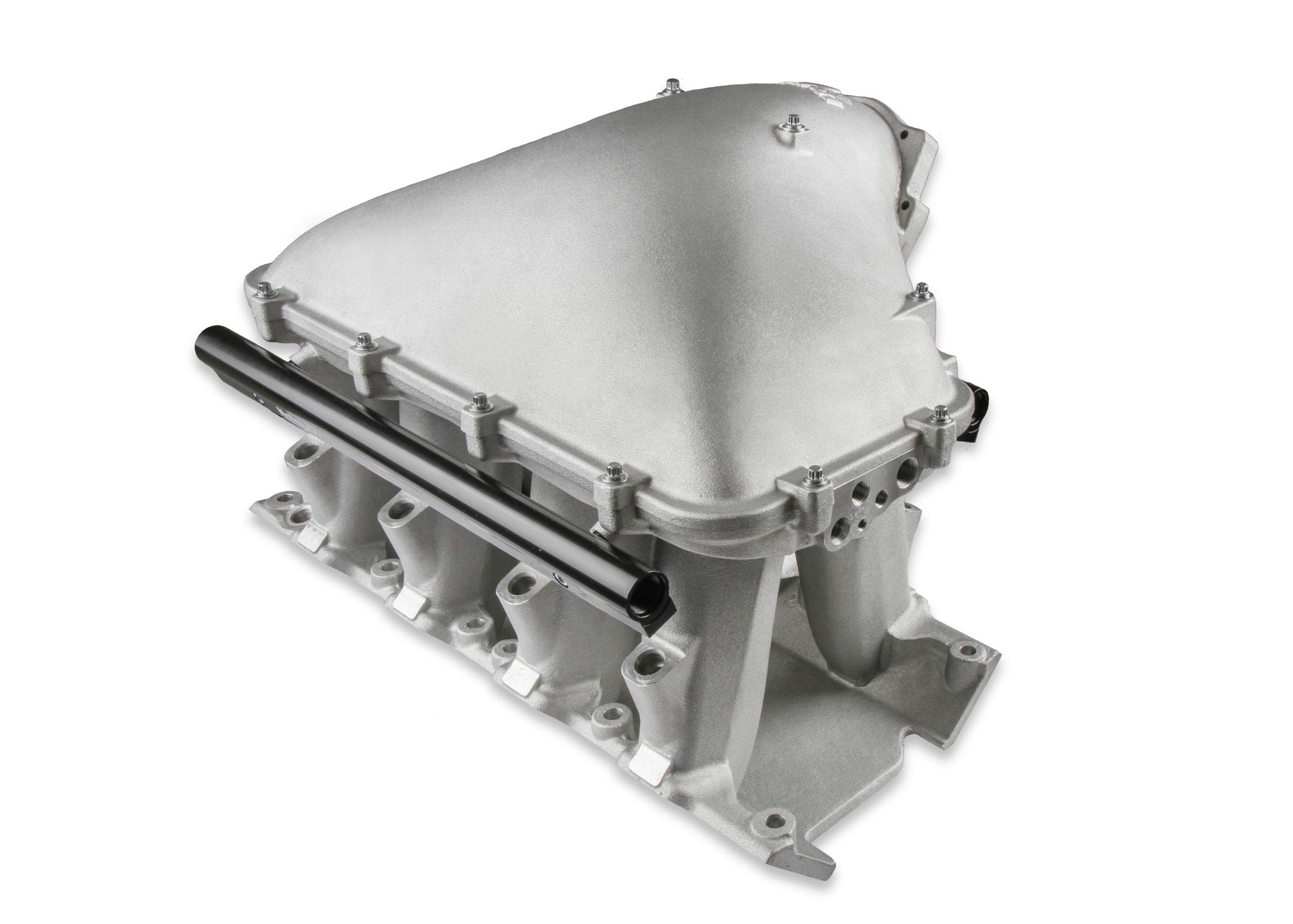

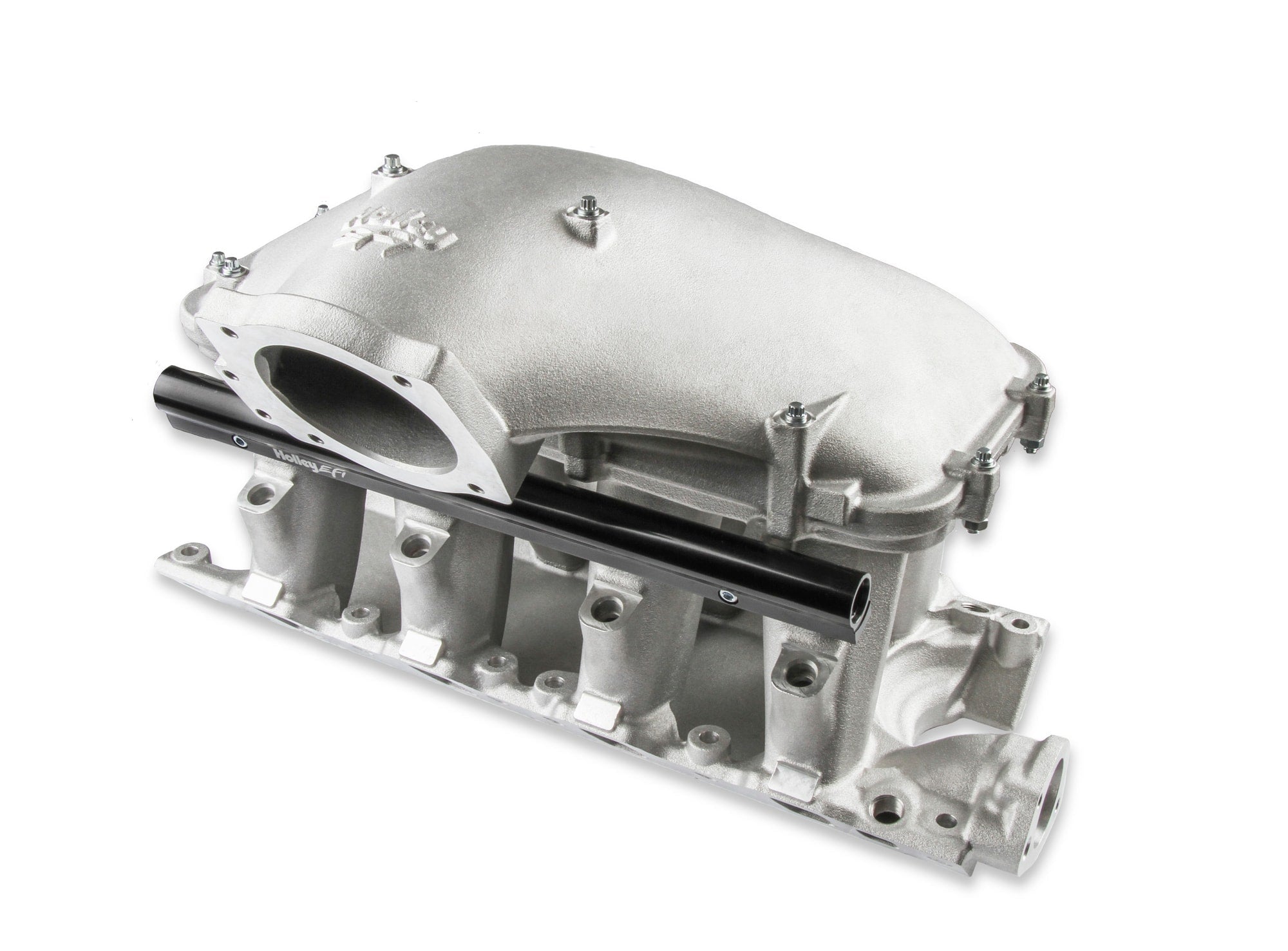

8.2" SBF Ford Hi-Ram Intake Manifold with 95mm 1986-95 Ford 5.0 Throttle Body Flange Side Mount Top.
- Plenum Top Gasket Type – 3/32” Round O-ring Cord
- Allows room for designing boosted applications
- The 8.2 SBF manifold is available to work with 95MM throttle bodies

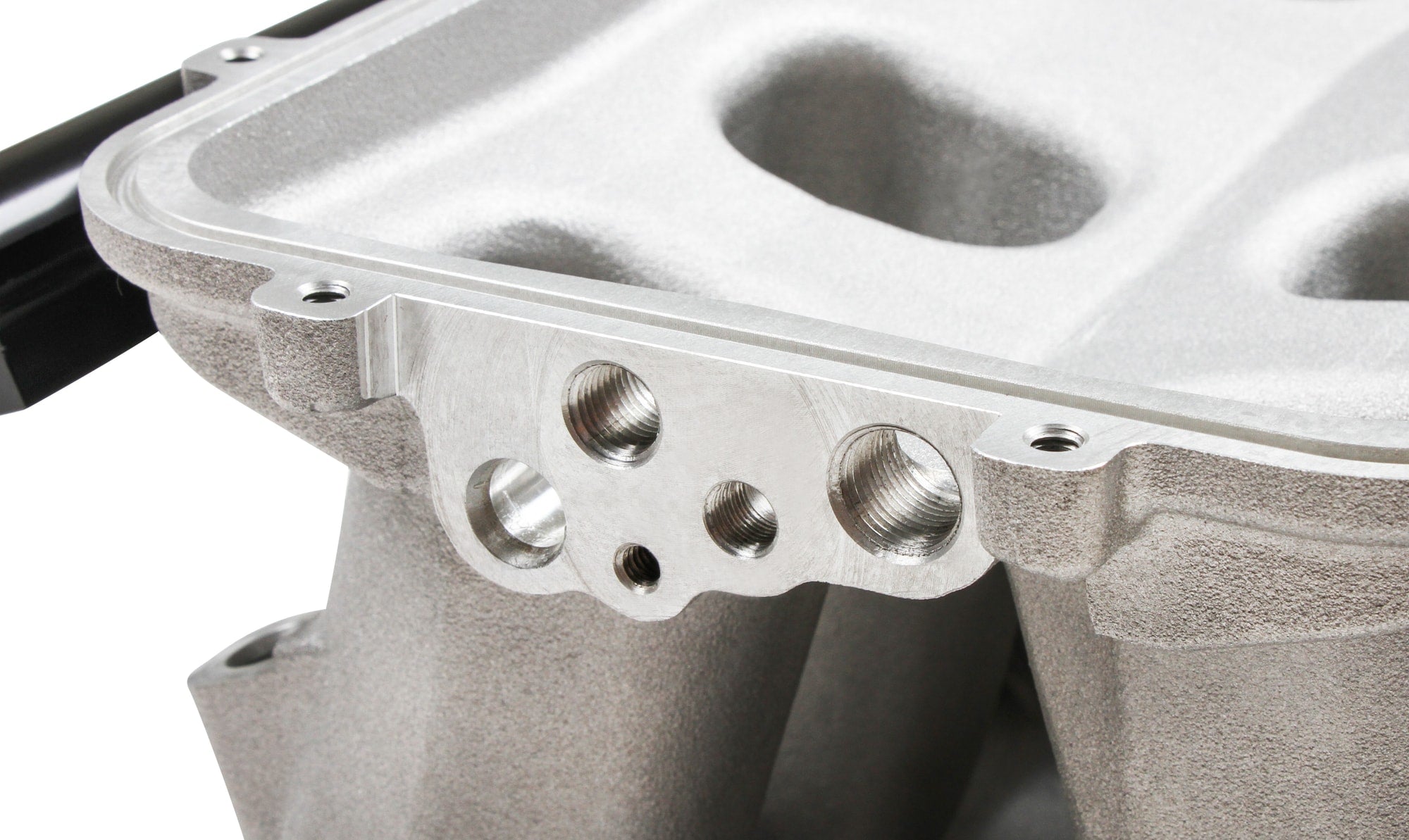

- EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
- Designed for side mounted throttle bodies
- Manifold is designed for a 8.2" SBF deck height.

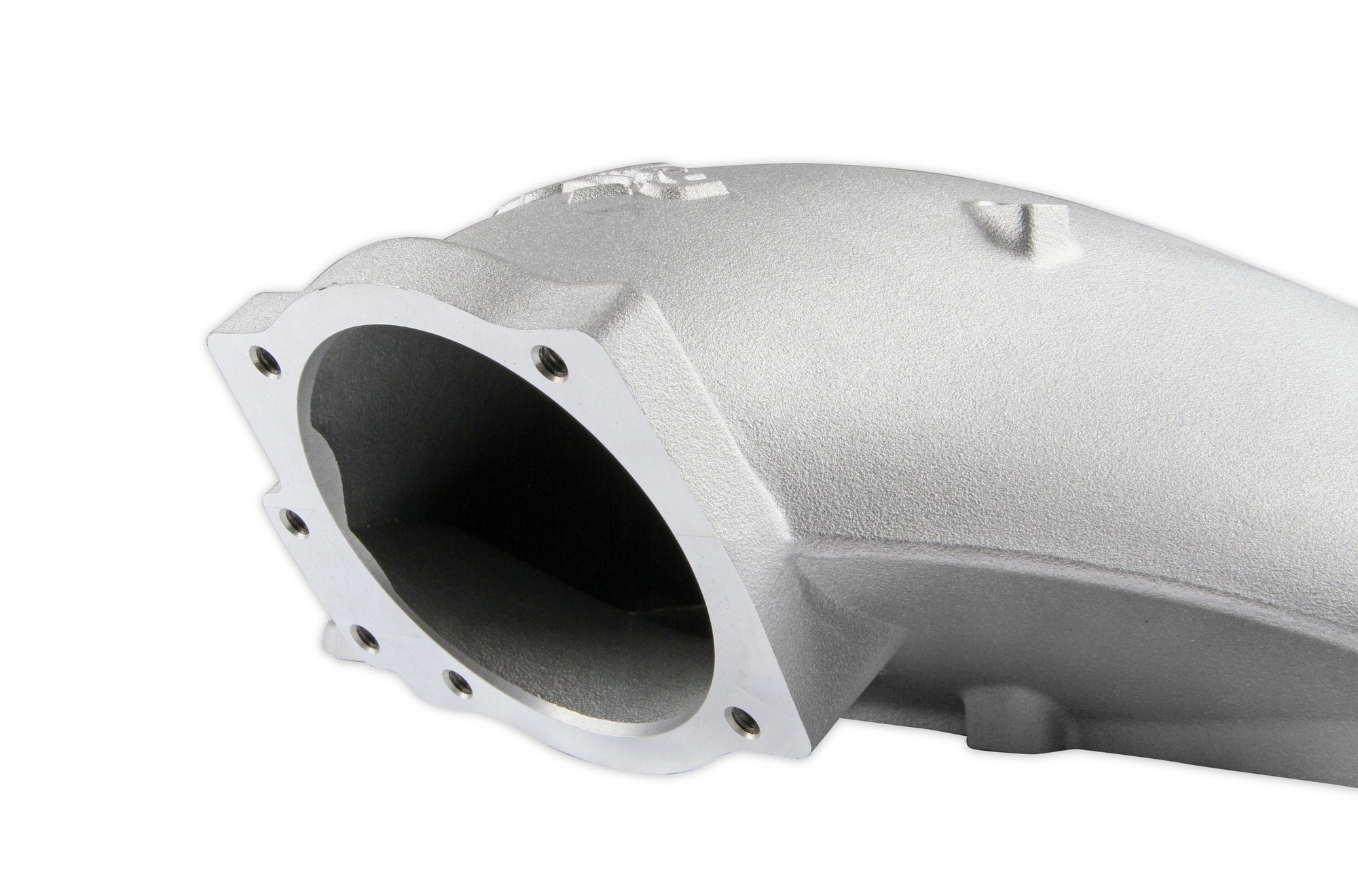

- Ford 5.0 throttle body fitment
- Lid has been verified to fit under Cervinis 2.5” cowl hood on 1979-1993 Mustangs with 351W & 302W Hi-Ram bases when using motor mounts that retain stock engine locations.
📖
About this product
8.2" SBF Ford Hi-Ram Intake Manifold with 95mm 1986-95 Ford 5.0 Throttle Body Flange Side Mount Top.
📋
Product Specifications
Automotive Item Grade
Performance
Basic Operating RPM Range
1500-7000
Basic Operating RPM Range
1500-7000 RPM
Brand
Holley EFI
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Carburetor Flange
N/A
Carburetor Quantity
N/A
Carburetor Studs Included
N/A
Category
Intake Manifolds
CNC Ported
No
Color
Natural
Construction
Cast
Country
CN
Cylinder Head Port Shape
Rectangle
Deck Height
8.2
EGR Port
No
Emission Code
3
Flange Style
EFI
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Fuel System Type
EFI
Gasket Or Seal Included
No
Grade Type
Performance
HTS Code
8409915085
Intake Port Gasket(s) Included
No
Manifold Type
Hi-Ram
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Natural
Port Size
2.00" x 1.190"
Product Type
Intake Manifold
Prop 65 Yes/No
Yes
Removable Runners
No
Removable Top/Lid
Yes
RPM Power Band
1500-7000
Single Or Dual Plane Type
Single Plane
Throttle Body Bore Diameter
95 MM
Throttle Body Gasket Included
Yes
Throttle Body Included
No
Throttle Bore
95mm
Vacuum Ports
Yes
Vehicle
Ford MUSTANG 1919
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
3
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
23.3 × 16.2 × 15.9 in
Shipping Dimensions
23.3 × 16.2 × 15.9 in
Weight
16760 g (16.76 kg)
