Earl's PerformancePart 390608erlMade in US
Product Details
⭐
Overview

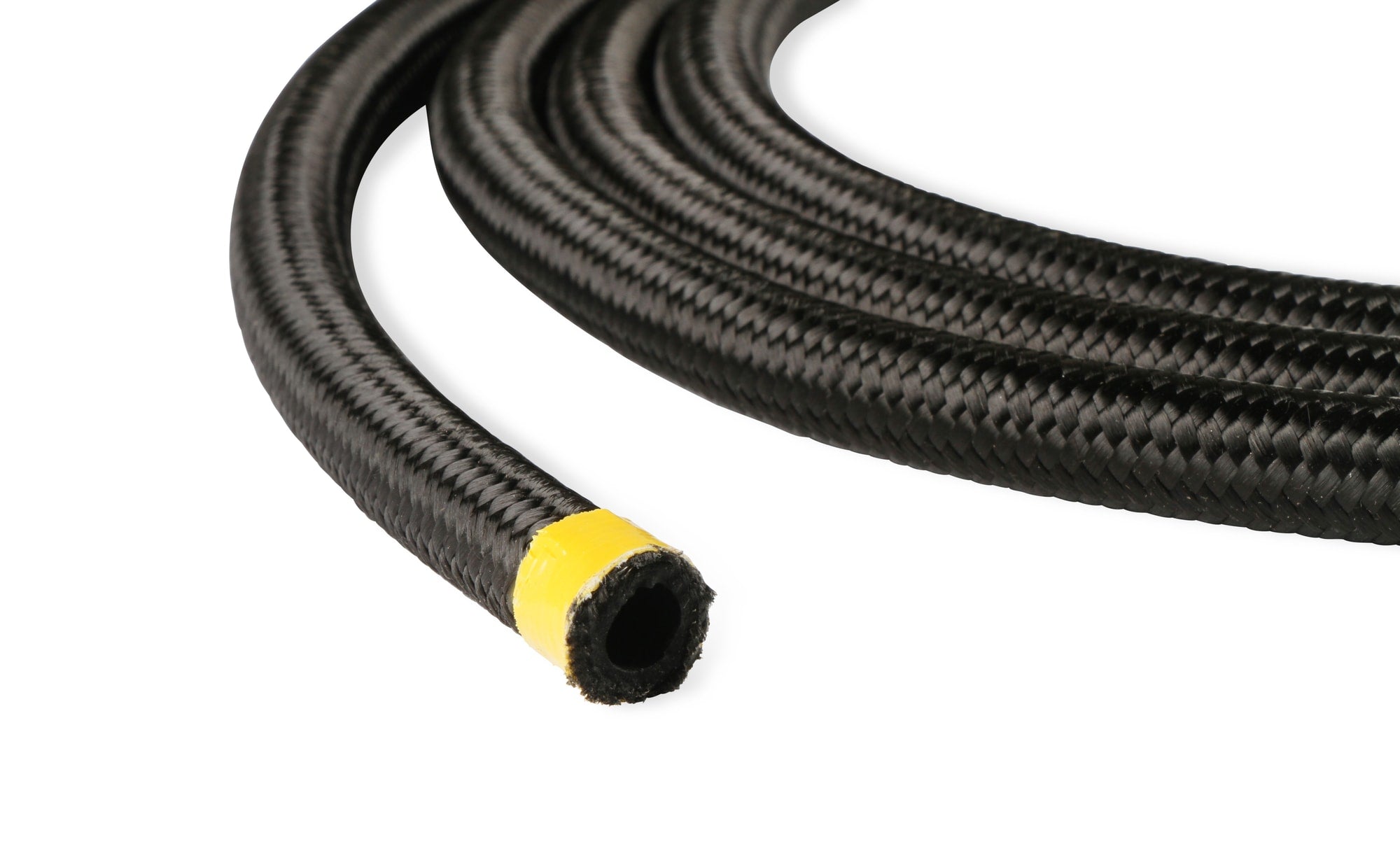

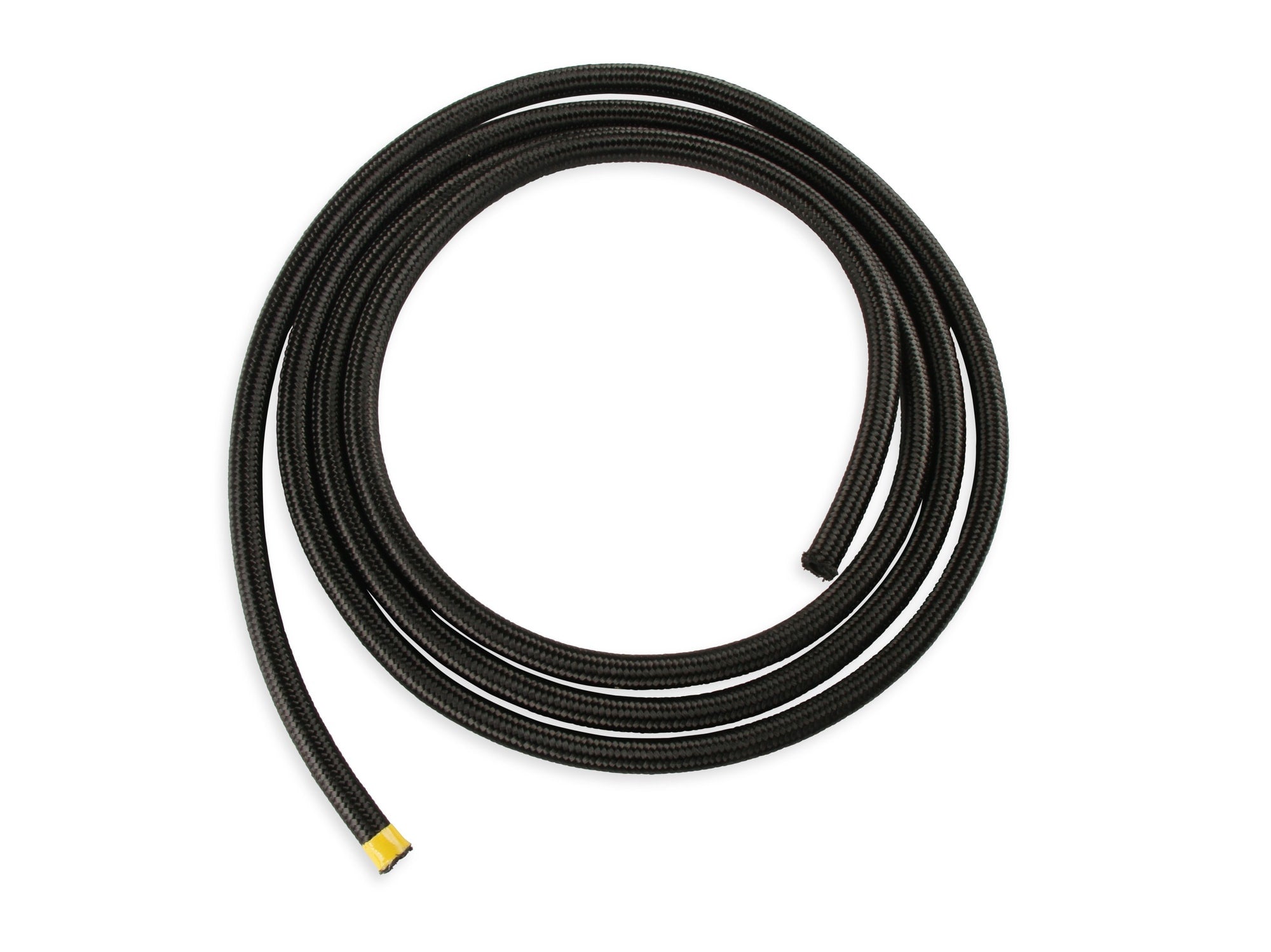

Lightweight Tough Nylon Covered High Pressure Hose. Easy to Cut and Assemble. Accepts Swivel-Seal, Auto-Crimp & Auto-Fit Hose Ends.
Introducing Pro-Lite 390™ from Earl's! A perfect mix of Stainless under braid and fabric outer braid and 100% constructed in the USA. Pro-Lite 390 consists of an inner tube of oil resistant "PKR" synthetic rubber. A partial coverage stainless wire inner braid and an oil, weather, and abrasion resistant, black, entangled filament nylon fiber cover. This added stainless braid under the cover and over the liner, adds additional hoop strength for higher pressure ratings and added strength for tight radius applications. It also adds needed strength for high suction and vacuum conditions. Much more durable for extreme uses over Pro Lite 350 which does not have the inner stainless braid. For use with Swivel Seal, Auto Crimp, and Auto Fit hose ends.
Lightweight Tough Nylon Covered High Pressure Hose. Easy to Cut and Assemble. Accepts Swivel-Seal, Auto-Crimp & Auto-Fit Hose Ends.
📋
Product Specifications
Brand
Earl's
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Air and Fuel Delivery
Compatible Hose Ends
Auto-Crimp
Compatible Hose Ends
Auto-Fit
Compatible Hose Ends
Econ-O-Fit
Compatible Hose Ends
Swivel-Seal
Emission Code
5
Fluid Type Rating - Automatic Transmission Fluid
5 out of 5 Rating
Fluid Type Rating - Coolant
5 out of 5 Rating
Fluid Type Rating - Diesel
2 out of 5 Rating
Fluid Type Rating - E85
2 out of 5 Rating
Fluid Type Rating - Methanol/Alcohol
1 out of 5 Rating
Fluid Type Rating - Oil
5 out of 5 Rating
Fluid Type Rating - Pump Gas
2 out of 5 Rating
Fluid Type Rating - Race Gas
3 out of 5 Rating
Fluid Type Rating - Vacuum
1 out of 5 Rating
Fluid Type
Automatic Transmission Fluid
Fluid Type
Coolant
Fluid Type
Oil
Fluid Type
Race Gas
Hose Family
Pro-Lite 390
Hose Length
6 Feet
Hose Outer Material
BLACK NYLON
Hose Size
8 AN
Inside Diameter
.44"
Max Vacuum
27 in Hg
Max Working PSI
500 PSI
Min. Bend Radius
3.5"
Outside Diameter
.65"
Part Type
Fuel Hose
Product Type
Hose
Prop 65 Yes/No
Yes
Sub Category
Fuel Storage
Submersible In Fuel
No
Temperature Range
-40° to 350° F
Warning
California Proposition 65
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
14.2 × 14.0 × 1.5 in
Shipping Dimensions
14.2 × 14.0 × 1.5 in
Weight
640 g (0.64 kg)
