Baer Brake SystemsPart 4261579R★ Universal fitMade in CN
Product Details
⭐
Key Features
** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are

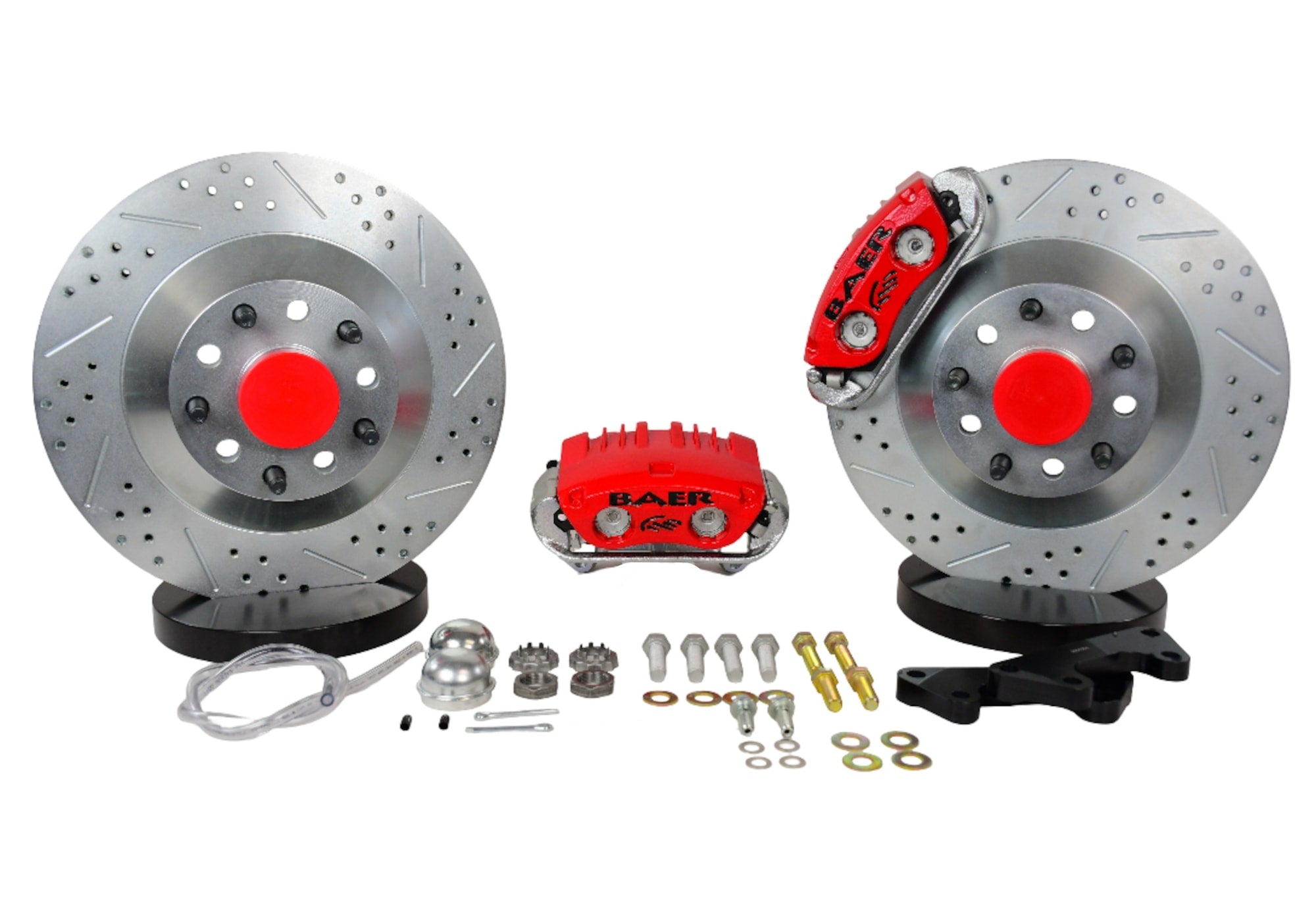

This system features the "Original" Baer 2-piston, pad guided caliper (PGC) mounted to a 13", 1-piece slot, drill, zinc plated integral hub rotor. The PGC caliper comes in a red powder coated finish with a black logo, includes dust/weather seal's and uses the popular D412 pad type. The system includes premium bearings with races pre-installed, dust caps, mounting brackets and all necessary hardware. The 13" "Classic" system fits select 17" or larger wheels. | **IMPORTANT: This system is designed for vehicles with a 15/16” master cylinder and proper pedal ratio. For manual brake setups, a 7/8” master cylinder can be used so less effort is required to apply the brakes. Any master larger than 15/16” will require too much pedal input to generate proper line pressure for your brake system.**
Fits Applications Using Wilwood Pro MII Spindes, 5x4.75" BC
- Aluminum, 2-Piston, Pad Guided Caliper
- Red Powder Coated Caliper w/Black Baer Logo
- Slot, Drill, Zinc Plated Rotor Finish
- Uses Common FMSI D0412 Brake Pad
- Modern Brakes for Small Wheels at an Economical Price
📖
About this product
Fits Applications Using Wilwood Pro MII Spindes, 5x4.75" BC
📋
Product Specifications
Automotive Item Grade
Performance
Axle
Front
Box Count
2
Brake Hose DOT Approved
Yes
Brand
Baer Brakes
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Caliper Color
Red
Caliper
2 PGC
Category
Brakes
Country
CN
Disc Brake Caliper (Front) Piston Quantity
2
Disc Brake Caliper (Front) Type
Floating
Disc Brake Pad FMSI Number
D0412
Disc Brake Rotor (Front) Construction
Vented
Disc Brake Rotor (Front) Outside Diameter
13.000
Emission Code
4
Emission Code
6
Export Description
Brake Components
Fitment Notes
w/Wilwood Pro MII Spindes (5x4.75BC)
Friction Material Composition
Ceramic
Grade Type
Performance
Hose Material
Stainless Steel
Hose Material
Steel Braided
HTS Code
8708305090
Min Wheel Dia (verify Using Template)
17
Part Type
Disc Brake Upgrade Kit
Product Line
Classic
Product Type
13 Inch Classic Front Brake Kit
Prop 65 - Long Label
WARNING
Prop 65 - Short Label
WARNING
Prop 65 Yes/No
Yes
R Or Cr)
C
Rotor Diameter
13.000
Rotor Thickness
1.100
Rotor Type
1-Piece Integral Hub
Solid Or Vented Type Rotor
Vented
Spindle Type
Wilwood Mustang II Pro
Sub Category
Service Kits
Surface Type
Slotted
Template
D082H
Title
Classic Series Front Brake Kit
Warning
California Proposition 65
Warranty
Manufacture Limited 1 Year Warranty Warranty
Wheel Lug/Bolt Pattern
5x4.75
Wheel Stud Size
1/2-20
🛡️
Warranty & Compliance
Warranty
1 months · Manufacture Limited 1 Year Warranty Warranty
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
6
HS Code
8708305090
📐
Dimensions & Shipping
Product Dimensions
15.5 × 15.5 × 12.25 in
Shipping Dimensions
15.5 × 15.5 × 12.25 in
Weight
39916 g (39.92 kg)
