Baer Brake SystemsPart 4261582FR★ Universal fitMade in US
Product Details
⭐
Key Features
** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are

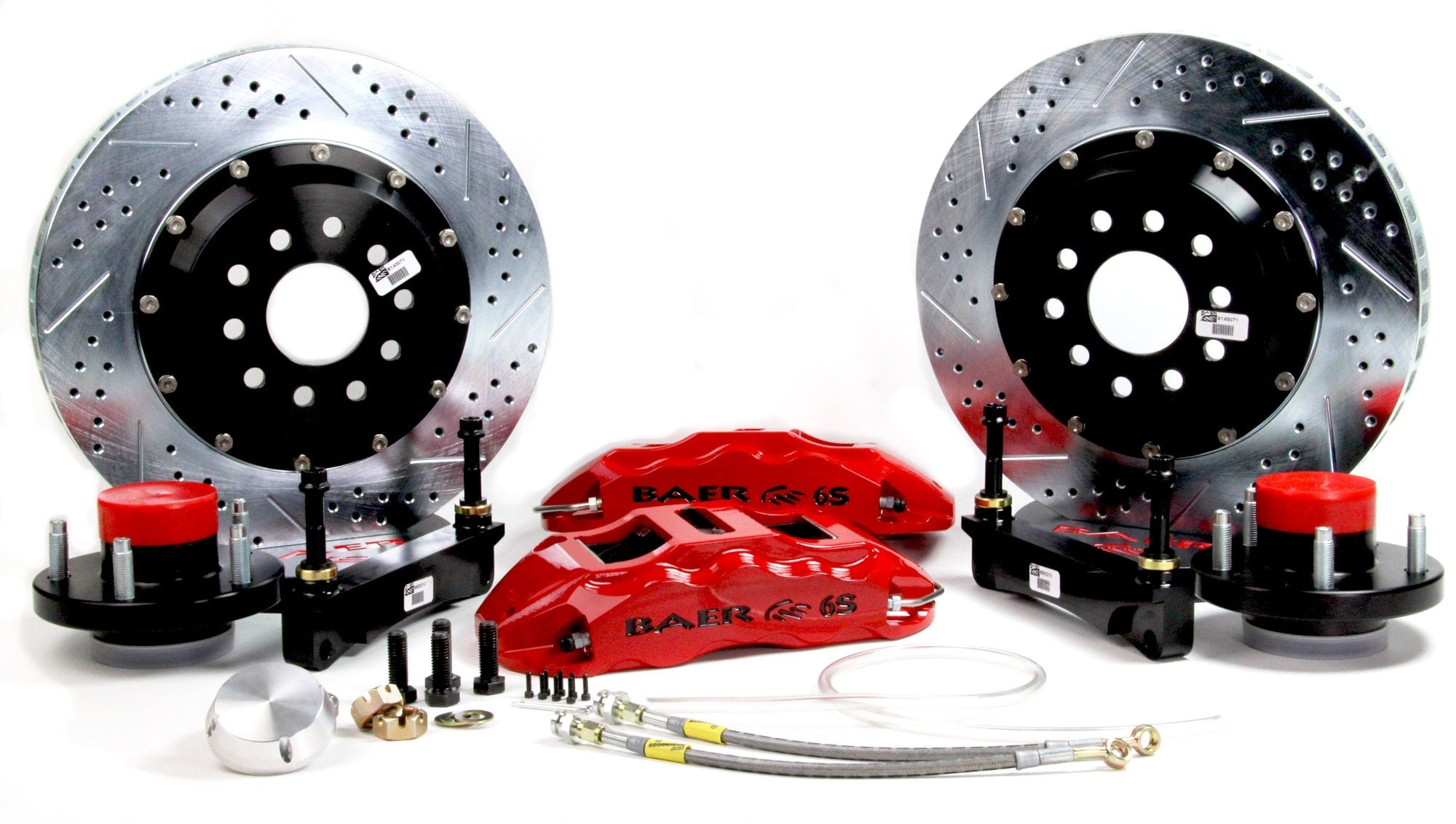

The Extreme+ system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 15", 2 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, AZ from a US sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, D.O.T. compliant dust and weather seals and uses the popular D1247 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. All mounting brackets and hardware are also included. The 15” Extreme+ fits most 19” or larger wheels.
Fits Wilwood Mustang II Pro Spindles
- 1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced 2618 Aluminum Forging
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
📖
About this product
Fits Wilwood Mustang II Pro Spindles
📋
Product Specifications
Automotive Item Grade
Performance
Axle
Front
Brand
Baer Brakes
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes

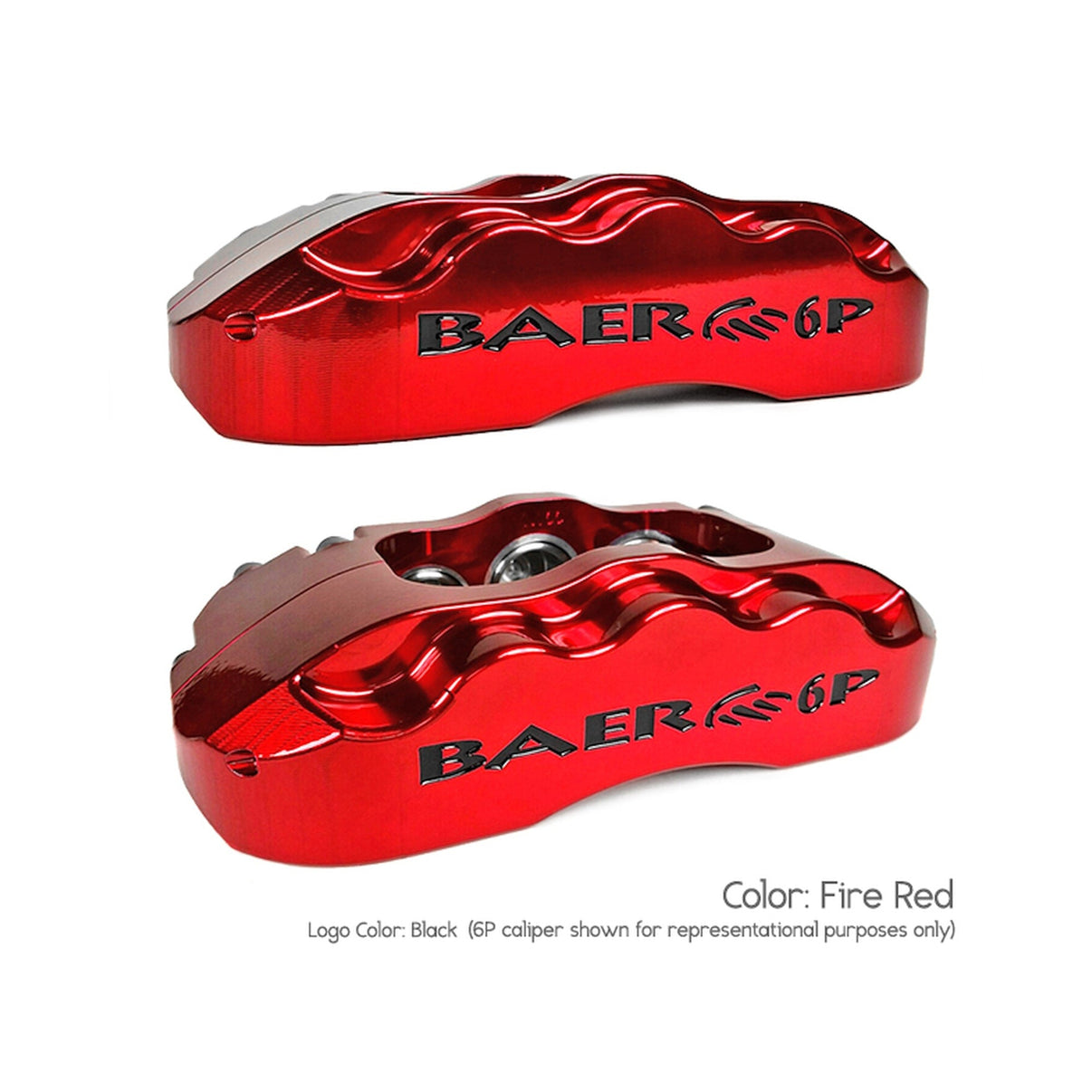

Caliper Color
Fire Red
Caliper
6S
Category
Brake
Country
US
Disc Brake Caliper (Front) Piston Quantity
6
Disc Brake Caliper (Front) Type
Fixed
Disc Brake Pad FMSI Number
D1247
Disc Brake Rotor (Front) Construction
Vented
Disc Brake Rotor (Front) Outside Diameter
15.000
Emission Code
4
Emission Code
6
Export Description
Brake Components
Grade Type
Performance
Hose Material
Hoses Not Included
HTS Code
8708305090
Lug Count
5 Lug
Min Wheel Dia (verify Using Template)
19
Part Type
Disc Brake Upgrade Kit
Product Line
15 Inch Extreme+
Product Type
15 Inch Extreme+ Front Brake Kit
Prop 65 - Long Label
WARNING
Prop 65 Yes/No
Yes
R Or Cr)
CR
Rotor Thickness
1.250
Rotor Type
2-Piece
Spindle Type
Wilwood Mustang II Pro
Spindles Included
No
Sub Category
Service Kits
Surface Type
Slotted
System Notes
Designed to be used with Wilwood Mustang II Pro Spindles (Stock & Drop Height)
Template
N147U
Title
Extreme+ Brake System Front
Warning
California Proposition 65
Warranty
Manufacture Limited 1 Year Warranty Warranty
Wheel Lug/Bolt Pattern
5x4.50/5x4.75
Wheel Stud Size
1/2-20 x 2.25 inch
🛡️
Warranty & Compliance
Warranty
1 months · Manufacture Limited 1 Year Warranty Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
6
HS Code
8708305090
📐
Dimensions & Shipping
Product Dimensions
16.25 × 15.5 × 15.5 in
Shipping Dimensions
16.25 × 15.5 × 15.5 in
Weight
38102 g (38.1 kg)
