Baer Brake SystemsPart 4301339HO✓ Fits 10 vehiclesMade in US
Product Details
⚙️
Vehicle Fitment & Compatibility
10 applicationsView all 10 vehicle applications
Years
Make / Model
Submodel
Engine
1955–1968
Chevrolet Bel Air
1958–1968
Chevrolet Biscayne
1958–1961
Chevrolet Brookwood
1966–1968
Chevrolet Caprice
1963–1968
Chevrolet Corvette
1957–1958
Chevrolet Del Ray
1958–1968
Chevrolet Impala
1955–1957
Chevrolet One-Fifty Series
1955–1957
Chevrolet Two-Ten Series
1958
Chevrolet Yeoman
No applications match your search.
⭐
Key Features
Increases track width .900" Per Side on OE drum spindles ** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we re

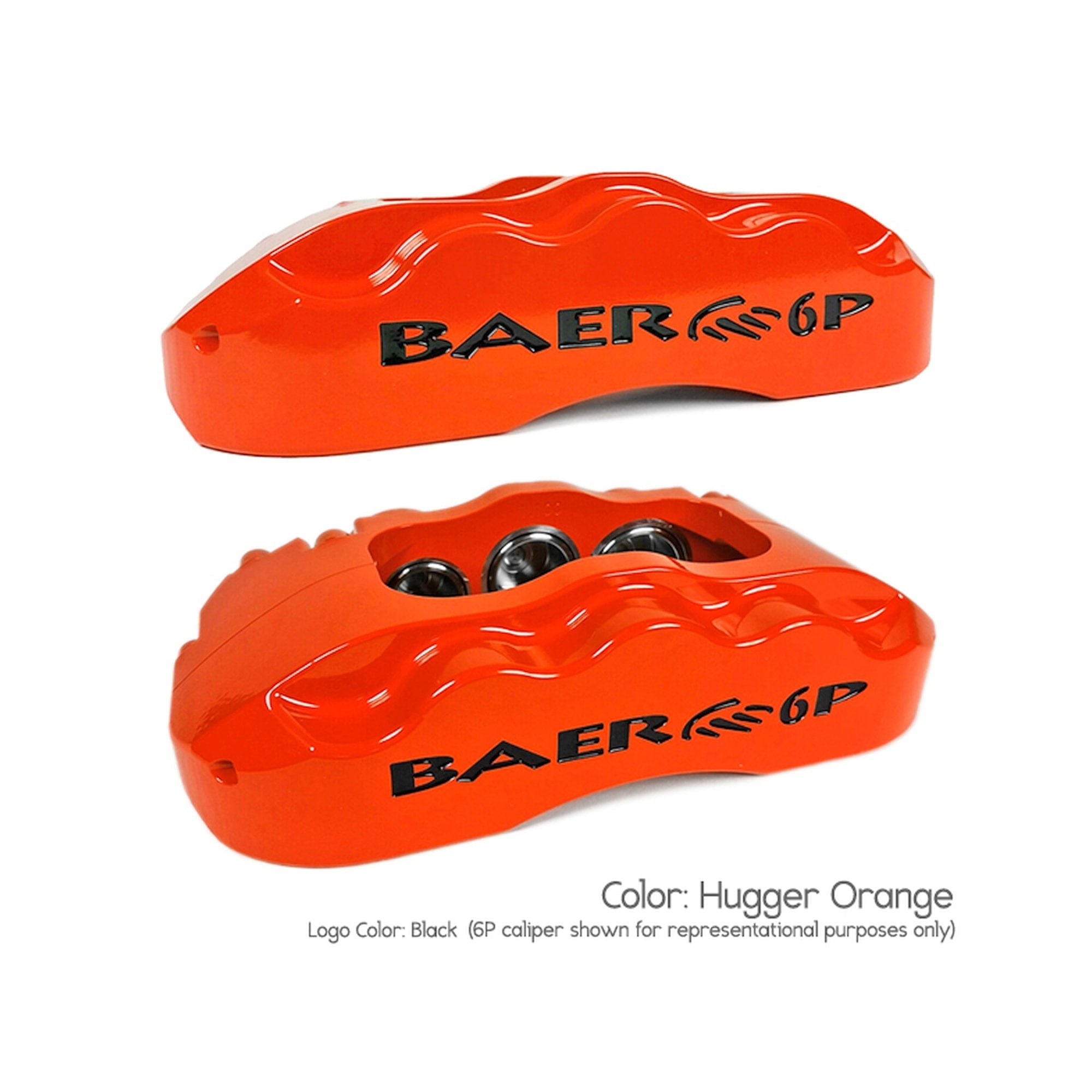

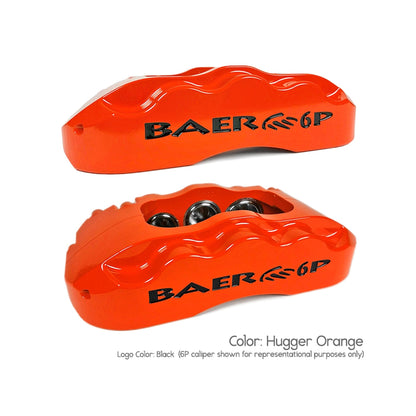

This system features the 6-piston, 6P caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6P caliper has D.O.T compliant dust and weather seals and uses the popular D0731 pad type. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. Rotors are pre-assembled with NAS high grade stainless hardware. All mounting brackets, stainless braided hoses and hardware are also included. The 14" Pro+ is designed to fit most 18” or larger wheels.
Fits 1955-68 Chevy Full Size Passenger Cars w/OE Drum Brake Spindle & 1963-68 Chevy Corvette w/OE Spindles (All)
- 2-Piece, 6-Piston, 6P Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
📖
About this product
Fits 1955-68 Chevy Full Size Passenger Cars w/OE Drum Brake Spindle & 1963-68 Chevy Corvette w/OE Spindles (All)
📋
Product Specifications
Applications
GM Chevy Corvette 63-68
Applications
GM Full Size Pass Car (Chevy) 55-68
Automotive Item Grade
Performance
Axle
Front
Brake Hose DOT Approved
Yes
Brand
Baer Brakes
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Caliper Color
Hugger Orange
Caliper
6P
Category
Brake
Country
US
Disc Brake Caliper (Front) Piston Quantity
6
Disc Brake Caliper (Front) Type
Fixed
Disc Brake Pad FMSI Number
D0731
Disc Brake Rotor (Front) Construction
Vented
Disc Brake Rotor (Front) Outside Diameter
14.000
Emission Code
4
Emission Code
6
Export Description
Brake Components
Fitment Notes
w/OE Drum Brake Spindles
Fitment Notes
w/OE Spindles
Grade Type
Performance
Hose Material
Stainless Steel
Hose Material
Steel Braided
HTS Code
8708305090
Lug Count
5 Lug
Min Wheel Dia (verify Using Template)
18
Part Type
Disc Brake Upgrade Kit
Product Line
14 Inch Pro+
Product Type
14 Inch Pro+ Front Brake Kit
Prop 65 - Long Label
WARNING
Prop 65 Yes/No
Yes
R Or Cr)
CR
Rotor Thickness
1.150
Rotor Type
2-Piece
Sub Category
Service Kits
Surface Type
Slotted
System Notes
For stock spindles
Template
Q082P
Title
Pro+ Brake System Front
Warning
California Proposition 65
Warranty
Manufacture Limited 1 Year Warranty Warranty
Wheel Lug/Bolt Pattern
5x4.75
Wheel Stud Size
1/2-20 x 2.25 inch
🛡️
Warranty & Compliance
Warranty
1 months · Manufacture Limited 1 Year Warranty Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
6
HS Code
8708305090
📐
Dimensions & Shipping
Product Dimensions
15.5 × 15.5 × 12.25 in
Shipping Dimensions
15.5 × 15.5 × 12.25 in
Weight
34019 g (34.02 kg)
