Holley EFI

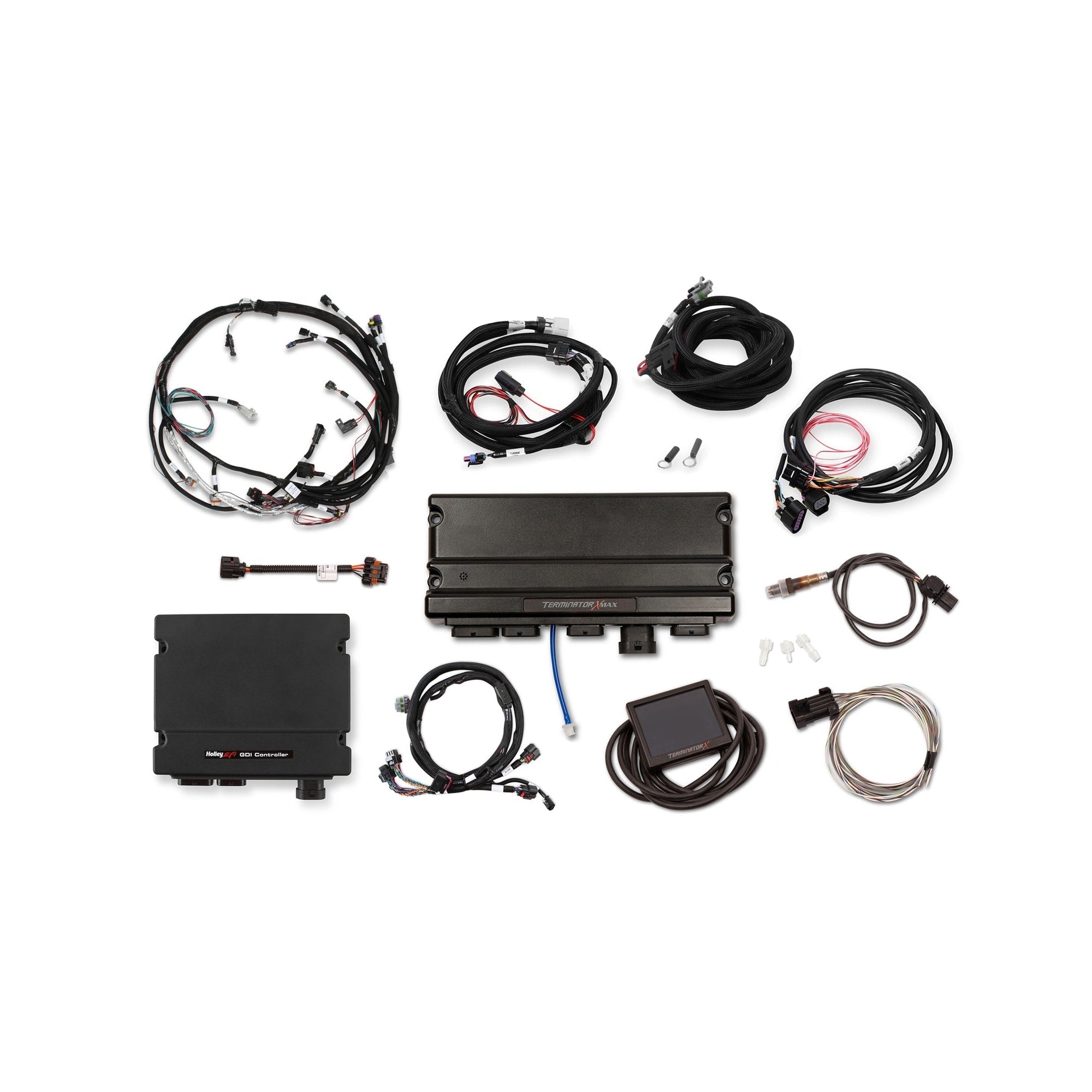

TERMINATOR X MAX LT GDI LATE DBW TRANS - Kit d'injection directe Holley EFI Terminator X Max GM Gen V LT - Version tardive

Prix normal £3,677.99 GBP inc VAT
Expédition calculée lors du paiement.
SKU: 550-1631

Stock Levels:

Checking stock levels…
🇬🇧 UK warehouse
🇺🇸 US warehouse
Estimated Delivery


Voir les détails
Holley EFIPart 550-1631Made in US

Product Details

⚙️

Vehicle Fitment & Compatibility

View all 0 vehicle applications
Years
Make / Model
Submodel
Engine
1900
No applications match your search.

Key Features

Not recommended for 4x4 applications with electronic transfer cases. Not compatible with 4L6X transmissions from model year 1995 or before due to year-by-year changes in converter lockup and downshift strategy. ECU is not recommended for marine applicatio

Take control of your GM Gen V LT1, L83, or L86 engine with Terminator X! Do not settle for a factory ECU with a cumbersome tuning interface when you can have complete control of your engine, self-learning fuel strategies and the proven, race-winning technology of Holley EFI at a budget-friendly price! Terminator X features real-time fuel learn, an integrated 1bar MAP sensor, and four programmable inputs and outputs. The inputs and outputs are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Terminator X comes fully loaded with base maps for common LT engine combinations to get you out of the garage and on the road/track fast. The 3.5" touch screen LCD handheld contains an easy to use calibration wizard as well as tuning and gauge display functions. All Gen V LT Terminator X kits will come with an external Gasoline Direct Injection Controller, which enables the end user to control and tune, factory injectors, GM Gen V LT Variable Valve Timing (VVT), and factory fuel pumps. Also included is Holley EFI's industry-leading, easy to use software suite that allows full laptop access for advanced users. Whether you are building, an LT swapped budget beater or a boosted racecar, Terminator X has the features and technology you need at a price that will not break the bank! | To identify if your engine is an early or late application, refer to your fuel pressure sensor, located behind the intake manifold. Early sensors have a 4-pin connector, whereas late sensors have a 3-pin connector. This will help you pick which kit you require for your engine.

GM LT Drive-by-Wire Throttle Body and GM 4L60E and 4L80E Transmission Control

  • Plug and play GM Gen V LT engine control including GDI and VVT support
  • Ideal for swapping late model GM Gen V LT engines into vintage vehicles
  • 3.5” handheld gets your engine running in no time with a step-by-step calibration wizard
  • GM LS and LT Drive-by Wire Throttle Body Control (Terminator X Max Only)
  • GM 4L60 and 4L80 Transmission Control (Terminator X Max Only)
  • Included engine harness plugs directly into the factory LT DI injector sub harness
  • OEM Injectors supported, with part numbers provided in the handheld wizard, or software
  • Genuine Bosch LSU 4.9 Wideband Control (Will not work with LSU 4.2 Oxygen Sensors)• Genuine Bosch LSU 4.9 Wideband Control (Will not work with LSU 4.2 Oxygen Sensors)
  • On-Board Diagnostic LEDS for: ECU Power – Engine Run – Wideband Status – TPS Calibration – Crank Signal – Cam Signal – VVT Status – Pump Control – and DI Injectors. Allowing you to identify any Critical engine issues at a glance
  • Built in 1bar MAP Sensor, vacuum hose adapters included (1/8th – ¼ and 3/16ths)
  • Boosted applications, you can disable the internal MAP sensor, and utilize an external LT MAP Sensor, the harness comes with the connector terminated, making the inst
  • 4 Inputs – 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake (Fuel and Oil Pressure Inputs are pre-terminated)
  • 4 Outputs – Ground, PWM - , for accessories such as; fans, boost control, nitrous control, IAC Kit, and more
  • Boost Control – Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties
  • Nitrous Control – Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR
  • Advanced Tables – 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table
  • Integrated data logging to the 3.5” Handheld SD Card
  • Free EFI Tuning Software for complete control of your Terminator X power plant
📖

About this product

GM LT Drive-by-Wire Throttle Body and GM 4L60E and 4L80E Transmission Control

📋

Product Specifications

Accelerometer Support
Yes
Automotive Item Grade
Performance
Boost Control
Yes
Brand
Holley EFI
California Proposition 65 Chemical Name
4
CAN-BUS Support
Yes
Category
Air and Fuel Delivery
Coil Per Cylinder Ignition Support
Yes
Color
Black
Country
US
Datalogging Support
Yes
DI Fuel Rail Pressure Sensor
Late
Distributor Included
No
Drive-By-Wire
Yes - LT Throttle Body
Dry Nitrous Control
Yes
E85 Support
Yes
EGT Support
Yes
Emission Code
3
Finish
Textured
Forced Induction Support
Yes
Fuel Filter Included
No
Fuel Hose Included
No
Fuel Injectors Included
No
Fuel Pressure Regulator Included
No
Fuel Pump Included
No
Grade Type
Performance
Handheld Included
Yes
HTS Code
8409915085
Idle Air Control Motor Included
No
Ignition Timing Control
Yes
Individual Cylinder Fuel Corrections
Yes
Injector Connector
Direct Injection
Intake Manifold Included
No
Knock Retard Support
Yes
MAP Sensor
1bar
Mounting Hardware Included
No
Multi-Stage Nitrous Control
Yes
Part Type
Fuel Injection System
Product Type
EFI System
Progressive Nitrous Control
Yes
Prop 65 Yes/No
No
Self-Tuning
Yes
Sub Category
Fuel Injection System and Related Components
Throttle Position Sensor Included
No
User-Tuneable
Yes
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Wet Nitrous Control
Yes
🛡️

Warranty & Compliance

Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
3
HS Code
8409915085
📐

Dimensions & Shipping

Product Dimensions
16.4 × 12.7 × 11.4 in
Shipping Dimensions
16.4 × 12.7 × 11.4 in
Weight
7643 g (7.64 kg)
