Holley EFIPart 550-660Made in US
Product Details
⚙️
Vehicle Fitment & Compatibility
View all 0 vehicle applications
Years
Make / Model
Submodel
Engine
1900
No applications match your search.
⭐
Key Features
When utilizing a Transbrake, it is mandatory to install either a relay or, our Transbrake input protection device. P/N 554-128. This will protect the ECU from any flyback voltage when the Transbrake is released. Dominator EFI systems are sold "a la car
Dominator® EFI Vehicle Management Systems are intended for non-emissions street and racing engine applications. In addition to the transmission control, drive by wire, and dual wideband oxygen sensor options, Dominator® systems have nearly unlimited capabilities to control any power adder, input, or output you can throw at them. Need to run a turbocharged, nitrous injected 8 cylinder running water-methanol injection? No problem with Dominator® EFI. How about control a 4L80E transmission as well as the fuel and spark on your street rod? No problem. There are also enough inputs and outputs to allow the Dominator® VMSs to serve as their own data acquisition and control module. The Dominator® VMS will eliminate the need for additional controllers as they are all contained in this one unit. The only thing limiting the Dominator® Vehicle Management System is your imagination!
Fits GM LS 58x Crank, 4x Cam - 4.8/5.3/6.0 style Engines with EV1 Injectors a 4L60/80E Transmission, and a DBW Throttle Body
- TURBOCHARGER BOOST CONTROL
- “Quick Start” strategies – For faster engine starting
- ECU is fully potted and can be mounted in the engine compartment or interior – See images for dimensions
- Gear based boost control configurable by several different methods
- Data Logger –Analyze and export your data with sophisticated, but user friendly tools – Internal logger has 4 GB of memory
- 1-7 Bar MAP sensor capability – For naturally aspirated or boosted applications
- Racepak Integration Module Available.
- Complete control of pump activation, and low system safety features
- 12.3" Pro Dash (PN 553-111) and 7" Race Dash (PN 553-106) features full gauge layout customization, and nearly limitless tuning options.
- Allows for two nozzles to be controlled
- 8 STAGE NITROUS OXIDE CONTROL
- Fully Configurable lap top Gauge Panel – Life-like gauge cluster on your laptop screen

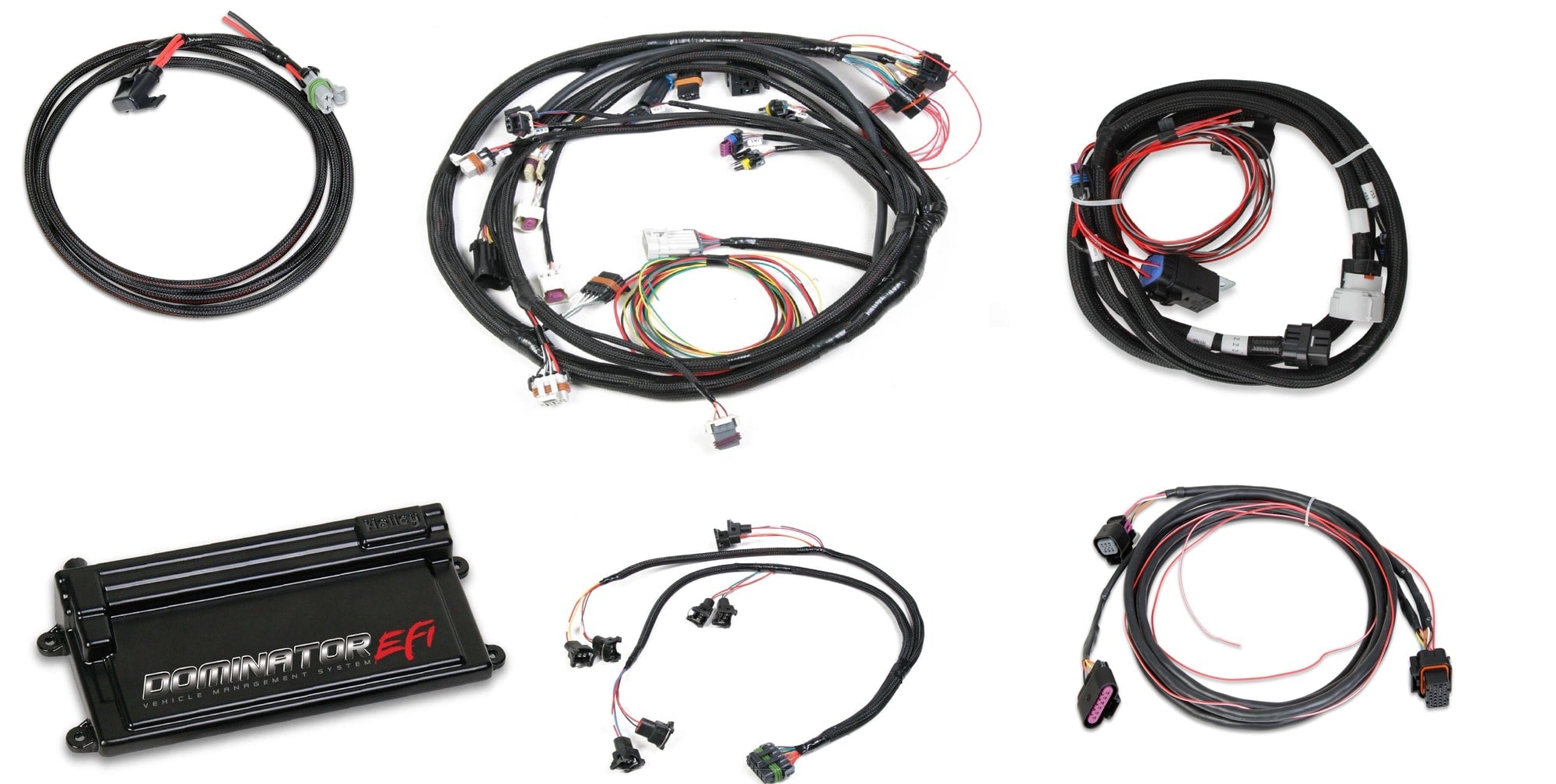

- Kits include the following: Dominator ECU, USB cable, ECU Power Harness, Engine Main Harness, EV1 Injector Harness, Bosch Wideband, ECU mounting hardware
- Dominator EFI base kits come in several product variations to fit most popular domestic V8 engine applications such as; LS, SBC/BBC, SBF, BBF, and Chrysler engines
- “Boost Builder” functions offer the ability to assist building boost on the starting line by altering ignition timing, fueling, as well as nitrous oxide activation. Can also be used as an anti-lag function
- Integrated drive by wire throttle body control - Can control two drive by wire throttle bodies. Compatible with a number of DBW throttle bodies including GM, Chrysler, Ford, and Nissan
- Full timing retard/control configurability per stage based on RPM or time
- Uses Holley water/meth solenoids specially designed and calibrated for use with this EFI system to allow the user to enter water/meth flow as a percentage of fuel injector flow for water/meth tuning precision unmatched in the industry
- Integrated dual channel wide band oxygen sensor controls – For monitoring both engine banks (NTK or Bosch sensors)
- Extensive amount of inputs and outputs allow for limitless combination of options. Allows for unit to be used as a complete data acquisition system as well
- Self-tuning fuel table strategy greatly simplifies tuning process – The more you drive it, the more it learns
- Fully featured boost control capability eliminates the need for a separate boost control device
- Sealed automotive and marine grade connectors
- HARDWARE
- INTEGRATED WATER/METHANOL INJECTION CONTROL
- Can be configured “Wet” or “Dry” with closed loop feedback
- Individual cylinder fuel and spark control allows you to unlock your engine’s potential
- Integrated electronic transmission control - Operates GM 4L60E and 4L80E transmissions, Ford AODE and 4R70W with more to come in the future
- Nozzles available from 400 to 1000 cc/min
- Optional Digital Displays - 7" Digital Dash (PN 553-106) / 3.5" Touch Screen LCD (PN 553-108)
- DATA VISUALIZATION TOOLS
- Store and select between four calibrations with Multi Map Selector (Part Number 558-407)
- Fully featured nitrous control eliminates the need for a separate nitrous controller device
- Lean or rich safety cutoff
- Strip Chart – For real-time data viewing
- Fuel Map and Learn Function Smoothing – Helps to smooth rough areas of the maps
- Allows for use of common OEM sensors as well as custom sensor calibration input
- Progressive control based on time, RPM, or boost, requires part # 554-111
- Two channel knock control sensor inputs for both one or two wire knock sensors
- Data logger - Smoothing, multiple graph view, pre-defined notes fields and more..
- Can be configured to control boost based on time, gear, speed, and manual inputs
📖
About this product
Fits GM LS 58x Crank, 4x Cam - 4.8/5.3/6.0 style Engines with EV1 Injectors a 4L60/80E Transmission, and a DBW Throttle Body
📋
Product Specifications
Accelerometer Support
Yes
Automotive Item Grade
Performance
Boost Control
Yes
Brand
Holley EFI
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
CAN-BUS Support
Yes
Category
Fuel Injection - EFI
Coast Guard Approved
Yes
Coil Per Cylinder Ignition Support
Yes
Country
US
Datalogging Support
Yes
Dry Nitrous Control
Yes
E85 Support
Yes
EGT Support
Yes
Emission Code
3
Forced Induction Support
Yes
Fuel Filter Included
No
Fuel Hose Included
No
Fuel Injectors Included
No
Fuel Pressure Regulator Included
No
Fuel Pump Included
No
Grade Type
Performance
Height
variable 1.00" to 1.84"
HTS Code
8409915085
Ignition Timing Control
Yes
Individual Cylinder Fuel Corrections
Yes
Intake Manifold Included
No
Knock Retard Support
Yes
Length
13.14" overall
Mounting Bolt Pattern
12.13"x 6.10"
Multi-Stage Nitrous Control
Yes
Part Type
Fuel Injection Conversion Kit
Product Type
Dominator ECU - ECM - VCM
Progressive Nitrous Control
Yes
Prop 65 Yes/No
Yes
Self-Tuning
Yes
Throttle Position Sensor Included
No
Traction Control Support
Yes
User-Tuneable
Yes
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Wet Nitrous Control
Yes
Width
6.10" overall
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
3
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
16.6 × 15.1 × 10.0 in
Shipping Dimensions
16.6 × 15.1 × 10.0 in
Weight
6917 g (6.92 kg)
