Holley EFIPart 553-127Made in US
Product Details
⭐
Key Features
Easy to install - One plug and play gauge module (P/N 554-130) is required per set of CAN gauges. User can daisy chain as many gauges as they choose; all gauge data supplied through a one-wire ECU connection.

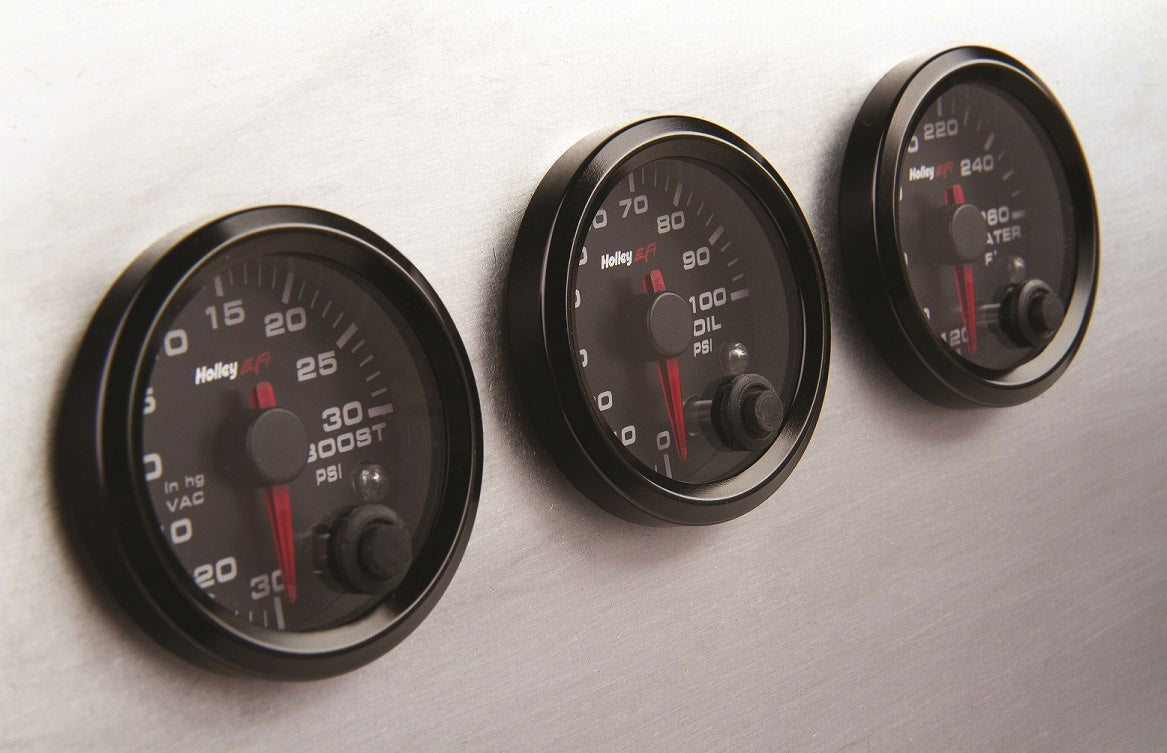

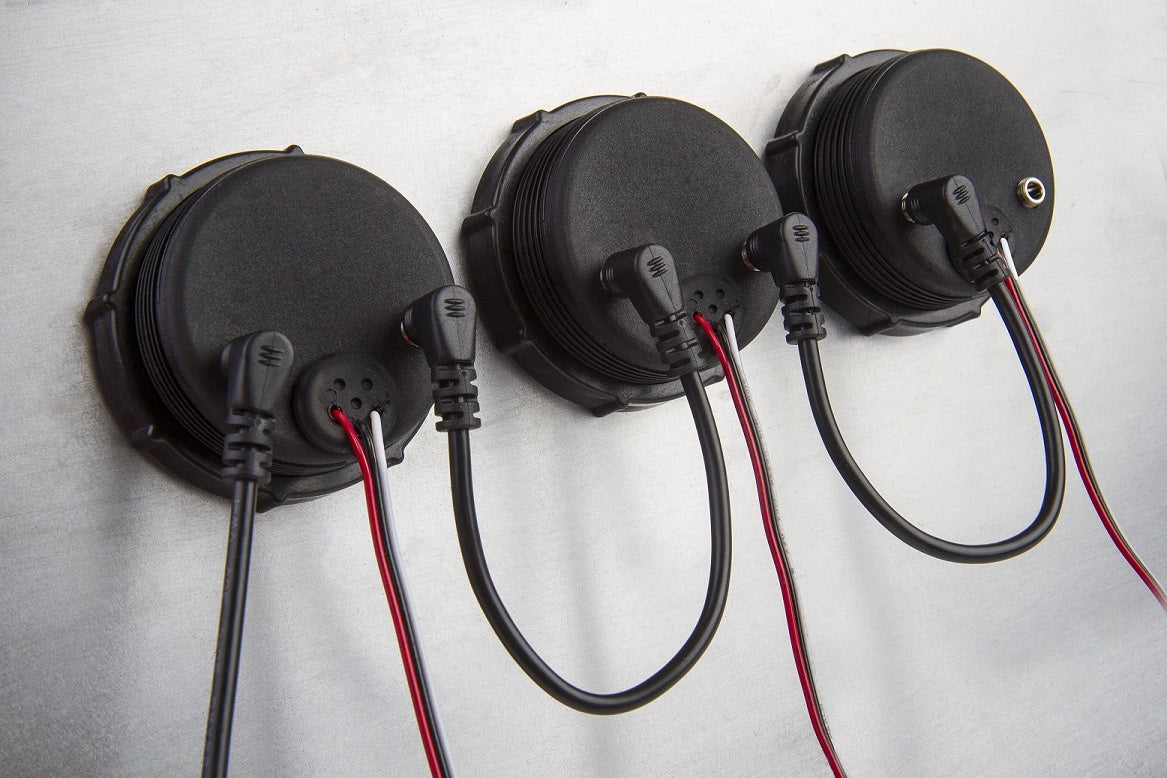

These analog-style gauges are designed specifically for use with Holley EFI systems. They are compatible with all Terminator, HP, and Dominator ECU's, allowing them to be installed in a variety of Holley EFI equipped vehicles. CAN-bus communication allows the gauges to daisy chain using the included stereo cables, making installation quick and clean. The required gauge module (P/N 554-130) allows plug and play communication between the ECU and gauges, through a one-wire ECU connection.

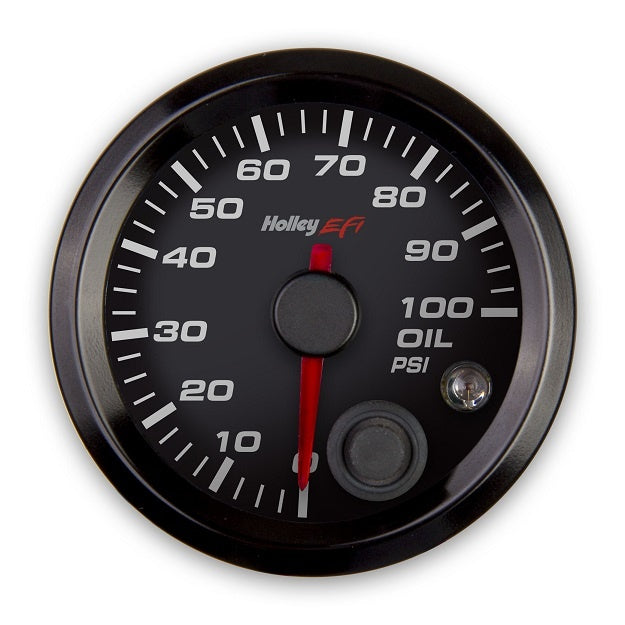

Oil Pressure Gauge - Standard 2-1/16" size - CAN - 0-100 PSI - Black Face - Black Bezel
- Plug and play compatibility with all Terminator, HP, and Dominator ECU’s (w/ module P/N 554-130)
- No programming necessary; eliminates the need to install duplicate sending units
- Compatible with all Holley EFI touch screens, dashes, handheld tuners, and other CAN devices
- 270° sweep pointer from 6 to 3 o’clock makes gauges easy to read at a glance
- Pointer is driven by a high-torque internal stepper motor to ensure accurate movement in racing conditions
- Adjustable LED warning light allows user to set both low and high trigger points
- LED warning light brightness can be configured for both day and night
- Peak recall lets user view the min/max gauge readings with the push of a button
- Spin lock ring threads to back of gauge case for simple and secure gauge mounting
- CNC machined billet aluminum bezels with anodized finish – Bezels are threaded for easy replacement
- Multiple bezel options available separately – User can customize the gauges to their preference

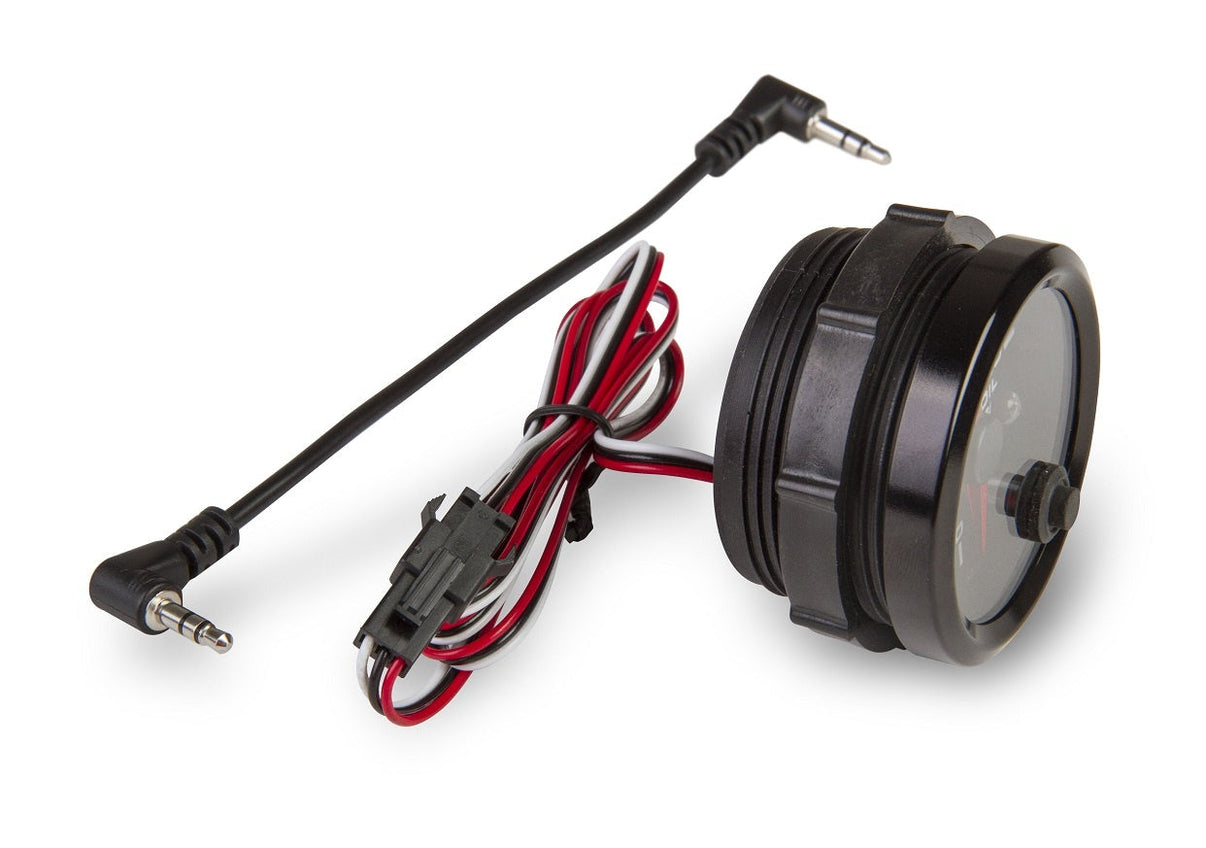

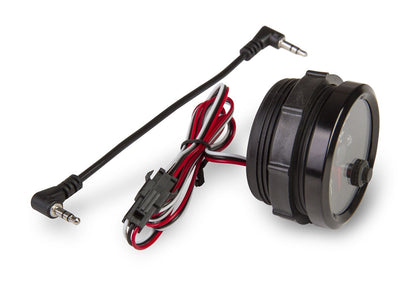

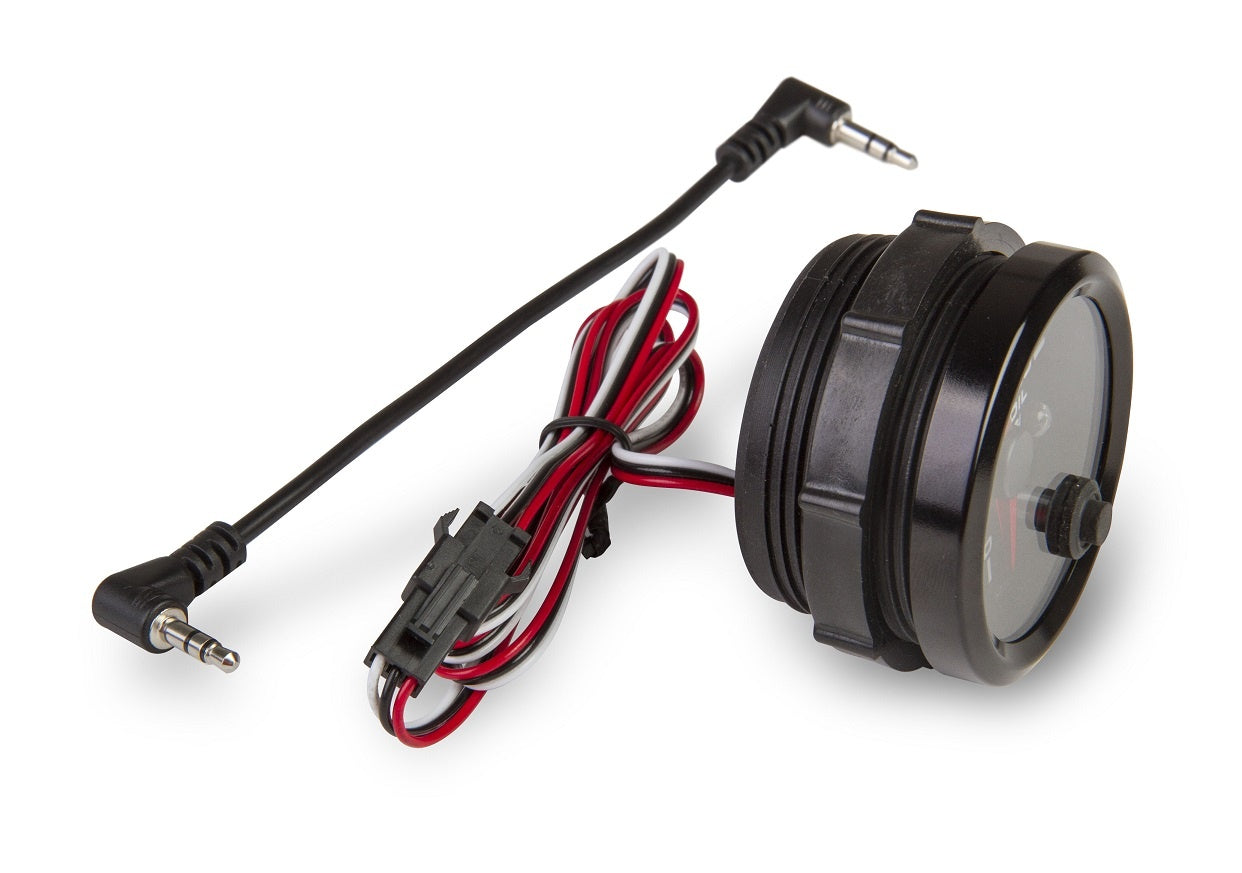

- Gauges include 6 in. daisy chain cable and 3 ft. power harness
- Additional length cables and multi-connection power distribution harness available separately
📖
About this product
Oil Pressure Gauge - Standard 2-1/16" size - CAN - 0-100 PSI - Black Face - Black Bezel
📋
Product Specifications
Automotive Item Grade
Performance
Bezel Color
Black
Bezel Material
Aluminum
Body Color
Black
Brand
Holley EFI
Bulbs Included
No
California Proposition 65 Chemical Name
20
Category
Body
Color Change Button
No
Country
US
Dimmable
No
Display Type
Analog
Emission Code
4
Emission Code
5
Face Color
Black
Face Diameter
2-1/16 IN
Gauge Background Color
Black
Gauge Type
Oil Pressure
Grade Type
Performance
HTS Code
8409915085
Illuminated
Yes
Lens Color
Clear
Liquid Filled
No
Maximum Pressure Reading
100 PS
Minimum Pressure Reading
0 PS
Mounting Hardware Included
No
Mounting Pod Included
No
Part Type
Engine Oil Pressure Gauge
Pointer Color
Red
Product Type
Gauge
Prop 65 Yes/No
No
Sensor Included
No
Sensor Type
Electric
Size
2-1/16"
Sub Category
Instrument Panel
Universal Or Specific Fit
Universal
Warning Light
Yes
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
5
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
5.6 × 5.5 × 5.3 in
Shipping Dimensions
5.6 × 5.5 × 5.3 in
Weight
159 g (0.16 kg)
