Holley EFIPart 554-112Made in CA
Product Details
⭐
Key Features
Used to drive a two wire “dumb” ignition coil. Great for retrofitting an engine to C-N-P.

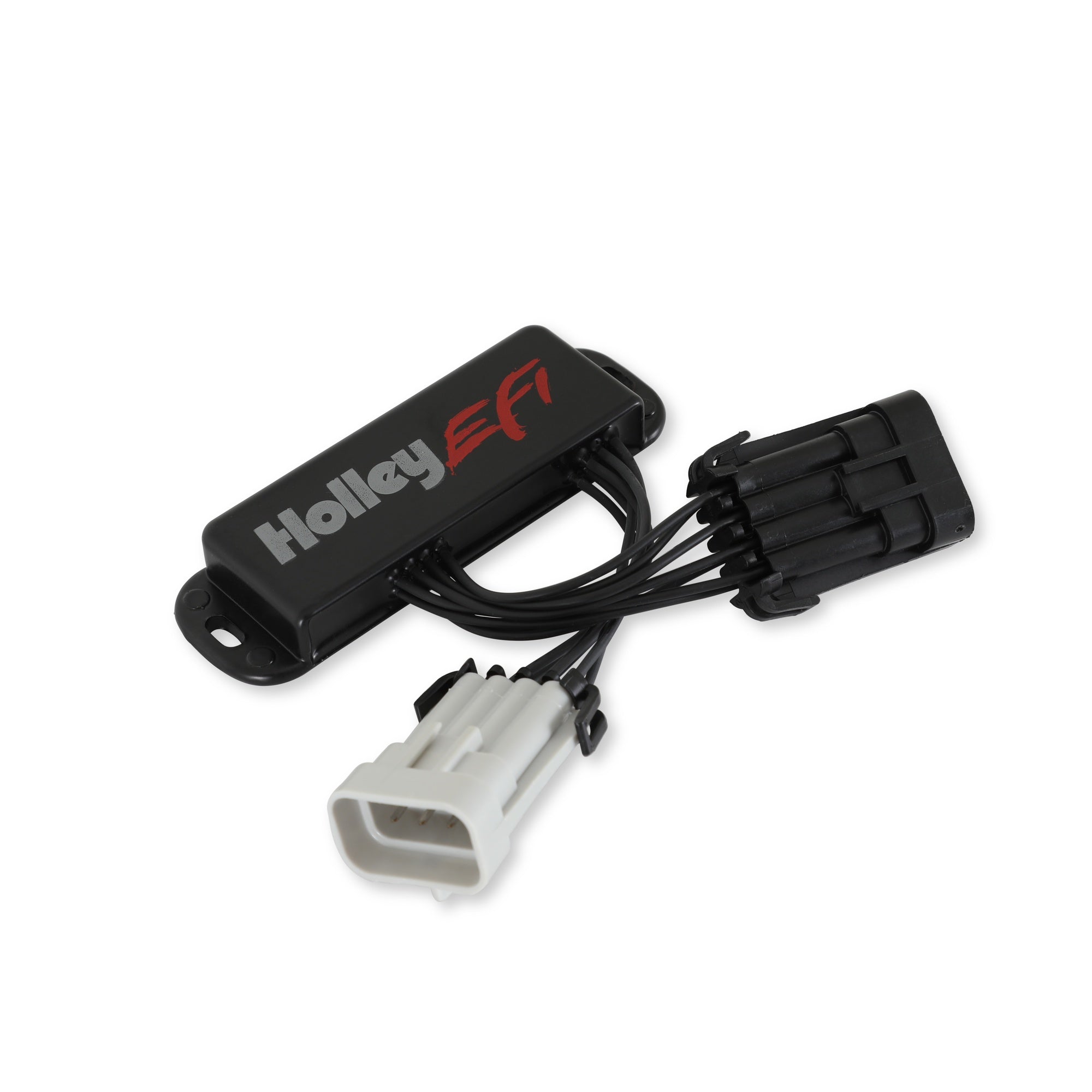

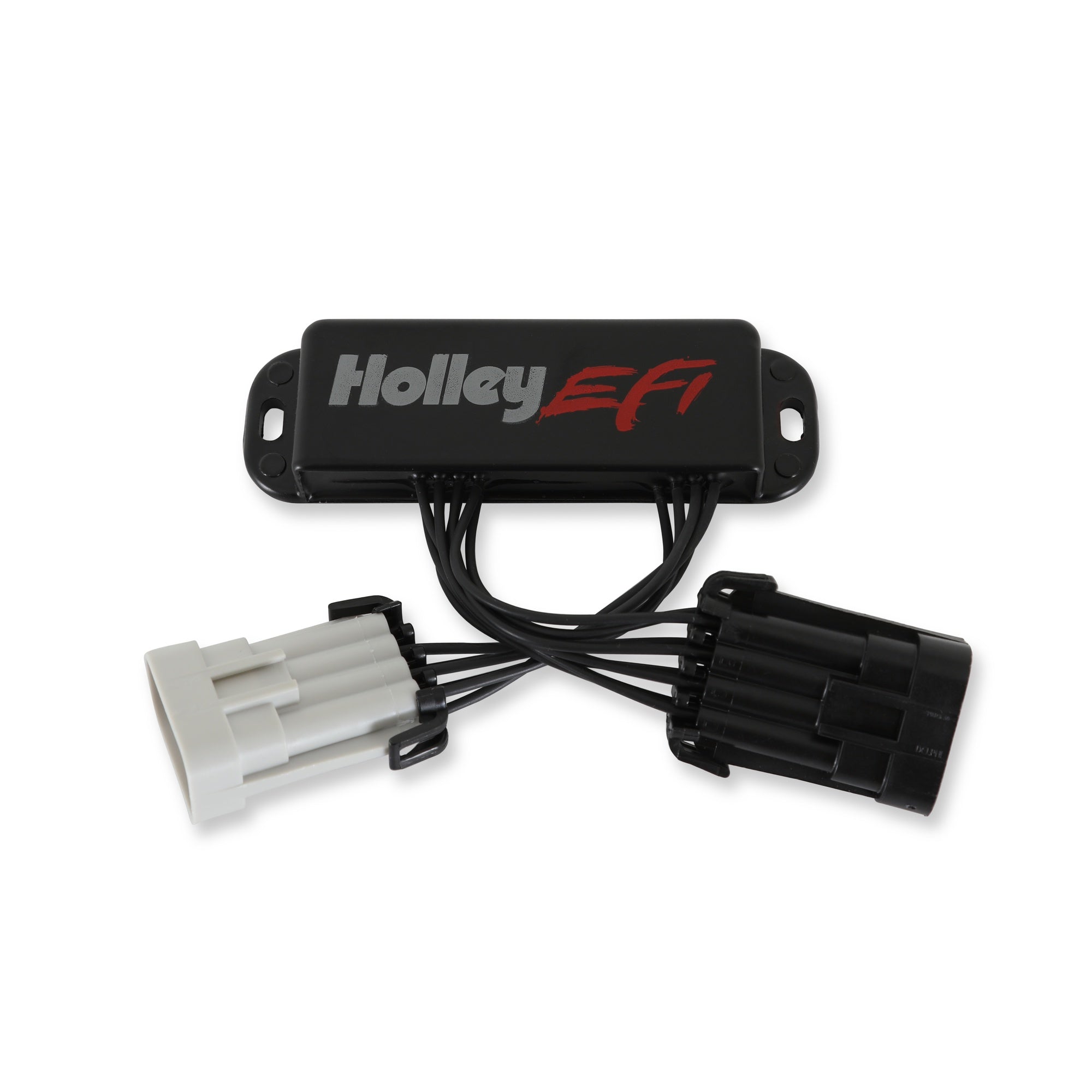

The four channel coil driver module is used to drive a two wire "dumb" ignition coil. Such coils are typically used on Ford Modular and late model Chrysler HEMI engines. Holley EFI ECUs require this coil driver module when running two wire "dumb" coils. Each module can drive four coils, so two are required for an eight cylinder engine that uses eight coils. | Included is the coil driver module, an input harness with pins that can be connected directly into the HP or Dominator ECU, and an output harness with pigtail ends. The user must connect these to their specific coils.
Used to drive a two wire “dumb” ignition coil. Great for retrofitting an engine to C-N-P.
- Includes mating pigtails
- Potted design allows installation in engine compartment
- Drives two wire “Dumb Coils”
- Four channel
📖
About this product
Used to drive a two wire “dumb” ignition coil. Great for retrofitting an engine to C-N-P.
📋
Product Specifications
Automotive Item Grade
Performance
Brand
Holley EFI
California Proposition 65 Chemical Name
20
Category
Ignition
Connector Gender
Female
Connector Quantity
2
Country
CA
Emission Code
4
Emission Code
5
Grade Type
Performance
HTS Code
8409915085
Ignition Type
Distributorless
Mount Type
Bolt-On
Mounting Hardware Included
No
Part Type
Ignition Control Module
Product Type
High Current Driver - Module
Prop 65 Yes/No
No
Sub Category
Control Modules
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CA
Emissions Code
5
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
6.6 × 4.4 × 3.3 in
Shipping Dimensions
6.6 × 4.4 × 3.3 in
Weight
386 g (0.39 kg)
