Holley EFIPart 554-162Made in US
Product Details
⭐
Key Features
The unit can be mounted using Velcro, which helps dampen vibrations, or mounted solidly. The unit should be placed flat and positioned so the arrow points towards the front of the vehicle. It can also be screwed into the application. | A harness is includ

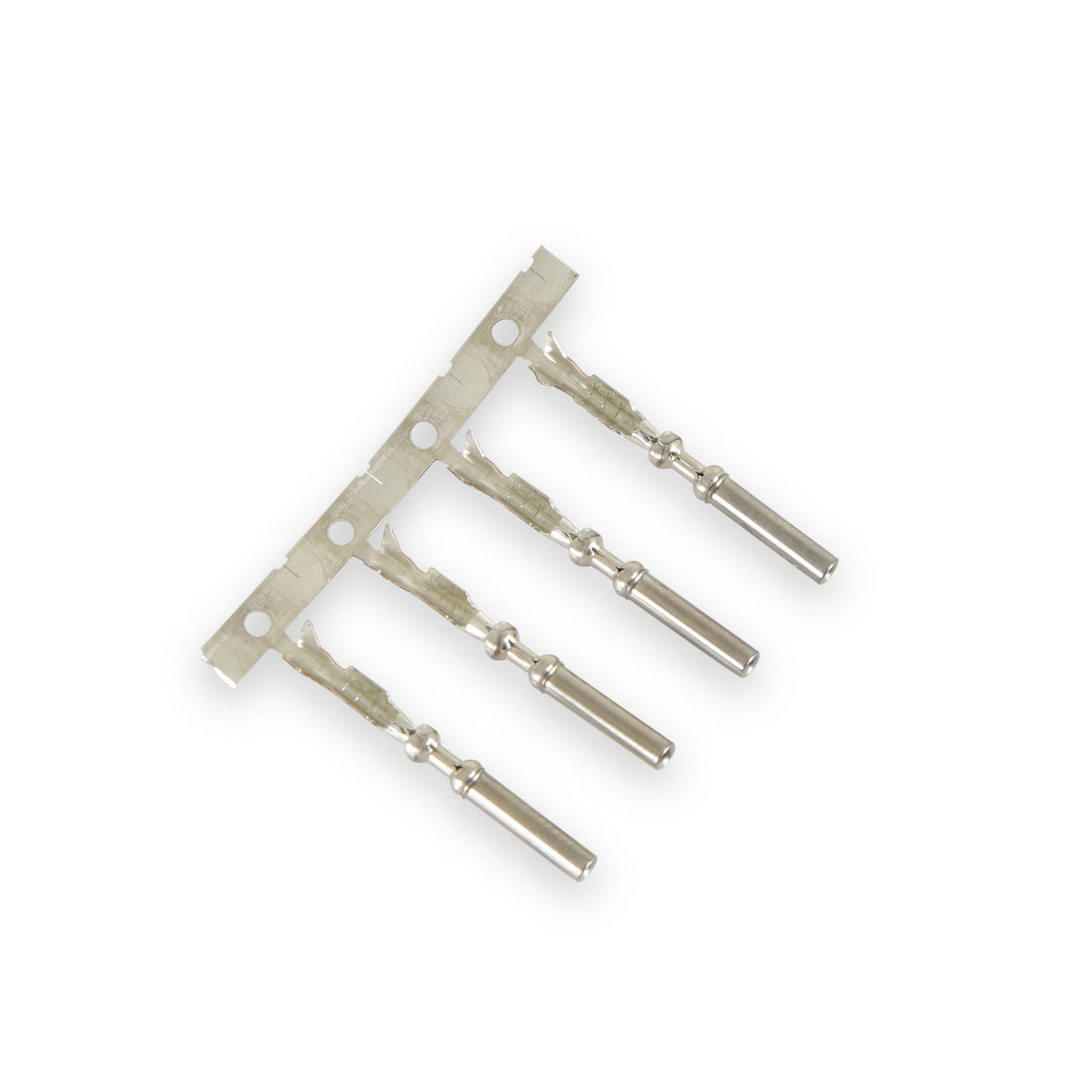

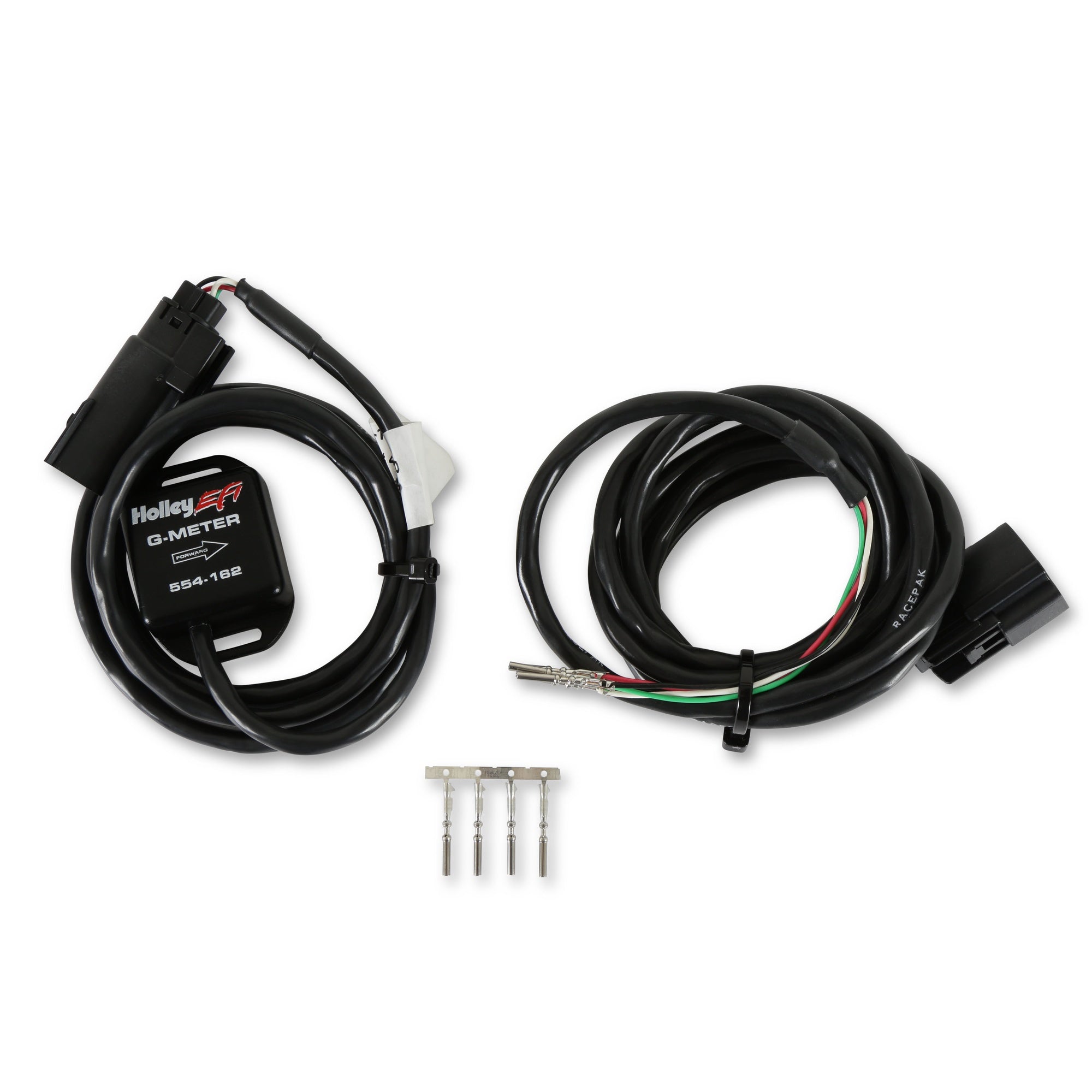

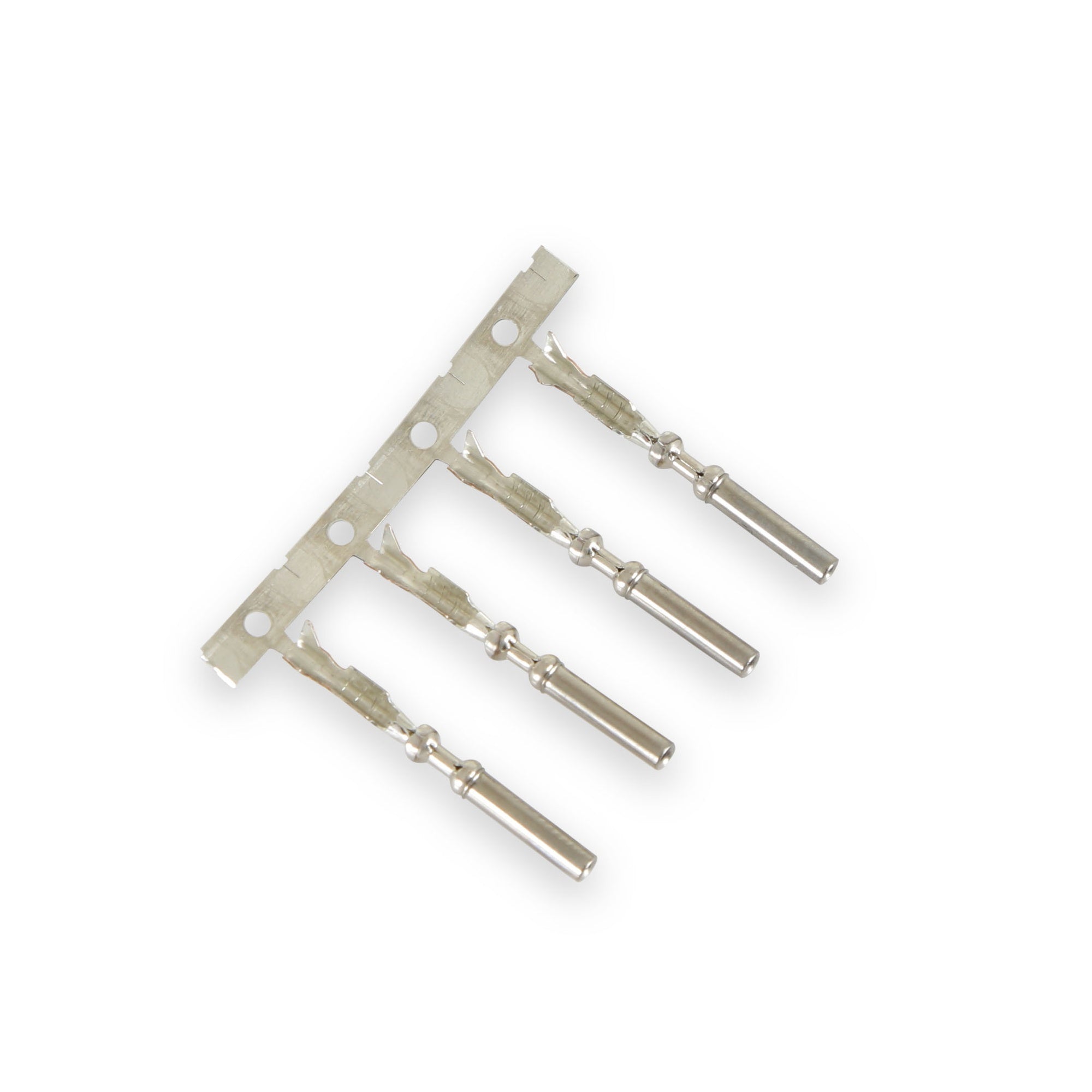

Introducing the Holley EFI 2 Axis G-Meter. Designed to be stable in the harshest environment. Co-designed with RACEPAK, this G-meter would be a perfect fit for your four digit horsepower drag radial machine or an autocross corner carver. The G-meter features both X and Y axis outputs. The X axis registers from a negative 3 G (deceleration) to a positive 12 G (acceleration). The Y axis registers +/-7.5 G. In order to ensure the installation is simplified, the ECU pins come pre crimped. Loose pins are also provided if the cable needs to be shortened for clean installations. This can also be used with non-Holley ECU's as long as they're are (2) 0-5V analog inputs available.
X and Y Axis G-Meter
- The Y axis registers +/- 7.5 G for cornering
- The X axis registers from -3 G (deceleration) to +12 G (acceleration)

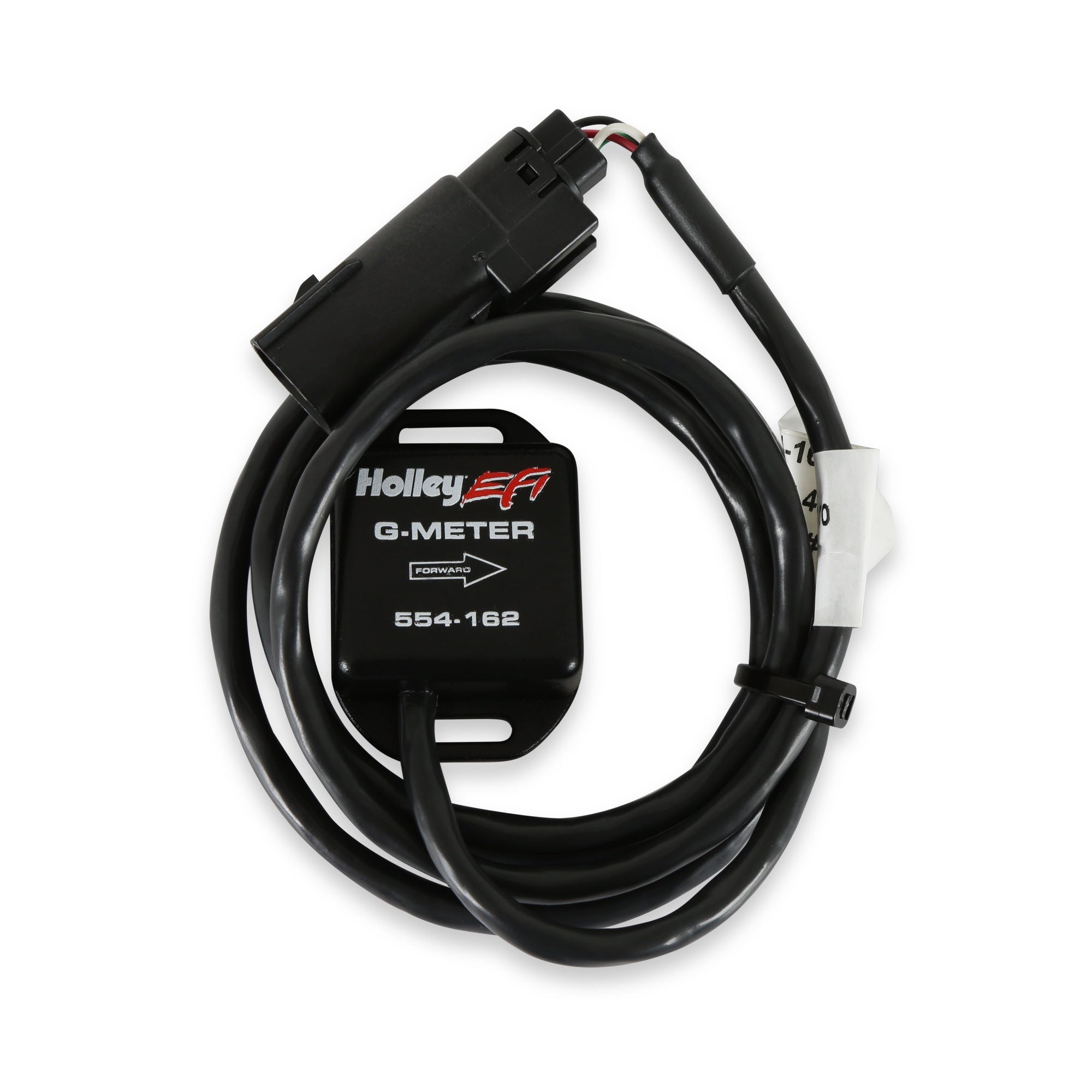

- Directional mounting arrow is provided, always pointing towards the front of the vehicle
- Displayed in real time or data logged

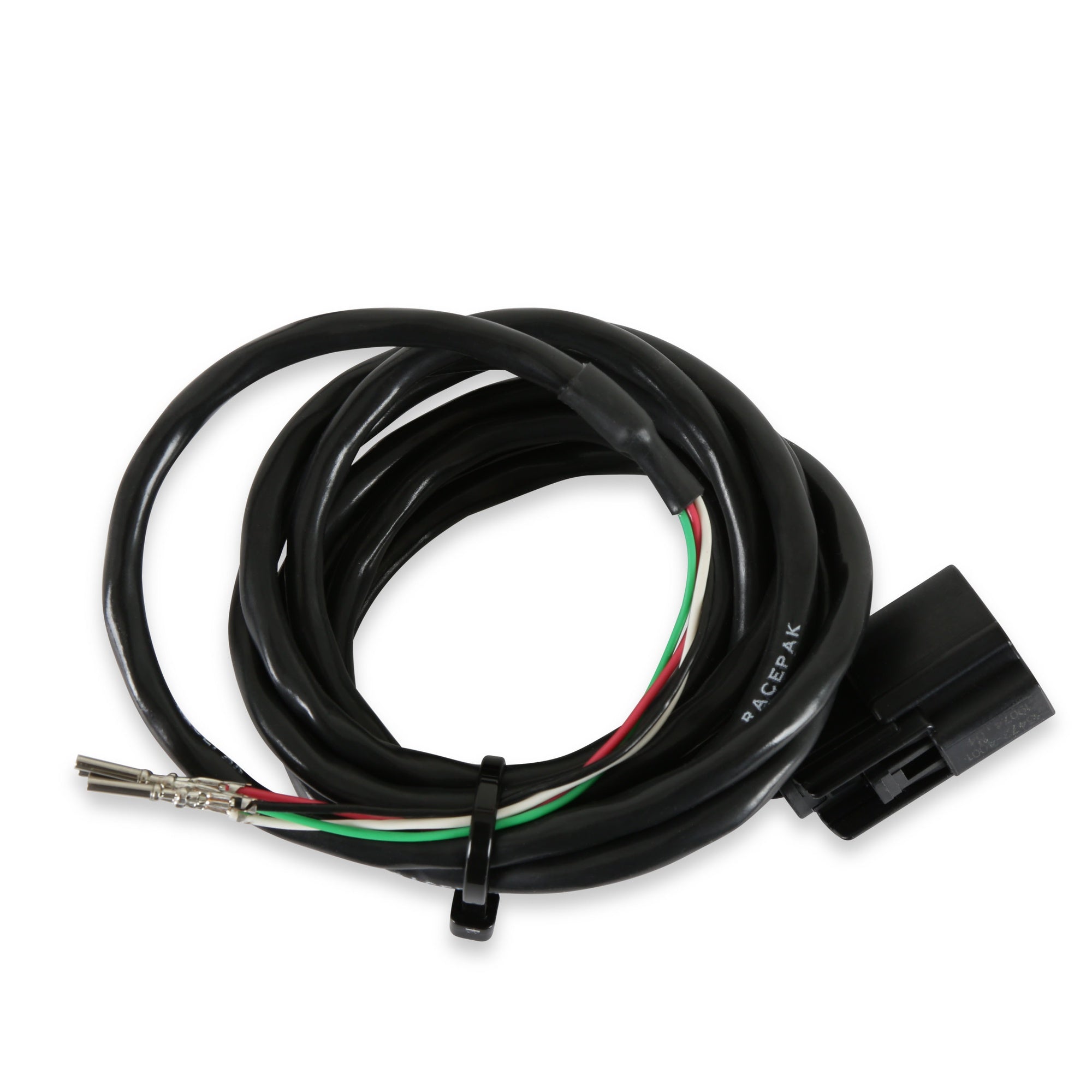

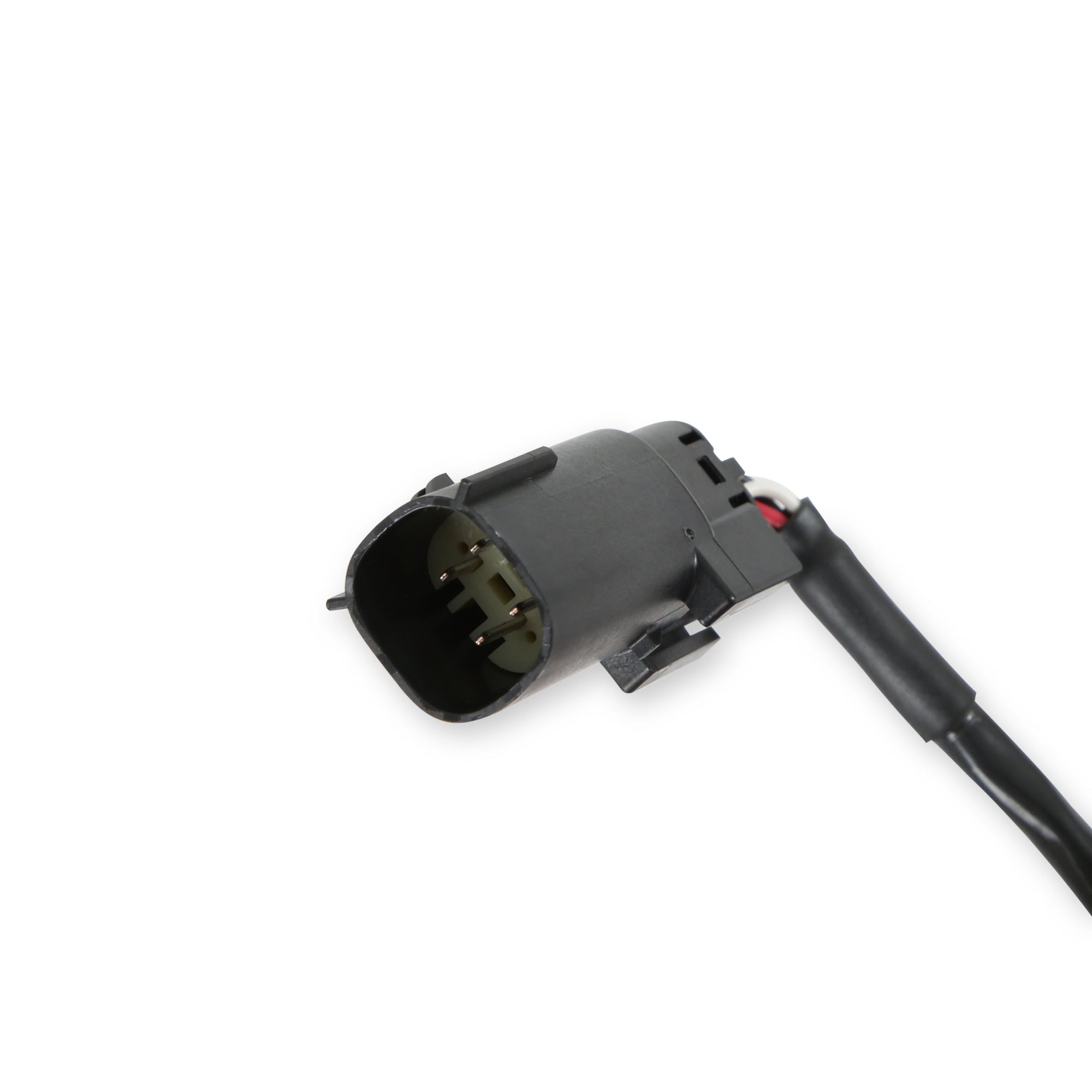

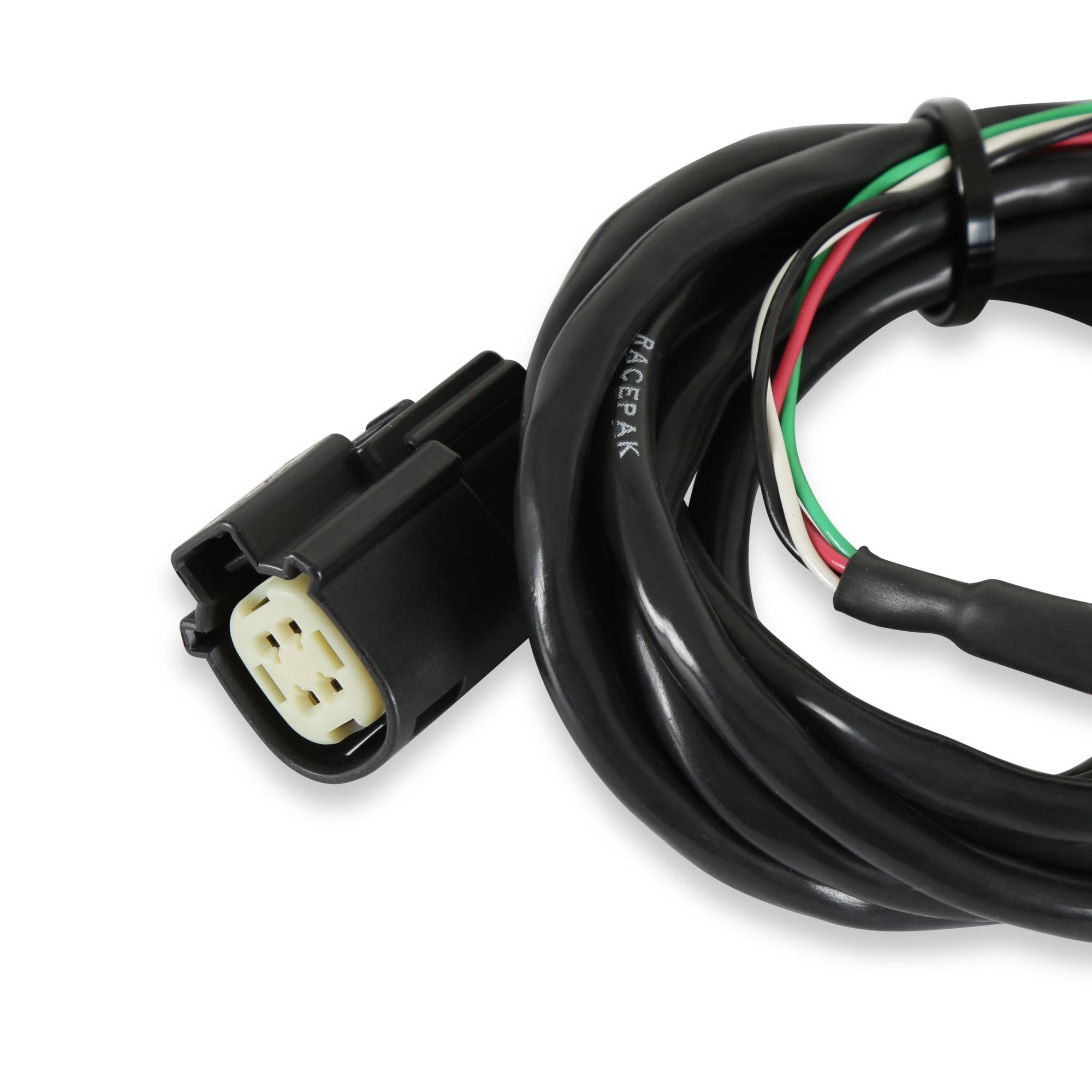

- Included harness to plug into Holley ECU connectors
📖
About this product
X and Y Axis G-Meter
📋
Product Specifications
Automotive Item Grade
Performance
Brand
Holley EFI
California Proposition 65 Chemical Name
20
Category
Body
Color
Black
Country
US
Emission Code
4
Emission Code
5
Grade Type
Performance
HTS Code
8409915085
Part Type
Lateral Accelerometer Gauge
Product Type
G-Meter
Prop 65 Yes/No
No
Sub Category
Instrument Panel
Terminal Type
Bullet
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
5
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
4.8 × 4.4 × 3.2 in
Shipping Dimensions
4.8 × 4.4 × 3.2 in
Weight
181 g (0.18 kg)
