Overview

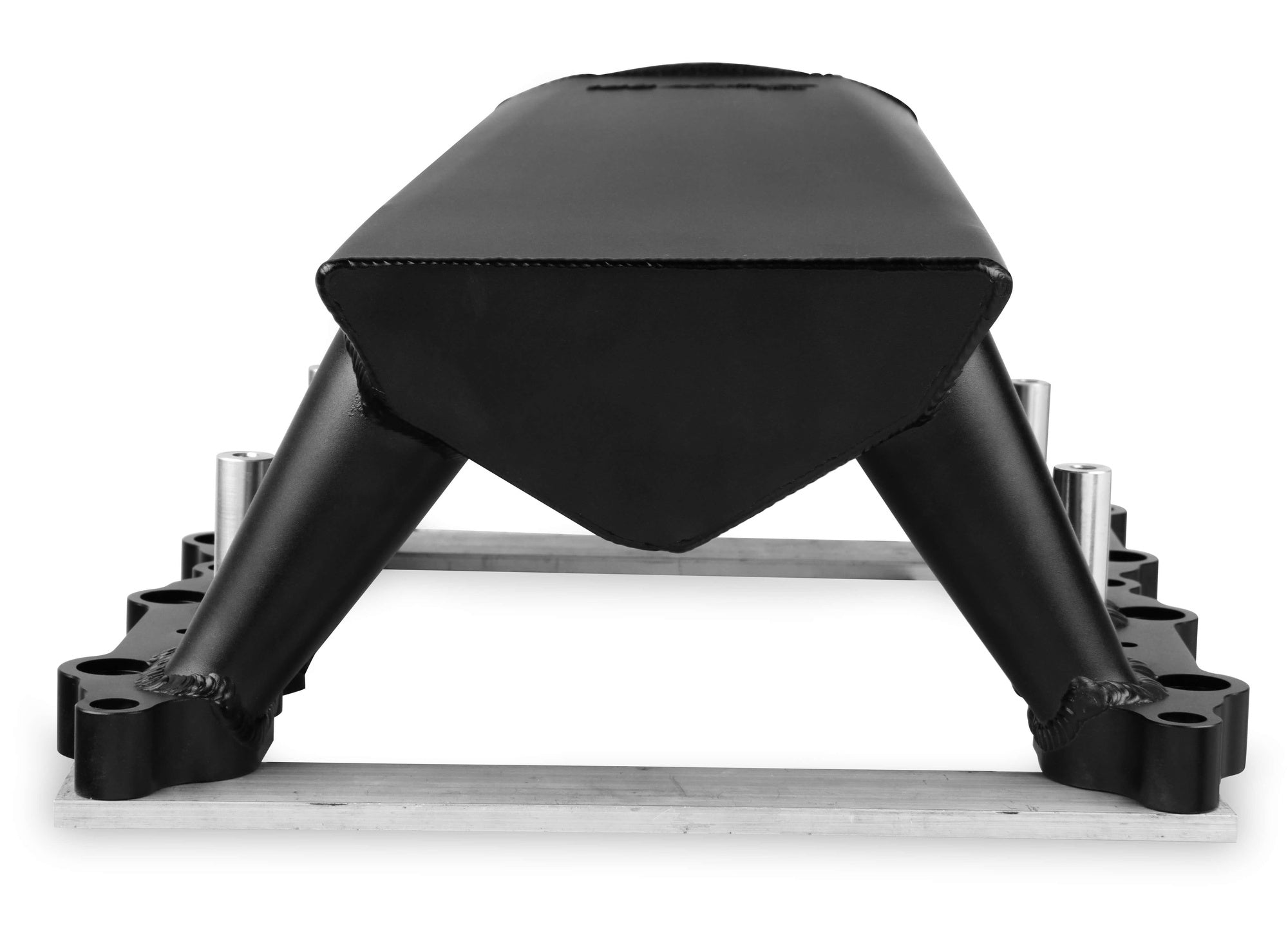

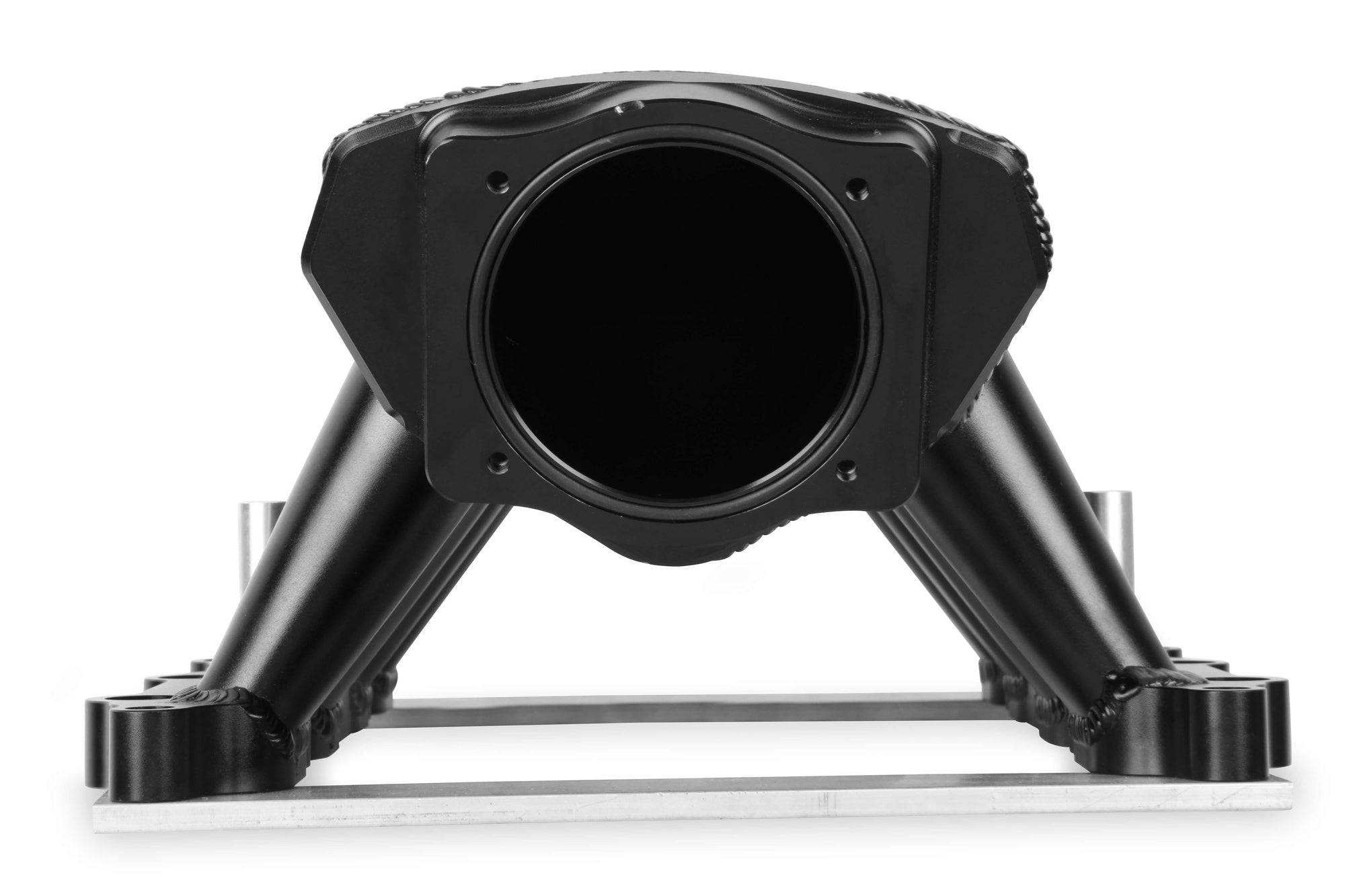

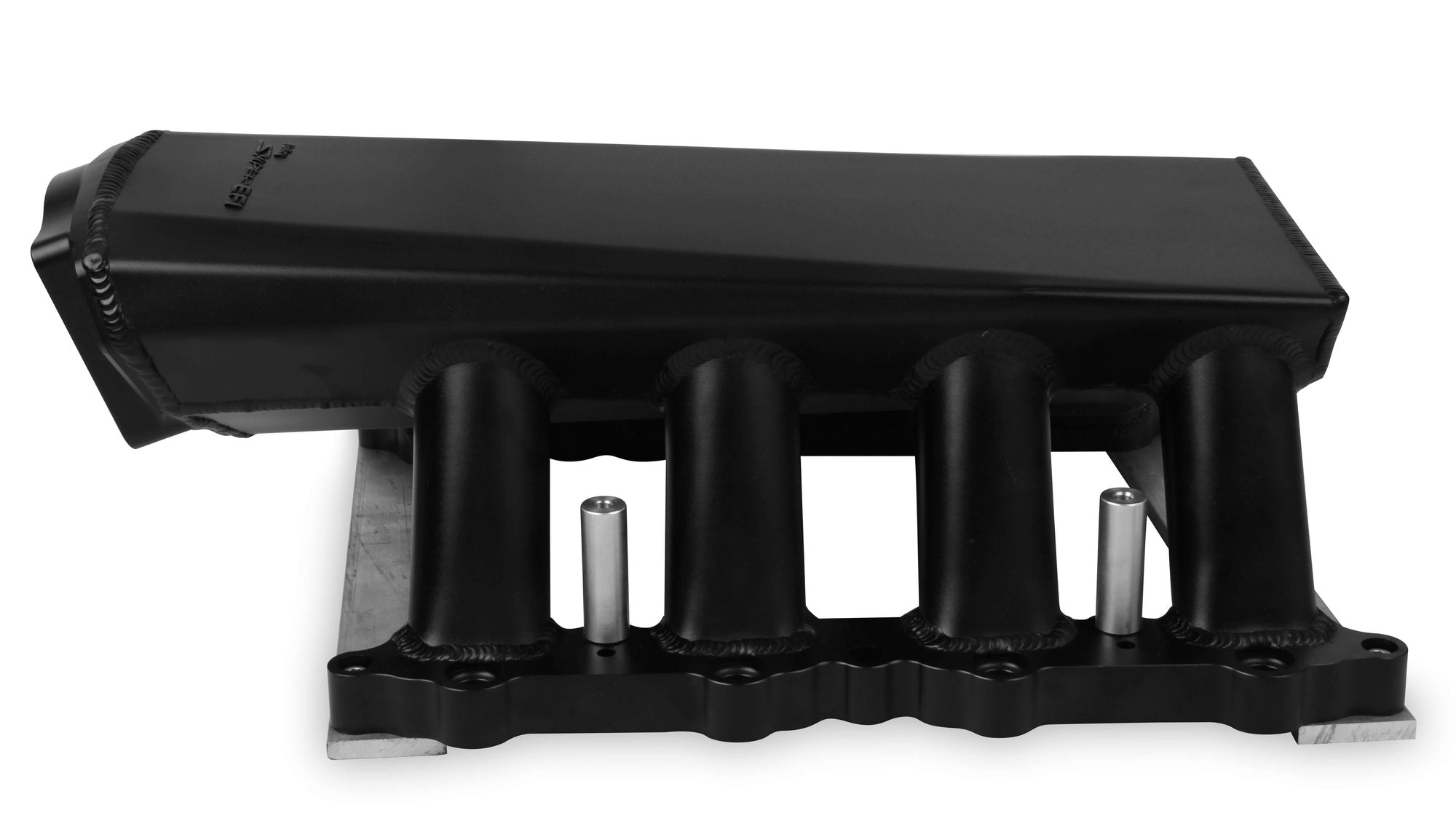

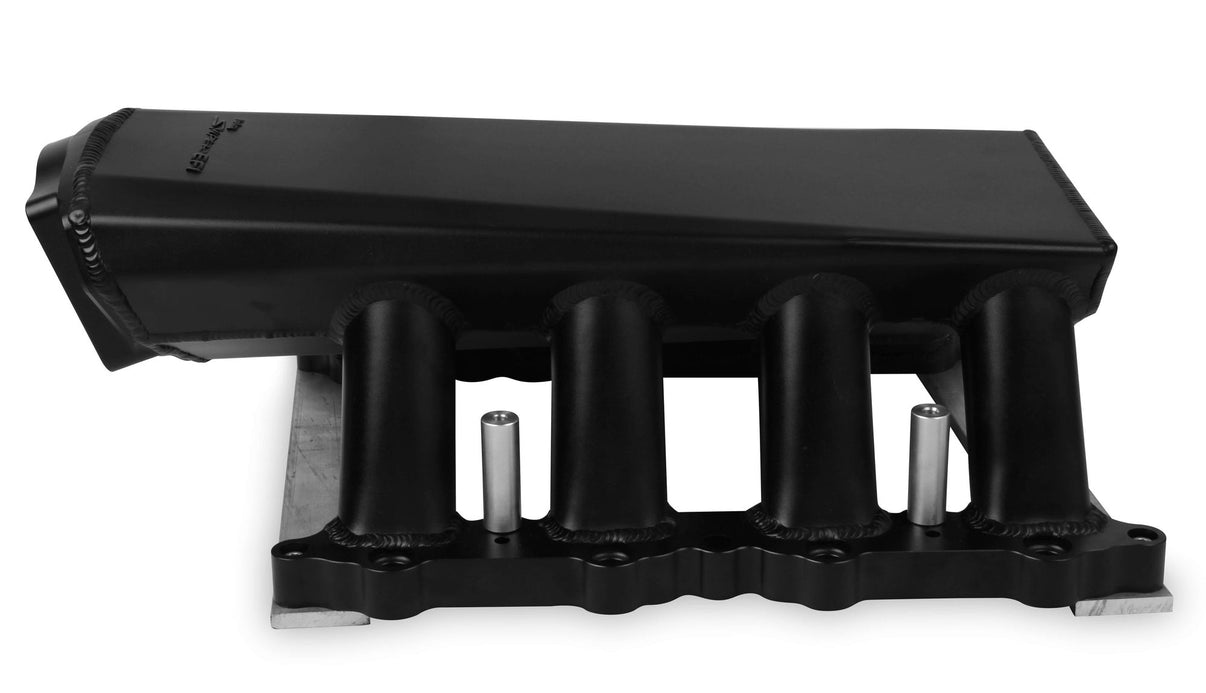

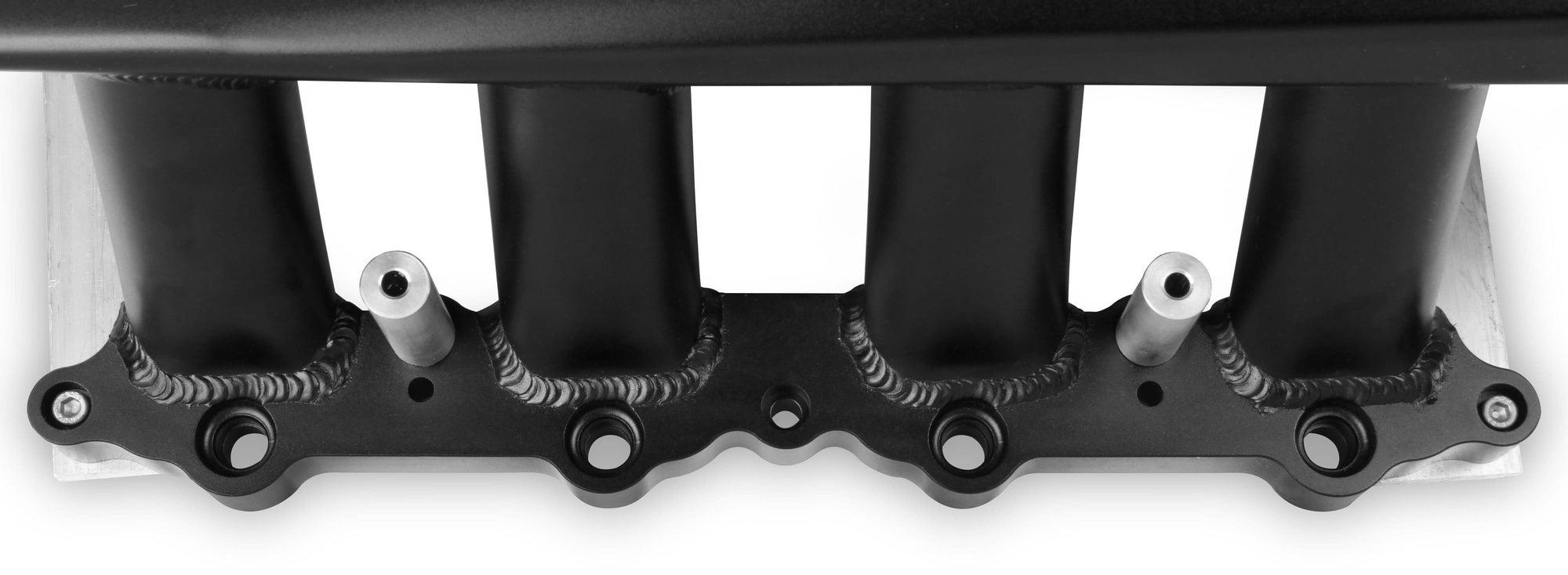

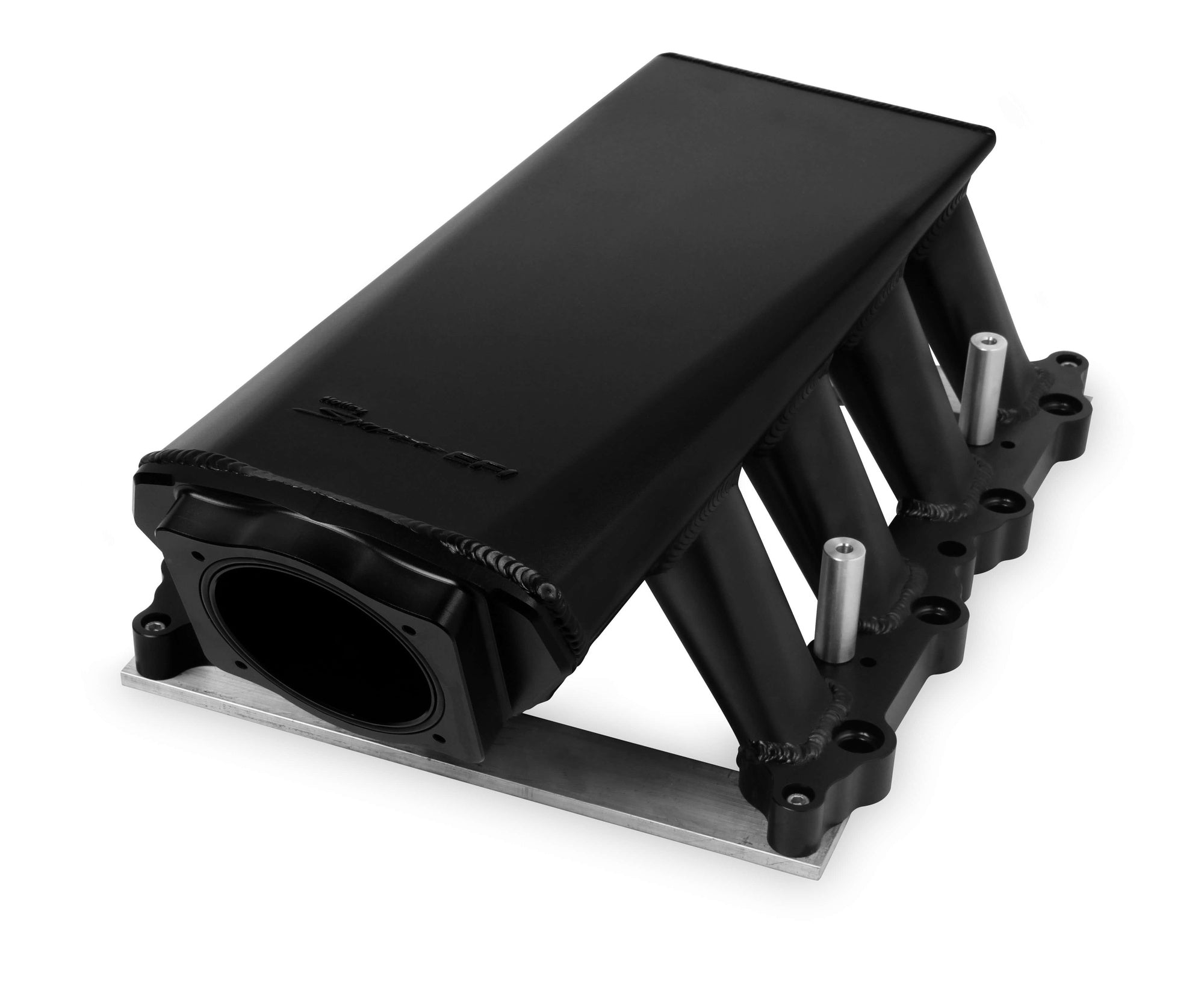

Sniper EFI Sheet Metal Fabricated Intake Manifold
Holley continues to expand its offering of Sheet Metal Fabricated Intake Manifolds to now cover 2015-2017 Ford Coyote 5.0L V8 engines.
📋
Product Specifications
Basic Operating RPM Range
2200-6800
Basic Operating RPM Range
4500-7500
Brand
Holley Sniper EFI
Carburetor Flange
N/A
Carburetor Quantity
N/A
Carburetor Studs Included
No
Category
Sniper EFI Intakes
CNC Ported
No
Color
Black
Construction
Fabricated

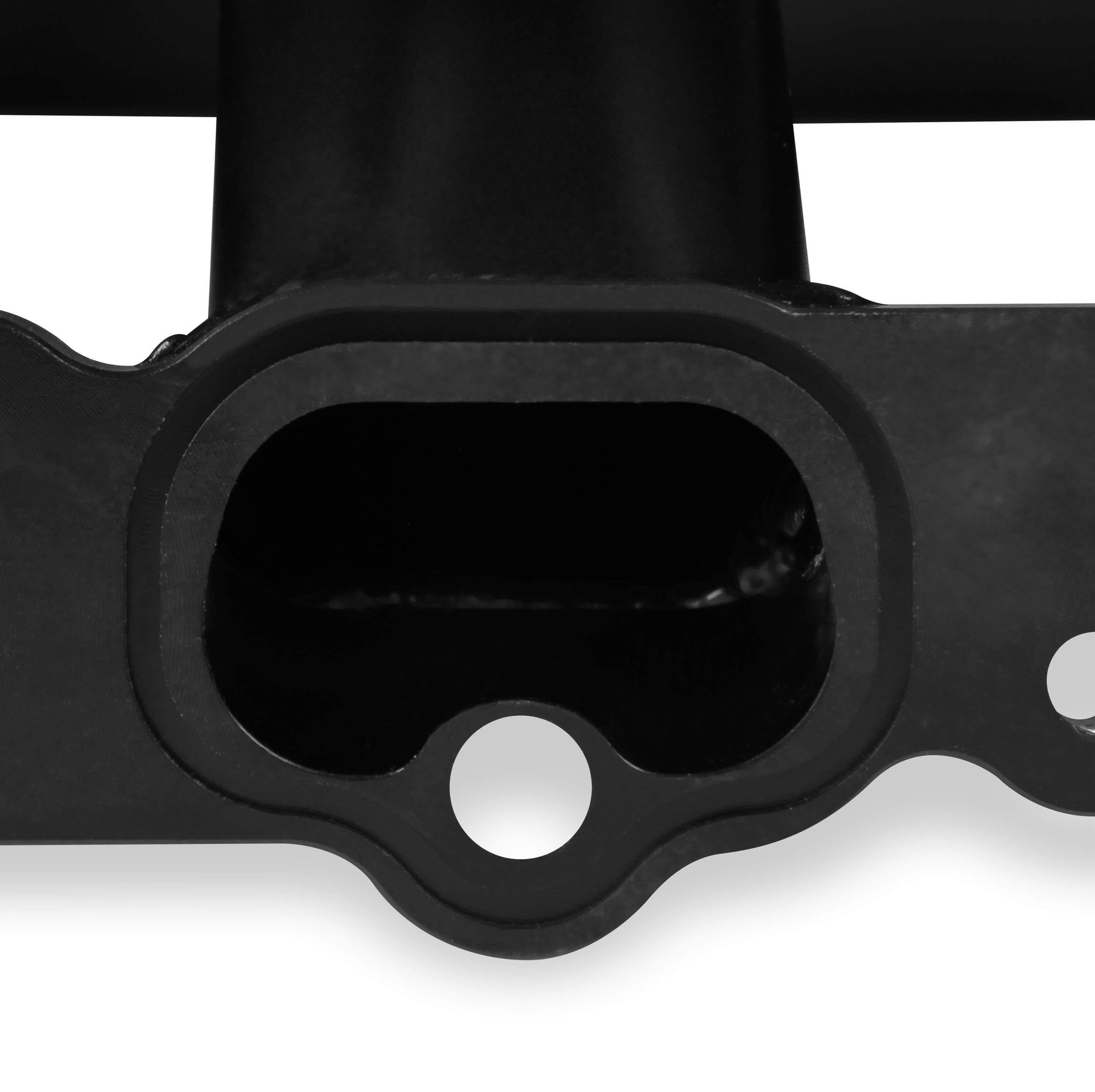

Cylinder Head Port Shape
Oval with dimple
Deck Height
8.937
EGR Port
No
Emission Code
4
Flange Style
N/A
Front Maximum Height
7.165
Fuel Injectors Included
No

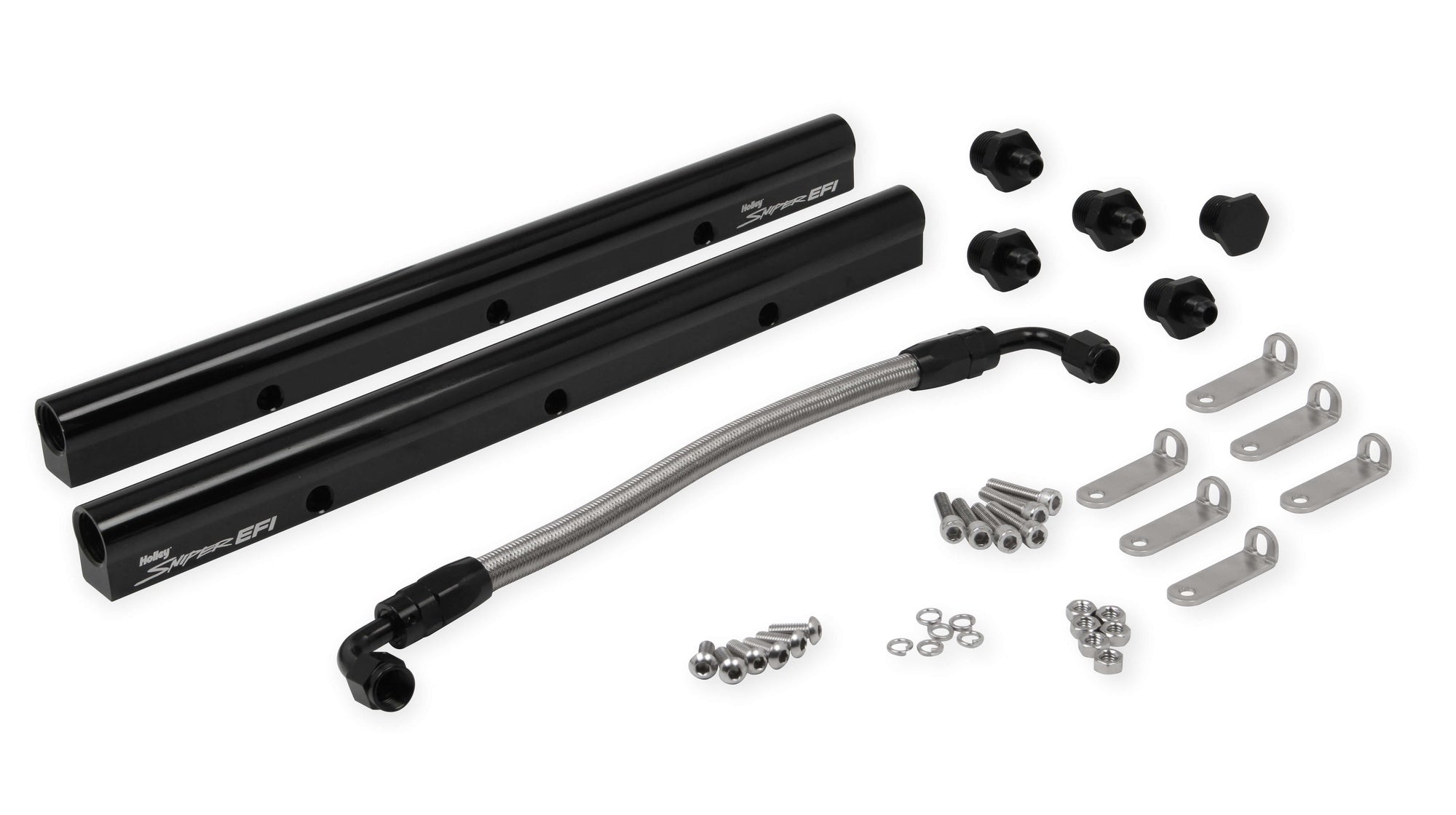

Fuel Rail(s) Included
Yes

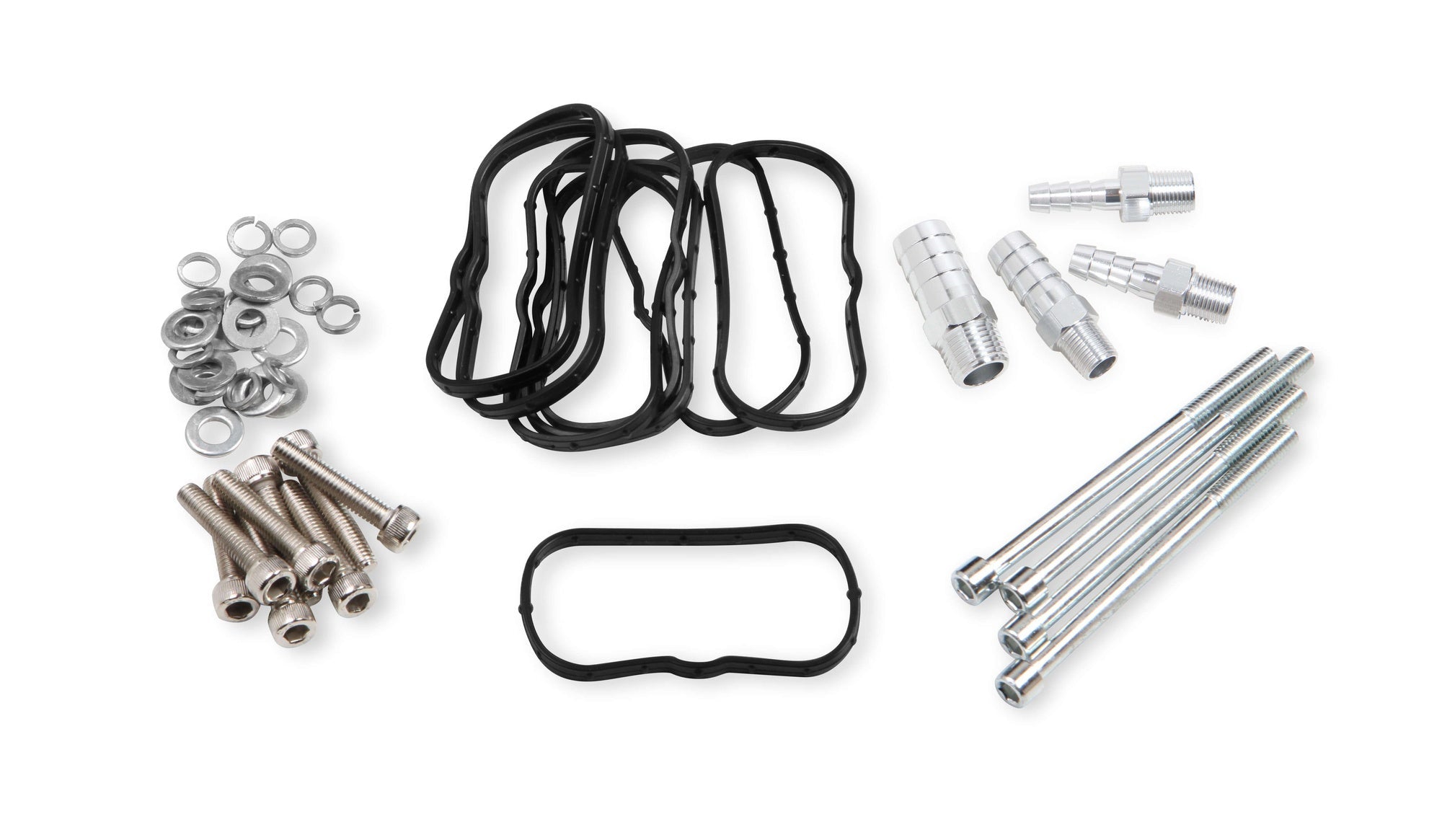

Gasket Or Seal Included
Yes
Grade Type
Performance
Injector Style Provision
EV6 USCAR
Intake Port Gasket(s) Included
Yes
Material
Aluminum
Nitrous Bung(s) Included
No
Plenum Finish
Black
Product Type
Intake Manifold
Rear Maximum Height
6.574
Removable Runners
No
Removable Top/Lid
No
Runner Length
5.709" (145mm)
Single Or Dual Plane Type
Single
Style
EFI
Throttle Body Bore Diameter
90
Throttle Body Gasket Included
Yes
Throttle Body Included
No
Throttle Bore
90mm
Vacuum Ports
(3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
📐
Dimensions & Shipping
Product Dimensions
22.4 × 15.3 × 11.3 in
