Holley Sniper EFIPart 860004-1Made in CN
Product Details
⚙️
Vehicle Fitment & Compatibility
View all 0 vehicle applications
Years
Make / Model
Submodel
Engine
1900
No applications match your search.
⭐
Key Features
Will need to use 543-34 for IAC sensor and 870001 for TPS sensor listed under Parts & Kits tab. IAC motor attaching hardware : requires (2) 8-32 UNC screws TPS sensor attaching hardware: requires (2) M4 x 0.7 screws
Sniper EFI's new 92mm and 102mm billet aluminum LS throttle bodies give you a great way to improve engine performance without breaking the bank. Don't let the low price fool you, these are feature packed throttle bodies available in both bright silver or black anodized finishes. The enlarged bore sizes allow for increased airflow to support your higher horsepower needs, a progressive throttle pulley enhances low speed drivability and a double return spring provides solid and secure throttle control feel.

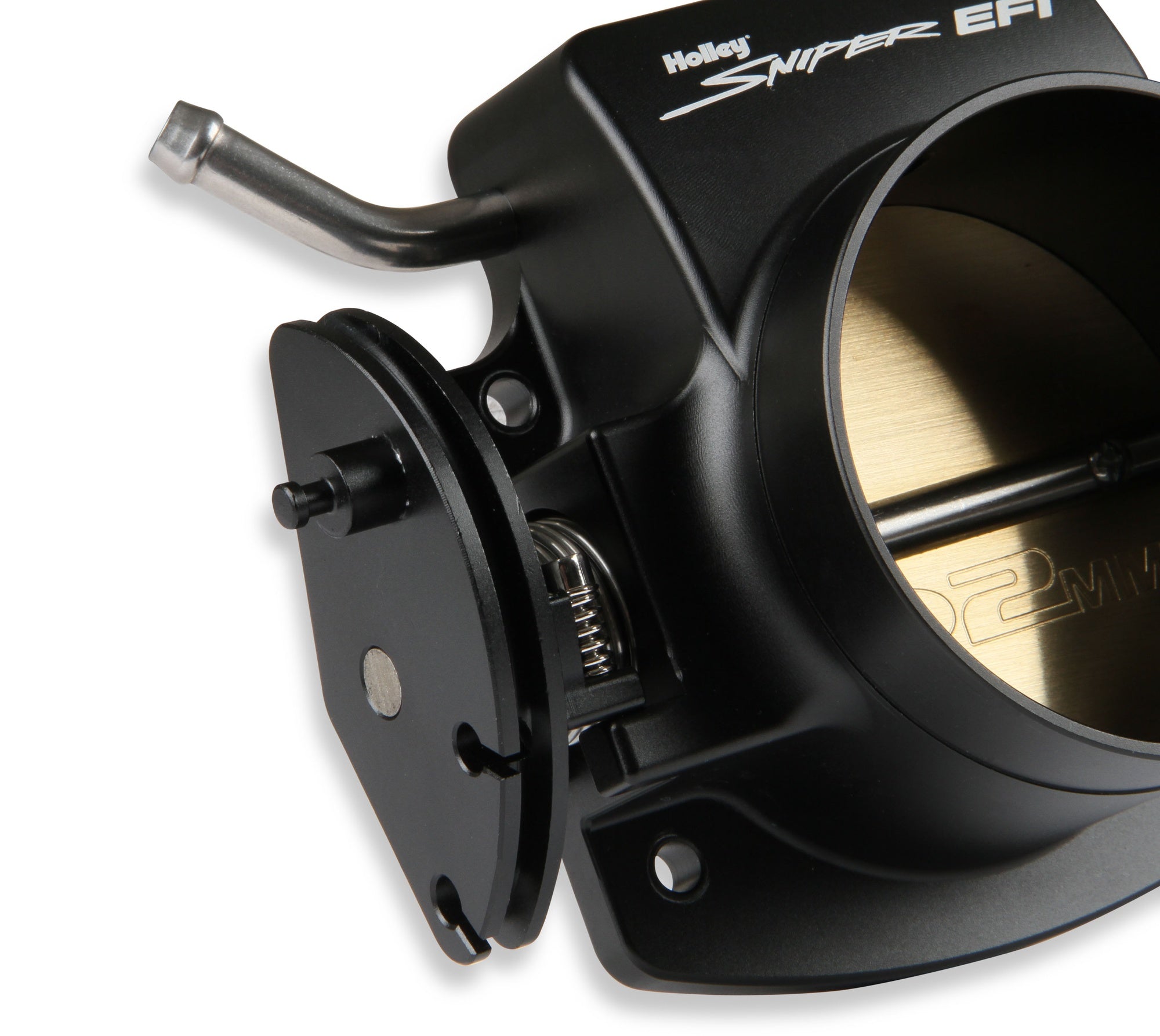

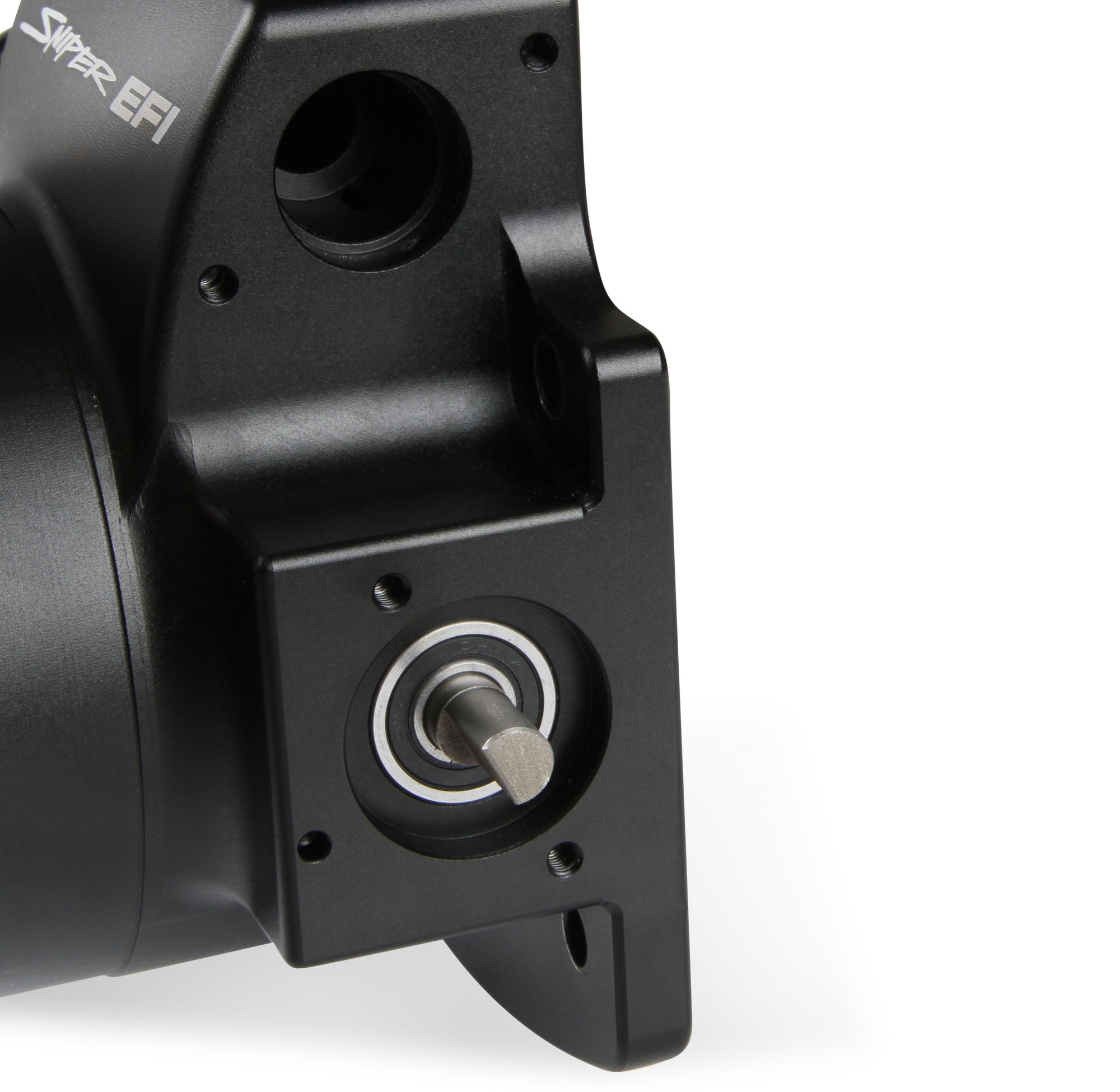

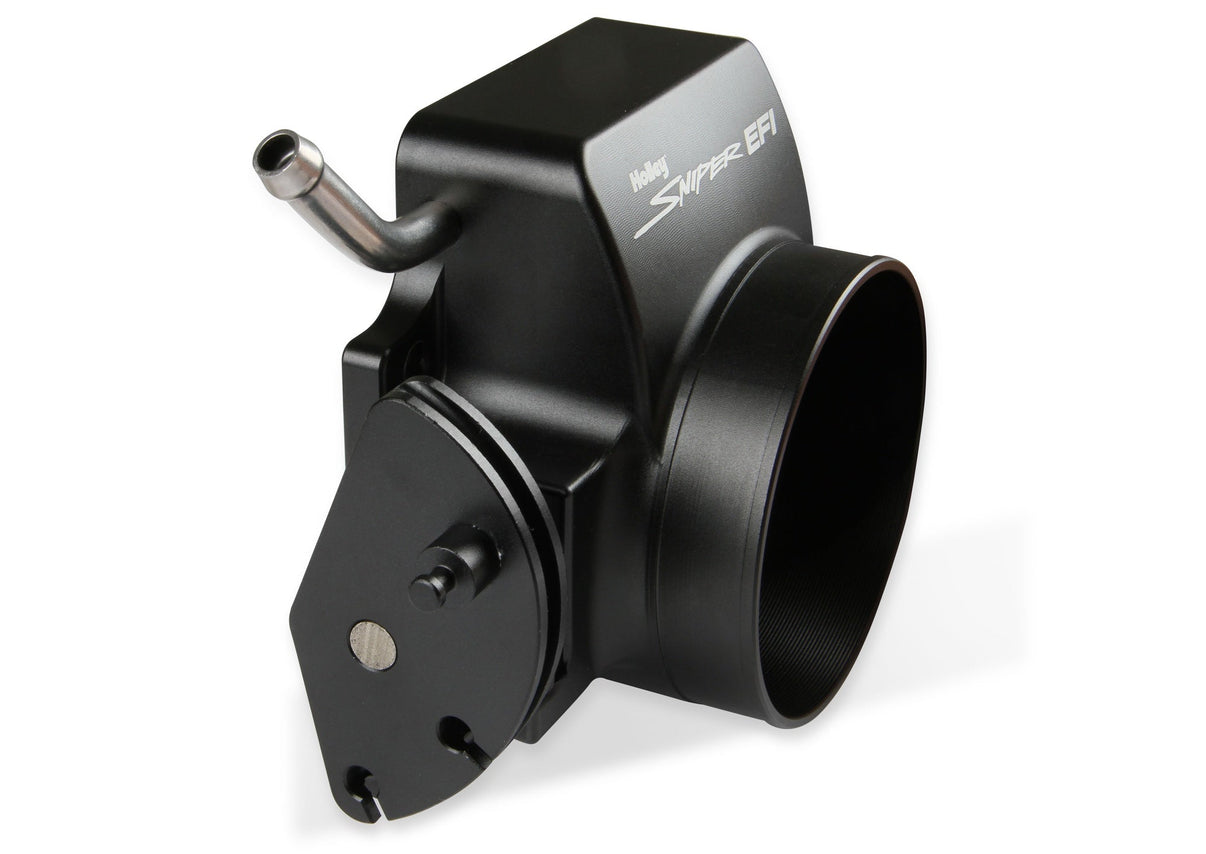

92MM Throttle Body LS Engine, Black with GM IAC provision
- Cable operated throttle body available in 92mm or 102mm openings
- Enlarged bore allows increased airflow to support higher horsepower requirements
- Works great with Sniper EFI intake manifolds
- High quality billet aluminum construction
- Choice of bright silver or black anodized finish
- Laser engraved Sniper EFI logo
- Progressive throttle pulley and double return spring
- Adjustable throttle stop
- 4-bolt style mounting pattern, bolts included
📖
About this product
92MM Throttle Body LS Engine, Black with GM IAC provision
📋
Product Specifications
Billet Color
Black
Brand
Holley Sniper EFI
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Air and Fuel Delivery
Emission Code
8
Fuel Injectors Included
No
Gasket Or Seal Included
No
IAC Hardware Specs
(2) 8-32 UNC
Idle Air Control Motor Included
No
Material
Billet Aluminum
Mounting Hardware Included
Yes
Part Type
Fuel Injection Throttle Body
Product Type
Throttle Body
Prop 65 Yes/No
Yes
Sub Category
Fuel Injection System and Related Components
Throttle Bore
92mm
Throttle Diameter (mm)
92mm
TPS Hardware Specs
(2) M4 x 0.7
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
8
HS Code
8481809050
📐
Dimensions & Shipping
Product Dimensions
8.7 × 7.0 × 4.8 in
Shipping Dimensions
8.7 × 7.0 × 4.8 in
Weight
1270 g (1.27 kg)
