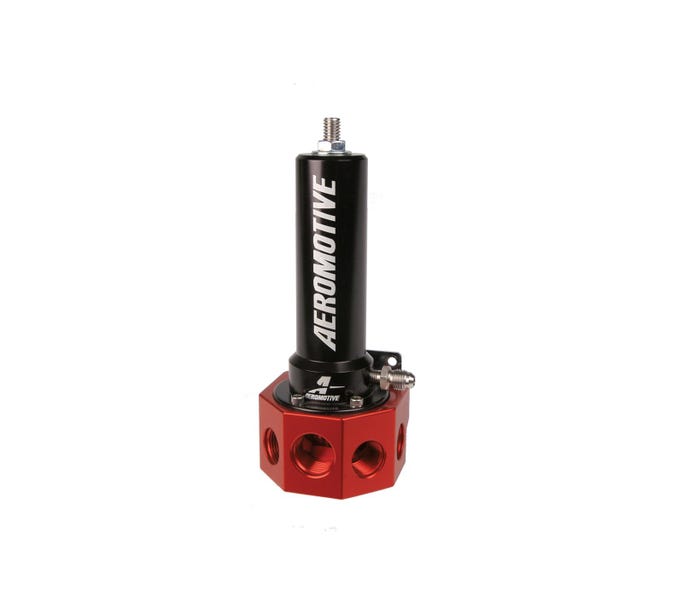

AEROMOTIVE BELT DRIVE REGULATOR - 40-100 PSI - 13113
Ultra-High Flow EFI Regulator, adjustable from 40-100 PSI. Engineered for our Belt-Drive and Hex-Drive Fuel Pumps, the Belt Drive EFI Regulator is suitable for engines making up to 4,000 HP on gasoline and is compatible with gasoline and methanol. • Perfect for any mechanically driven EFI fuel pump developing over 200 GPH at EFI pressure. • Base pressure adjustable from 40-100 PSI. • References Vacuum/Boost on a 1:1 ratio. Includes two boost line adapters, one barbed for rubber hose, the other for AN-04 braided line. (Prevents blow-off in high boost applications) • Ports available for nitrous fuel supply, pressure gauges and transducers. • (4) ORB-08 inlet ports, (1) ORB-10 inlet port and (1) ORB-10 return port.
📋
Product Specifications
Boostvacuum Reference
YES
Boostvacuum Rise Ratio
1:1
Brand
Aeromotive
Btr Sku
AEI-13113
Finish
RED
Fuel Inlets
DUAL
Fuel Outlets
SINGLE
Height
6.000000
Inlet Size
10AN
Length
6.000000
Part Type
Fuel Pressure Regulator
Pressure Range - Psi
40-100
Regulator Type
EFI - MECHANICAL PUMP
Return Size
10AN
Weight
5.000000
Width
6.000000
