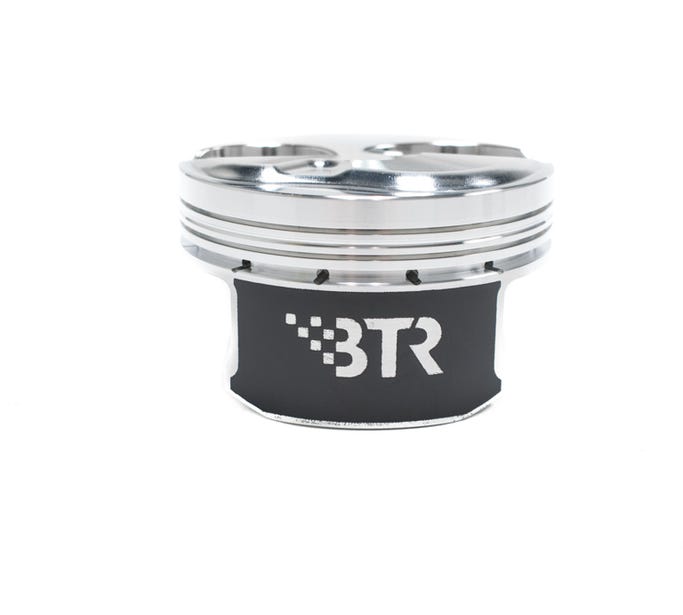

DIAMOND/BTR PISTON SET - GEN V LT4 - 4.065" BORE - FOR STOCK CRANK AND RODS - 10.7:1 SCR - 801BTR
• 3D milling on piston crowns for ready to install finish
• Piston crowns designed to work with OEM direct injection
• Inboard forging design for maximum strength
• Valve pockets designed to work with most aftermarket cylinder heads
• Offset pins for quiet operation
• Moly skirt coating for friction loss and skirt wear protection
• Top ring down dimension: .300”
• Ratios figured for .053” head gasket
• Premium 1.2mm/1.2mm/3.0mm ring package included
• Premium 8620 .180W wrist pins chamfered for roundwire locks included
• Valve pocket depth: 0.200” intake and .200” exhaust
• 2618 material for high horsepower, nitrous, and forced induction applications
📋
Product Specifications
Brand
Diamond Pistons
Btr Sku
801BTR
Engine Type
Gen V LT
Height
10.000000
Length
29.000000
Part Type
Pistons
Piston Bore Size
4.065"
Piston Pin Size
.943"
Piston Stroke
3.622"
Piston Style
DISH
Piston Volume
2.8cc
Rod Length
6.098"
Weight
17.000000
Width
13.000000
