Product Details
⭐
Overview

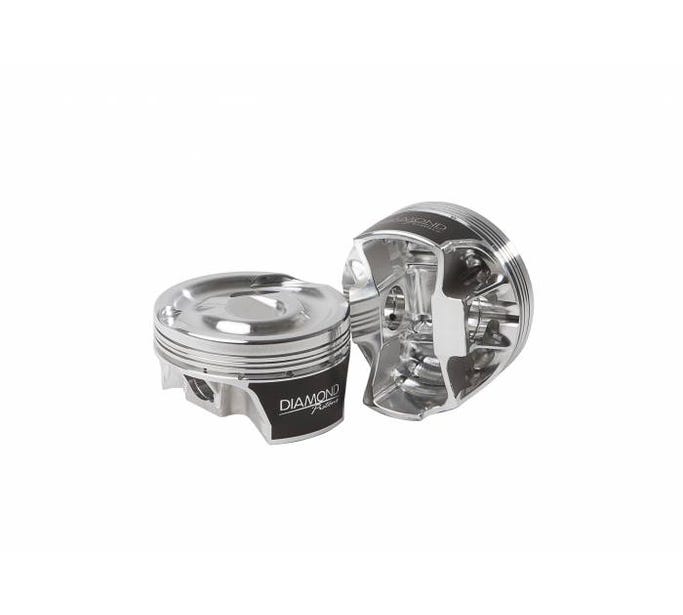

•3D milling on piston crowns for ready to install finish
•Valve pockets designed to work with most aftermarket cylinder heads
•Offset pins for quiet operation
•Moly skirt coating for friction loss and skirt wear protection
•Top ring down dimension: .250”
•Ratios figured for .040 head gasket
•Premium 1.2mm/1.2mm/3.0mm ring package included
•Premium 8620 .185w wrist pins included
•2618 material for high horsepower, nitrous, and forced induction applications
📋
Product Specifications
Brand
Diamond Pistons
Btr Sku
11533-R2-8
Engine Type
Gen V LT
Height
5.000000
Length
12.000000
Part Type
Pistons
Piston Bore Size
4.065"
Piston Pin Size
.927"
Piston Stroke
3.622"
Piston Style
Dome
Piston Volume
1.5cc
Rod Length
6.125"
Weight
15.000000
Width
8.000000
