Product Details
⭐
Overview

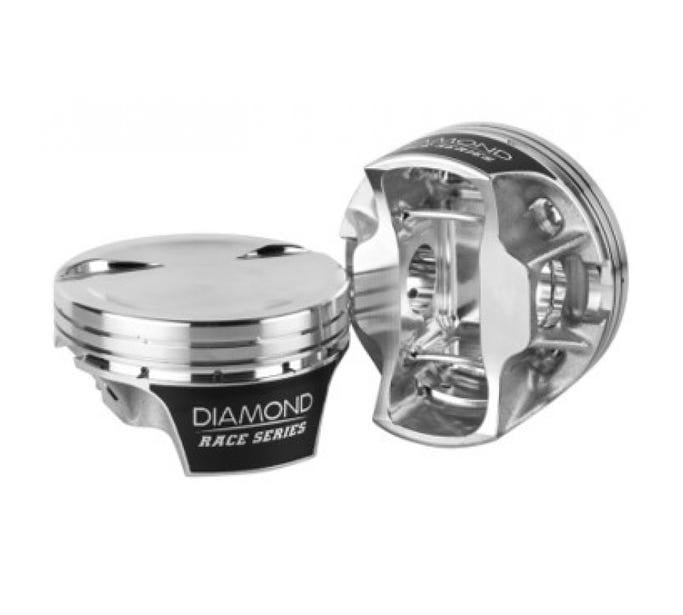

DIAMOND PISTON SET - 4.125" BORE - 4.000" STROKE - 3cc VALVE RELIEFS - FLAT TOP - 0001781953
• 3D milling on piston crowns for ready to install finish
• Valve pockets designed to work with most aftermarket cylinder heads
• Offset pins for quiet operation
• Moly skirt coating for friction loss and skirt wear protection
• Top ring down dimension: .250”
• Ratios figured for .040 head gasket
• Premium 1.2mm/1.2mm/3.0mm ring package included
• Premium 8620 .185w wrist pins included
• Valve pocket depth: 0.178” intake and .108” exhaust
• 2618 material for high horsepower, nitrous, and forced induction applications
📋
Product Specifications
Brand
Diamond Pistons
Btr Sku
DMD0001781953
Engine Type
LS7
Height
5.000000
Length
28.000000
Part Type
Pistons
Piston Bore Size
4.125"
Piston Pin Size
.927"
Piston Stroke
4.000"
Piston Style
FLAT TOP
Piston Volume
3.0cc
Rod Length
6.125"
Weight
15.000000
Width
12.000000
