APRPart ic100017✓ Fits 5 vehiclesMade in US
Product Details
⚙️
Vehicle Fitment & Compatibility
5 applicationsCompatible Engines
2.0L L4
View all 5 vehicle applications
Years
Make / Model
Submodel
Engine
2009–2016
Audi A4
2.0L L4
2009–2016
Audi A4 Quattro
2.0L L4
2010–2014
Audi A5
2.0L L4
2010–2017
Audi A5 Quattro
2.0L L4
2013–2016
Audi allroad
2.0L L4
No applications match your search.
⭐
Key Features
Please note, this system does not fit vehicles with the extra Audi Drive Select cooler above the factory crash bar or vehicles with Active Cruise Control.

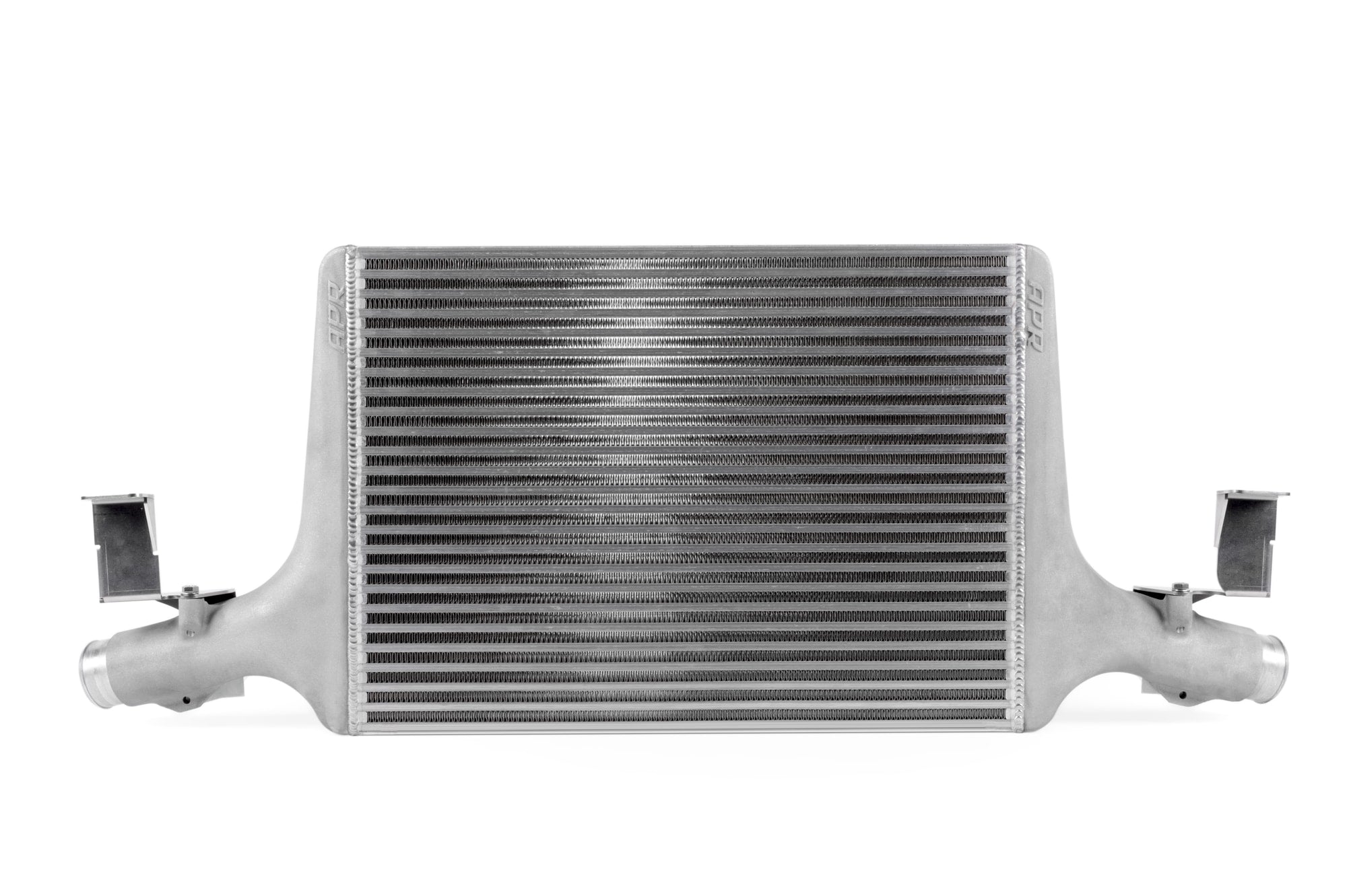

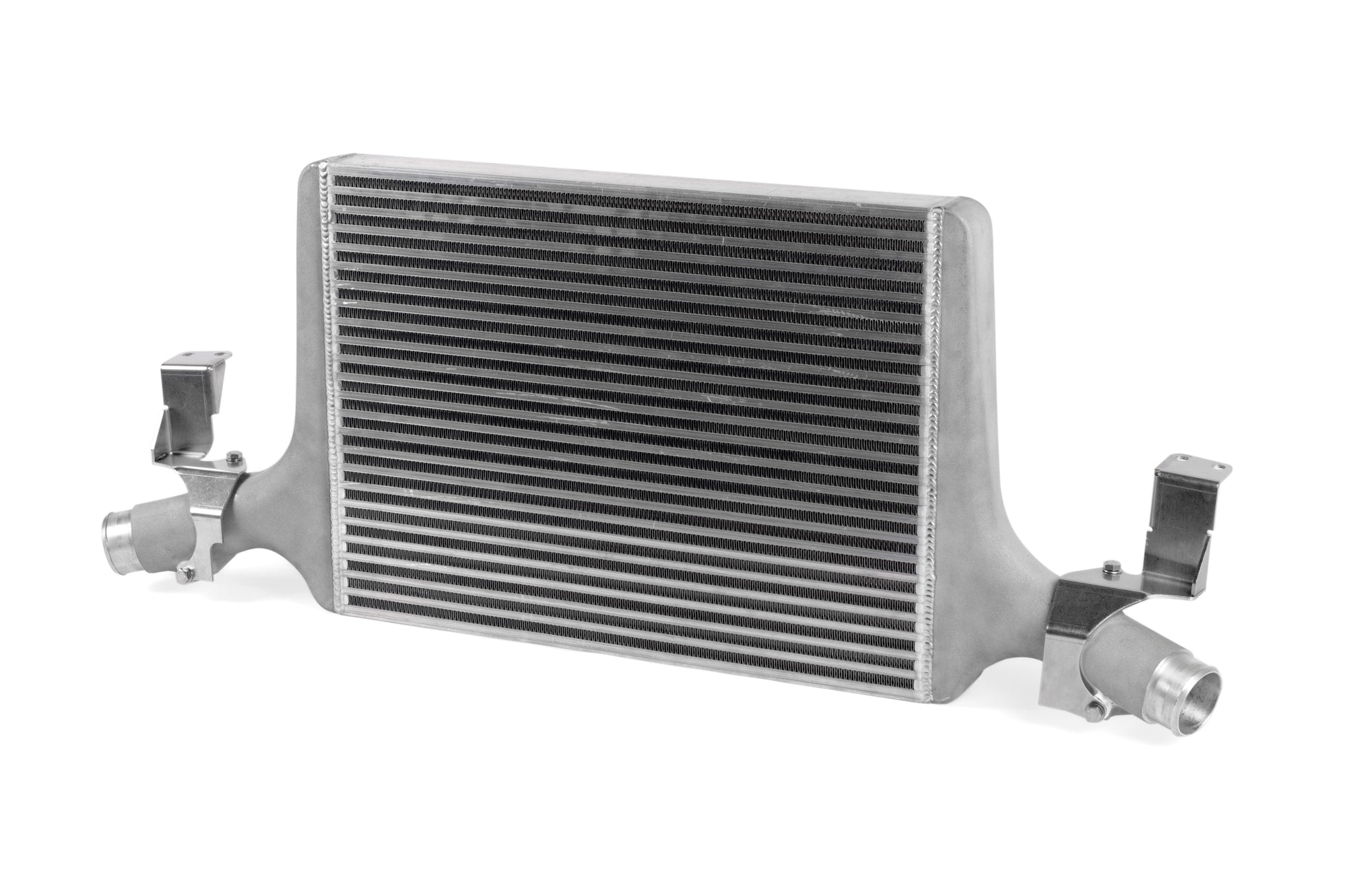

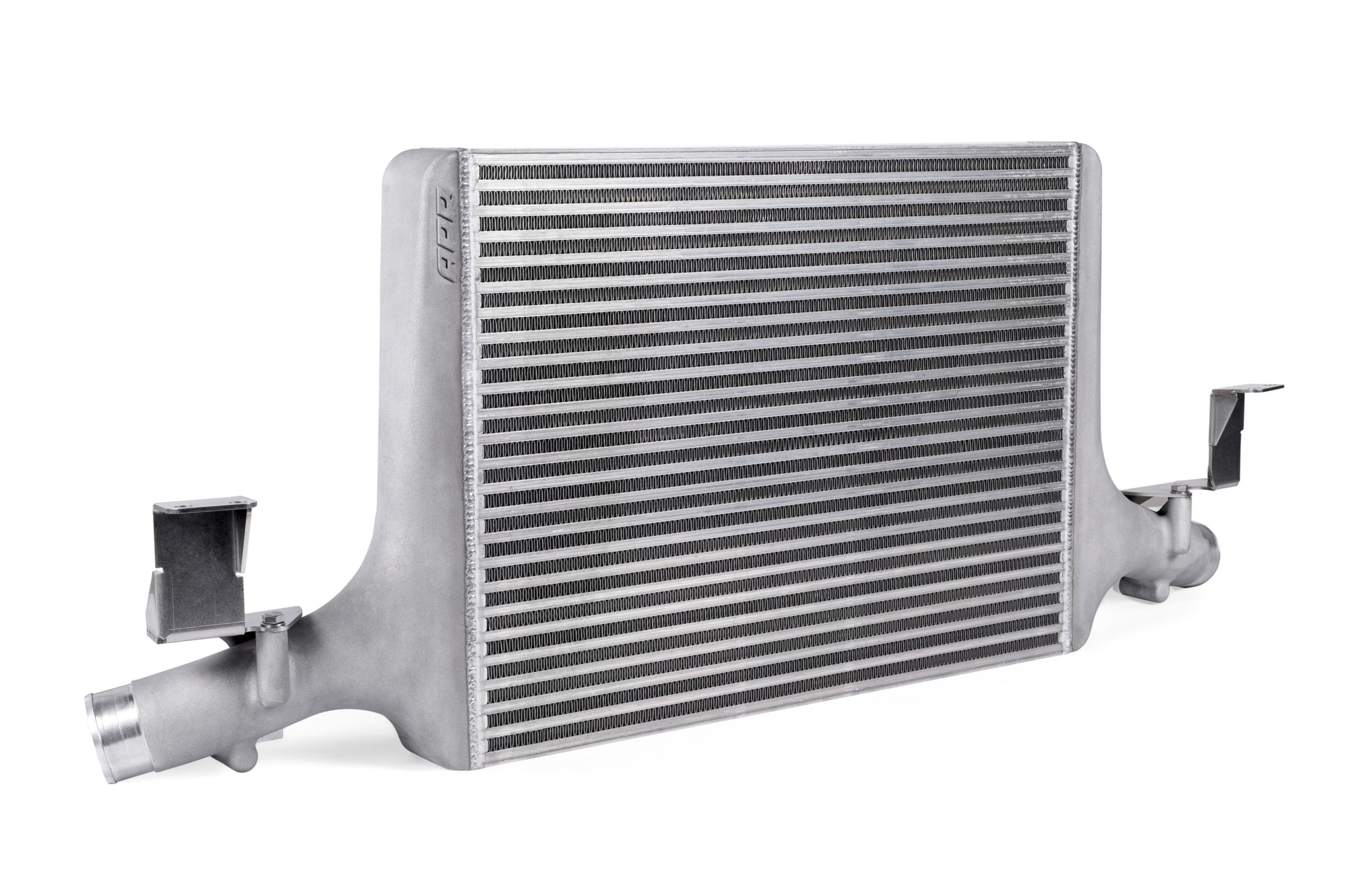

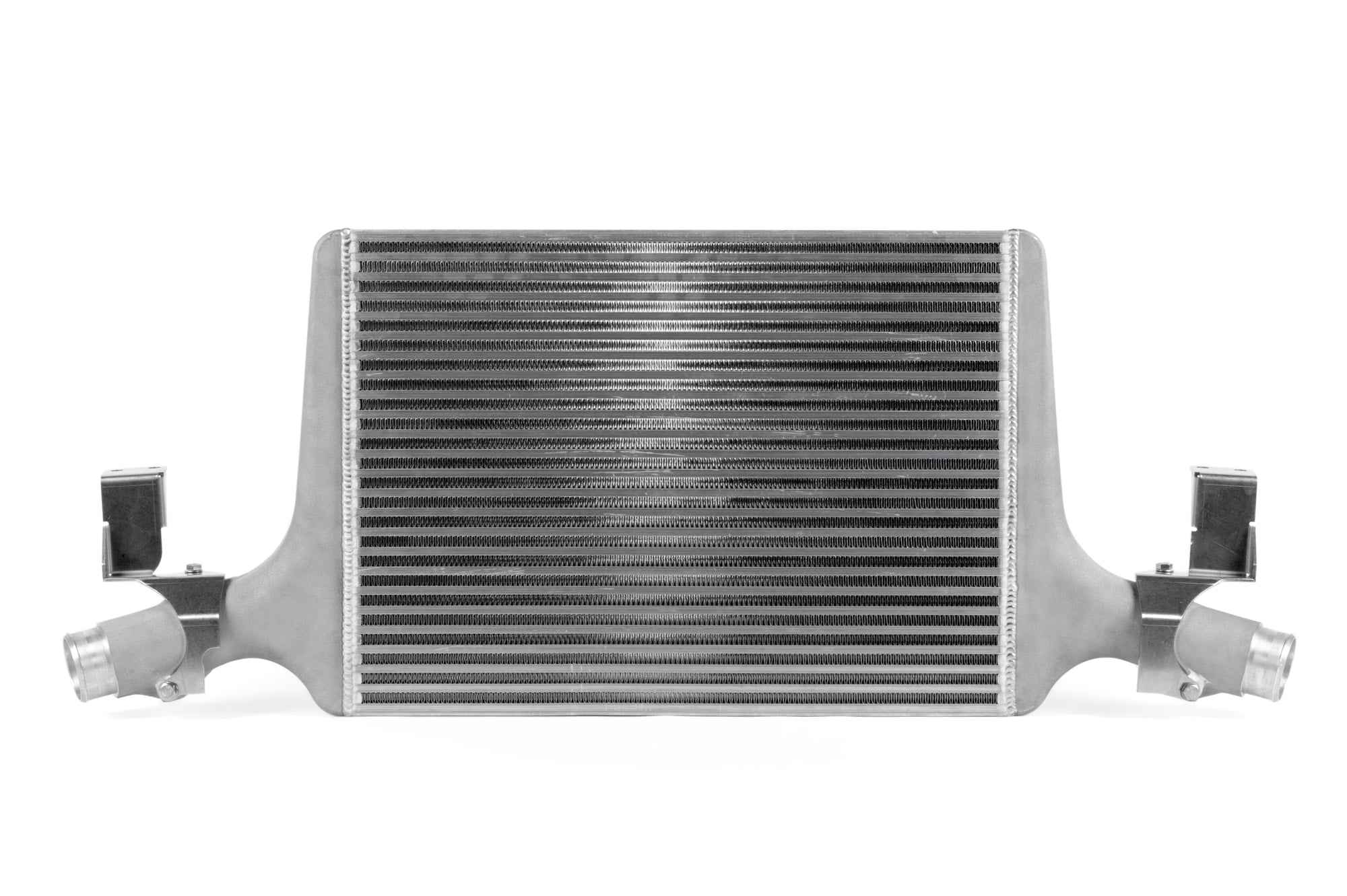

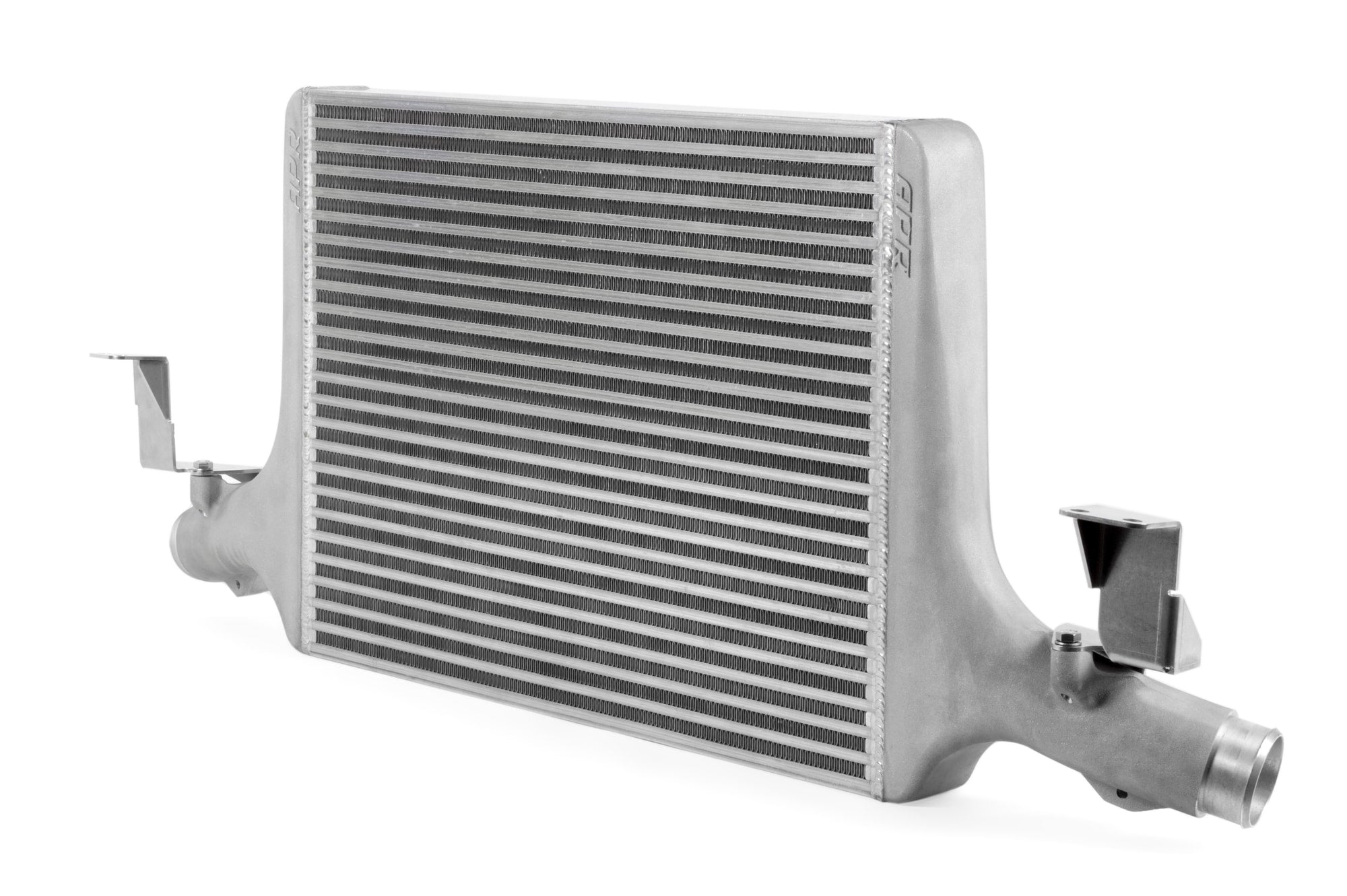

The APR Intercooler System is a massive front mounted upgrade that dramatically reduces intake air temperature (IAT), minimizes heat soak, and provides increased performance! The system is an easy to install, direct bolt-on design, that is recommended at every stage of performance.
Fits Audi A4 09-16, A4 Quattro 09-16, A5 10-14, A5 Quattro 10-17, allroad 13-16
- Dramatically lowers intake air temp (IAT)
- Increases horsepower while minimizing power-robbing heat soak!
- 17 horsepower gain over the factory system!
- Massive frontal surface area and core volume
- 2.50" x 5.50" x 26.00" - 143.00 in² front. & 357.5 in³ volume - OEM
- 2.25" x 16.2" x 22.00" - 356.4 in² front. & 801.9 in³ volume - APR
- Highly effective core design

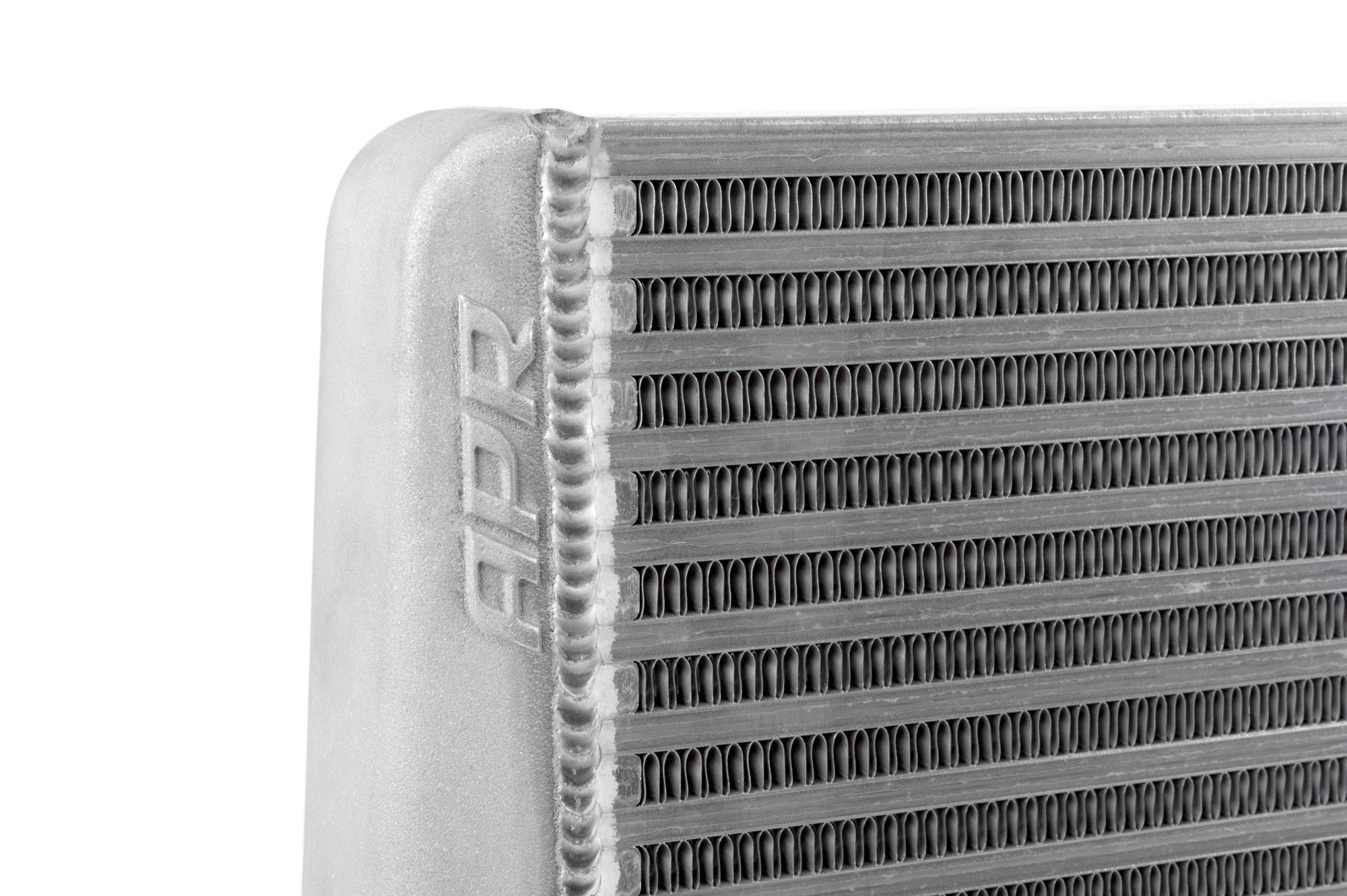

- Bar-and-plate core with staggered and louvered fins.
- Rigorous testing determined core style, fin density, and size
- Low pressure drop + highly effective cooling = high performance!

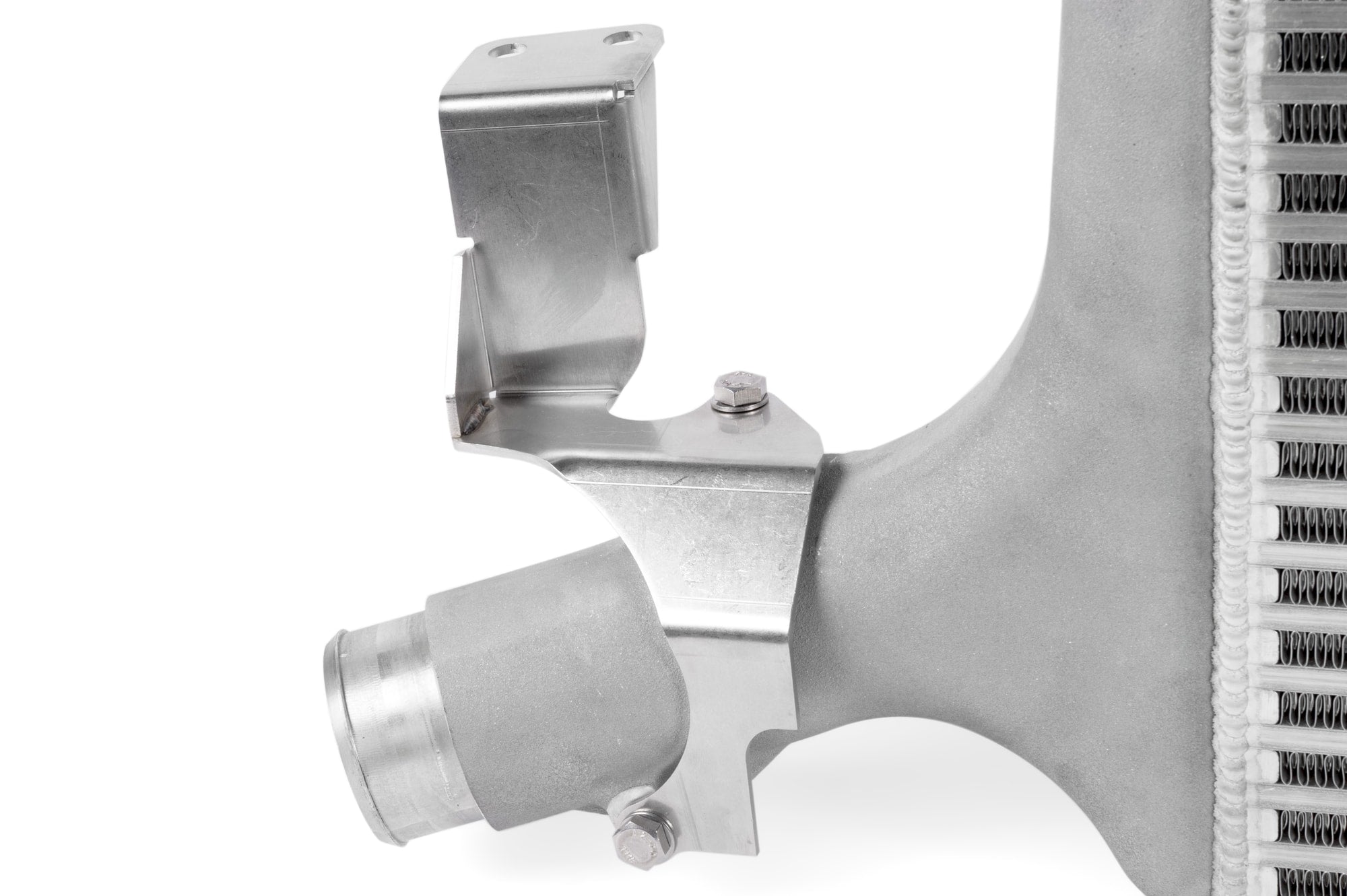

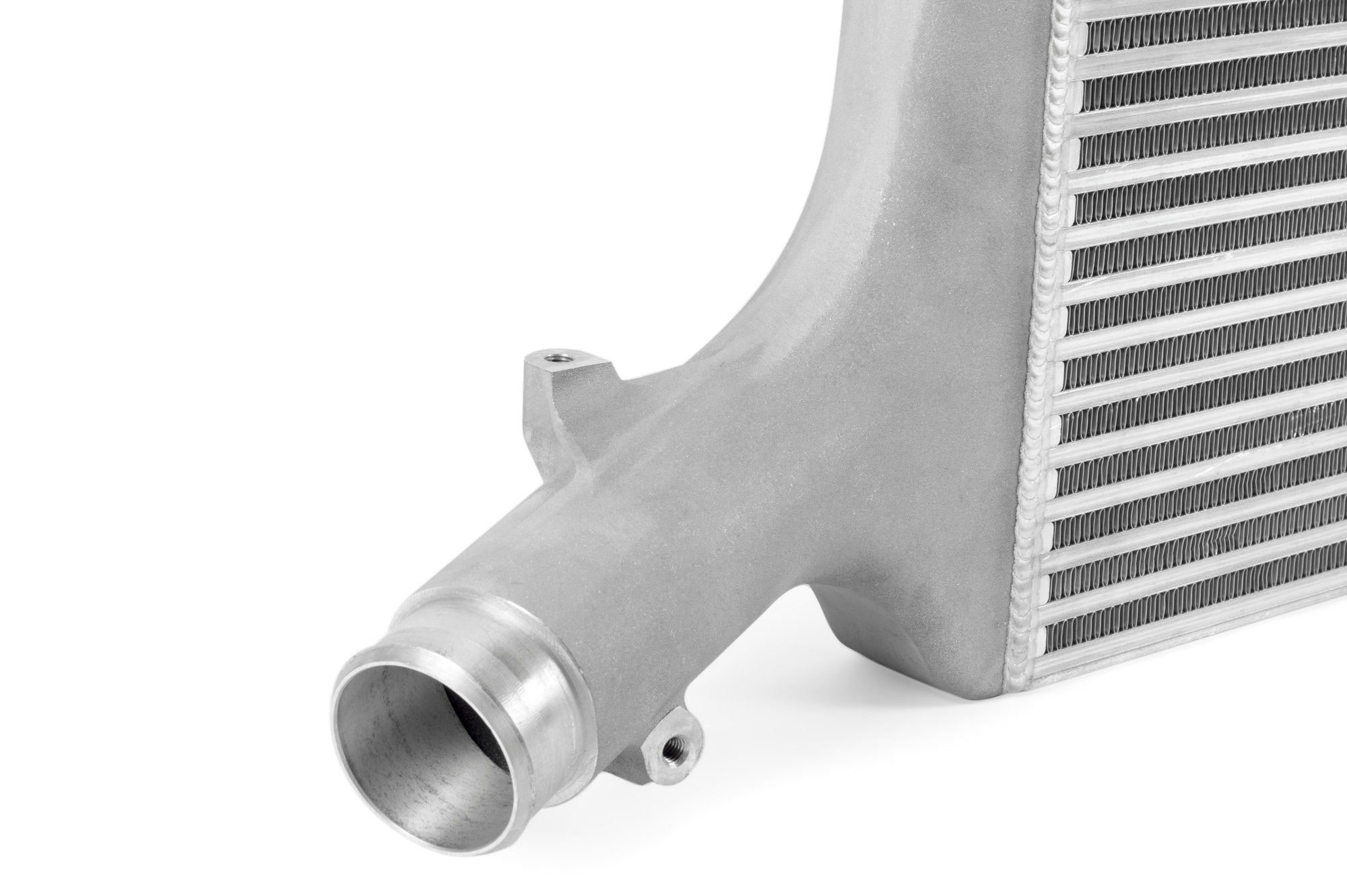

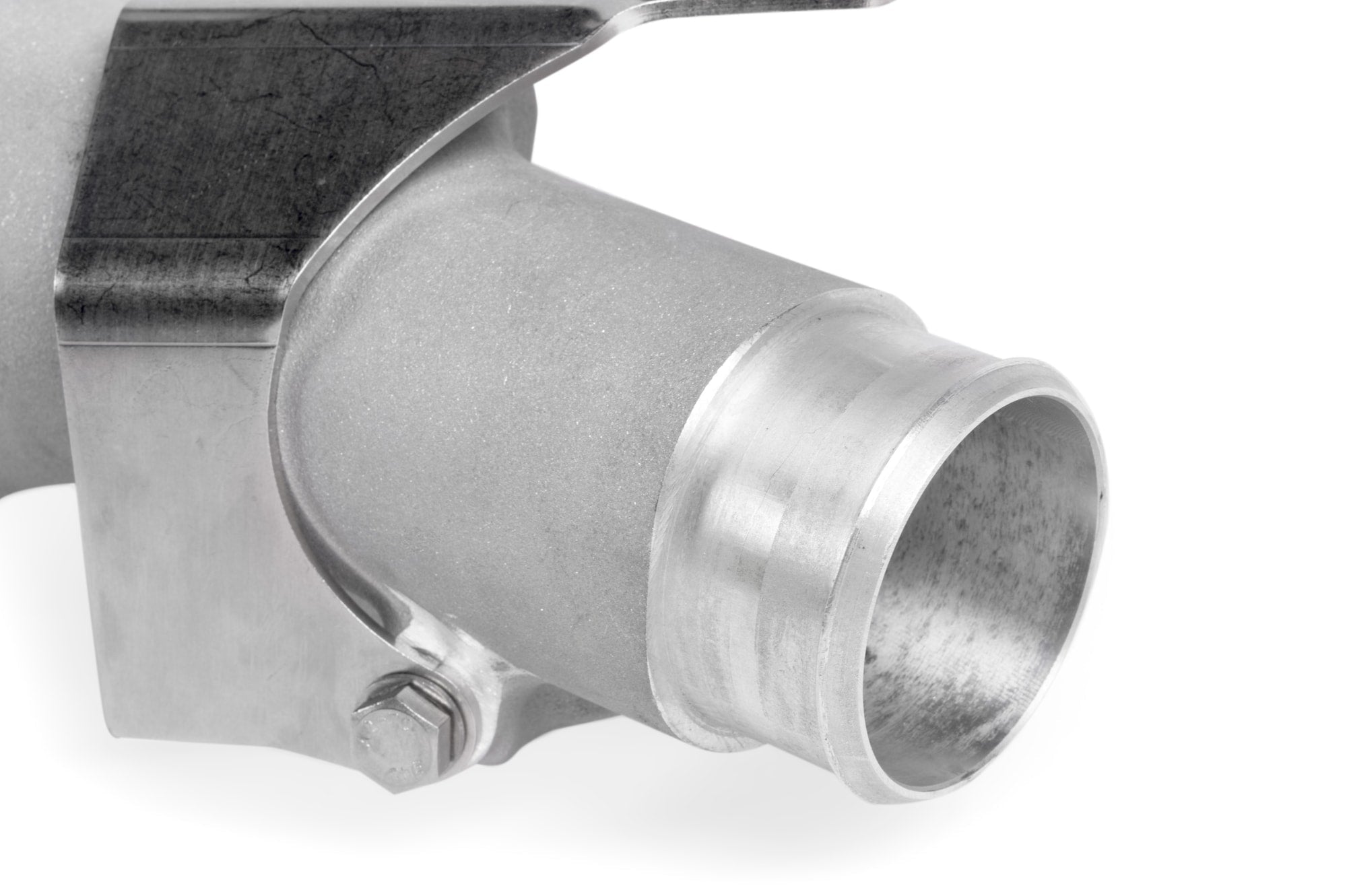

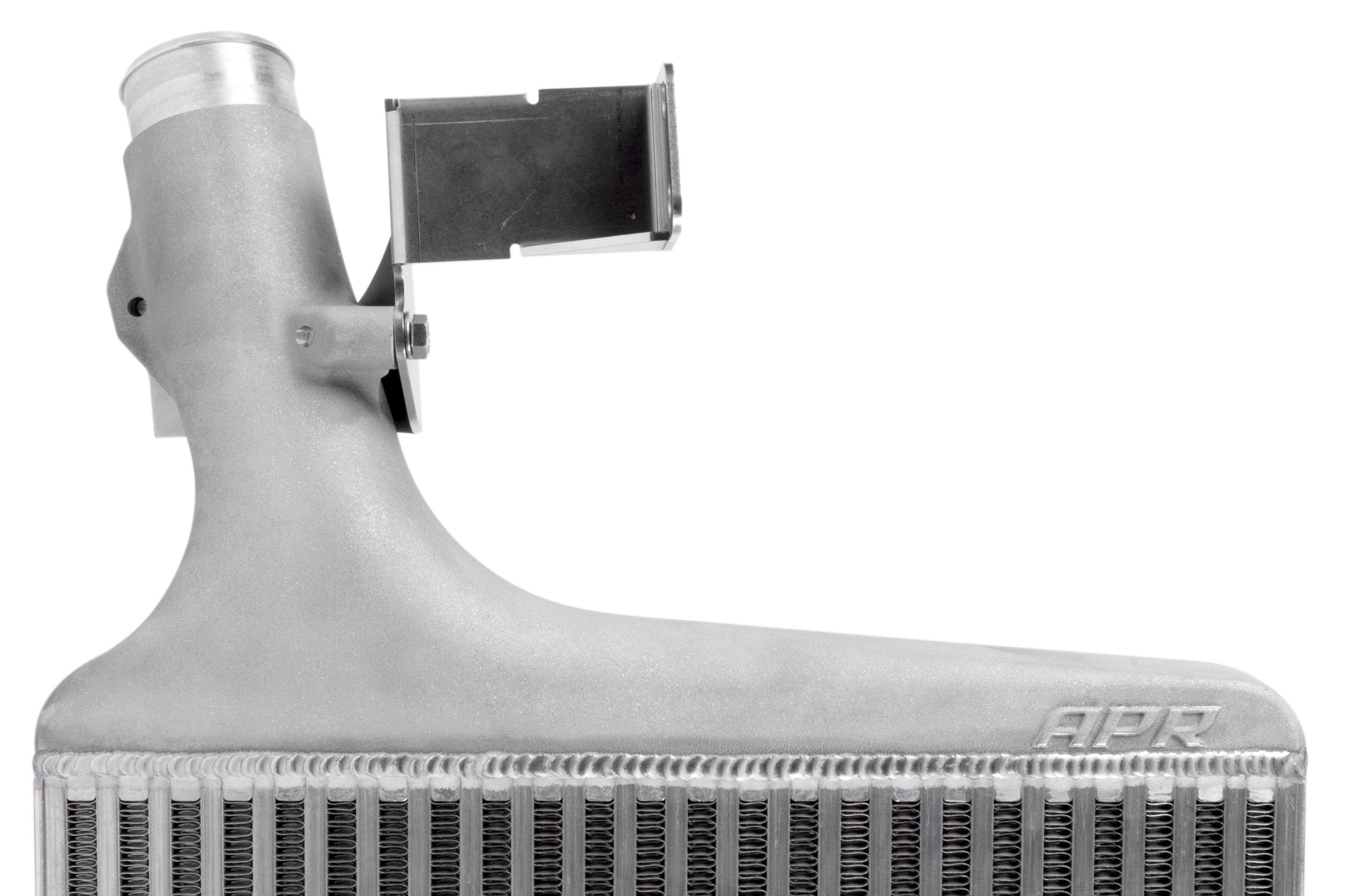

- Smooth cast end tanks
- Engineered for low turbulence/restriction and maximum flow.
- Organically shaped to promote airflow across entire core.
- Pressure tested to prevent power robbing boost leaks.

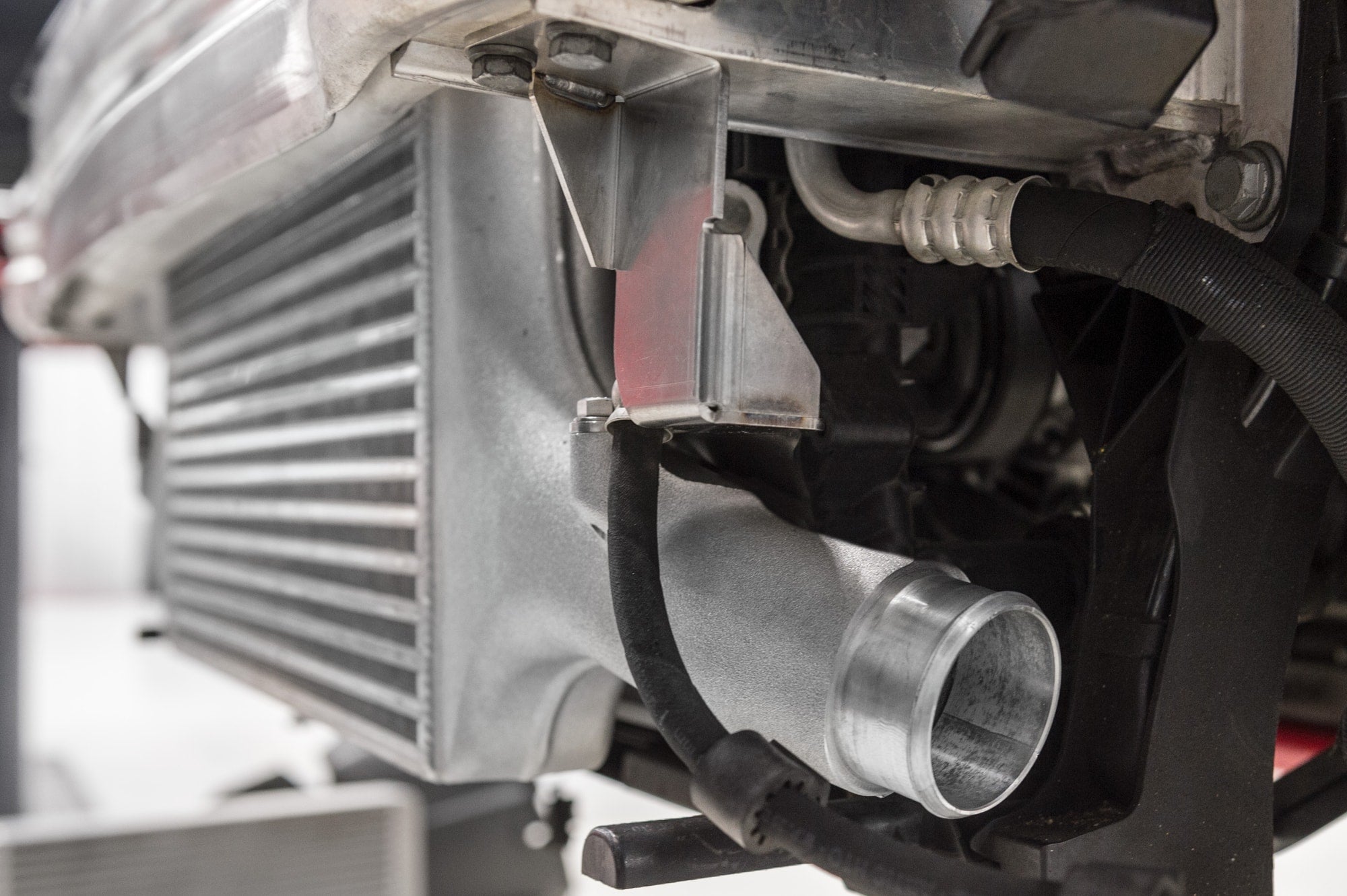

- Easy to install

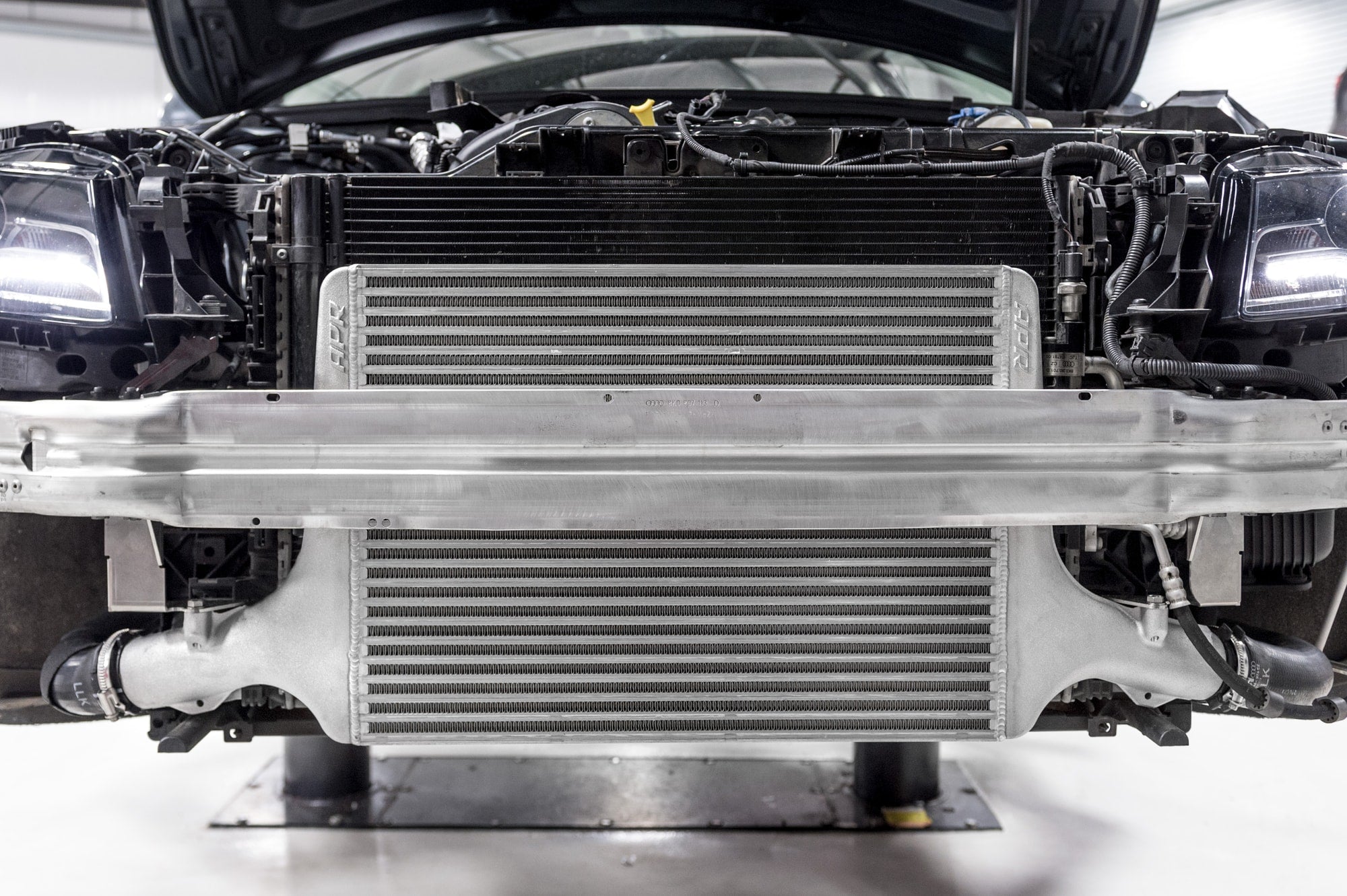

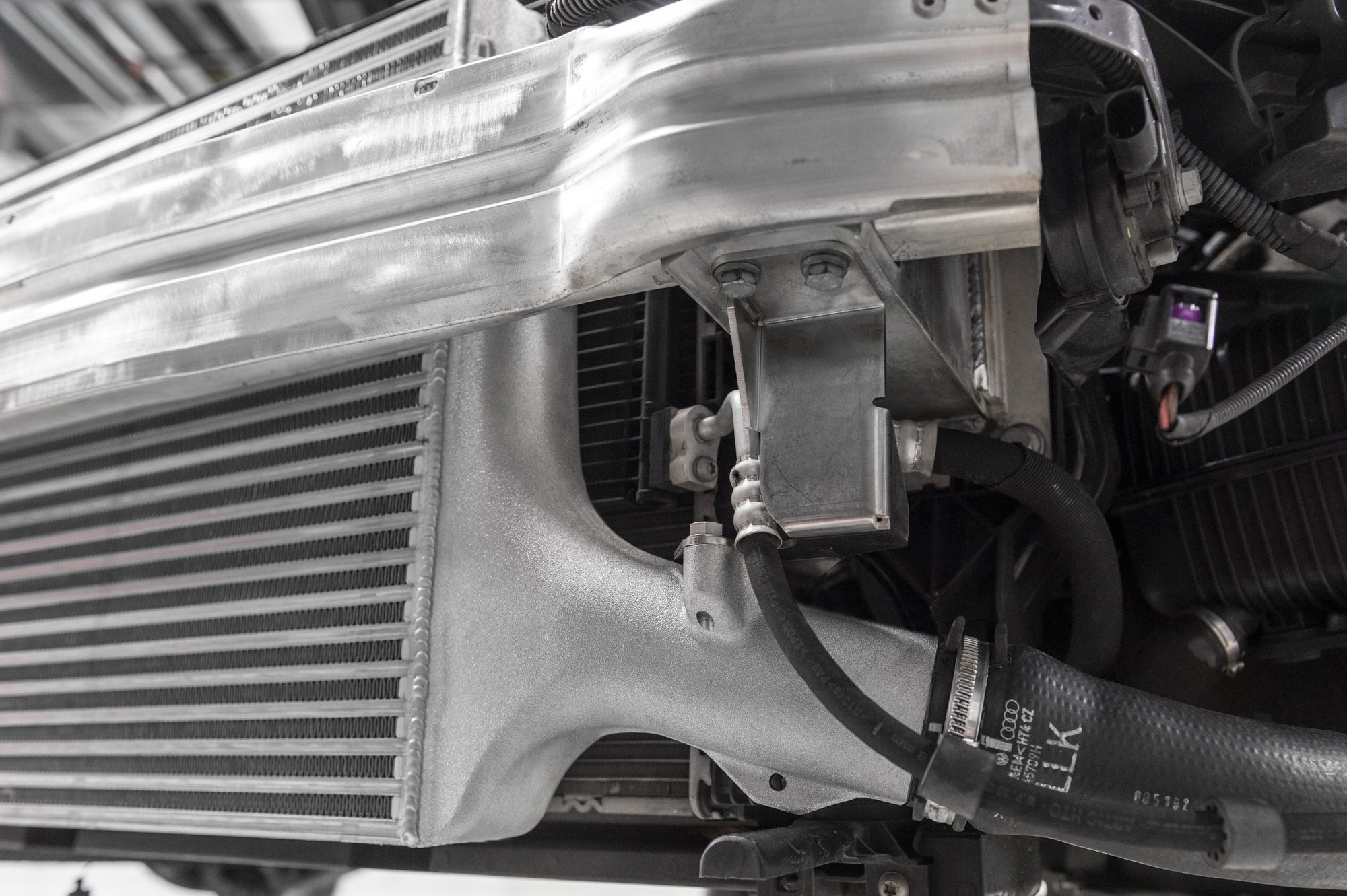

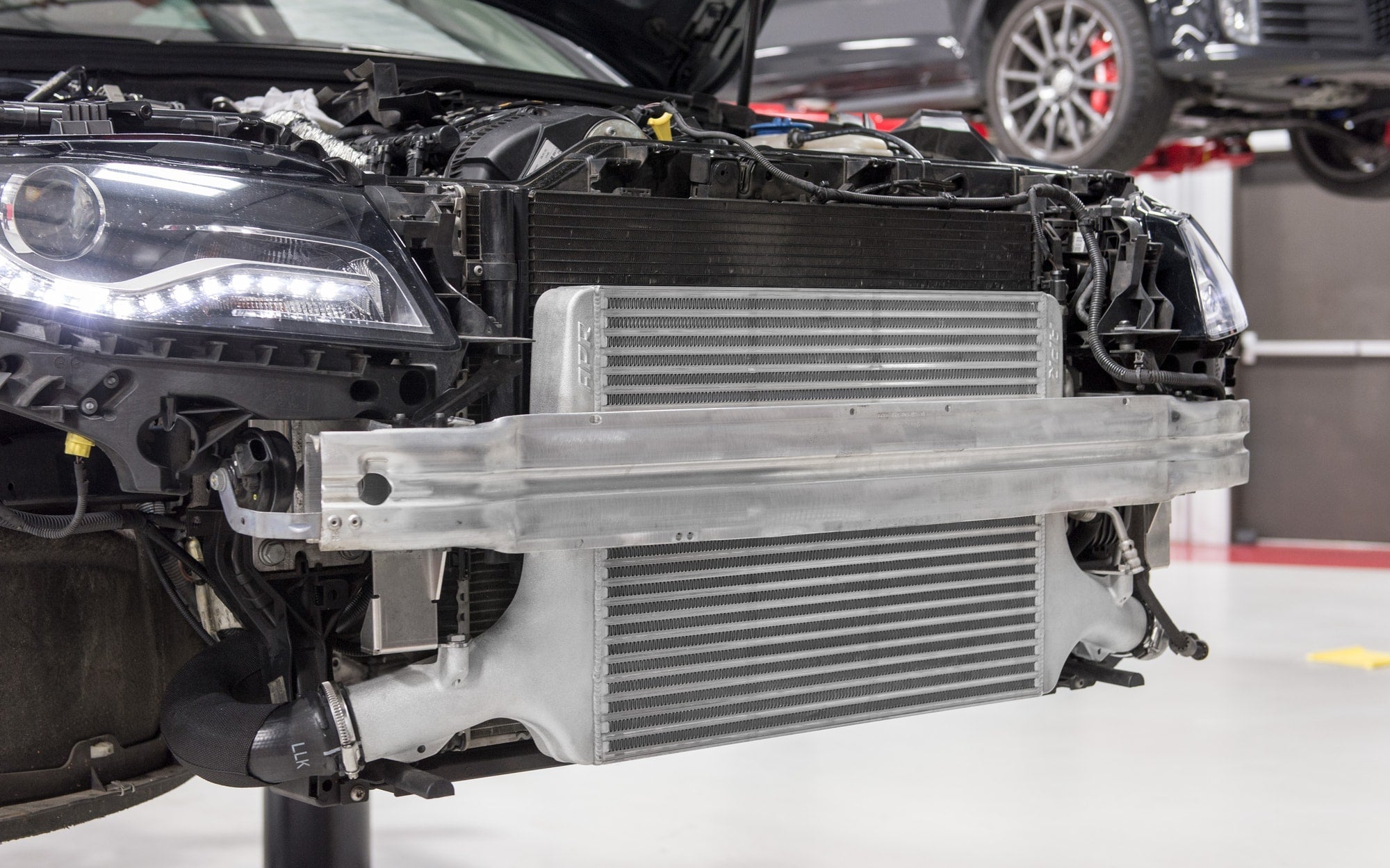

- With the bumper removed, install takes minutes!
- No trimming or drilling necessary!
- Full directions and APR world-renowned customer support included
- Designed by engineers with lasers
- With the best equipment and smartest engineers, it just works!
📖
About this product
Fits Audi A4 09-16, A4 Quattro 09-16, A5 10-14, A5 Quattro 10-17, allroad 13-16
📋
Product Specifications
Brand
APR
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Belts and Cooling
Color
Silver / Natural
Cooler Type
Air to Air
Core Frontal Area
357.50
Core Height
16.25
Core Type
Bar and Plate
Core Volume
804.38
Core Width
2.25
Direct Fit
Yes
Emission Code
7
End Tank Construction
Cast
End Tank Material
356-F Aluminum
Part Type
Intercooler
Product Type
Intercooler Systems
Prop 65 Yes/No
Yes
Sub Category
Radiators
Version
B8 2.0T (A4/A5)
Warning
California Proposition 65
Welding Type
TIG
🛡️
Warranty & Compliance
Warranty
1 months · Warranted to be free from defects in the materials and workmanship prior to installation
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
7
HS Code
8708917550
📐
Dimensions & Shipping
Product Dimensions
44.2 × 22.5 × 9.6 in
Shipping Dimensions
44.2 × 22.5 × 9.6 in
Weight
15944 g (15.94 kg)
