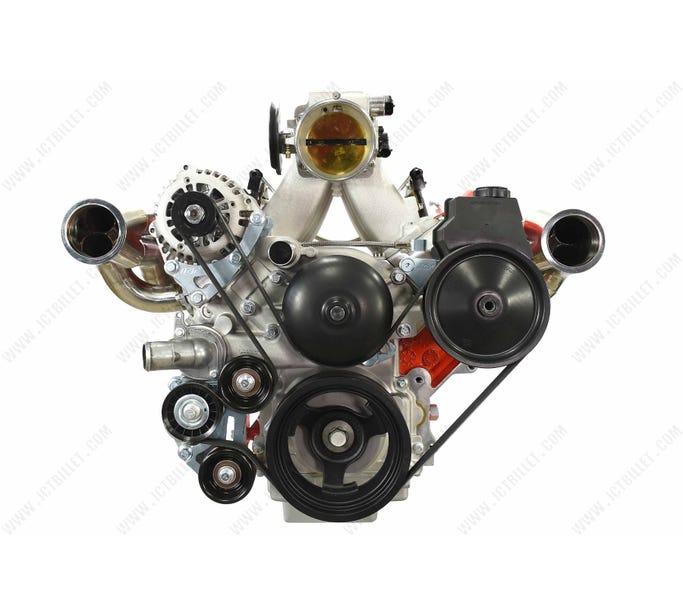

ICT Billet LS Truck Turbo Alternator/Power Steering Bracket Kit - LS1/LS3 Water Pump - 551565LS0WP-3

Used for relocating the alternator and power steering pump close to the engine centerline to clear turbo headers
Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum. This kit includes USA made metric flange bolts, belt tensioner, and idler pulleys
Compatible with: truck/SUV (or LS3/L99 Camaro) crank pulley (ICT# BAL300)
Compatible with:LS1 ('98-'02) Camaro power steering pump & pulley (ICT# PUM200 and PUL200)
Truck (any year) Alternator: (ICT# ALT300)(will not fit Corvette/CTSV, SS, G8 or 2010-15 Camaro large bolt pattern alternators, or 160 amp LS truck alternators
LS1 '98-'02 Camaro water pump (WAT200) (this kit includes water pump spacers) and LS3/L99 Camaro water pump (WAT302-spacers not needed)
**Bracket kit not compatible with any other water pump.
Fits all LS series engines
Includes mounting brackets, tensioner, idlers pulleys, and all mounting hardware
Not compatible with low mount 4-rib A/C compressor on passenger side.**Please see ICT# 551137-LS76-3 for our compatible low mount 6-rib A/C option
If using Camaro Intake Manifold and Throttle Body you may need a throttle body rotation adapter (551781) when using with LS3
If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)
This kit is made with part #'s 551587-LS01-3, 551581-3, and 551527-LS01-3 bracket kits
