Magnuson TVS2650 Magnum Supercharger Kit - 2014-2018 GM Truck L86 Engine

MAGNUSON TVS2650 MAGNUM SUPERCHARGER KIT - 2014-2018 GM TRUCK L86 ENGINE - 01-26-62-014-BL
GM Truck and SUV L86 6.2L TVS2650 Magnum Supercharger System
+45% Horsepower - 640 hp and 579 ft-lbs at the crank
Direct bolt-on install with OEM fit and finish
Complete kit includes calibration with handheld tuner
Proven Performance Gains
Boost power output to 640 hp and 579 ft-lbs at the crank-adding 45% more horsepower-delivering consistent torque and robust, reliable performance throughout the RPM range.
Hear It In Action
Experience the powerful and refined sound of Magnuson's Magnum TVS2650 supercharger, designed to deliver instantaneous throttle response and the distinctive growl of boosted performance.

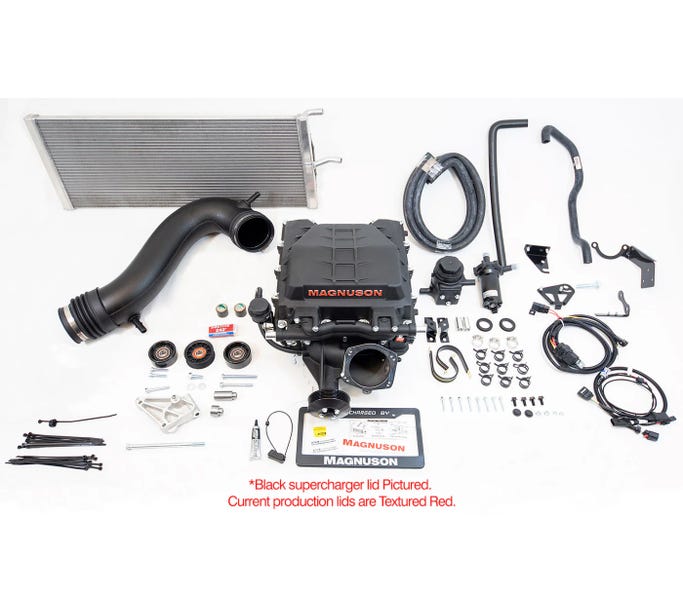

Complete Bolt-on Kit
Engineered for straightforward at-home installation, the Magnum TVS2650 supercharger kit includes everything required to confidently boost your GM Truck or SUV, with robust cooling, hardware, and full calibration.
Product description
Take your GM Truck or SUV to the next level with Magnuson's TVS2650 Magnum Supercharger System! Built off of our premium Magnum Performance Line, our Magnum Truck Kit will give your engine an incredible 45% boost in horsepower: 640 hp and 579 ft-lbs at the crank! Featuring a massive charge air cooler, sitting directly above the supercharger outlet for maximum cooling capability. The uniquely styled lid has been designed to allow consistent and uniform air flow to all eight cylinders, for reliable, repeatable performance- all day long!
At Magnuson, we only use the highest quality components in our supercharger kits, from our precision machined rotors and housings, right down to detailed step-by-step installation instructions. Order yours today and unleash the power of a Magnuson Supercharger on your Truck!
Features and Specifications
640 hp and 579 ft-lbs at 8 lbs of boost.
Magnuson TVS2650 Supercharger System designed to mount on GM L86 heads with OEM look, fit and finish.
Utilizes Eaton TVS® Technology. High helix, four lobe rotors for maximum supercharger efficiency across entire speed range.
High flow durable bar and plate charge air cooler set-up with ¾" water inlet and outlet ports reduce coolant restriction, allowing maximum flow with extremely high cooling efficiency.
Vacuum bypass system for instantaneous boost response, improved part-load fuel economy, and rapid supercharger cooldown.
Compatible with L86 stock 90mm throttle body, LT5 95mm throttle body, and up to a 103mm Nick Williams throttle body.
Utilizes patented Dynamic Flow Tuning (DFT) inlet porting.
Utilizes the factory beltline; the Magnum Truck System doesn't compromise belt wrap of any components while providing over 180 degrees of supercharger pulley belt wrap.
Unique housing, lid and intercooler geometry were developed and optimized to distribute airflow evenly across the large, highly efficient intercooler for maximum cooling to deliver consistent air charge temperatures in even the most challenging driving conditions including hot temperatures and towing.
Proven maintenance-free supercharger technology. No added complexity of external supercharger oil cooler/heaters for extreme climates.
3-year/36,000-mile Powertrain Warranty
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
