Haltech Standalone ECUs and Engine Management Systems | UK Buyers Guide

The most fundamental consideration is whether the ECU has enough injector and ignition outputs for your engine. A four-cylinder needs four of each for sequential operation. A V8 needs eight. Rotary engines have their own requirements based on configuration.

Beyond the engine itself, consider what auxiliary devices you need to control: boost solenoids, idle air control valves, additional fuel pumps, cooling fans, nitrous solenoids and shift lights all consume outputs. Count everything before selecting an ECU tier.

Modern engines increasingly use electronic throttle bodies and variable cam timing. If your engine requires either, the ECU must support them. Elite 550 does not support these features. Elite 750 handles single VVT and DBW. Elite 1500 adds dual VVT. Elite 2500 provides dual DBW plus extensive VVT support. The Nexus range handles these features across all models with varying output counts.

All Haltech ECUs include some form of data logging, but capacity and sample rates vary significantly. For serious track work where you need to review runs in detail, internal logging capacity and the number of channels recorded at high frequency become important. The Nexus R5 leads here with 150 channels at 1kHz and 512MB of storage.

If you want to eliminate relays and fuses throughout the vehicle, the Nexus R5 or a combination of Elite ECU plus PD16 modules allows complete electrical control through the management system. This is particularly valuable for race cars where weight saving, reliability and the ability to configure outputs via software are priorities.

The Elite 550 and 750 provide exceptional value for straightforward builds. However, if you anticipate adding features like drive-by-wire, multiple cam control or extensive data logging later, starting with an Elite 1500 or 2500 avoids the cost of replacing the ECU entirely. The Nexus range represents the highest capability but also the highest investment.

The R5 eliminates the need for separate relay boards, fuse boxes and wideband controllers by integrating these functions directly. The four 25A outputs can power injectors, coils, fuel pumps and cooling fans. The twelve 8A outputs handle sensors, solenoids and auxiliary devices. This consolidation reduces wiring, weight and potential failure points.

The dual on-board wideband controllers accept both Bosch LSU4.9 and NTK sensors directly, providing accurate air-fuel ratio data without external controllers. This simplifies installation and ensures the ECU has immediate access to closed-loop fuelling data.

With 150 channels logging at 1kHz and 512MB of internal storage, the R5 captures extensive data for post-session review. This level of logging allows detailed analysis of engine behaviour, driver inputs and vehicle dynamics throughout a session. The NSP software provides comprehensive tools for reviewing logged data and identifying areas for improvement.

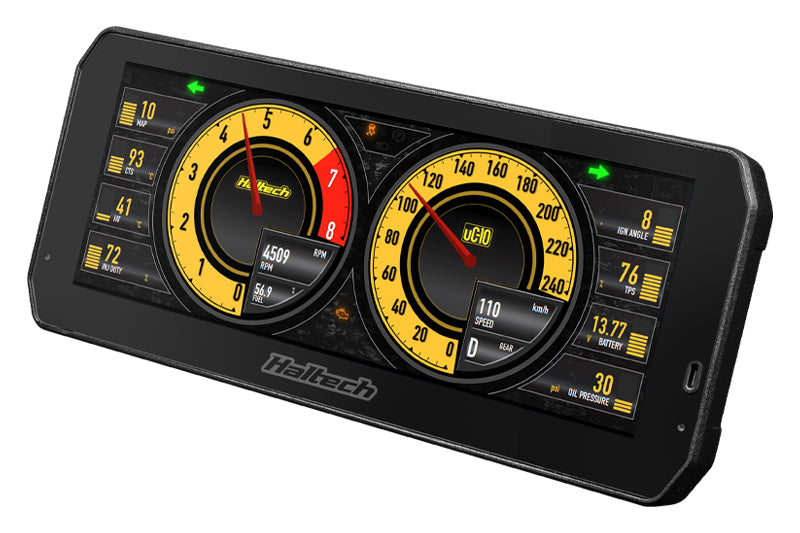

Three independent CAN networks allow the R5 to communicate with multiple subsystems without conflicts. Connect iC-7 dashes, CAN keypads, additional PD16 modules, external wideband sensors, EGT modules and third-party devices simultaneously. The R5 can control up to four PD16 units, providing 64 controlled outputs for complete vehicle electrical management.

• Dedicated race cars where wiring simplification and data acquisition are priorities
• High-power engines with extensive auxiliary requirements
• Builds requiring dual drive-by-wire throttle bodies
• Projects where integrated power distribution eliminates traditional fuse and relay panels
• Vehicles competing in series where detailed data analysis provides competitive advantage

The Elite 550 is designed for simple 4-cylinder applications without drive-by-wire or variable valve timing. It provides core engine management functions at the lowest price point in the Elite range. The Elite 750 adds DBW support and single VVT control, making it suitable for many modern 4-cylinder and basic 6-cylinder engines.

Both models use the same NSP software as higher-tier ECUs, so calibration knowledge transfers directly if you upgrade later. They include on-board data logging, flex fuel support and CAN communication for Haltech accessories.

With 8 injector and 8 ignition outputs plus dual VVT support, the Elite 1500 handles most V8 applications and complex 6-cylinder builds. Single drive-by-wire control covers the majority of modern electronic throttle setups. Enhanced data logging and expanded I/O make it suitable for track-focused builds.

The Elite 1500 often represents the best balance of capability and cost for serious road and track builds. It handles LS, RB, 2JZ and similar engines without limitation while remaining more accessible than the 2500 tier.

The Elite 2500 adds dual drive-by-wire control for engines or applications with two throttle bodies, plus additional outputs and enhanced features for complex racing setups. The 2500 T variant extends this further with even more outputs for demanding applications.

For builds requiring the absolute maximum from the Elite platform or planning significant expansion through CAN accessories, the 2500 series provides headroom. It is also the recommended minimum for applications requiring automatic transmission control through the ECU.

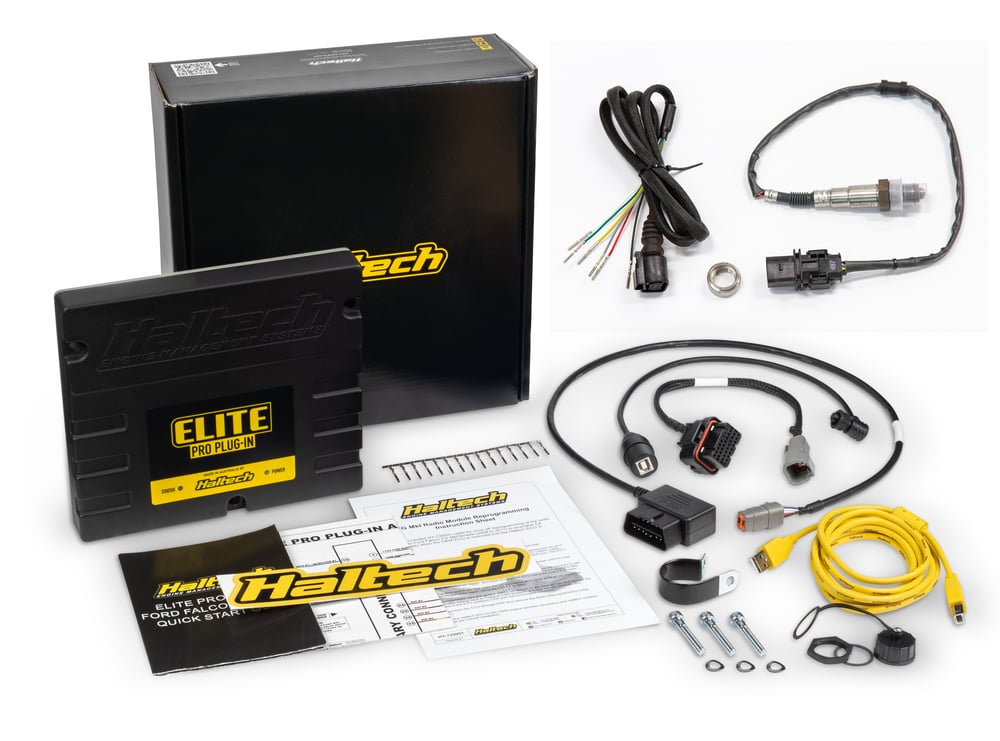

Haltech offers over 40 vehicle-specific adaptor harnesses that allow Elite ECUs to connect directly to factory wiring. These plug-and-play kits dramatically simplify installation by eliminating custom wiring. Available applications include various Ford, GM, Honda, Mazda, Mitsubishi, Nissan, Subaru, Toyota and Volkswagen models.

Check the compatibility list for your specific vehicle. Where available, plug-and-play kits offer the fastest path to a running Haltech system while retaining factory gauge function and OBD-II diagnostics.

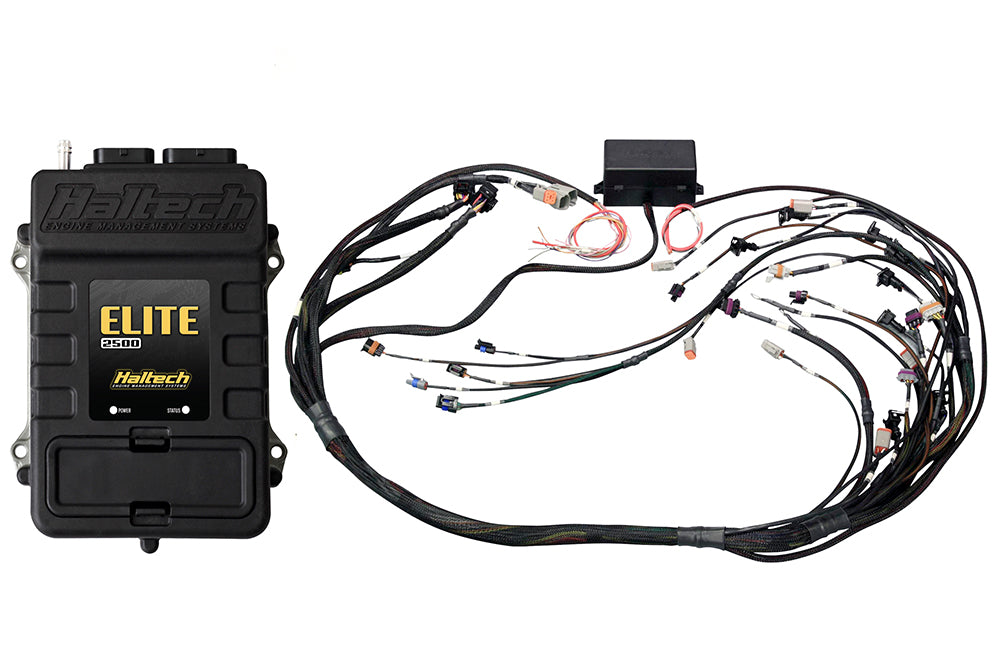

For engine swaps and custom builds, Haltech offers fully terminated harnesses for popular engines including LS (Gen III and Gen IV), 2JZ, RB, Barra, rotary and universal V8 applications. These harnesses include labelled connectors for all engine sensors, injectors and coils, significantly reducing installation time compared to a universal wire-in approach.
